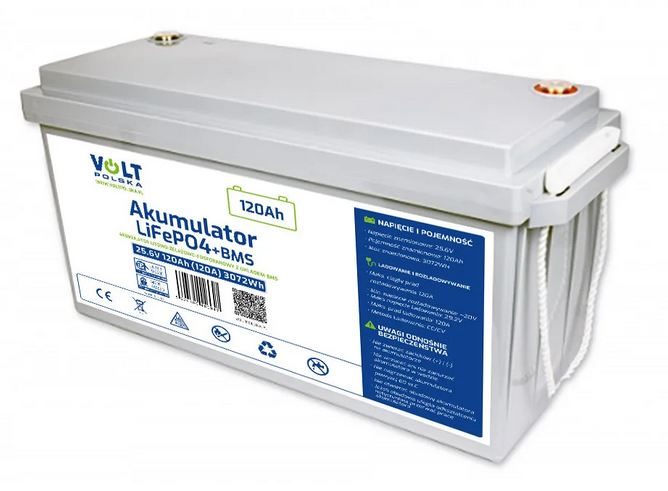

BATTERY LiFePO4 25,6V 120Ah (120A) + BMS
LiFePO4 (lithium-iron-phosphate) batteries with a built-in BMS system are primarily characterized by a very low weight and a large number of operating cycles (approx. 6000 cycles at 100% DoD and maintaining an average of 80% of their nominal capacity). Thanks to high cyclicity and very low self-discharge, the LiFePO4 battery is perfect for both emergency power systems and OFF-GRID installations. Low weight allows the device to be used in installations in vehicles (campers, food trucks) and boats. The built-in BMS system ensures the storage of the battery without losing the nominal capacity for a long time and controls the processes of charging and discharging the battery. What devices are powered by the LiFePO4 battery? • Emergency power systems • OFF-GRID installations • Installations in vehicles (campers, food trucks) • Boat installations
Nominal voltage: 25.6VNominal capacity: 120AH
Voltage range: 21.6V~29.2V
Cut-off voltage: 18.8V
Maximum charging current: 60A
Maximum discharge current: 120A
Life: 3000 cycles (100% DoD)
Life: 4500 cycles (80% DoD)
Life: 6000 cycles (60% DoD)
Height: 240mm
Width: 172mm
Length: 483mm
Weight: 21kg+/-3%
- LIFEPO4 DEEP CYCLE
