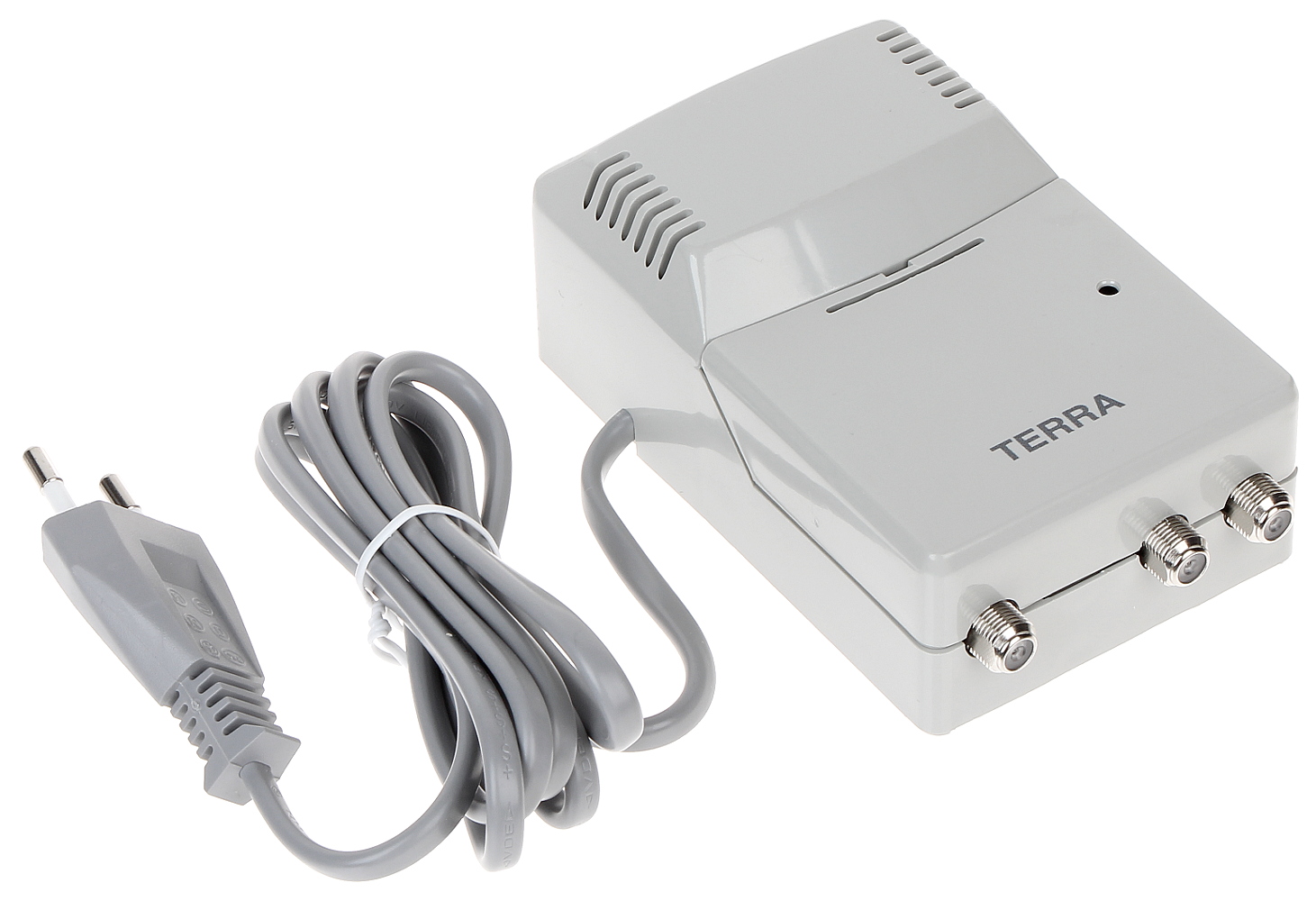

ANTENNA AMPLIFIER HS-013 TERRA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 47 MHz ... 400 MHz / 470 MHz ... 862 MHz ; Gain : 22 dB ; Voltage passing to the preamplifiers mounted inside antennas: 12 V ;
| Frequency range: | 47 MHz ... 400 MHz / 470 MHz ... 862 MHz |
| Number of inputs/outputs: | 1 / 2 |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |
| Gain : | 22 dB |
| Gain adjustment: | 12 dB UHF 15 dB VHF |
| S/N ratio: | < 4.5 dB |
| IMA3 60dB: | max. 105 dBµV |
| Voltage passing to the preamplifiers mounted inside antennas: | 12 V / 100 mA (switch) |
| Power supply: | 198 ... 240 V |
| Power consumption: | 4 W |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.38 kg |
| Dimensions: | 119 x 71 x 45 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
Brand:
Terra
