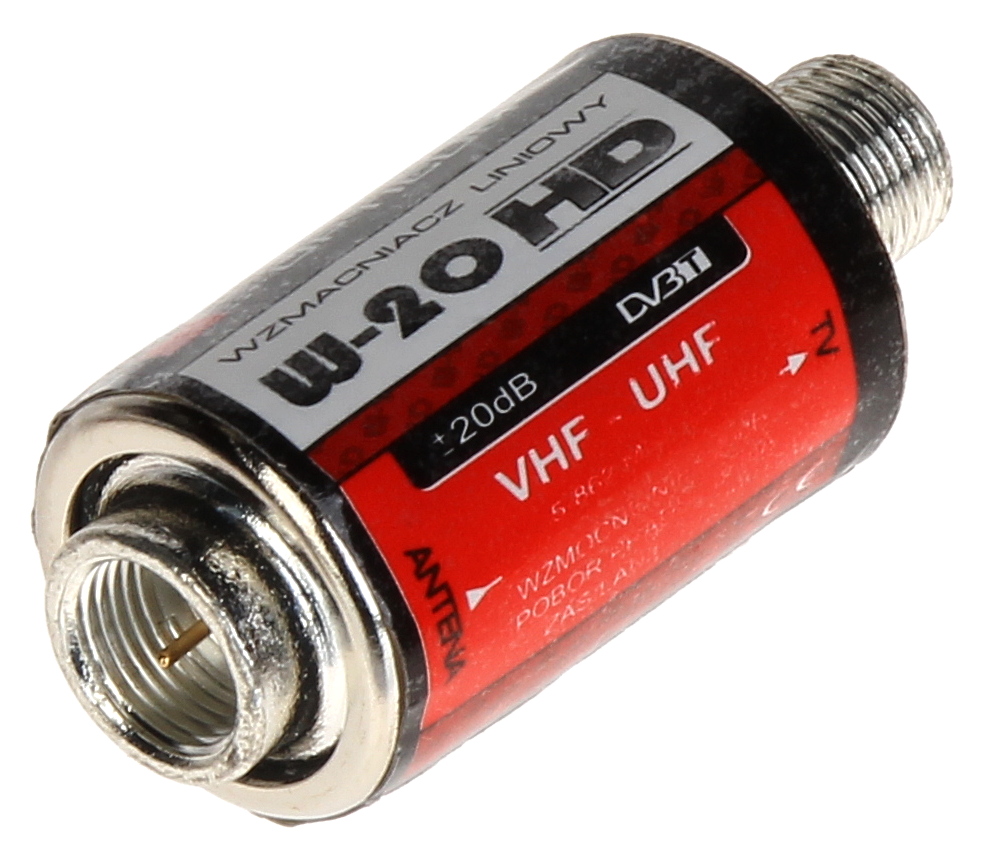

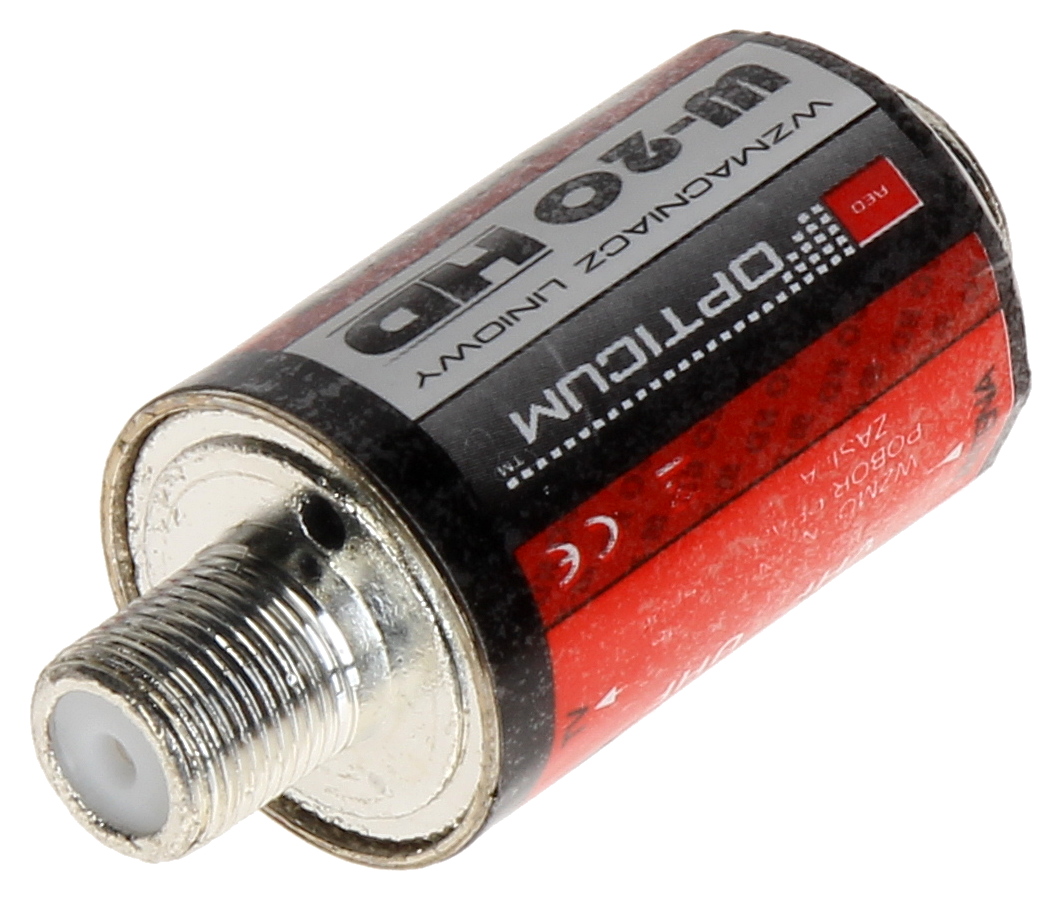

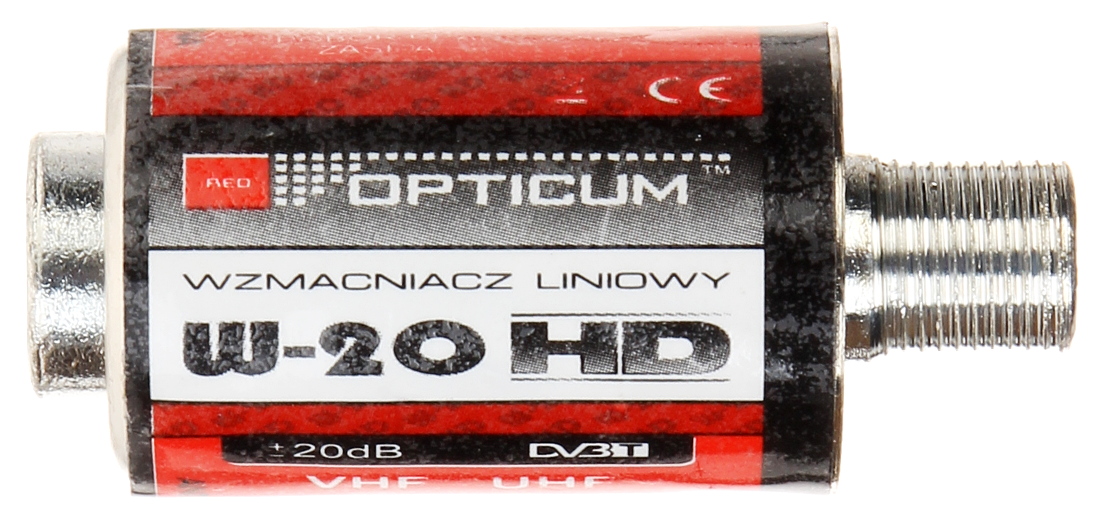

ANTENNA AMPLIFIER W-20 OPTICUM
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 5 MHz ... 860 MHz ; Number of inputs/outputs: 1 / 1 ; Gain : 20 dB ;
| Frequency range: | 5 MHz ... 860 MHz |
| Number of inputs/outputs: | 1 / 1 |
| Input/output impedance: | 75 Ω |
| Connectors type: | 1 x F plug / 1 x F socket |
| Gain : | 20 dB |
| DC voltage passing: |  |
| Main features: | Built-in GSM / LTE filter |
| Power supply: | 5 ... 12 V DC / 35 mA (from output side) |
| Operation temp: | -10 °C ... 50 °C |
| Weight: | 0.030 kg |
| Dimensions: | Ø 21 x 47 mm |
| Manufacturer / Brand: | OPTICUM |
| Guarantee: | 2 years |
Brand:
Opticum
