ANTENNA AMPLIFIER AWS-1142 AMS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 87 MHz ... 790 MHz ; Number of inputs/outputs: 1 / 2 ; Gain : 17 dB / 19 dB ;
| Frequency range: | 87 MHz ... 790 MHz |
| Number of inputs/outputs: | 1 / 2 |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |
| Gain : | 17 dB / 19 dB |
| Gain adjustment: | 0 dB ... 10 dB (+/- 1dB) |
| S/N ratio: | ≤ 4 dB |
| Maximum output level: | 104 dBµV |
| IMA3 60dB: | 98 dBµV |
| IMA2 60dB: | 85 dBµV |
| Return loss: | ≥ 10 dB |
| Pre-amplifiers powering: |  |
| Operation temp: | -25 °C ... 55 °C |

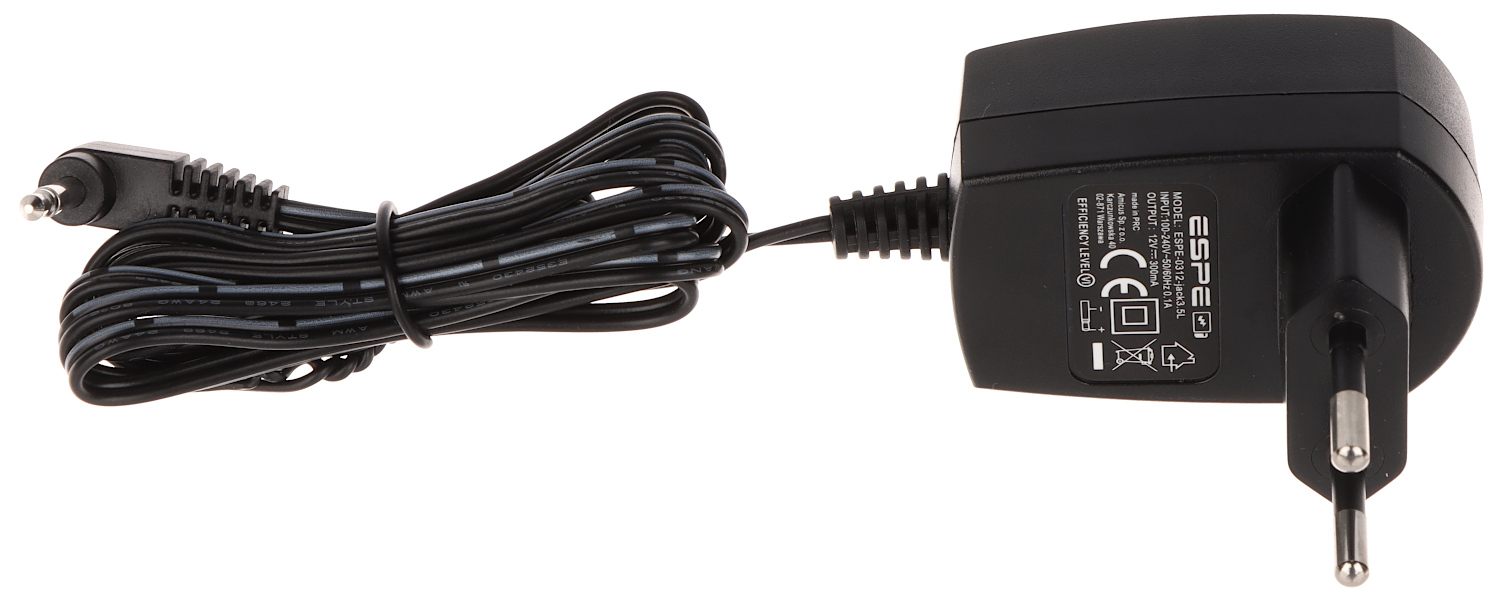

| Power supply: | 12 V DC / 300 mA (power adapter included) |
| Manufacturer / Brand: | AMS |
| Guarantee: | 2 years |
Brand:
AMS
