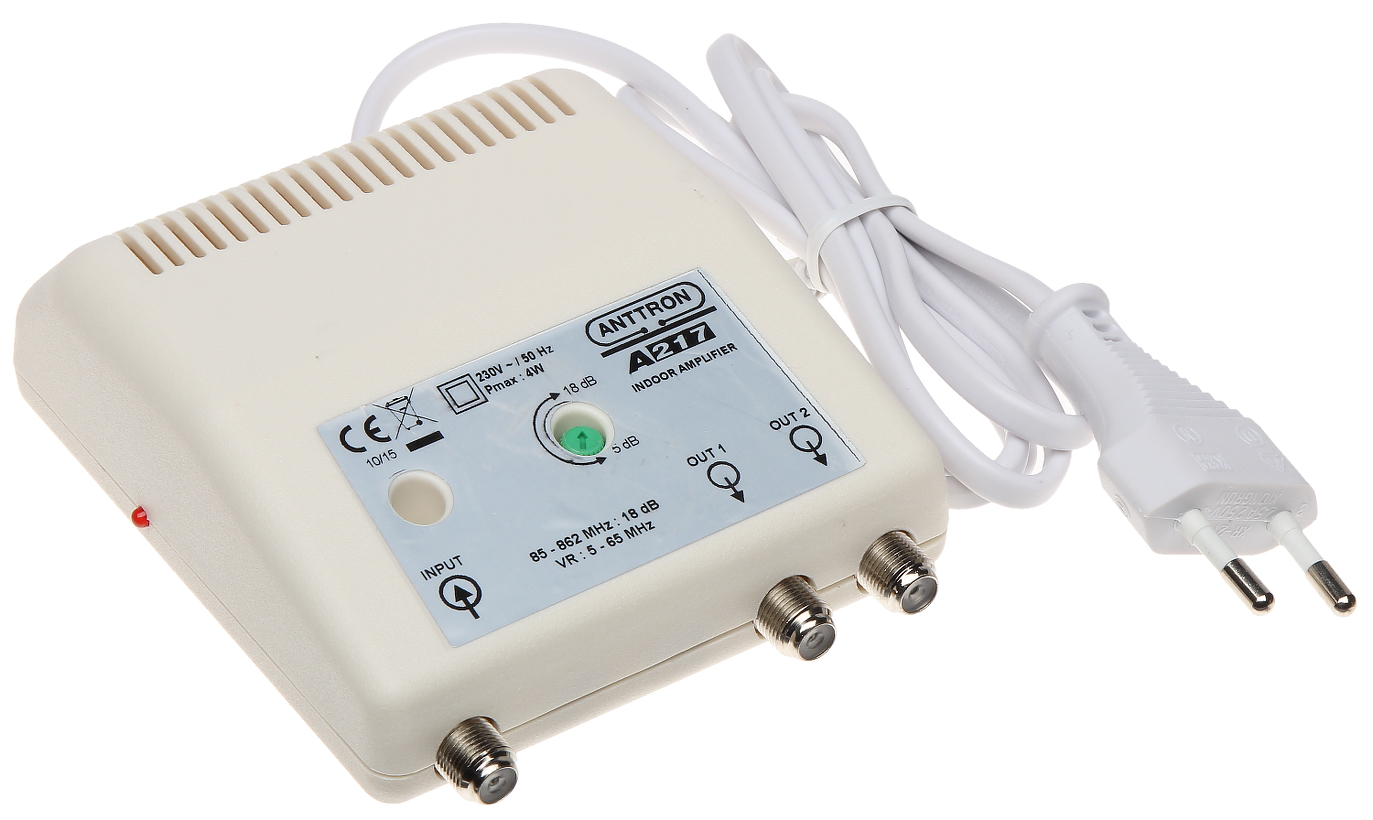

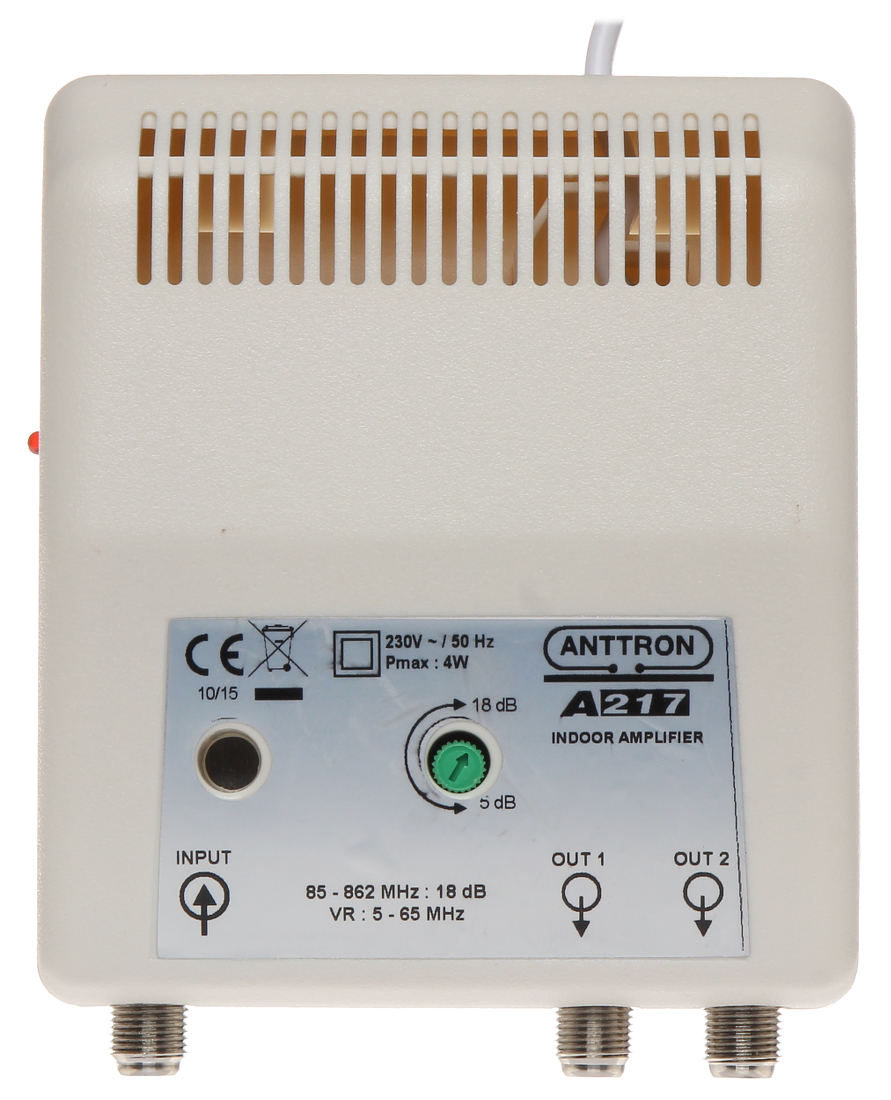

ANTENNA AMPLIFIER ANTTRON-A217
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 5 MHz ... 65 MHz, 85 MHz ... 862 MHz ; Number of inputs/outputs: 1 / 2 ; Gain : 18 dB ;
| Frequency range: | |
| Number of inputs/outputs: | 1 / 2 |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |
| Gain : | 18 dB |
| Gain adjustment: | 5 dB ... 18 dB |
| S/N ratio: | 4.5 dB |
| IMA3 60dB: | 105 dBµV |
| Return loss: | > 10 dB |
| Return channel loss: | 6 dB |
| Isolation between outputs: | > 20 dB |
| Power supply: | 230 V AC |
| Power consumption: | 4 W |
| Weight: | 0.28 kg |
| Dimensions: | 115 x 95 x 35 mm |
| Manufacturer / Brand: | ANTTRON |
| Guarantee: | 2 years |
Brand:
Anttron
