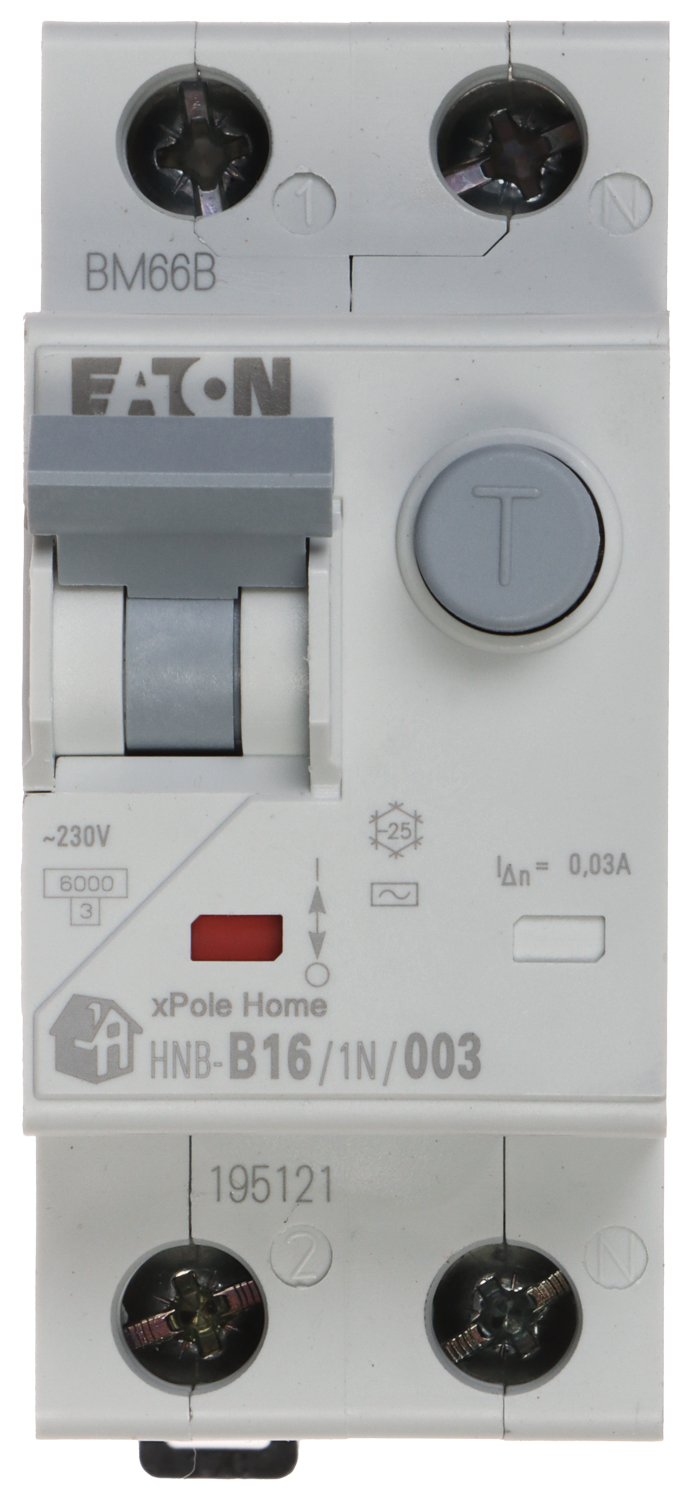

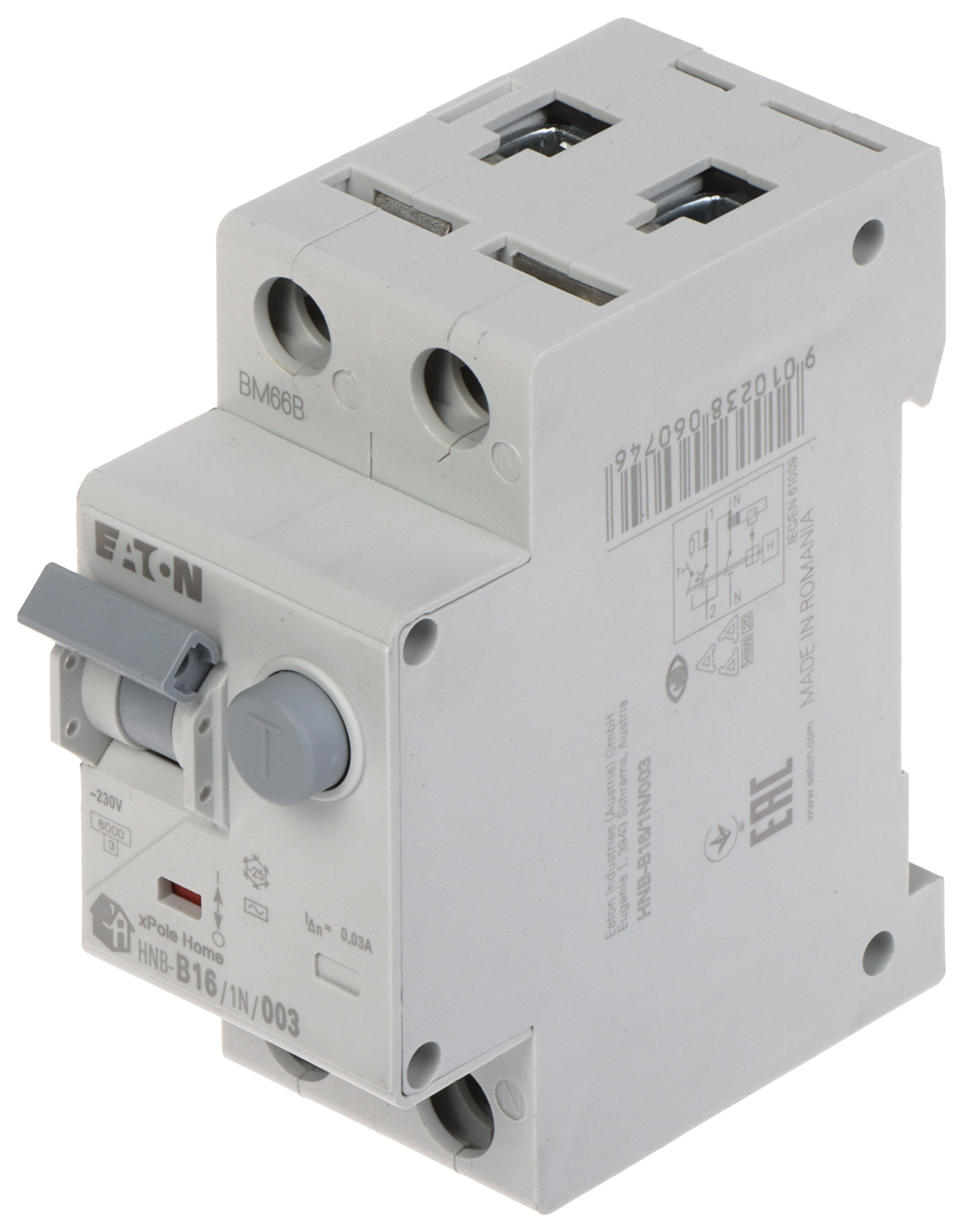

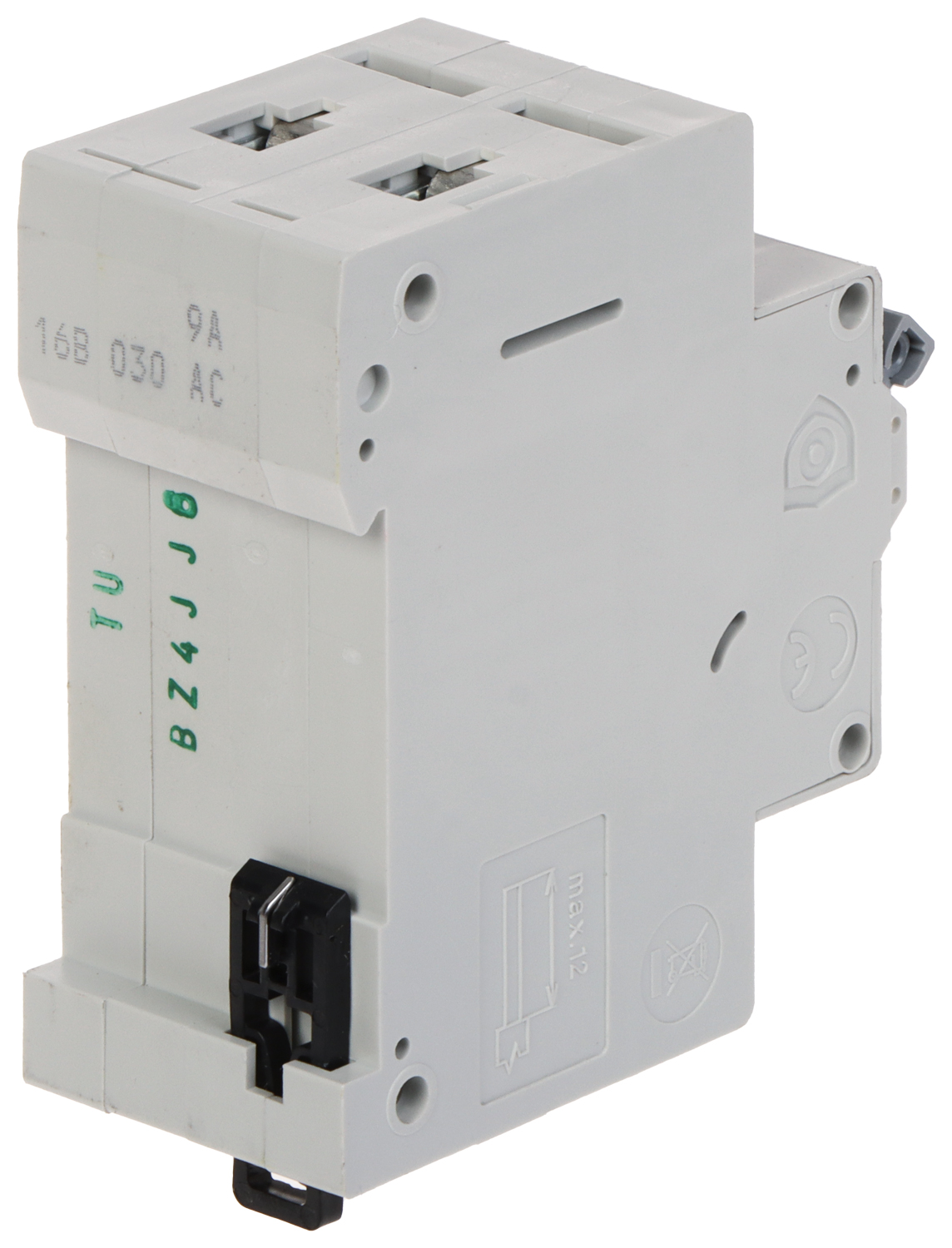

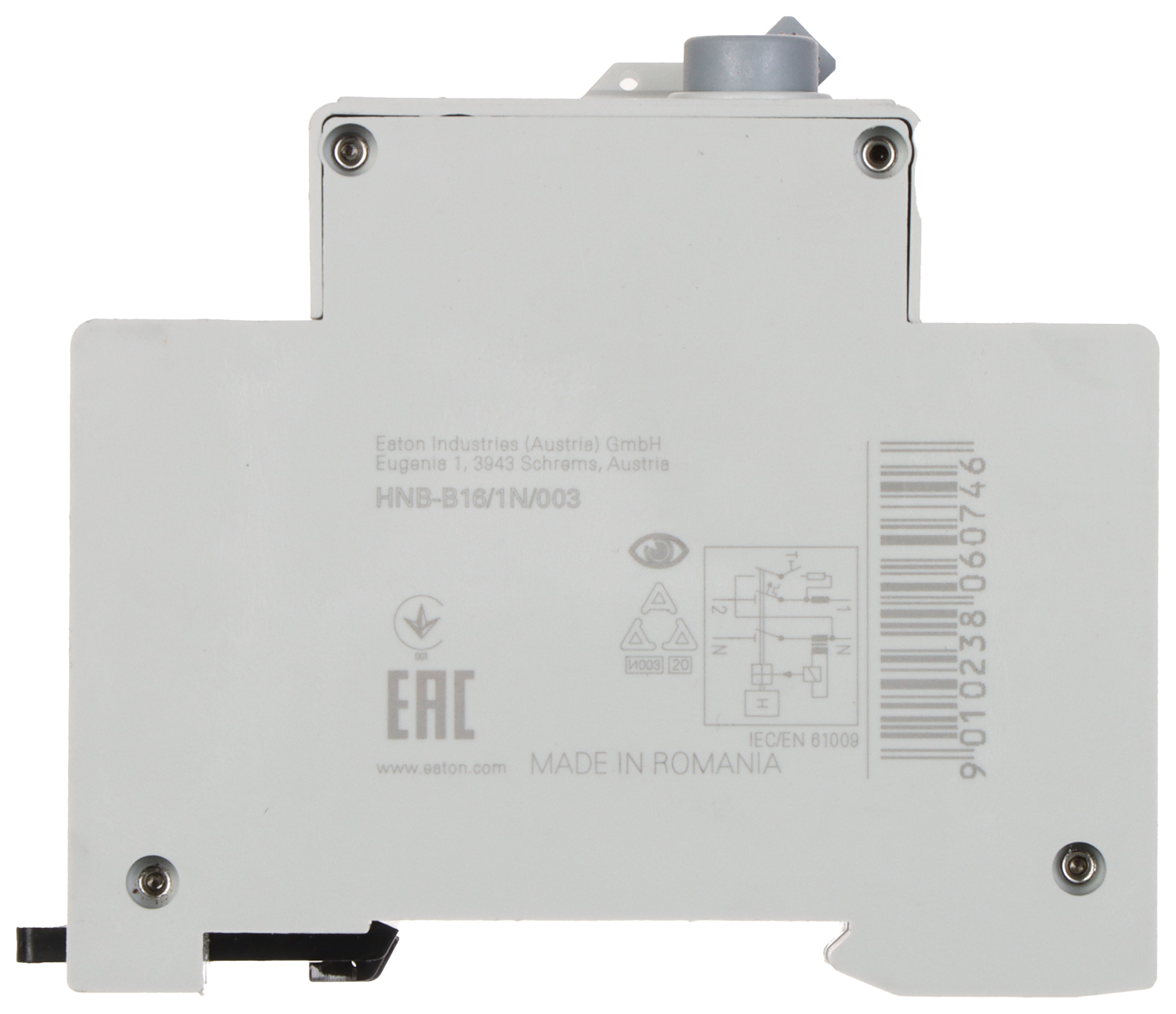

RESIDUAL CURRENT CIRCUIT BREAKER HNB-B16/1N/003 ONE-PHASE, AC TYPE 30 mA 16 A EATON
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Residual Current Circuit Breaker, One-phase, AC type, B curve ; Rated sensitivity: 30 mA ; Rated current: 16 A ; Number of poles: 2 ; Breaking capacity: 6000 A ; Connectors type: screw terminals ; Wire gauge: 1.5 mm² - 25 mm² ; Housing: DIN, TS-35 rail mounting ;
| Device type: | Residual Current Circuit Breaker, One-phase, AC type, B curve |
| Rated sensitivity: | 30 mA |
| Rated current: | 16 A |
| Number of poles: | 2 |
| Breaking capacity: | 6000 A |
| Rated voltage: | 230 V AC / 50 Hz |
| Connectors type: | screw terminals |
| Wire gauge: | 1.5 mm² - 25 mm² |
| Main features: | |
| Housing: | Plastic, DIN, TS-35 rail mounting |
| Width in 17.5 mm modules: | 2 |
| Weight: | 0.196 kg |
| Dimensions: | 84 x 35.5 x 73 mm |
| Manufacturer / Brand: | EATON |
| Guarantee: | 2 years |
Brand:
Eaton
