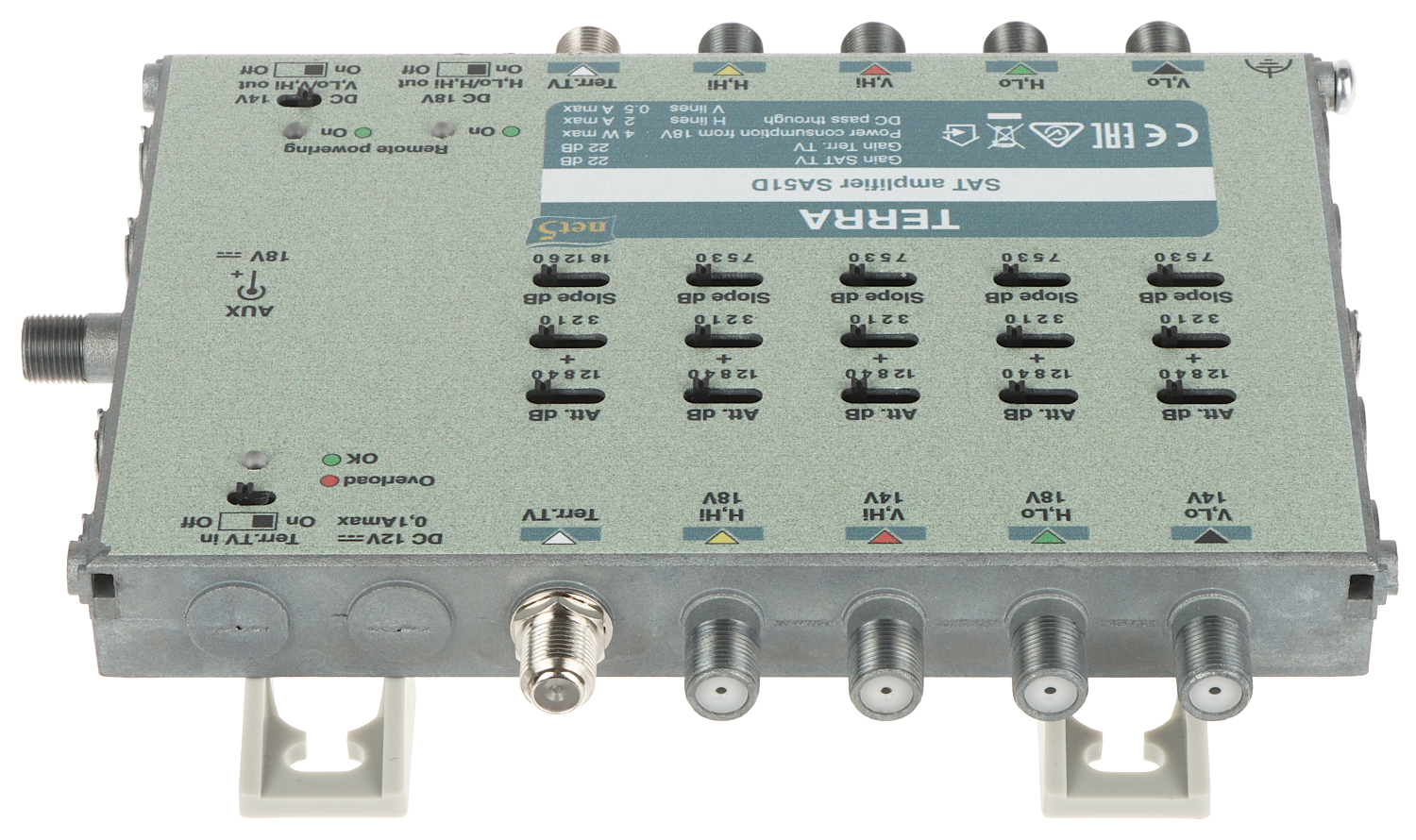

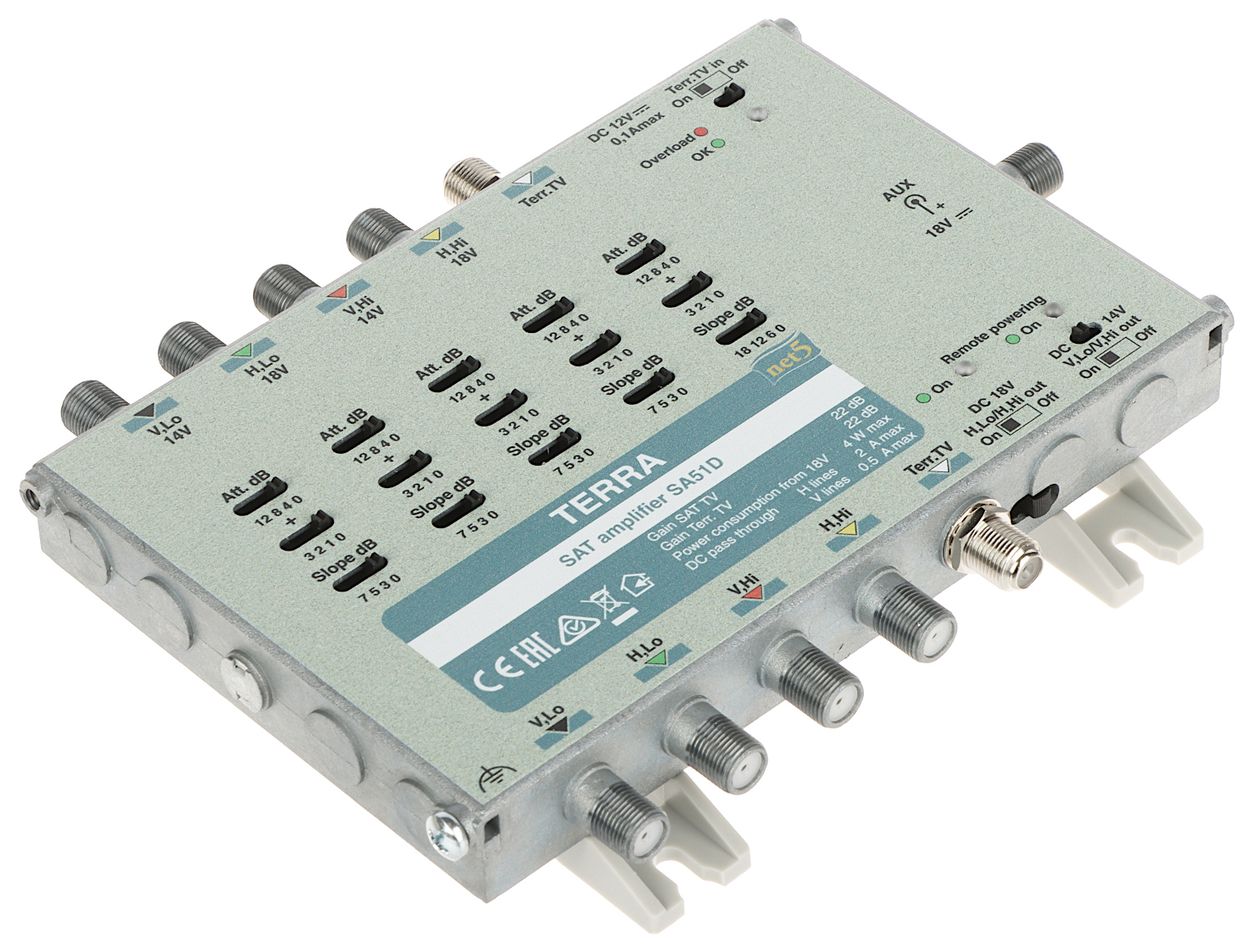

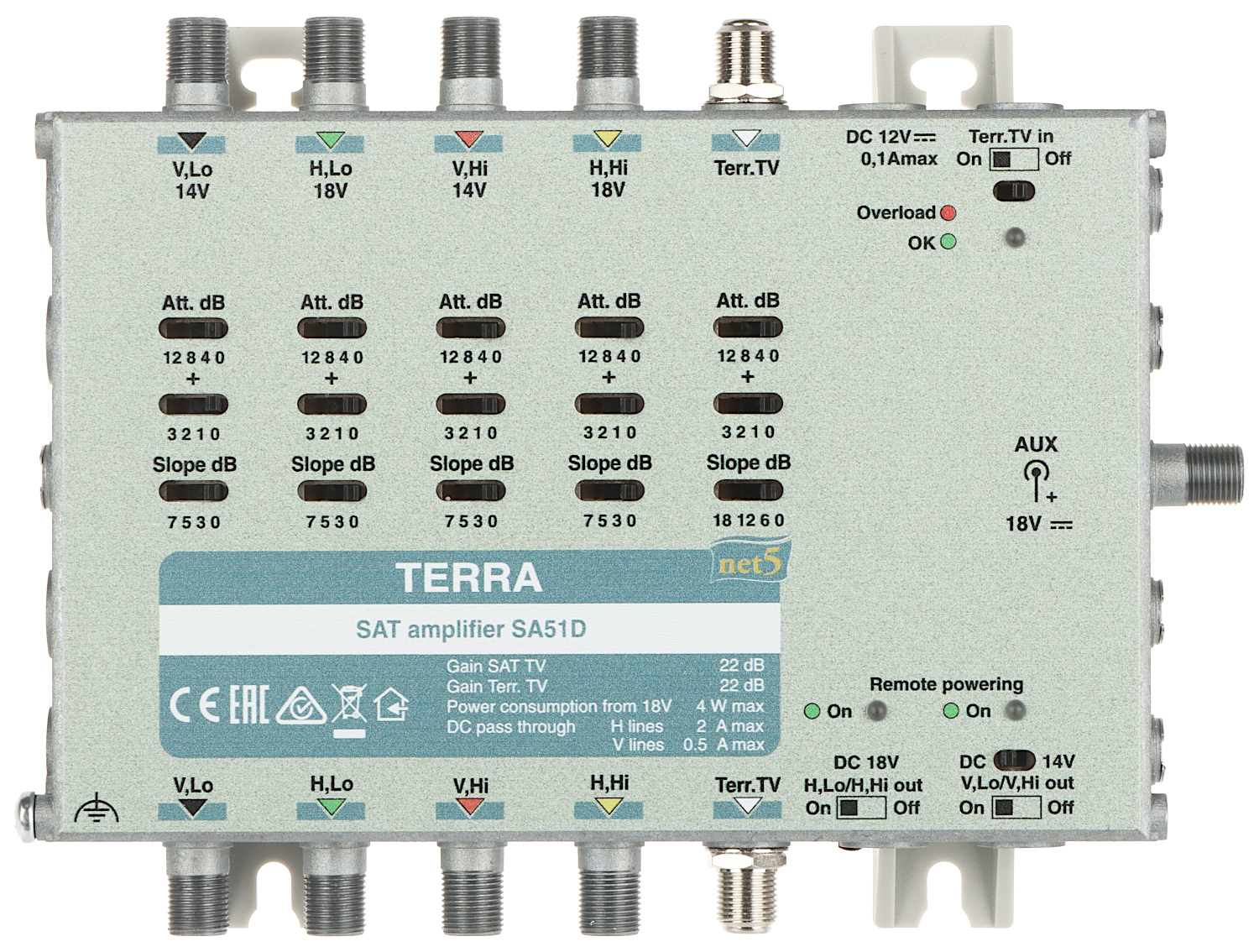

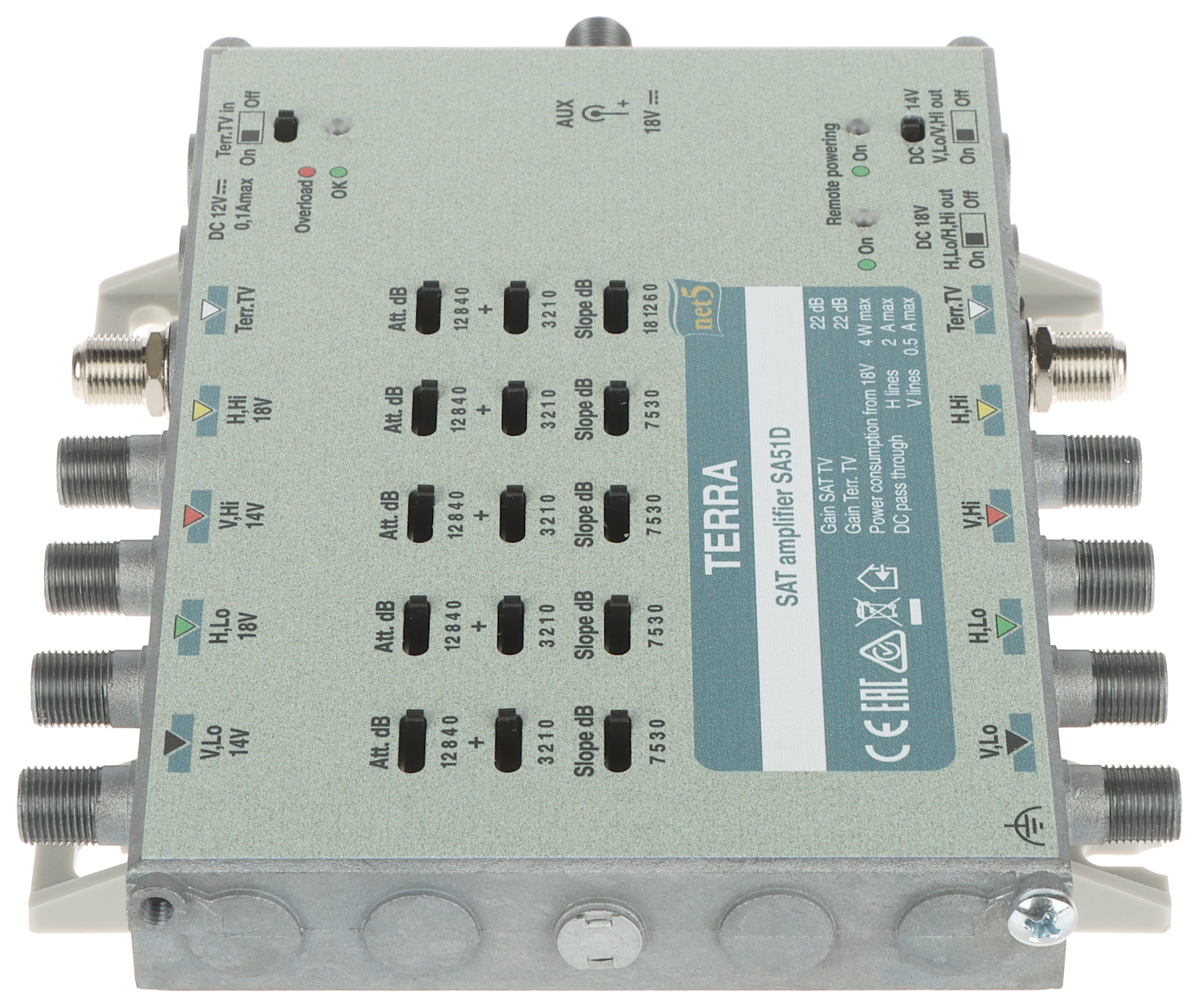

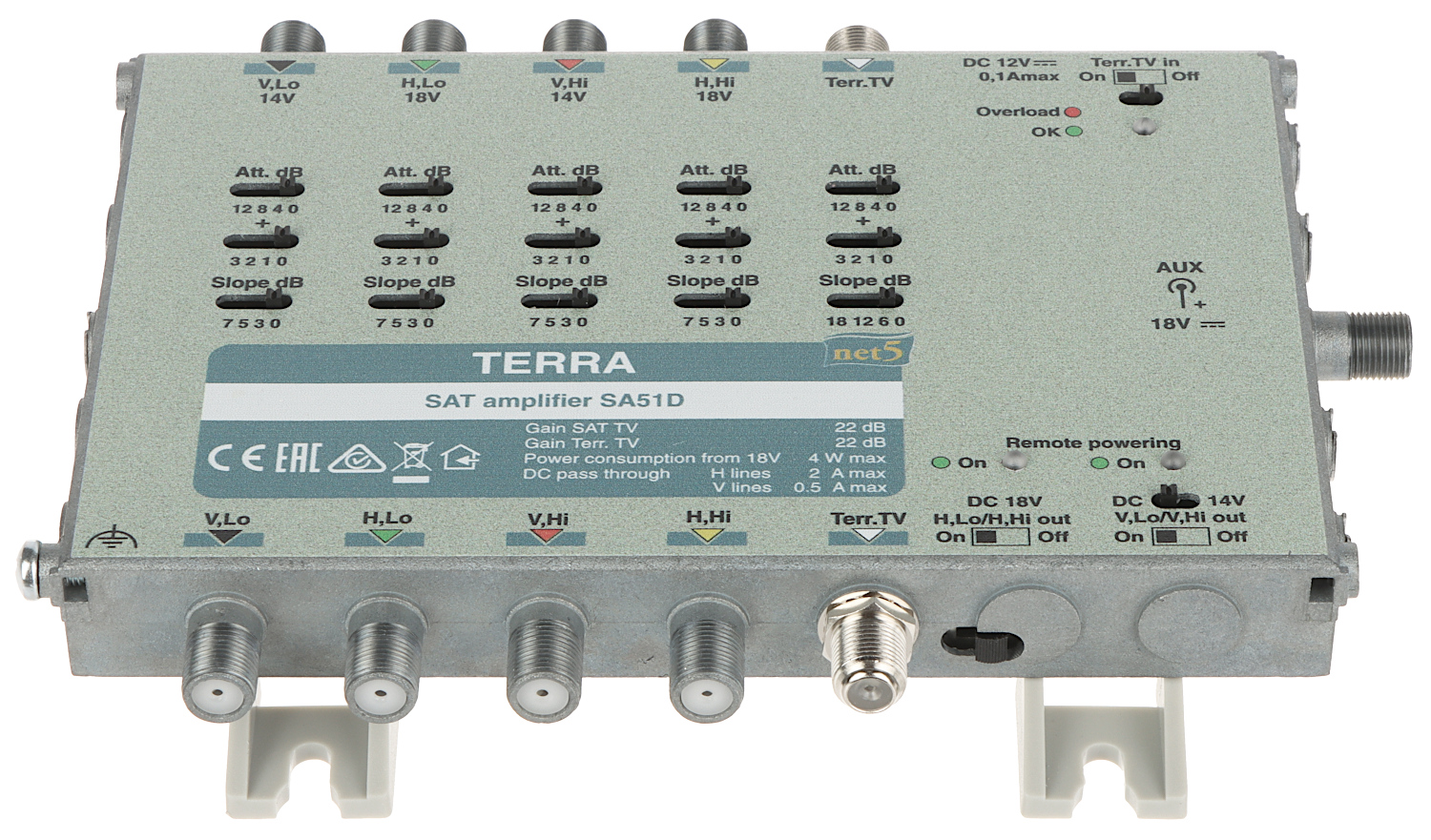

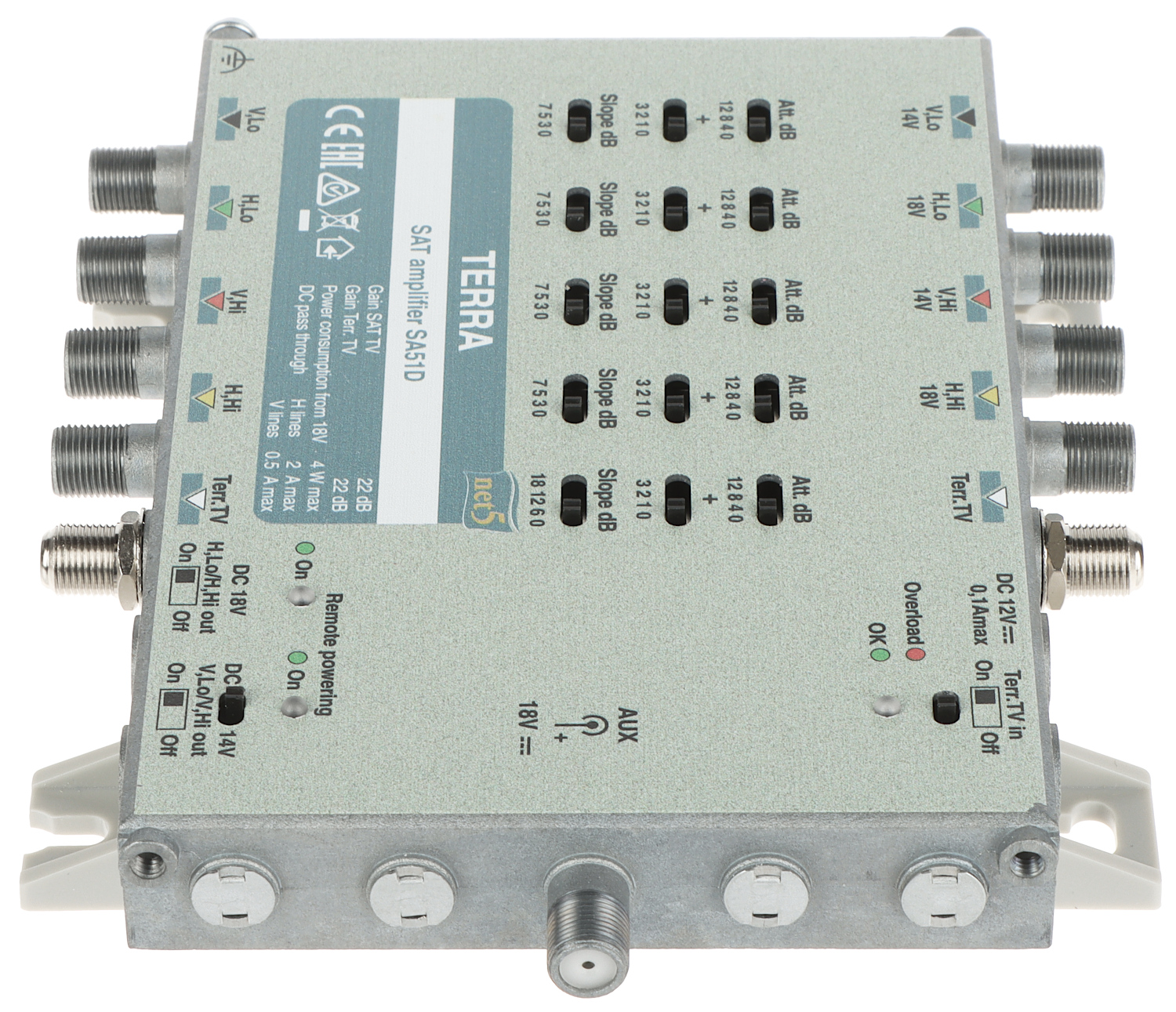

AMPLIFIER FOR MULTISWITCHES SA-51D 5 INPUTS / 5 OUTPUTS TERRA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 4x 950 MHz ... 2400 MHz, 1x 47 MHz ... 790 MHz ; Outputs: V.Lo, H.Lo, V.Hi, H.Hi, RTV ; SAT amplification: 22 dB ; TV amplification: 22 dB ; Isolation: Between inputs SAT/SAT 30 dB Between inputs TV/SAT 30 dB ; Pre-amplifiers powering: 12 V DC ;
| Inputs: | 4x 950 MHz ... 2400 MHz , 1x 47 MHz ... 790 MHz |
| Outputs: | V.Lo, H.Lo, V.Hi, H.Hi, RTV |
| SAT amplification: | 22 dB |
| SAT Gain control: | 0 ... 15 dB by 1 dB step |
| SAT amplification (cable pre-correction): | 0 / 3 / 5 / 7 dB |
| TV amplification: | 22 dB |
| TV Gain control: | 0 ... 15 dB by 1 dB step |
| TV amplification (cable pre-correction): | 0 / 6 / 12 / 18 dB |
| Isolation: | |
| Self-noises: | < 9 dB |
| Maximal output level SAT: | 114 dBµV |
| Maximal output level TV: | 109 dBµV |
| Device powering: |  |
| Pre-amplifiers powering: | 12 V DC / 0.1 A |
| DC pass (max.): | 2 A |
| Power supply: | 9 ... 18 V DC |
| Power consumption: | 4 W |
| Operation temp: | -20 °C ... 50 °C |
| Dimensions: | 178 x 135 x 32 mm |
| Weight: | 0.53 kg |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
Brand:
Terra
