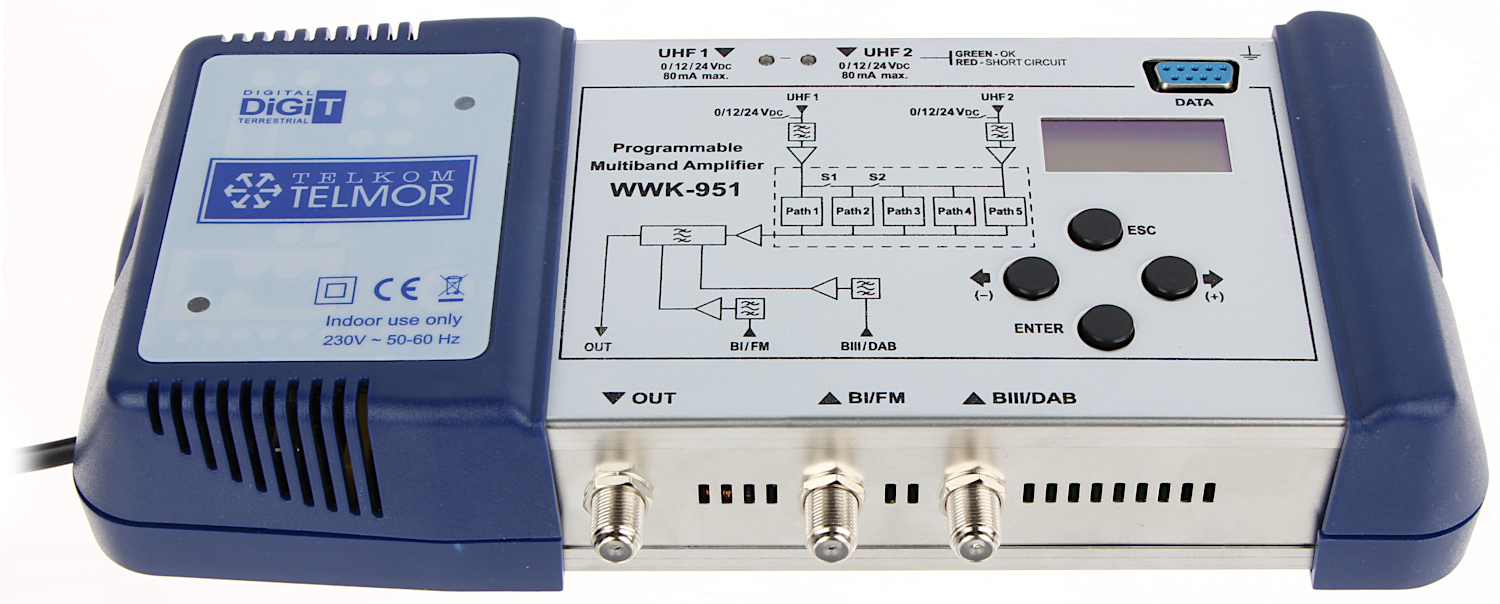

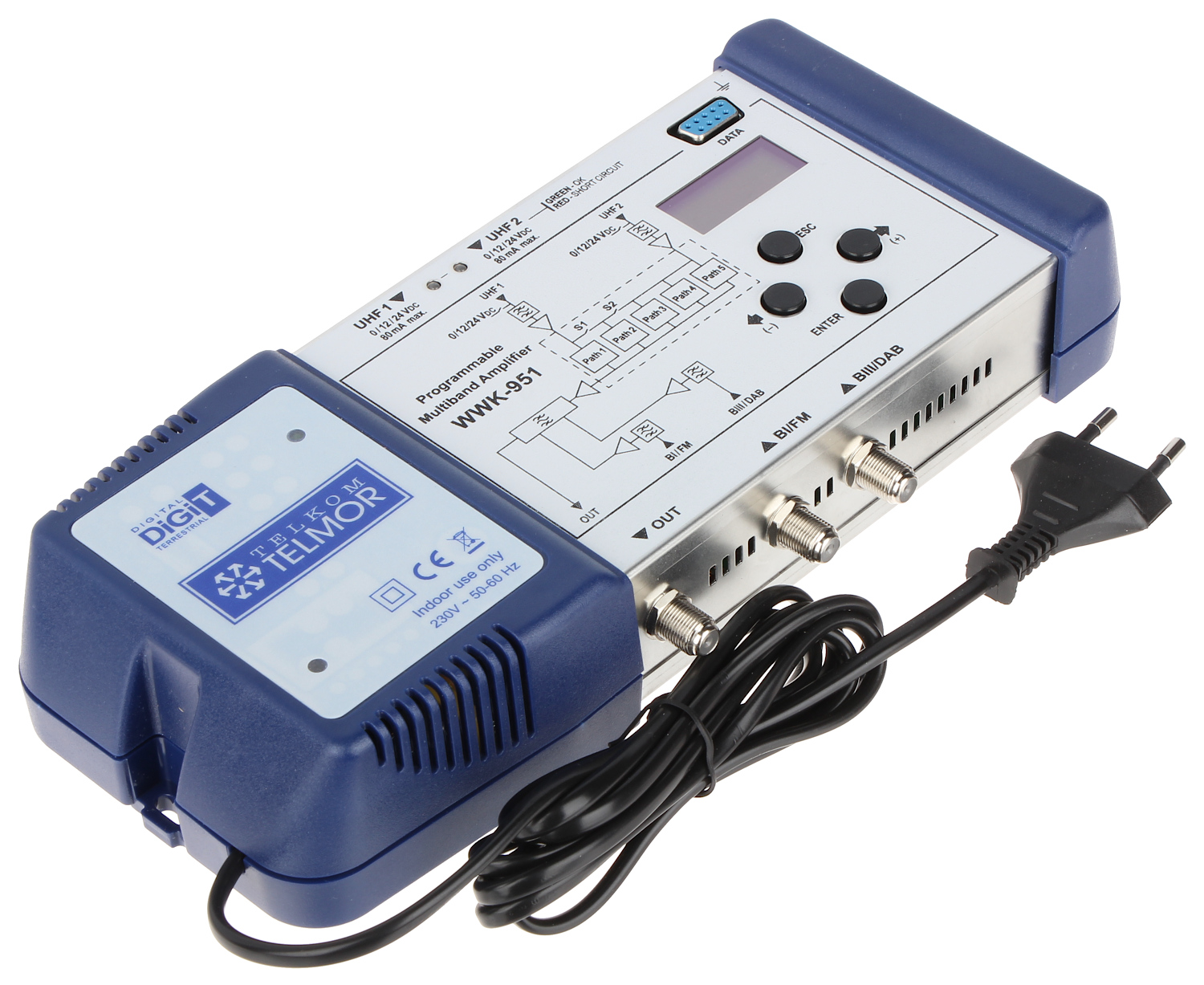

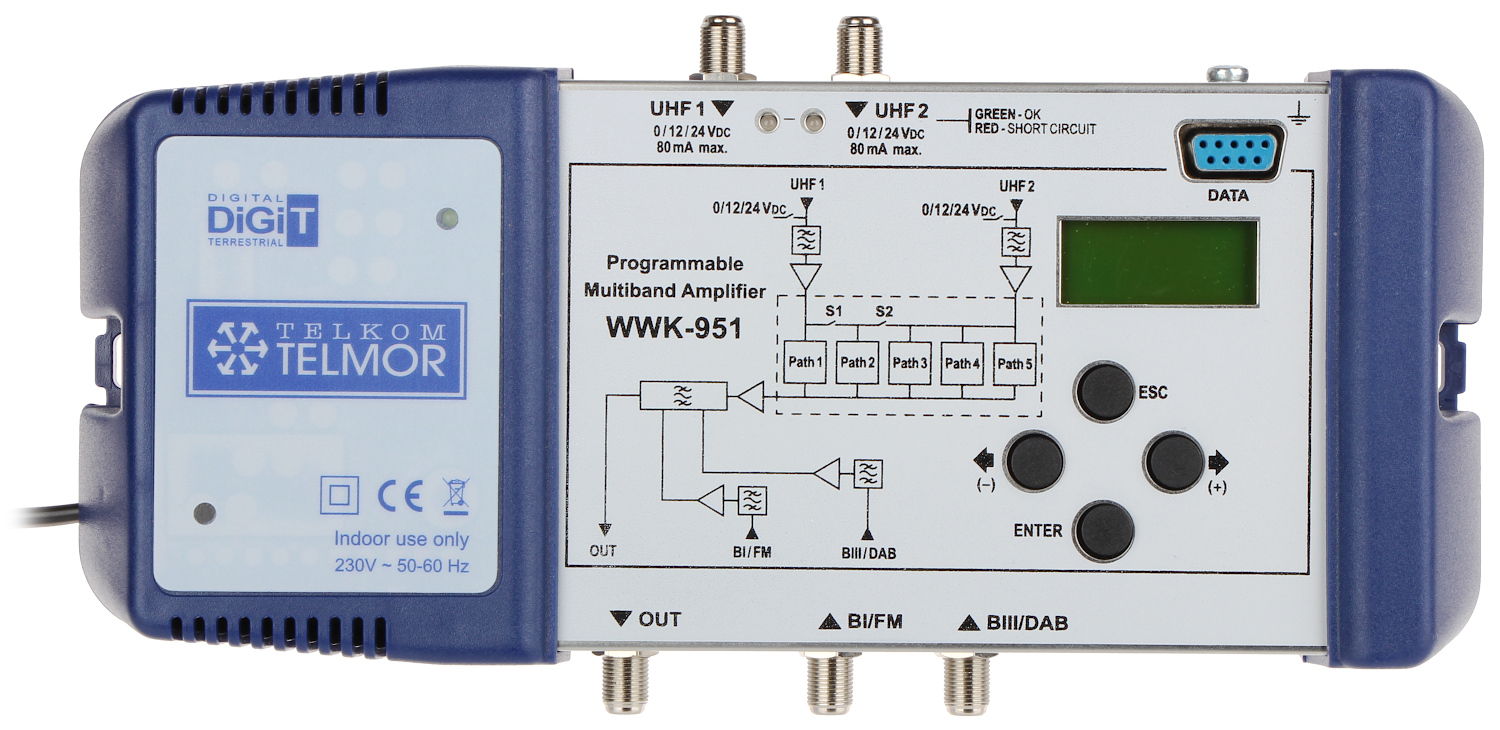

PROGRAMMABLE MULTI-RANGE AMPLIFIER WWK-951 TELMOR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 47 MHz ... 108 MHz - FM, 174 MHz ... 230 MHz - VHF, 470 MHz ... 862 MHz - UHF ; Maximal output level IMD3=60 dB DIN45004B: 107 dBµV @ FM / VHF, 116 dBµV @ UHF ;
| Frequency range: | 47 MHz ... 108 MHz - FM , 174 MHz ... 230 MHz - VHF , 470 MHz ... 862 MHz - UHF |
| Gain : | 21 dB ± 2 dB @ FM 35 dB ± 2 dB @ VHF 45 dB ± 3 dB @ UHF |
| Number of inputs/outputs: | 4 / 1 |
| Gain adjustment: | 0 dB ... 20 dB |
| Maximal output level IMD3=60 dB DIN45004B: | 107 dBµV @ FM / VHF , 116 dBµV @ UHF |
| S/N ratio: | 6 dB @ FM , 5 dB @ VHF , 8 dB @ UHF |
| Power supply: | 230 V AC |
| Power consumption: | 20 W |
| Operation temp: | -5 °C ... 50 °C |
| Weight: | 0.7 kg |
| Dimensions: | 257 x 128 x 51 mm |
| Manufacturer / Brand: | TELMOR |
| Guarantee: | 2 years |
Brand:
Telmor
