PROGRAMMABLE MULTI-RANGE AMPLIFIER JOHANSSON-6714/LITE JOHANSSON
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 174 MHz ... 240 MHz - VHF, 470 MHz ... 694 MHz - UHF ; Maximal output level IMD3=60 dB DIN45004B: 114 dBµV @ VHF / UHF ;
| Frequency range: | 174 MHz ... 240 MHz - VHF , 470 MHz ... 694 MHz - UHF |
| Gain : | max. 65 dB |
| Number of inputs/outputs: | 3 / 1 |
| Gain adjustment: | 0 dB ... 65 dB - Auto Gain Control |
| Maximal output level IMD3=60 dB DIN45004B: | 114 dBµV @ VHF / UHF |

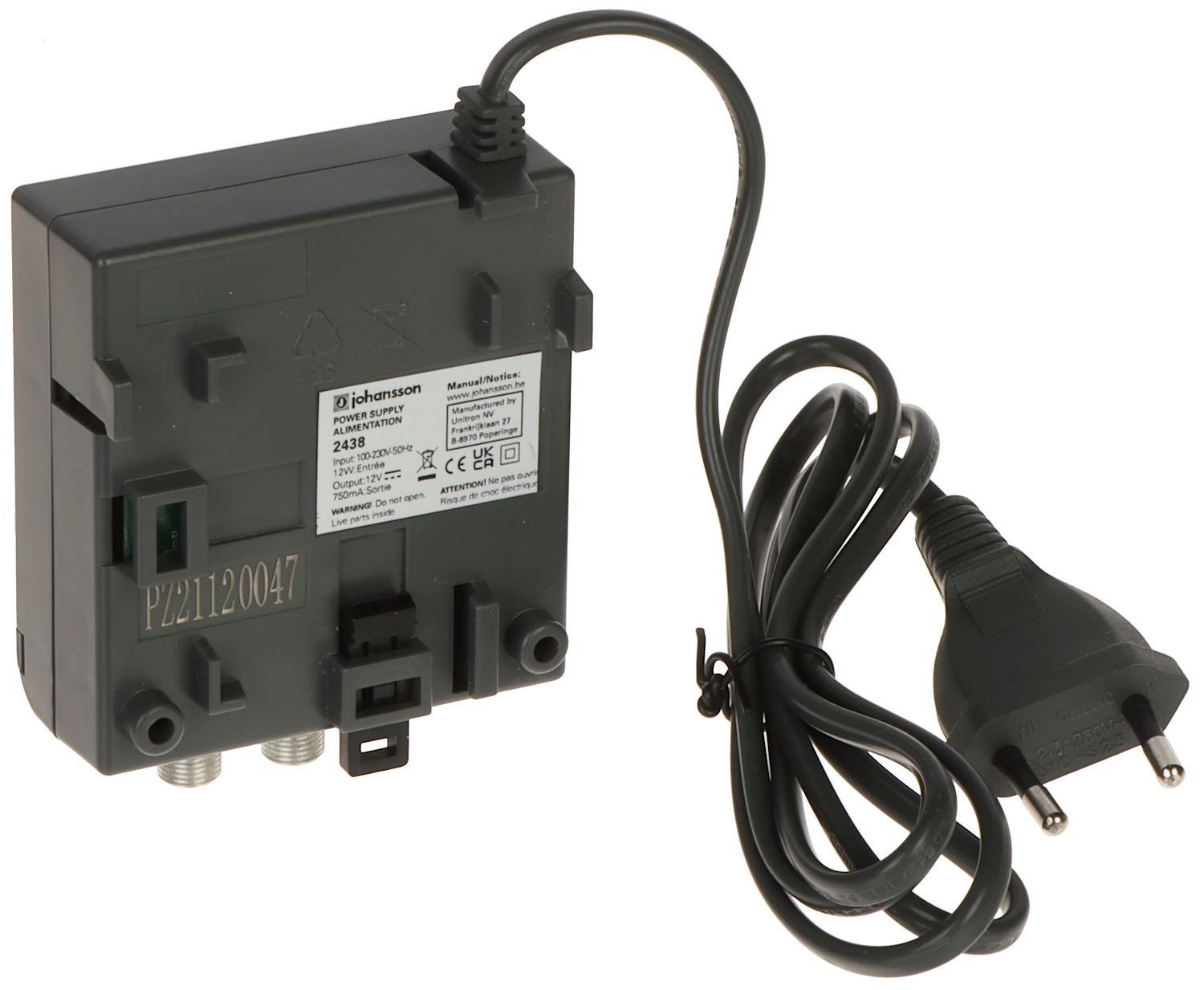

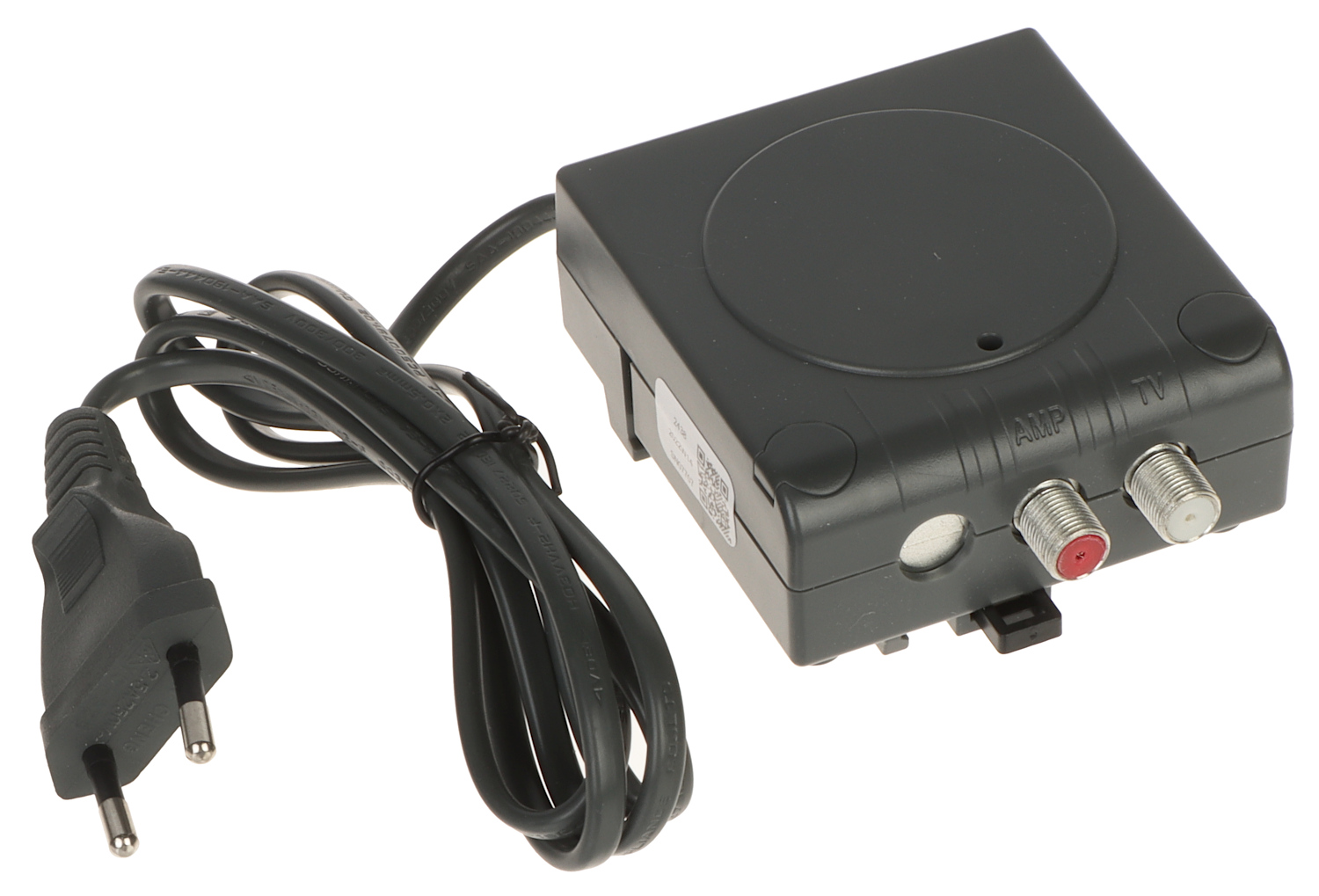

| Power supply: | 12 V DC (power adapter included) |
| Power consumption: | 9 W |
| Operation temp: | -5 °C ... 50 °C |
| Weight: | 0.5 kg |
| Dimensions: | 190 x 163 x 58 mm |
| Manufacturer / Brand: | JOHANSSON |
| Guarantee: | 2 years |
