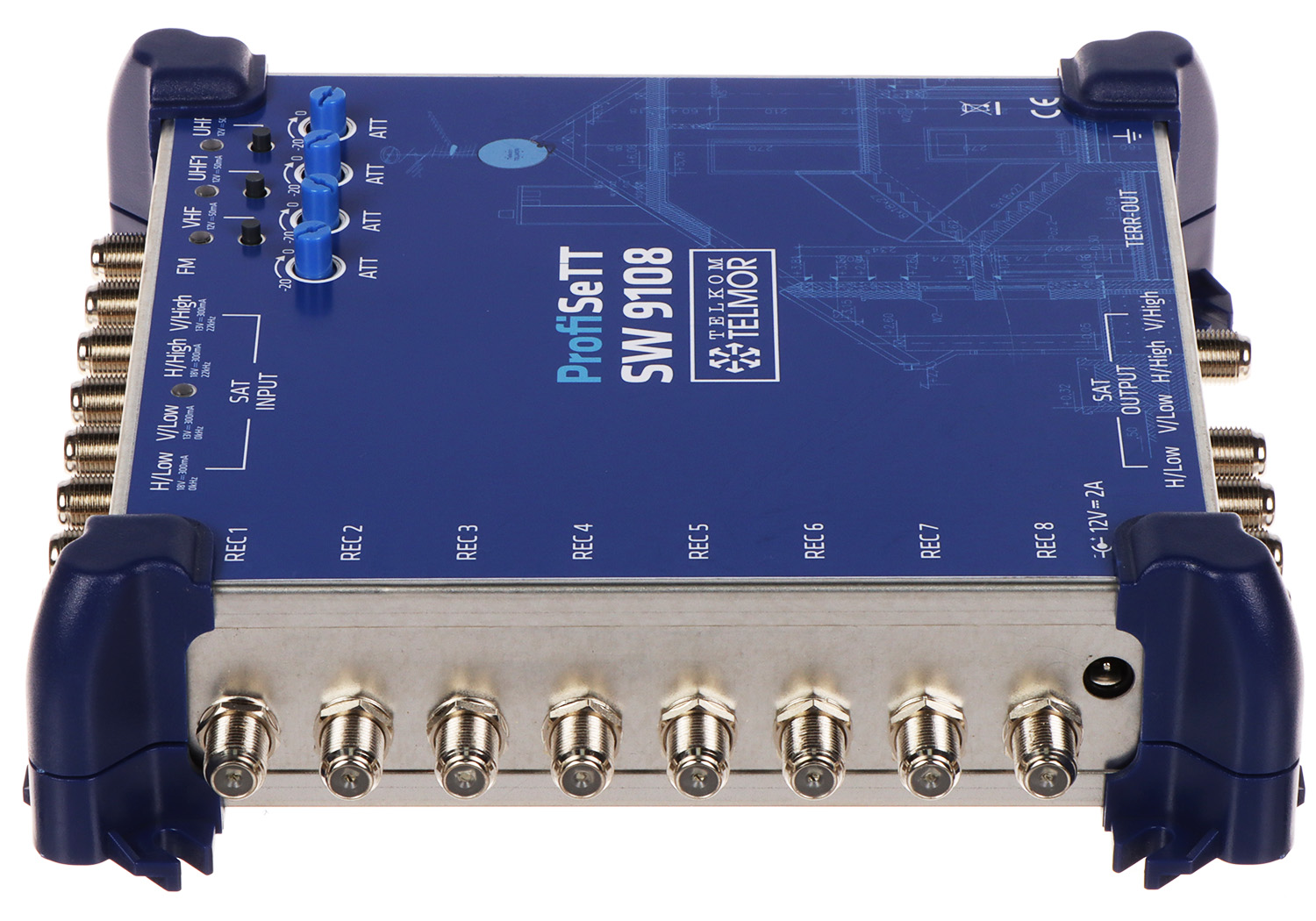

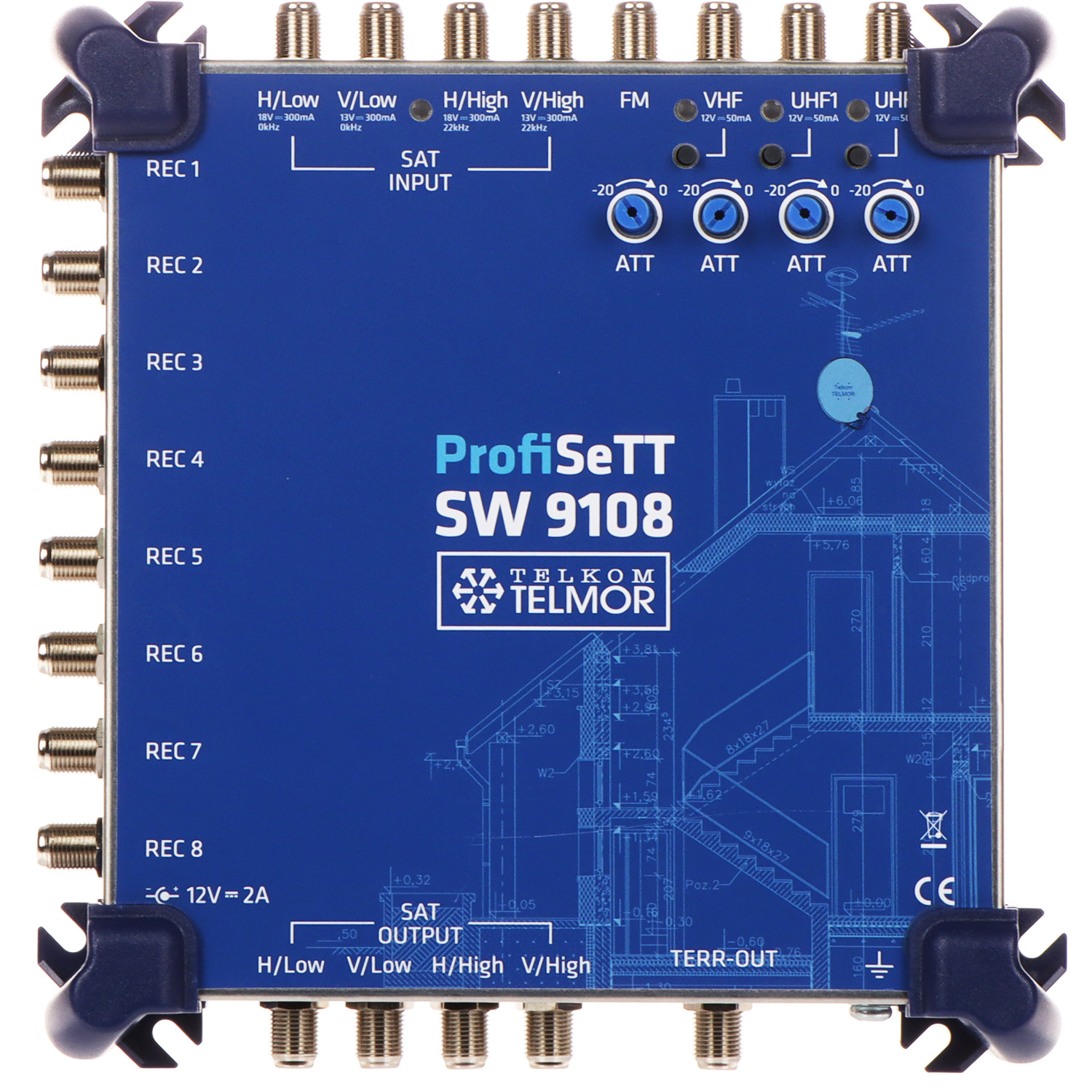

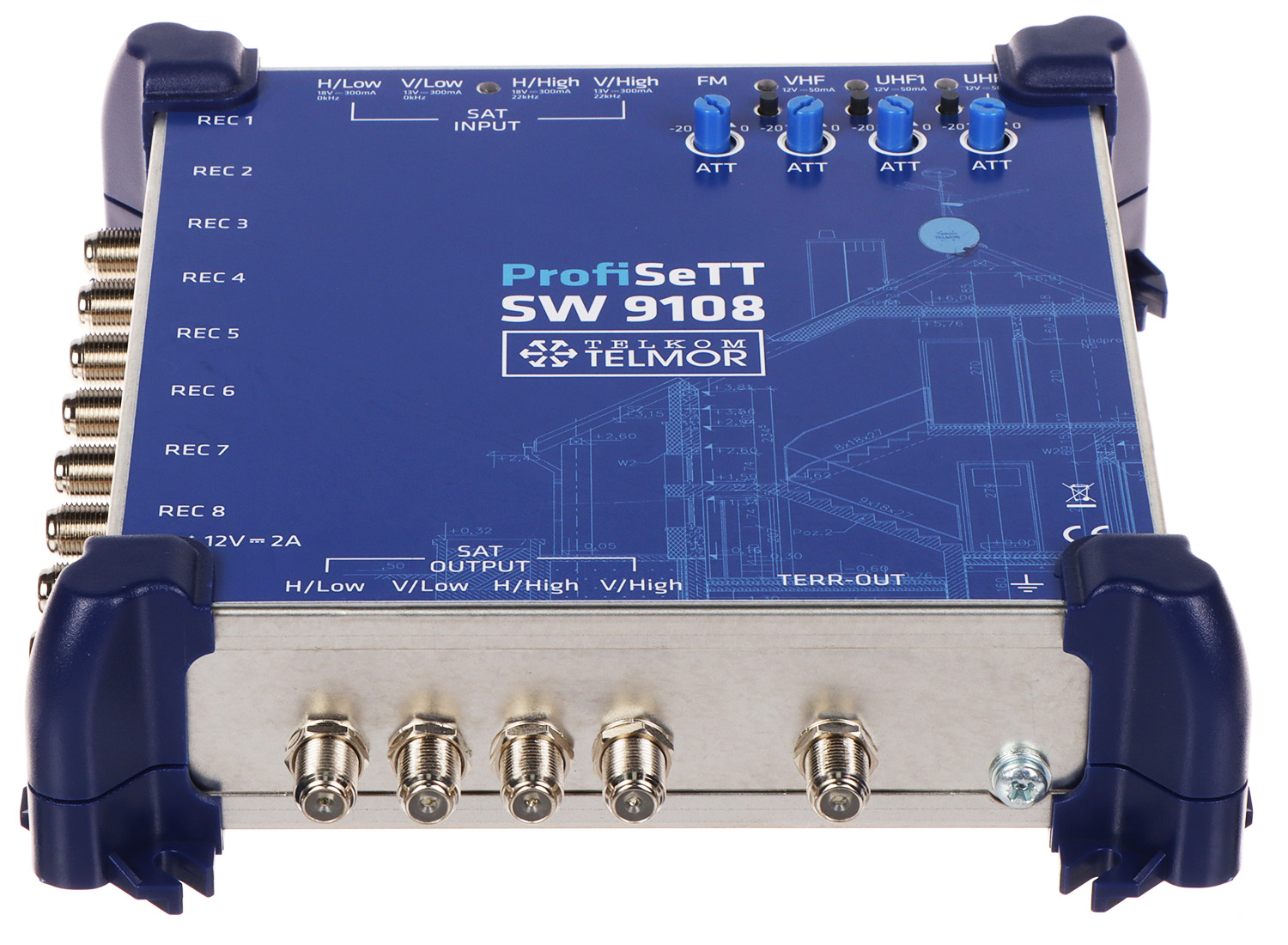

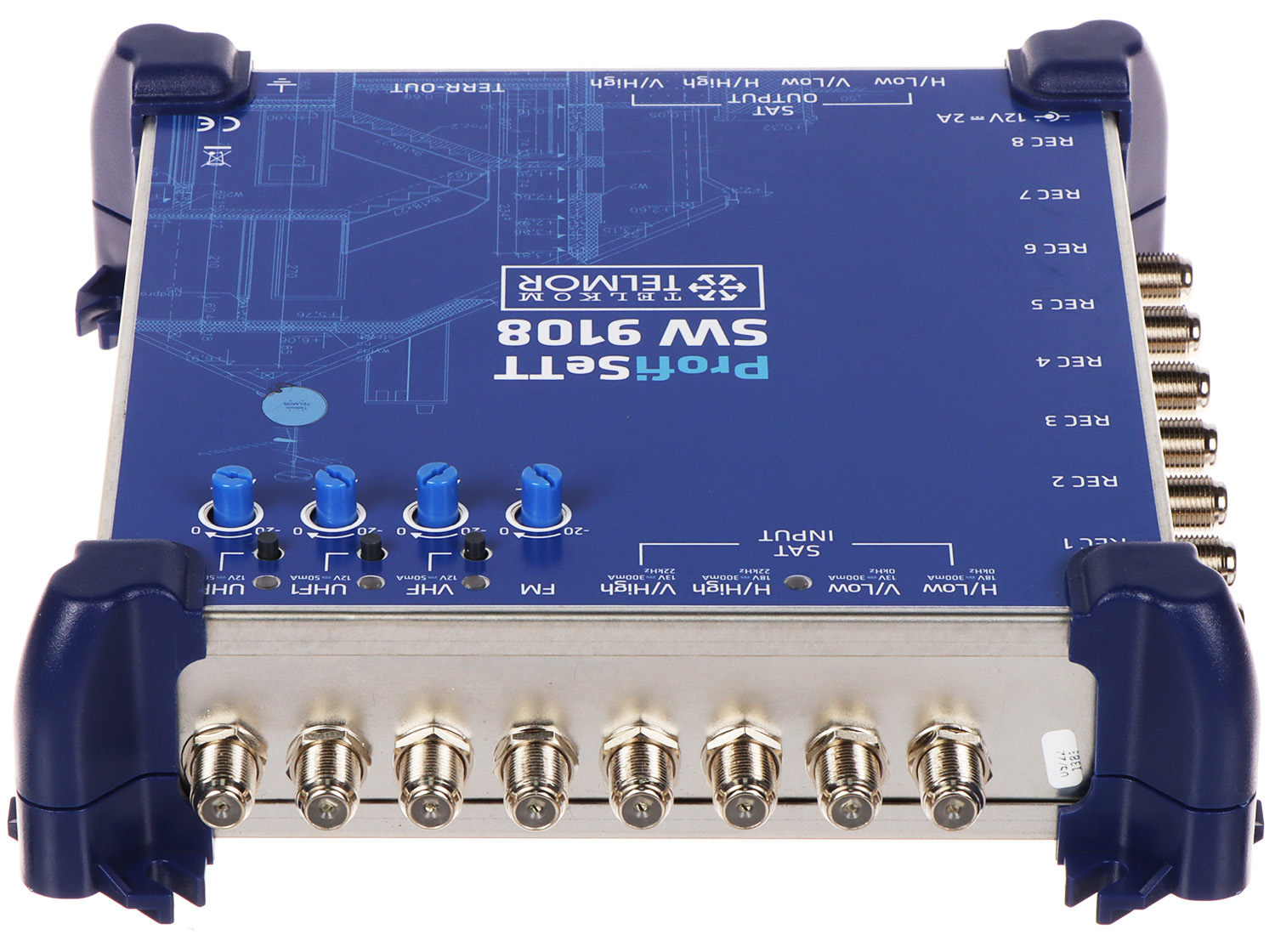

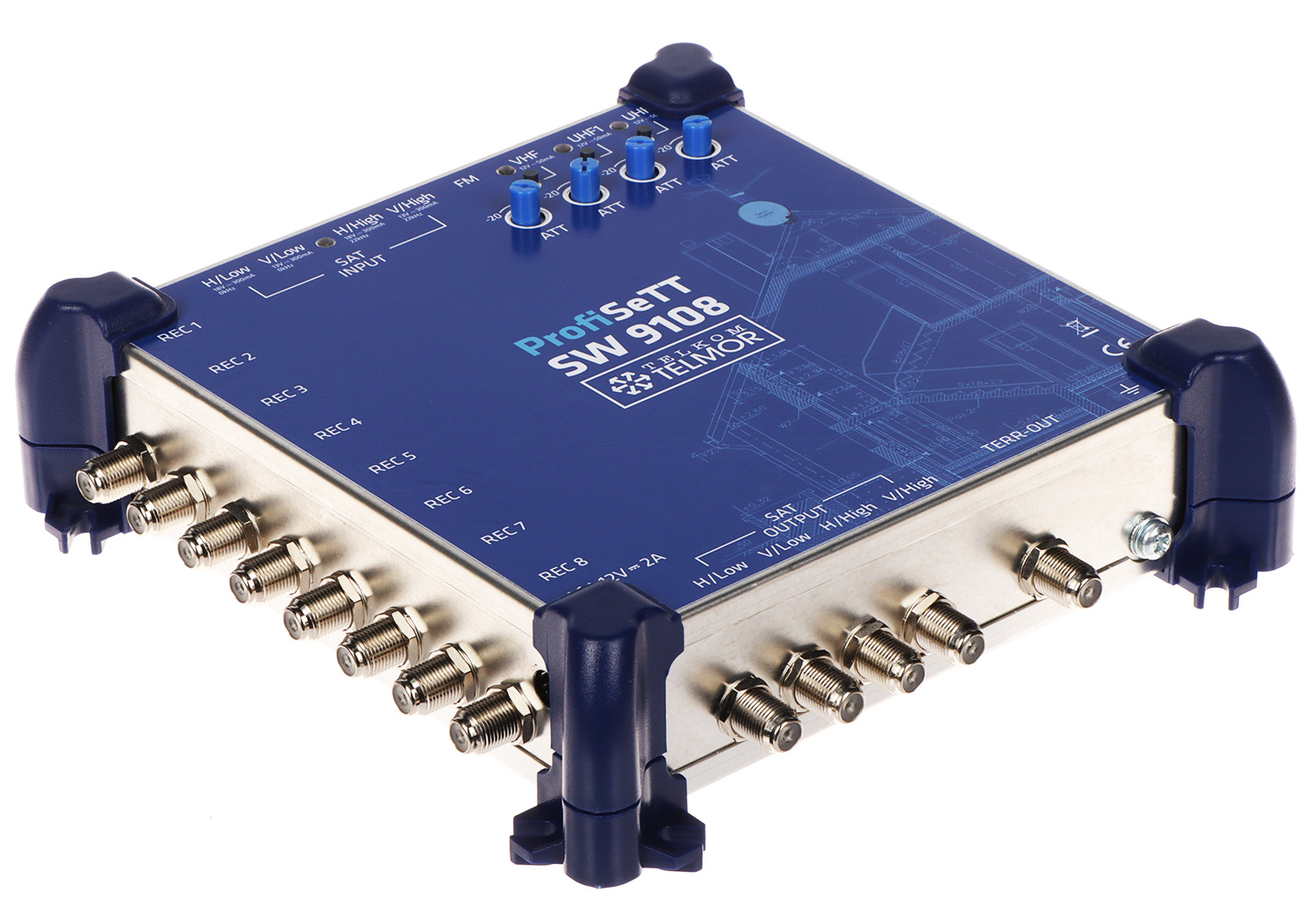

MultiBAS SW-9108 ProfiSETT TELMOR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 87 MHz ... 112 MHz - FM, 170 MHz ... 240 MHz - VHF / DAB, 470 MHz ... 694 MHz - UHF1, UHF2 ; Maximal output level DIN45004B: > 95 dBµV ; Main features: DVB-T, DVB-T2, DAB, DAB+ compliance ;
| Frequency range: | |
| Gain : | |
| Inputs: | 8 pcs |
| Outputs: | |
| Pre-amplifiers powering: | 12 V DC : 50 mA / VHF/DAB, UHF1, UHF2 input |
| Gain adjustment: | -20 dB ... 0 dB (for single line) |
| Maximal output level DIN45004B: | > 95 dBµV - FM > 95 dBµV - VHF > 95 dBµV - UHF1, UHF2 > 94 dBµV - SAT |
| Return loss: | > 10 dB |
| S/N ratio: | < 17 dB - FM < 10 dB - VHF < 12 dB - UHF1, UHF2 |
| Main features: | |

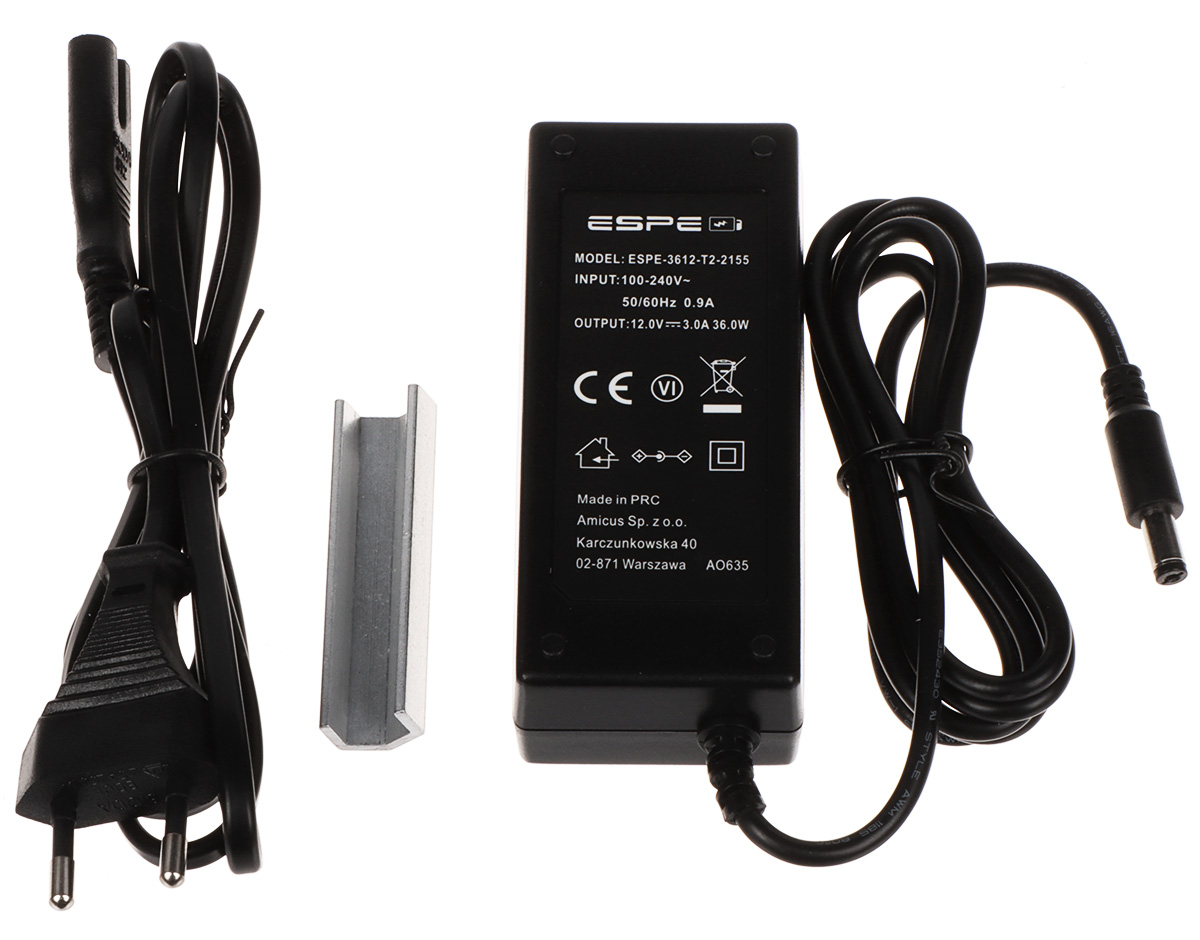

| Power supply: | 12 V DC / 2 A (power adapter included) |
| Power consumption: | 24 W (max) |
| Operation temp: | 0 °C ... 50 °C |
| Weight: | 0.63 kg |
| Dimensions: | 192 x 185 x 50 mm |
| Manufacturer / Brand: | TELMOR |
| Guarantee: | 2 years |
Brand:
Telmor
