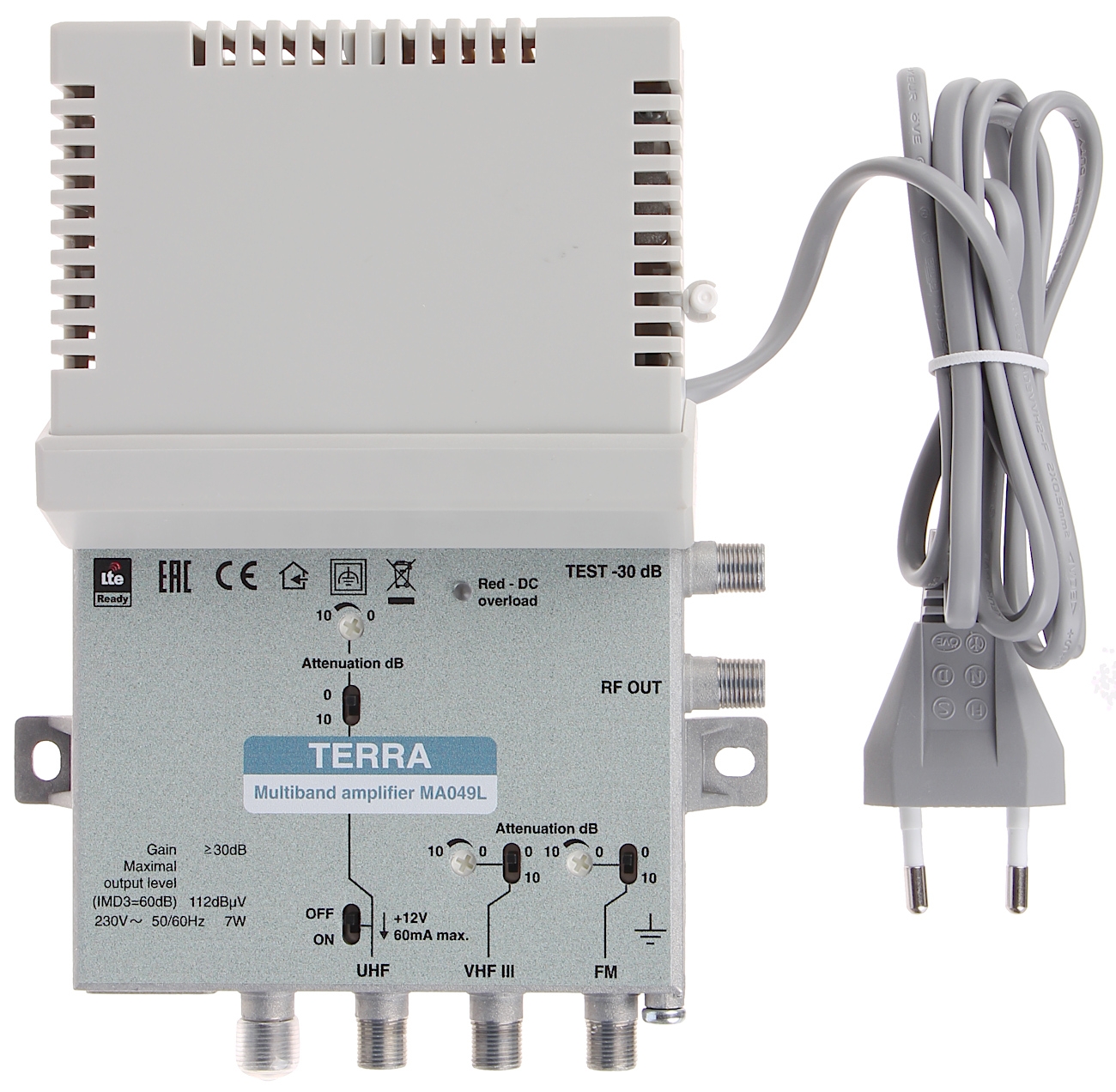

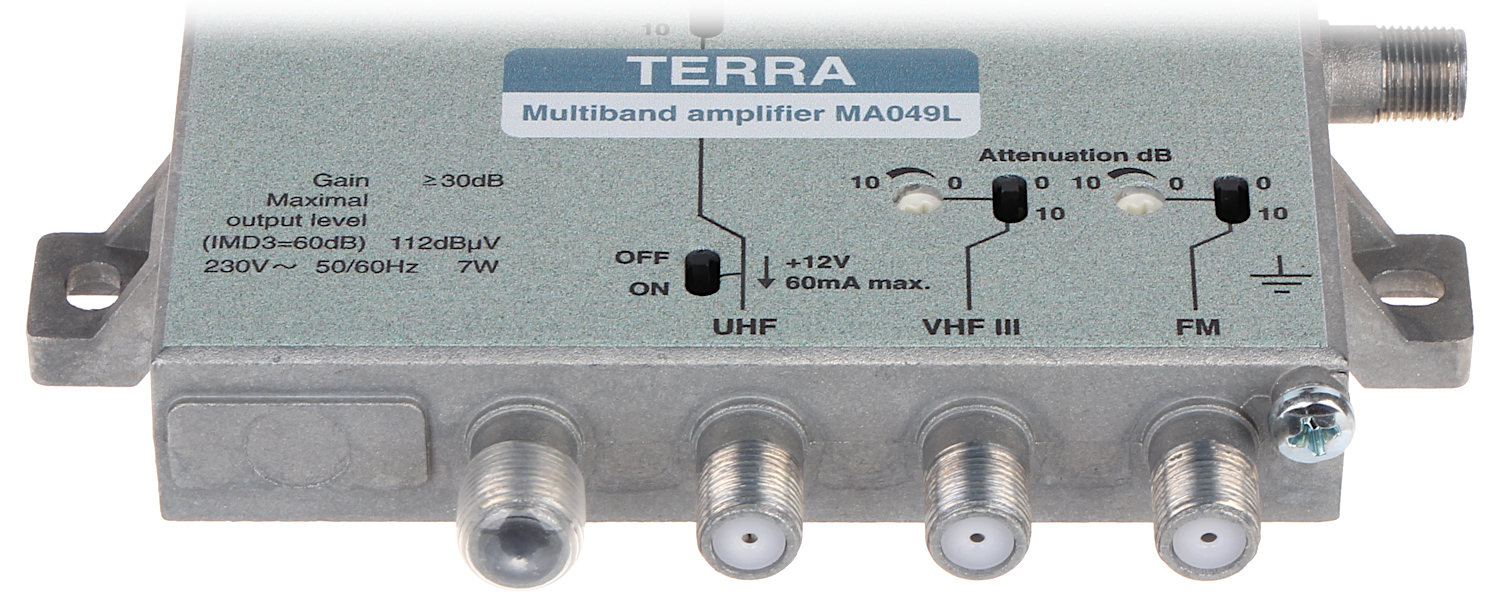

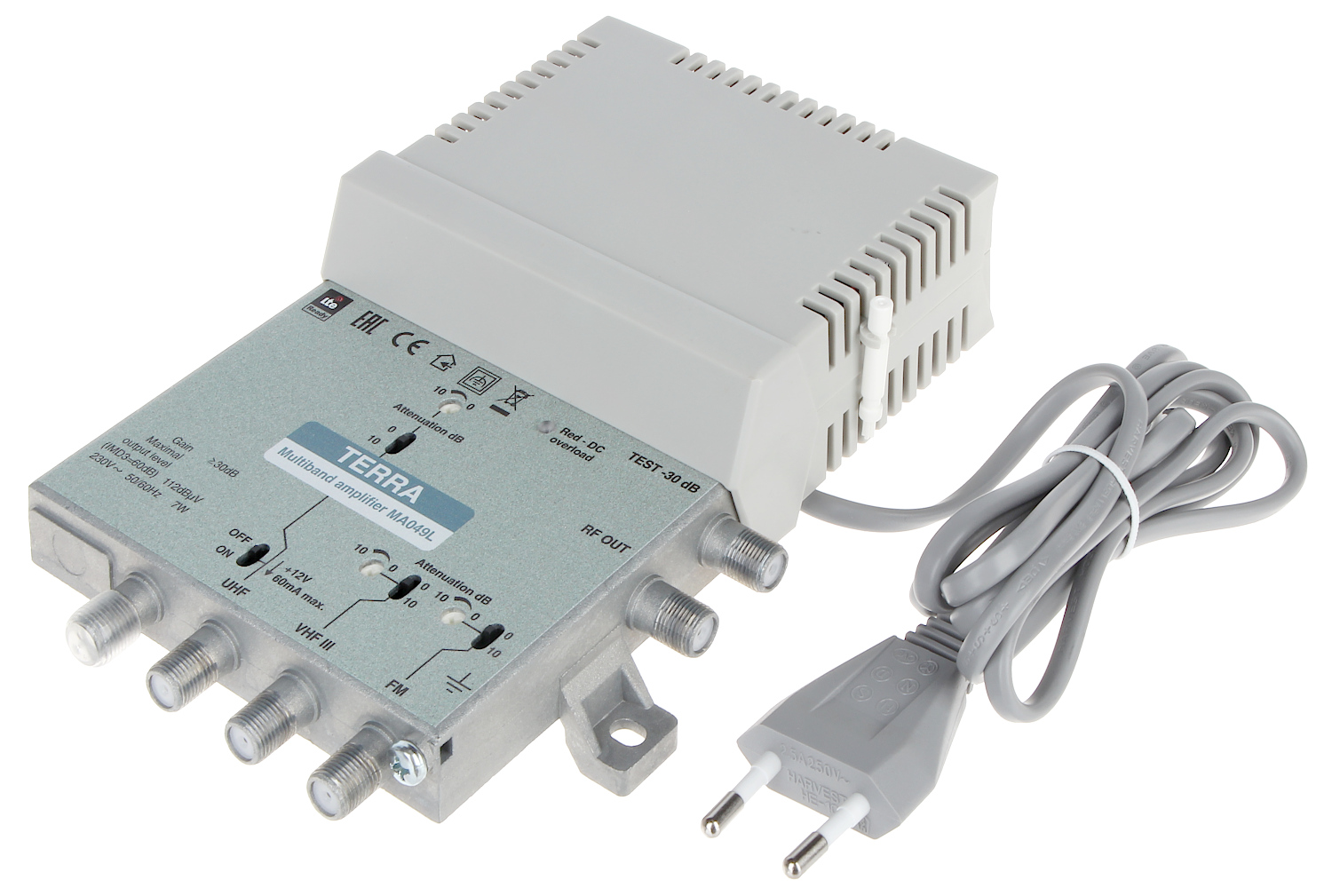

MULTIBAND AMPLIFIER MA-049L
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 88 MHz ... 108 MHz - FM, 174 MHz ... 230 MHz - VHF, 470 MHz ... 790 MHz - UHF ; Maximal output level IMD3=60 dB DIN45004B: 112 dBµV ;
| Frequency range: | 88 MHz ... 108 MHz - FM , 174 MHz ... 230 MHz - VHF , 470 MHz ... 790 MHz - UHF |
| Gain : | 30 dB @ FM 30 dB @ VHF 34 dB @ UHF |
| Number of inputs/outputs: | 3 / 1 + 1 (test, -30dB) |

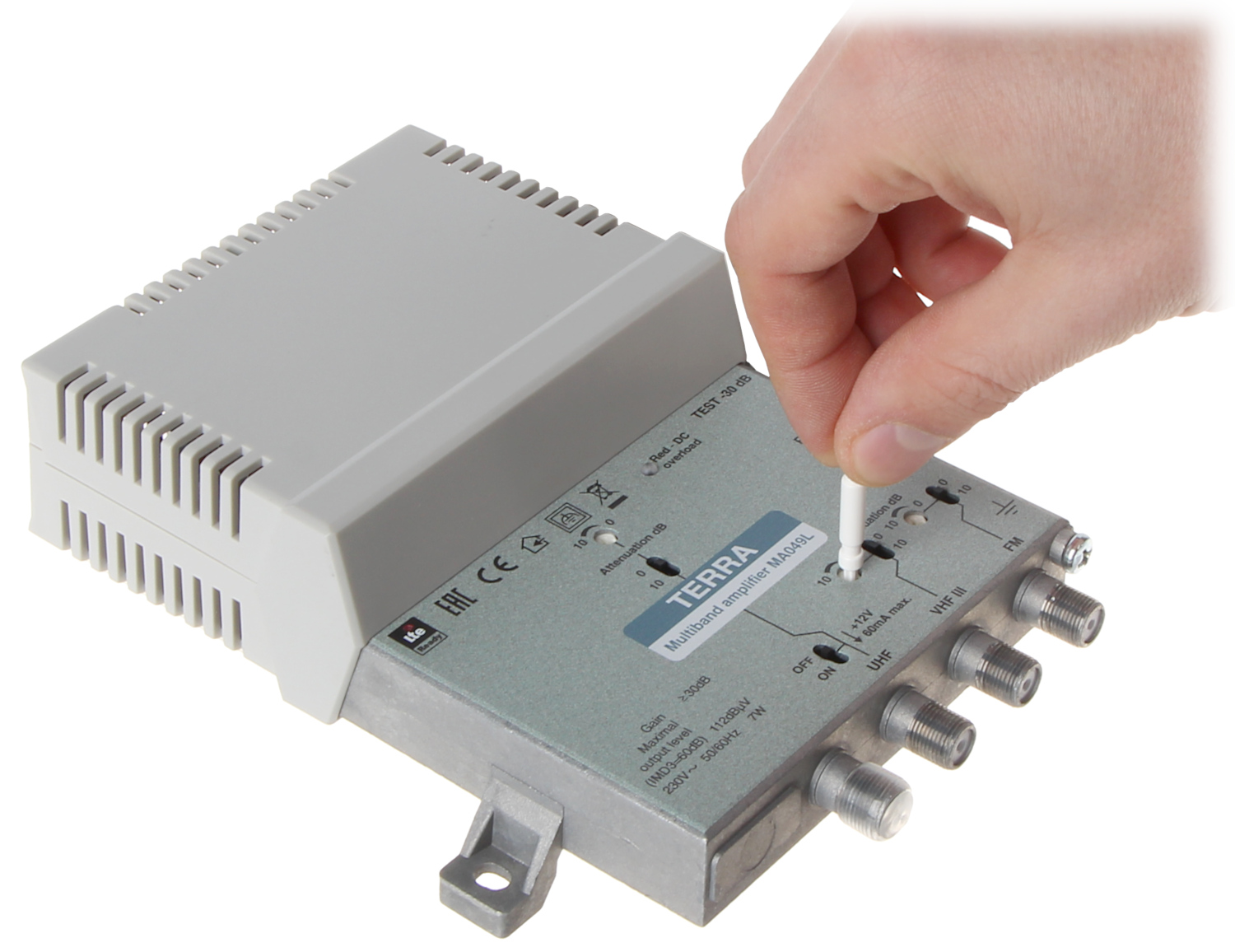

| Gain adjustment: | 0 dB ... 20 dB |
| Maximal output level IMD3=60 dB DIN45004B: | 112 dBµV |
| S/N ratio: | < 6 dB @ VHF < 5 dB @ UHF |
| Power supply: | 230 V AC |
| Power consumption: | 7 W |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.67 kg |
| Dimensions: | 179 x 135 x 52 mm |
| Guarantee: | 2 years |
Brand:
Terra
