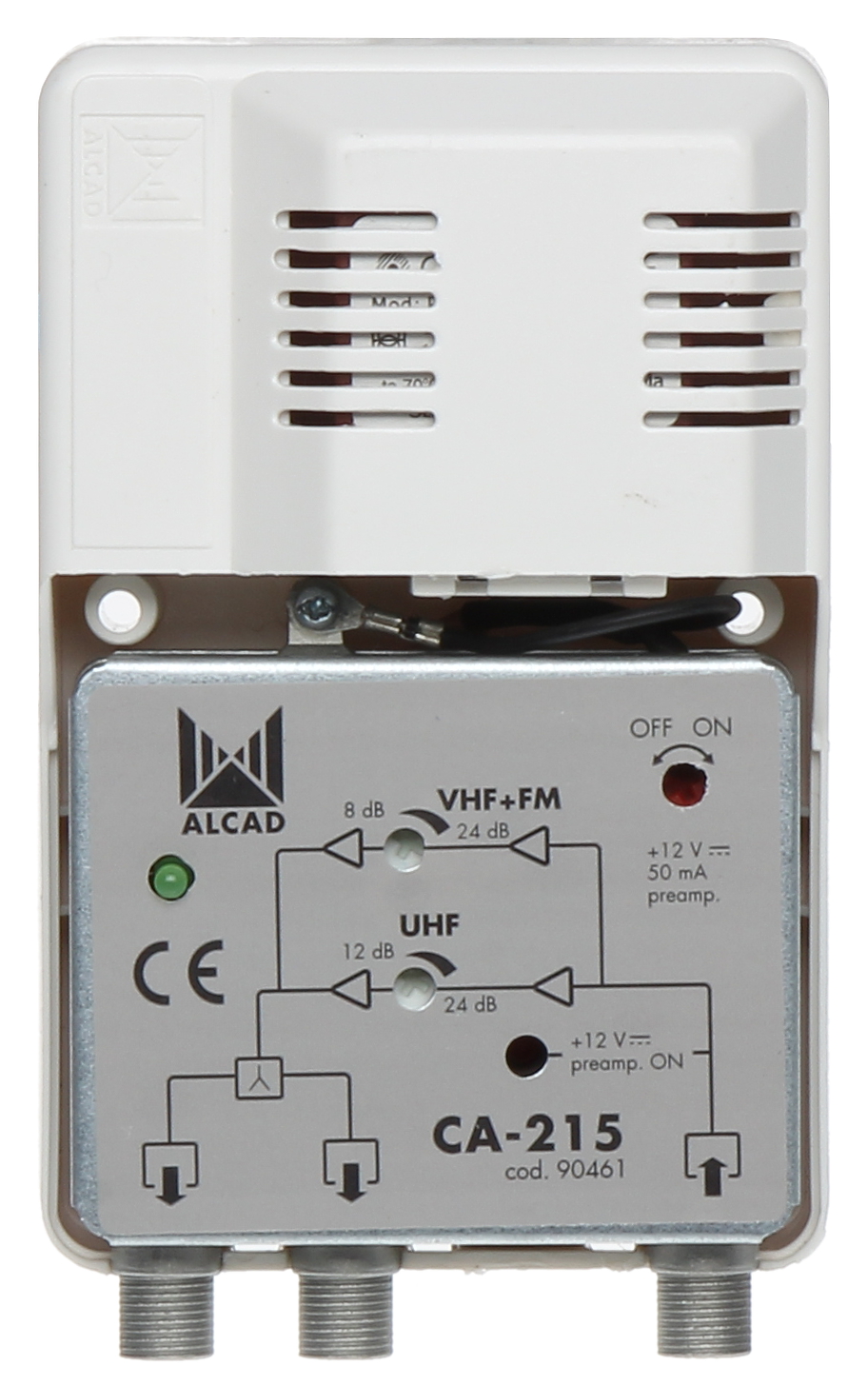

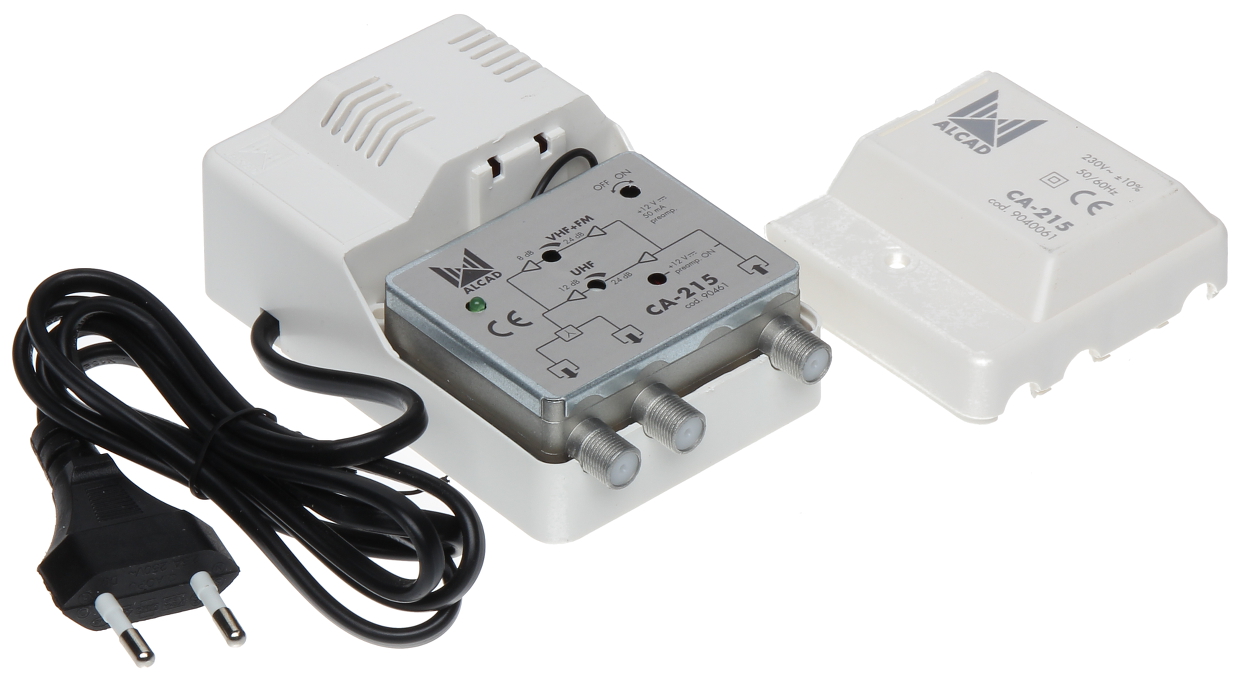

АНТЕННЫЙ УСИЛИТЕЛЬ CA-215 ALCAD
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 40 MHz ... 318 MHz / 470 MHz ... 862 MHz ; Number of inputs/outputs: 1/2 ; Gain : 24 ... 25 dB ; Voltage passing to the preamplifiers mounted inside antennas: 12 V (switch) ;
| Frequency range: | 40 MHz ... 318 MHz / 470 MHz ... 862 MHz |
| Number of inputs/outputs: | 1/2 |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |
| Gain : | 24 ... 25 dB |
| Gain adjustment: | 12 dB UHF 16 dB VHF |
| S/N ratio: | 3 dB |
| IMA3 60dB: | max. 102 dBµV |
| Voltage passing to the preamplifiers mounted inside antennas: | 12 V (switch) |
| Power supply: | 220 V |
| Power consumption: | 7 W |
| Manufacturer / Brand: | ALCAD |
| Guarantee: | 2 years |
Brand:
Alcad
