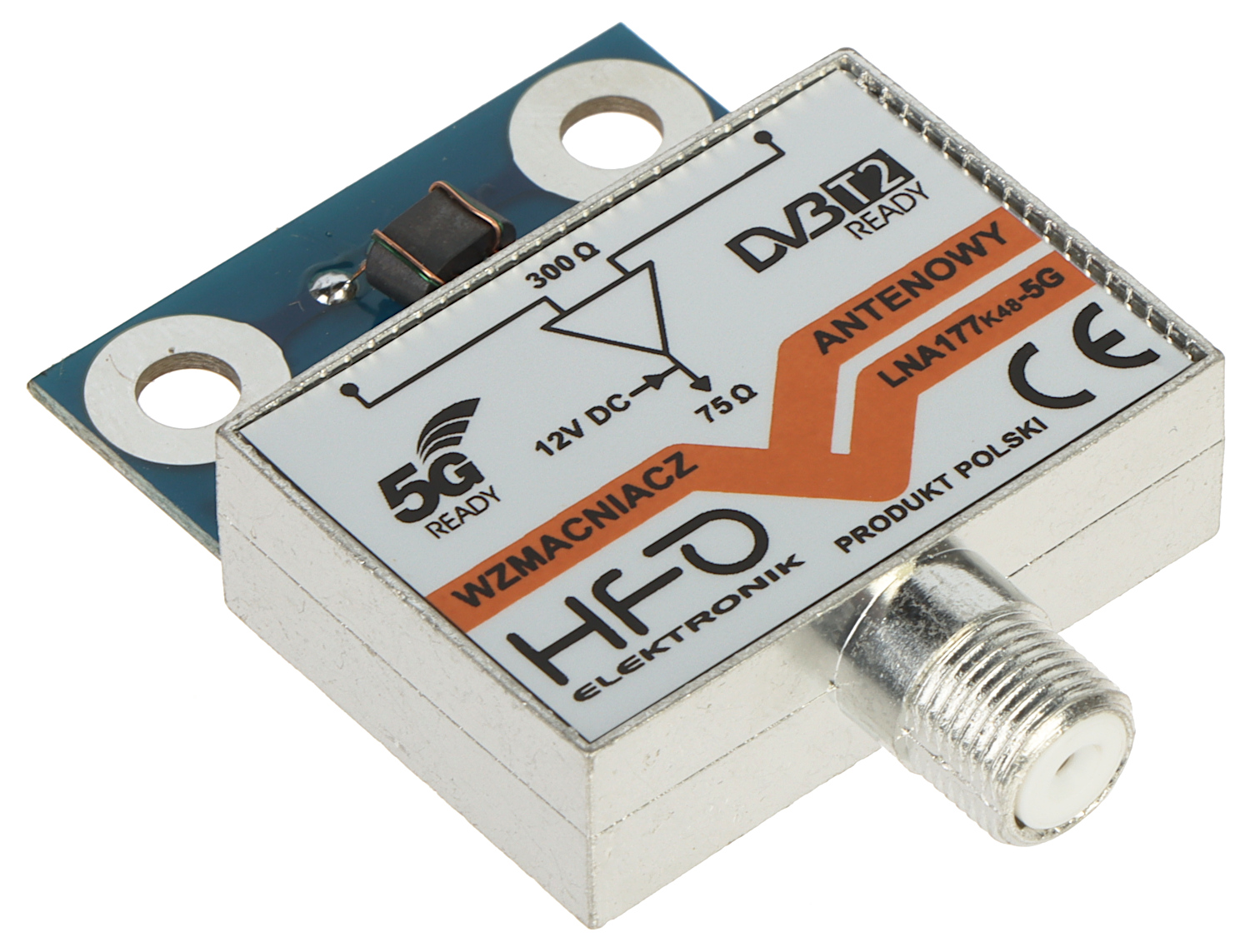

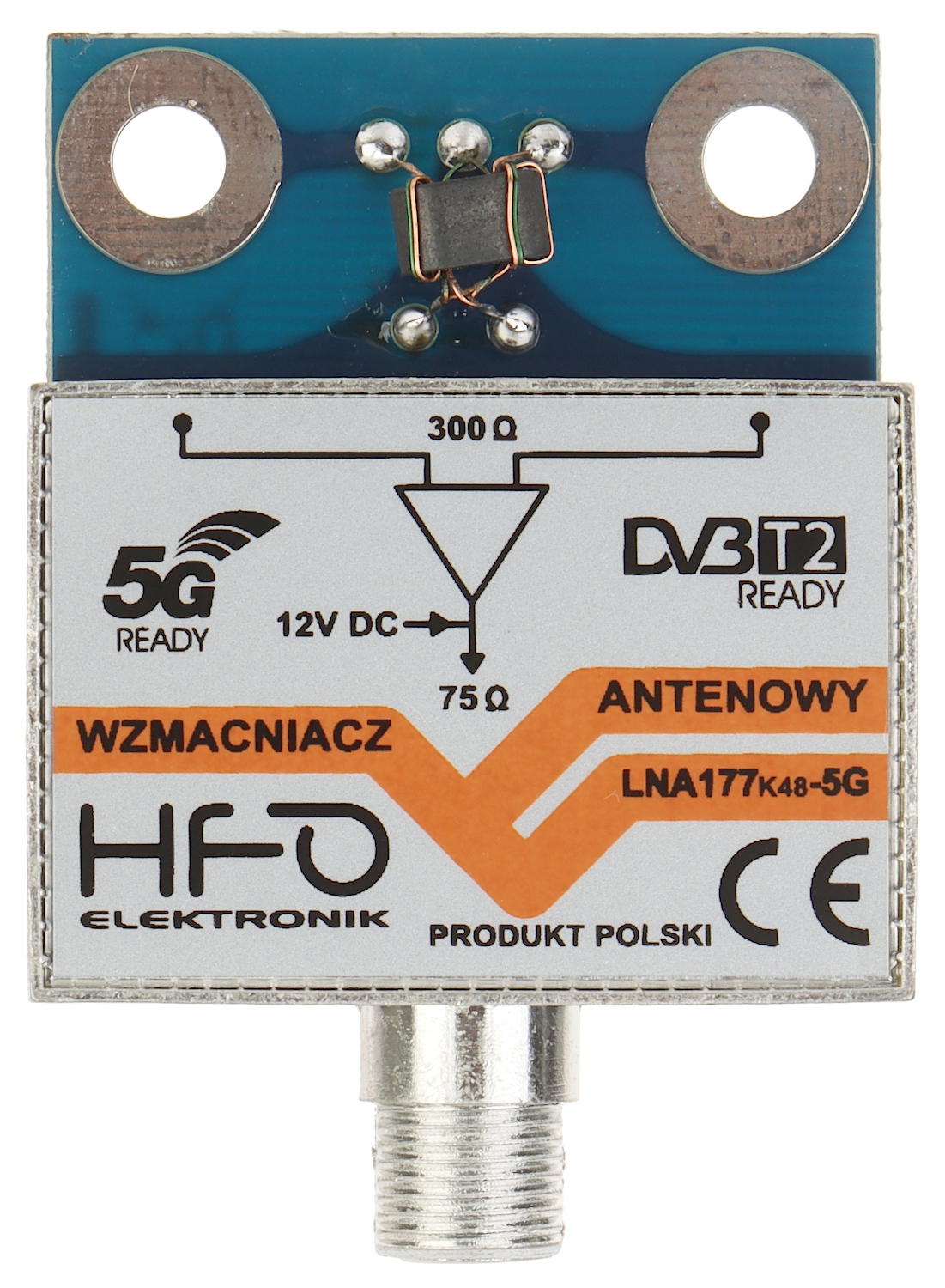

ANTENNA PREAMPLIFIER LNA-177 5-48 28dB
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Broadband board amplifier to antenna box; Channels: 5 - 12, 21 - 48 ; Gain : 14 ... 28 dB ;
| Range: | 174 MHz ... 694 MHz |
| Channels: | 5 - 12 , 21 - 48 |

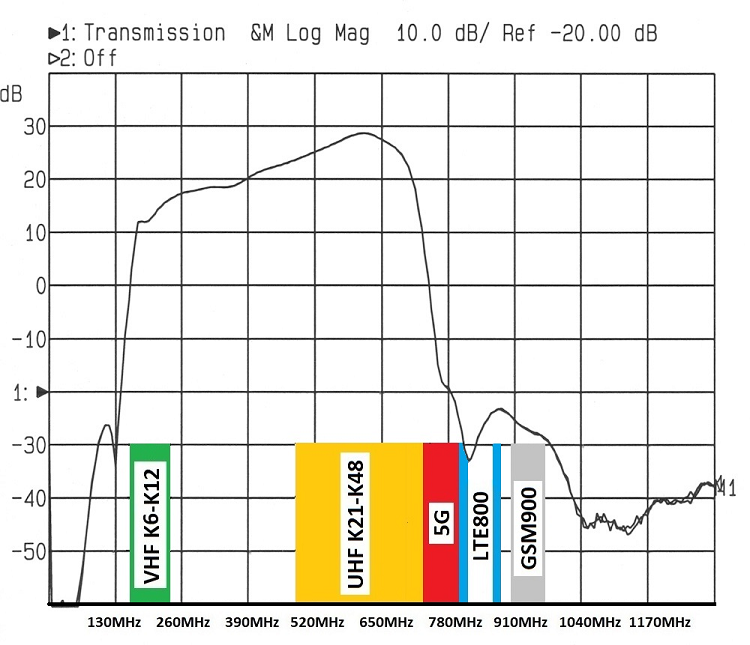

| Gain : | 14 ... 28 dB |
| Gain K5 - K12: | 14 dB ... 15 dB (increasing) |
| Gain K21 - K48: | 22 dB ... 28 dB (increasing) |
| Number of outputs [connectors type]: | 1 pcs (F connector) |
| Number of inputs [connectors type]: | 1 pcs (antenna terminals) |
| Maximum output level: | 98 dBµV |
| Ripples: | |
| Input/output impedance: | 300 Ω / 75 Ω |
| Main features: | Built-in GSM / LTE filter |
| Power supply: | 12 V / 55 mA via antenna cable |
| Shielding: |  |
| Operation temp: | -30 °C ... 55 °C |
| Weight: | 0.024 kg |
| Dimensions: | 55 x 40 x 12 mm |
| Guarantee: | 2 years |
Brand:
HFO ELEKTRONIK
