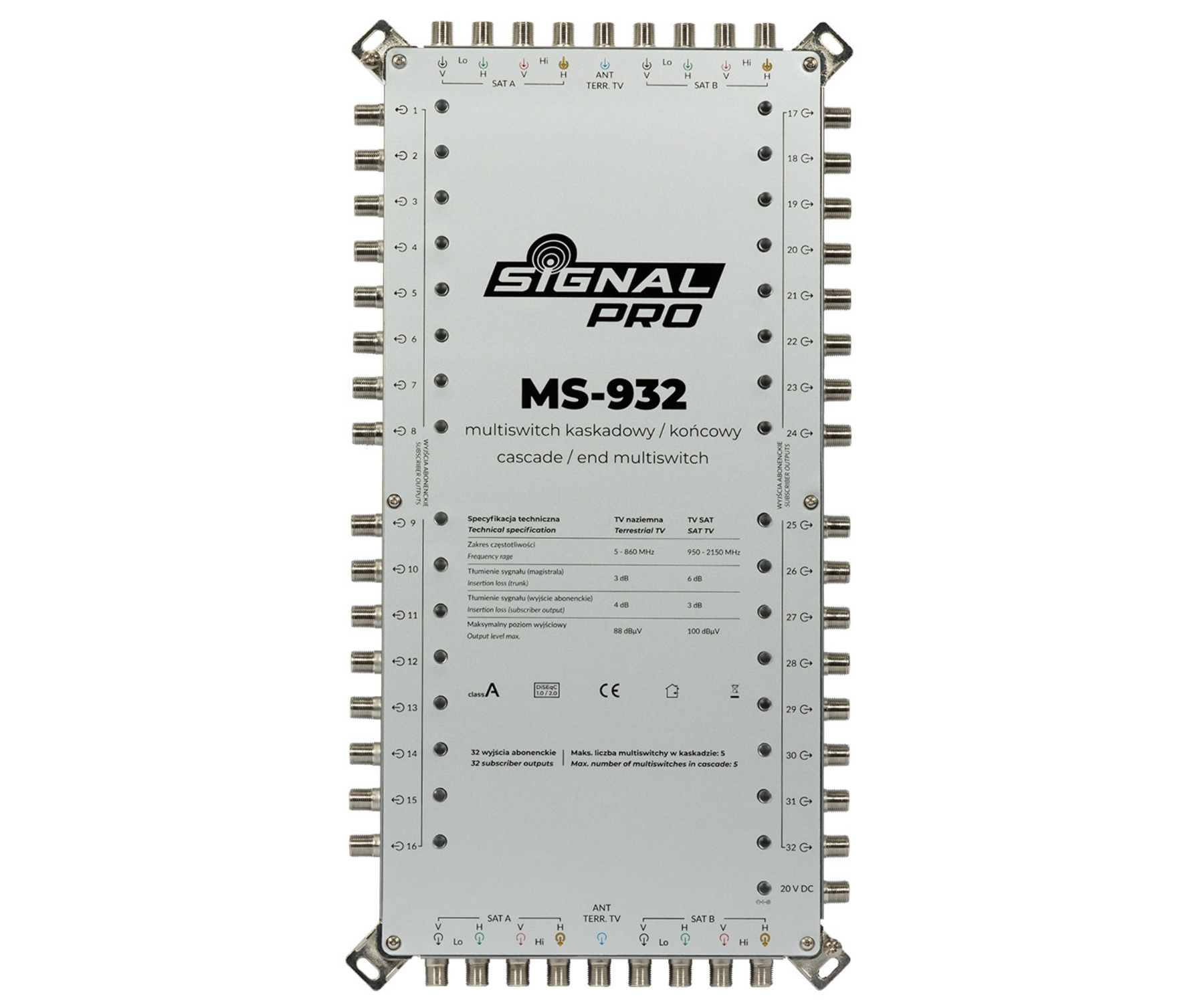

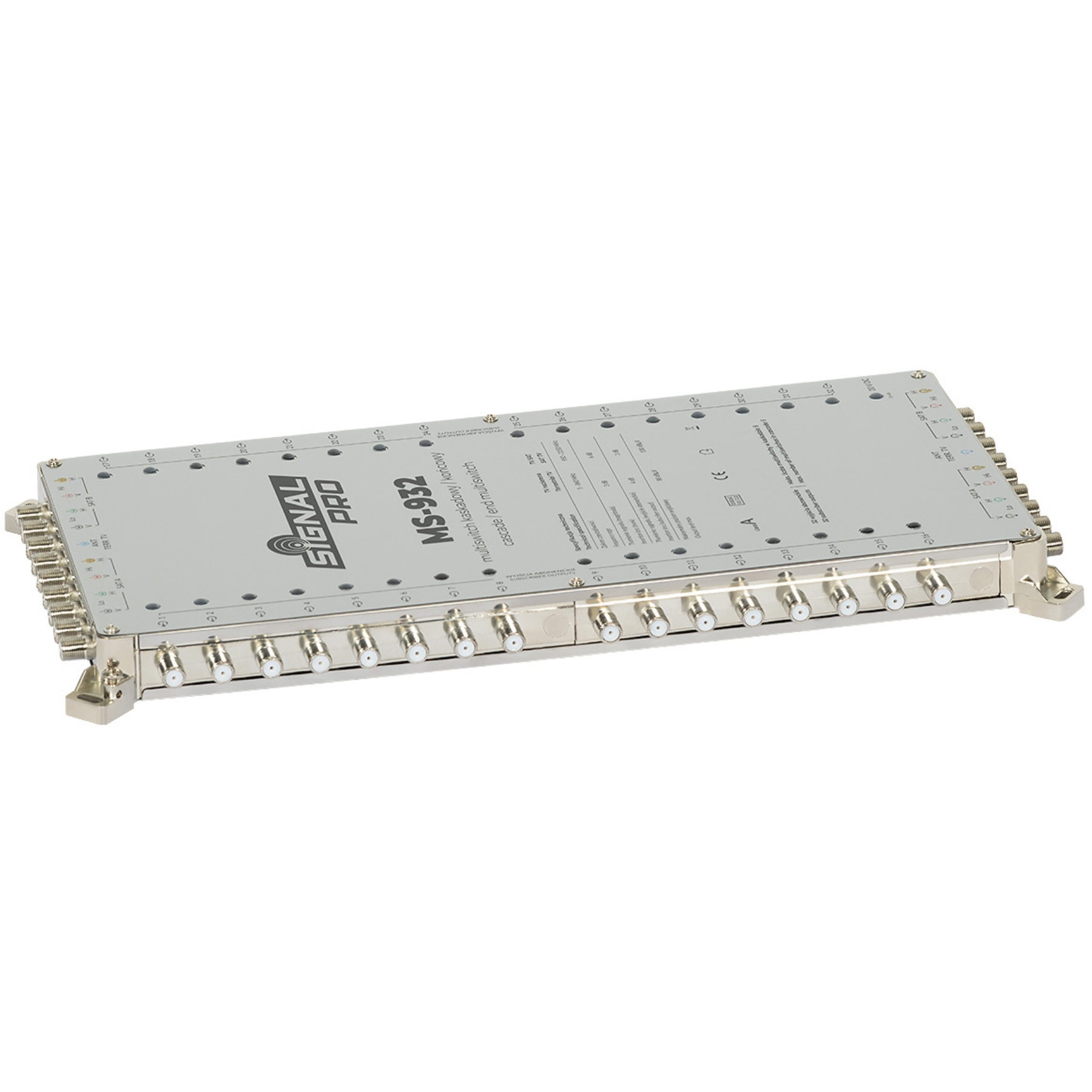

PASS-THROUGH MULTISWITCH MS-932 9 INPUTS / 32 OUTPUTS Pro SIGNAL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 8 x 950 MHz ... 2150 MHz, 1 x 5 MHz ... 860 MHz ; Outputs: 32 x 47 MHz ... 2150 MHz, 9 (Loop through) ; Switching signals: 13 V / 18 V, 0 Hz / 22 kHz, DiSEqC 1.0, DiSEqC 2.0 ;
| Inputs: | |
| Outputs: | |
| Switching signals: | |
| SAT Tap loss: | 3 dB |
| TV Tap loss: | 4 dB |
| Insertion loss: | 6 dB - SAT 3 dB - RTV |
| Maximal output level SAT: | 100 dBµV |
| Maximal output level TV: | 88 dBµV |
| Isolation: | |
| Pre-amplifiers powering: |  |

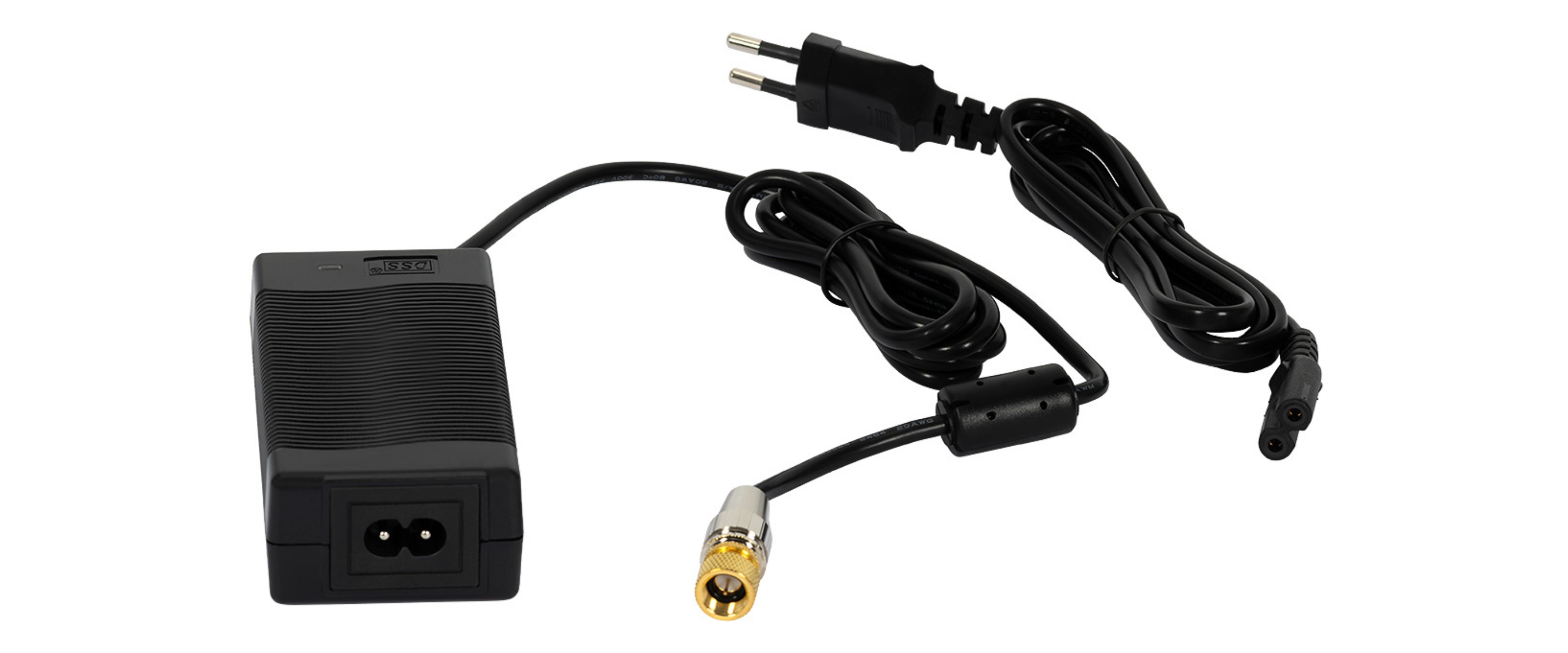

| Power supply: | 20 V DC / 2.5 A (power adapter included) |
| Current consumption: | 200 mA |
| Weight: | 1.37 kg |
| Dimensions: | 385 x 210 x 30 mm |
| Manufacturer / Brand: | SIGNAL |
| Guarantee: | 2 years |
Brand:
Signal
