MULTISWITCH TT-9/16-FT-PREMU 9 INPUTS / 16 OUTPUTS PREMU TELMOR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 8x 950 MHz ... 2150 MHz, 1x 47 MHz ... 862 MHz ; Outputs: 16 ; Switching signals: 13 V / 18 V, 0 Hz / 22 kHz, DiSEqC 1.0 ; Pre-amplifiers powering: 12 V DC / 150 mA ;
| Inputs: | |
| Outputs: | 16 |
| Switching signals: | |
| SAT Tap loss: | -2 ... +7 dB |
| TV Tap loss: | |
| Return loss: | |
| Maximal output level SAT: | 98 dBµV |
| Maximal output level TV: | |
| Isolation: | |
| Pre-amplifiers powering: | 12 V DC / 150 mA |

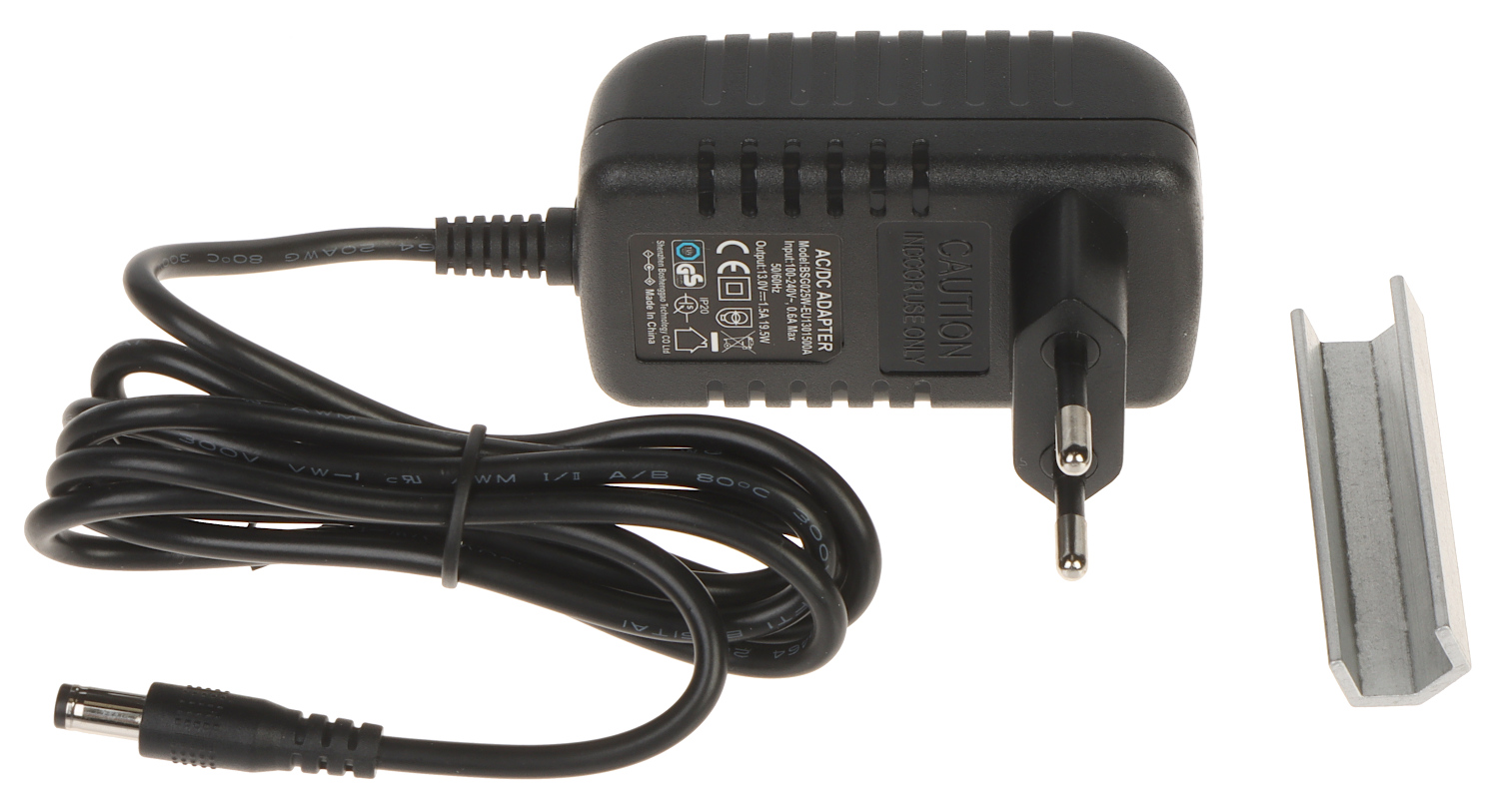

| Power supply: | 13 V DC / 1.5 A (power adapter included) |
| Dimensions: | 215 x 193 x 51 mm |
| Weight: | 0.71 kg |
| Manufacturer / Brand: | TELMOR |
| Guarantee: | 2 years |
Brand:
Telmor
