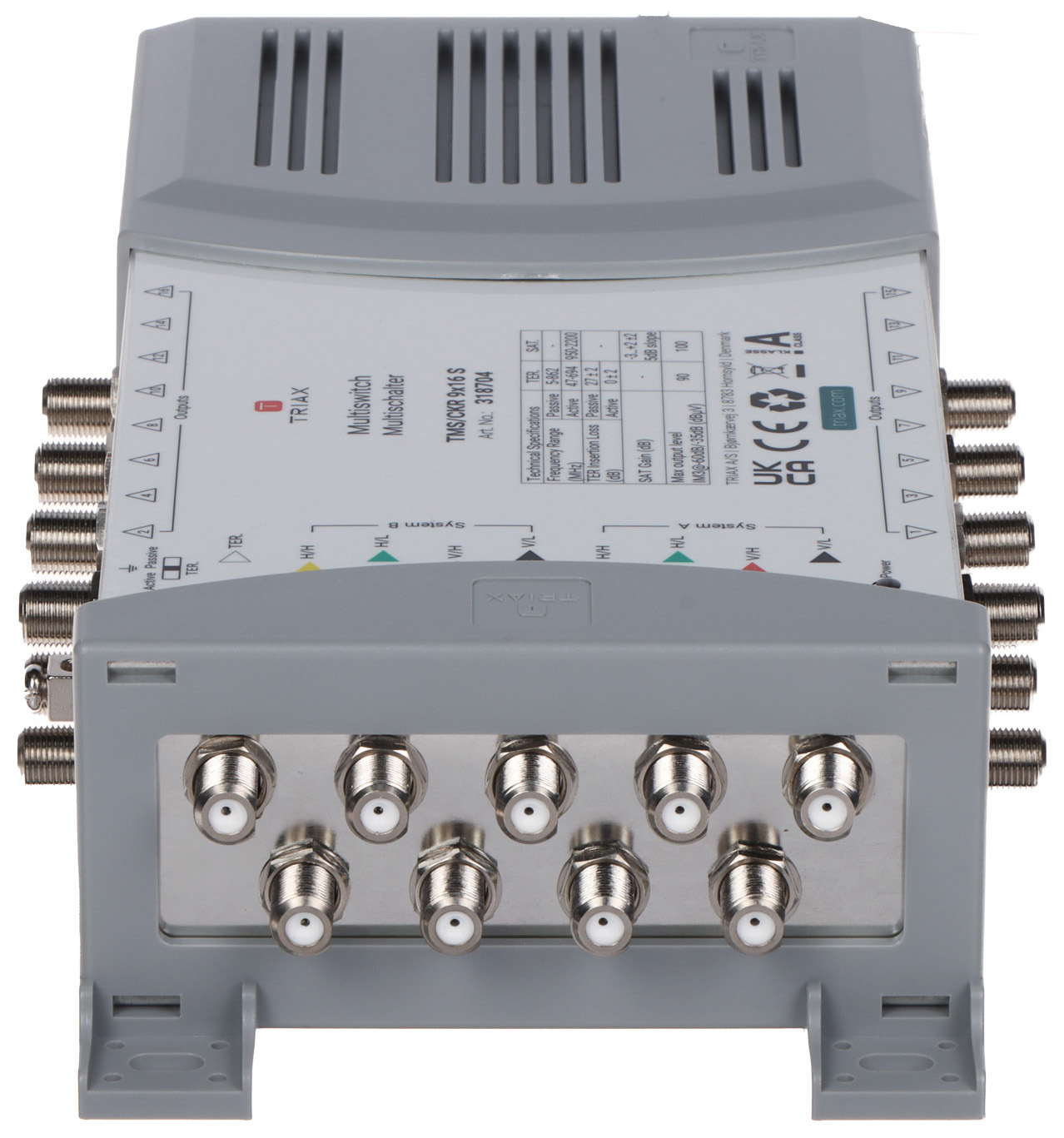

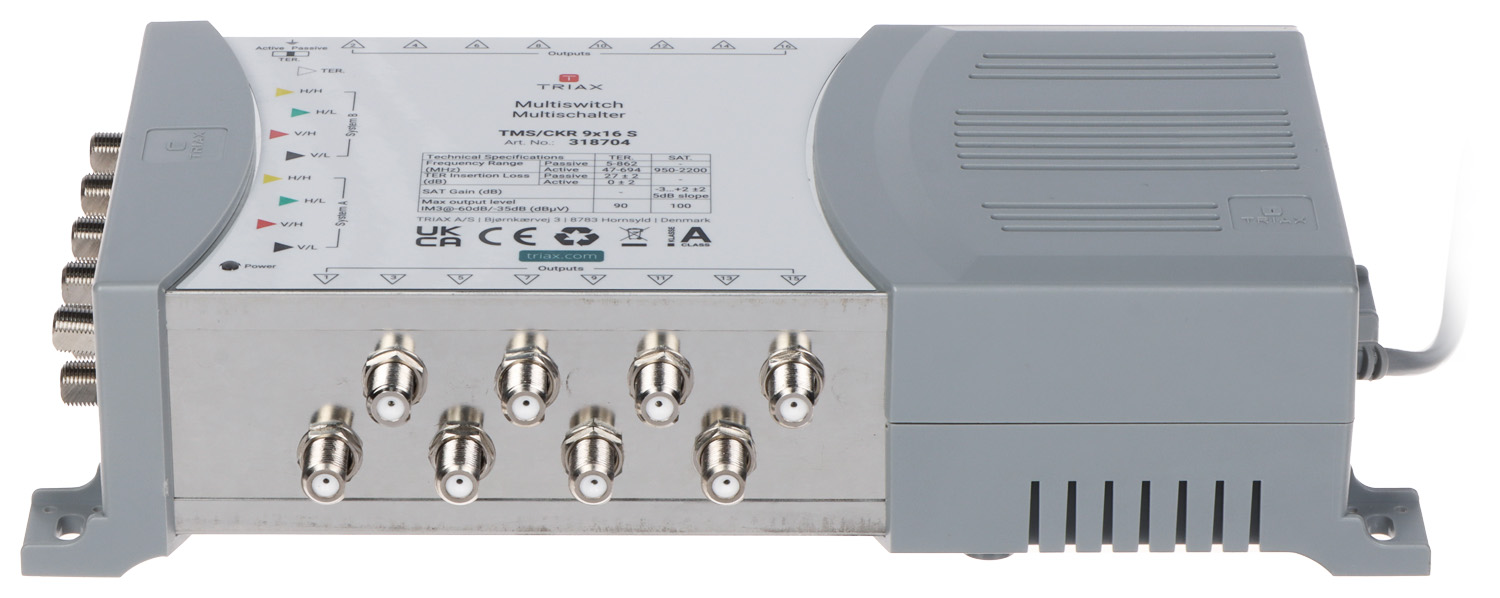

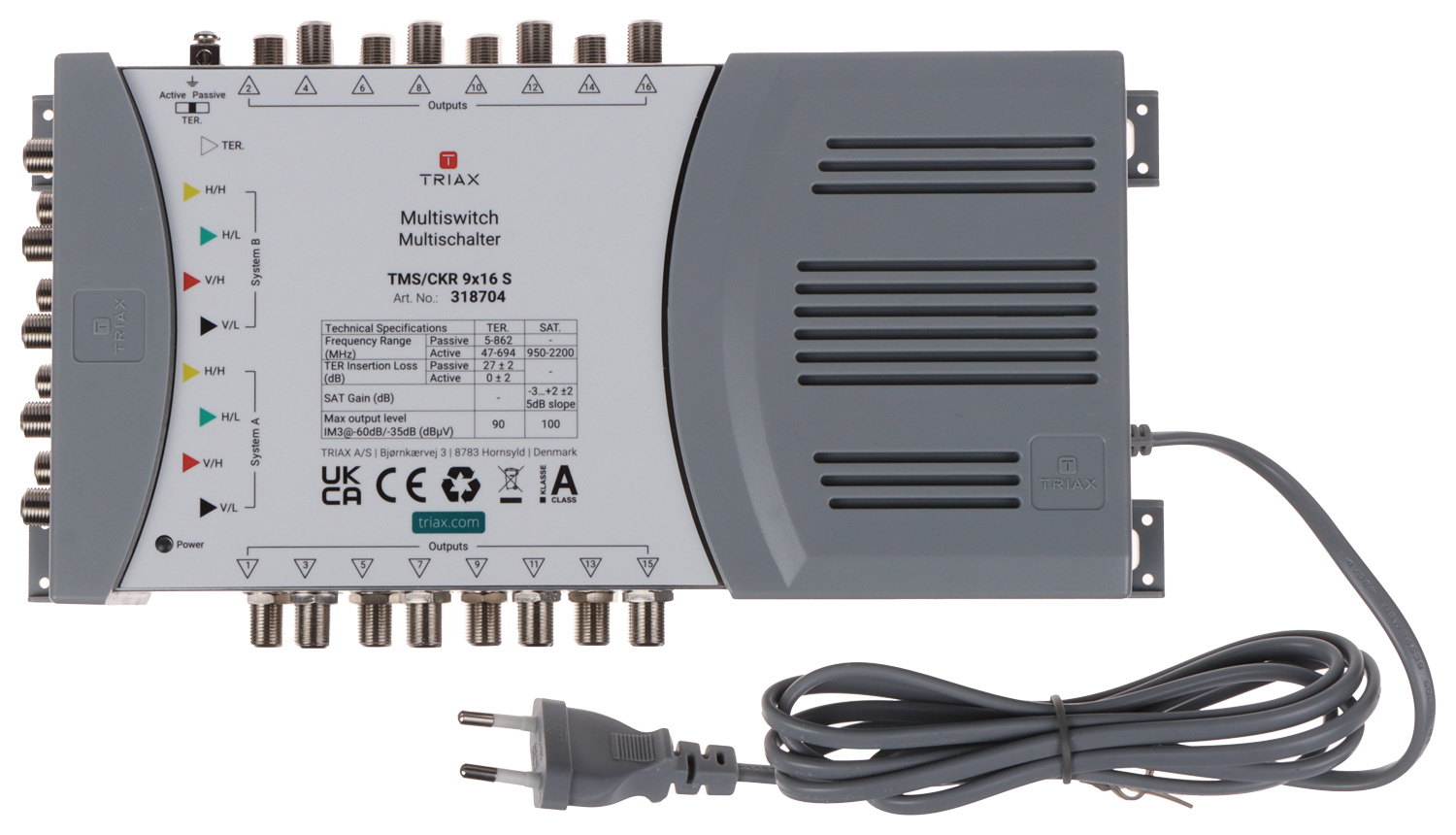

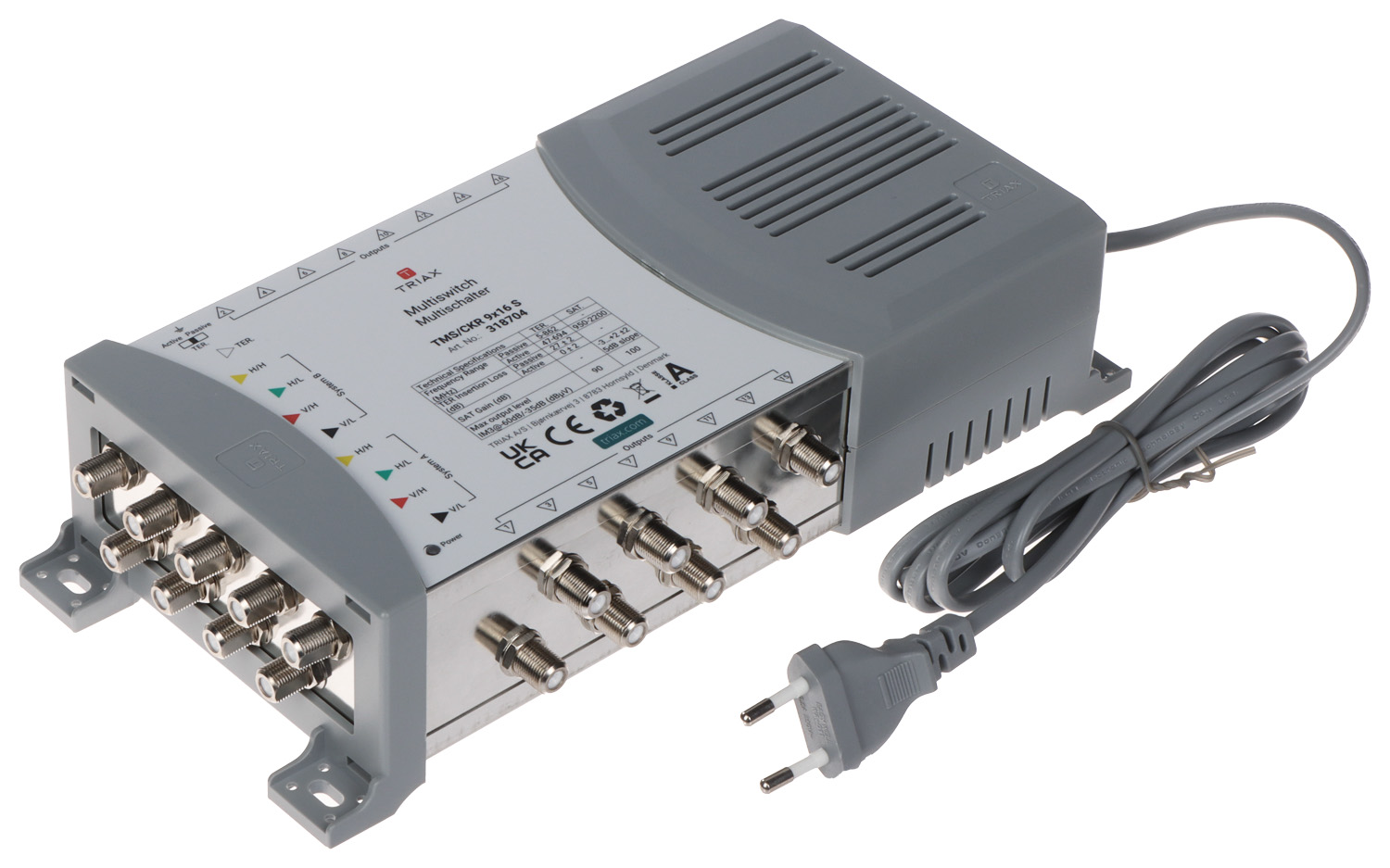

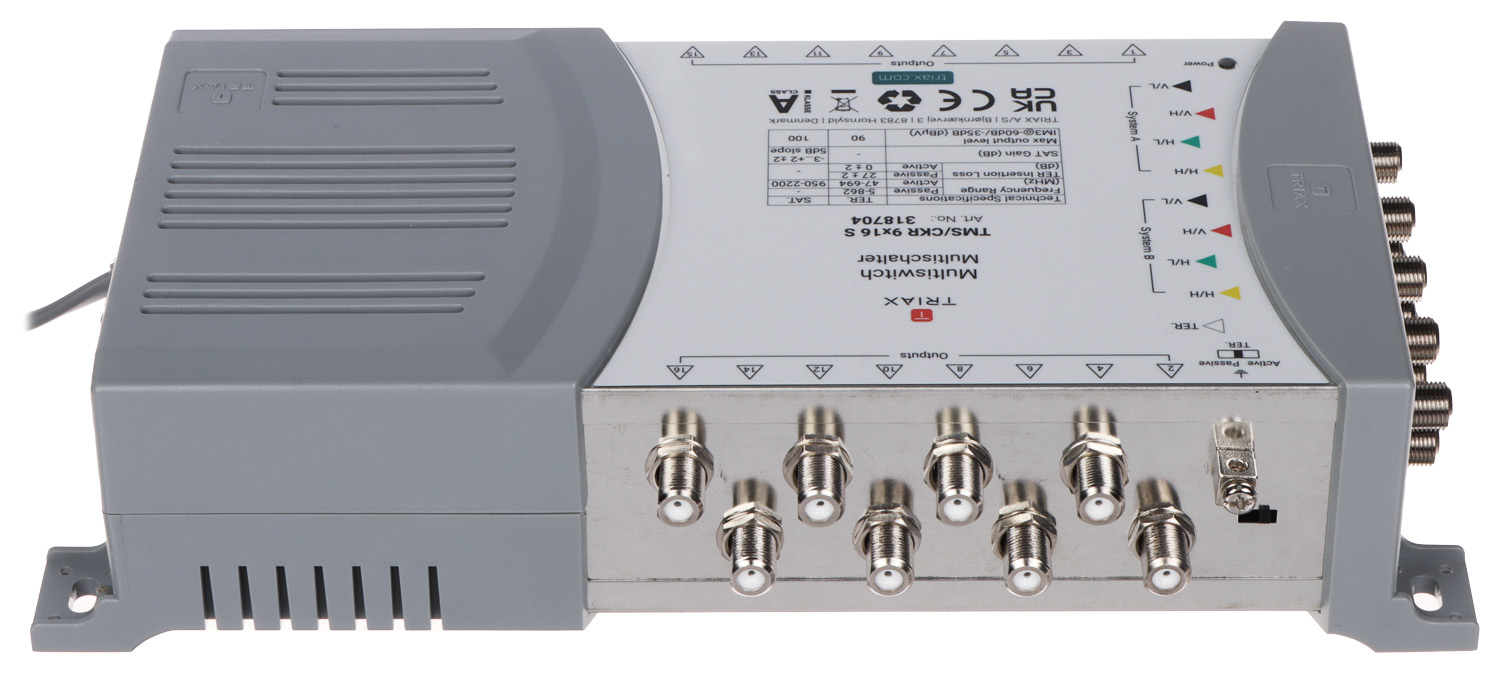

MULTISWITCH TMS-9/16S 9 INPUTS / 16 OUTPUTS TRIAX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 8 x 950 MHz ... 2200 MHz 1 x 47 MHz ... 694 MHz - Active 5 ... 862 - Passive ; Outputs: 16 x 5 MHz ... 2200 MHz ; Switching signals: 13 V / 18 V 0 Hz / 22 kHz ;
| Inputs: | 8 x 950 MHz ... 2200 MHz 1 x 47 MHz ... 694 MHz - Active 5 ... 862 - Passive |
| Outputs: | 16 x 5 MHz ... 2200 MHz |
| Switching signals: | 13 V / 18 V 0 Hz / 22 kHz |
| SAT amplification (cable pre-correction): | -3 ... 2 dB ± 2 dB |
| TV Tap loss: | 27 dB ± 2 dB |
| Maximal output level SAT: | 100 dBµV |
| Maximal output level TV: | 90 dBµV |
| Dimensions: | 269 x 142 x 63 mm |
| Manufacturer / Brand: | TRIAX |
| Guarantee: | 2 years |
Brand:
Triax
