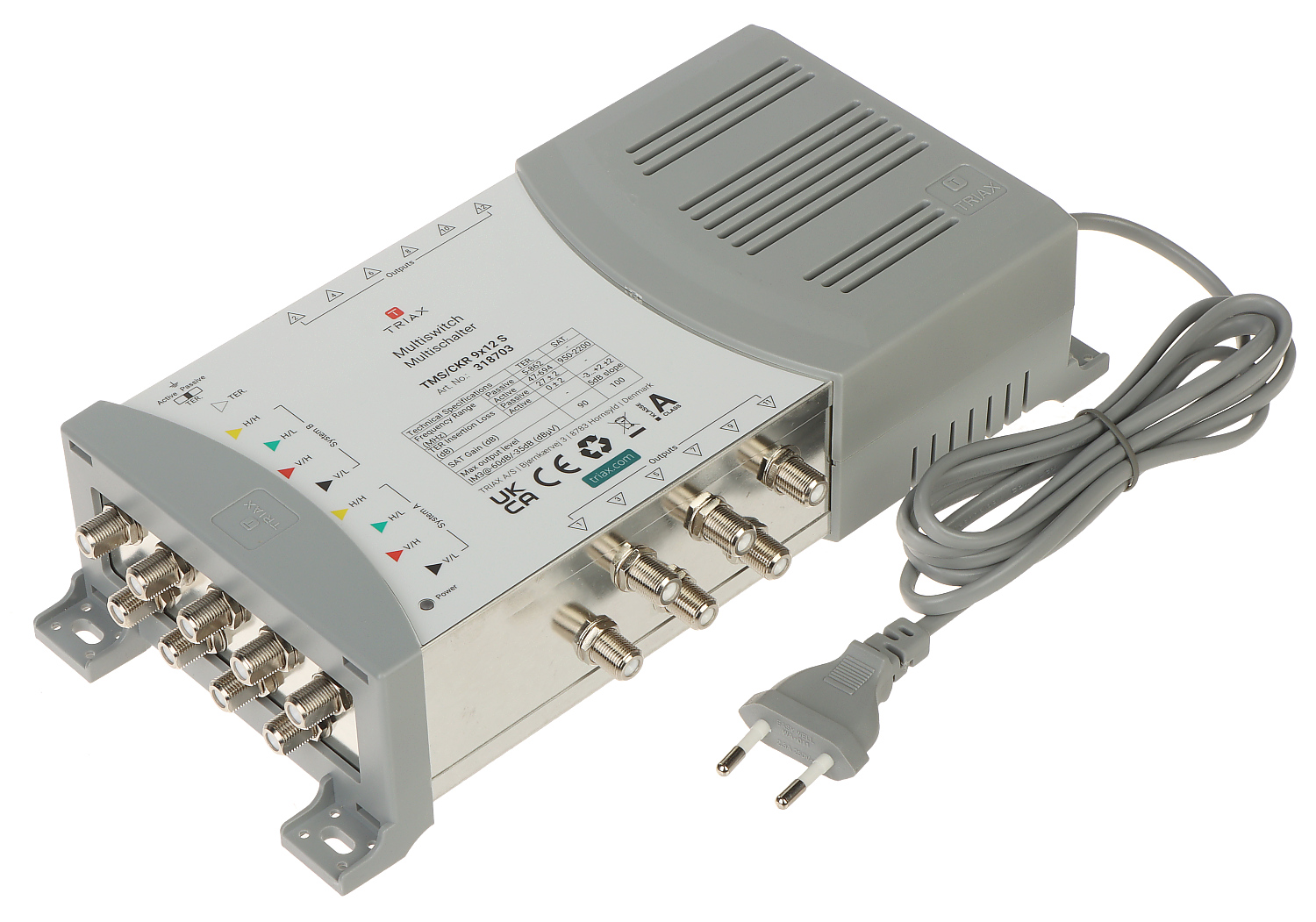

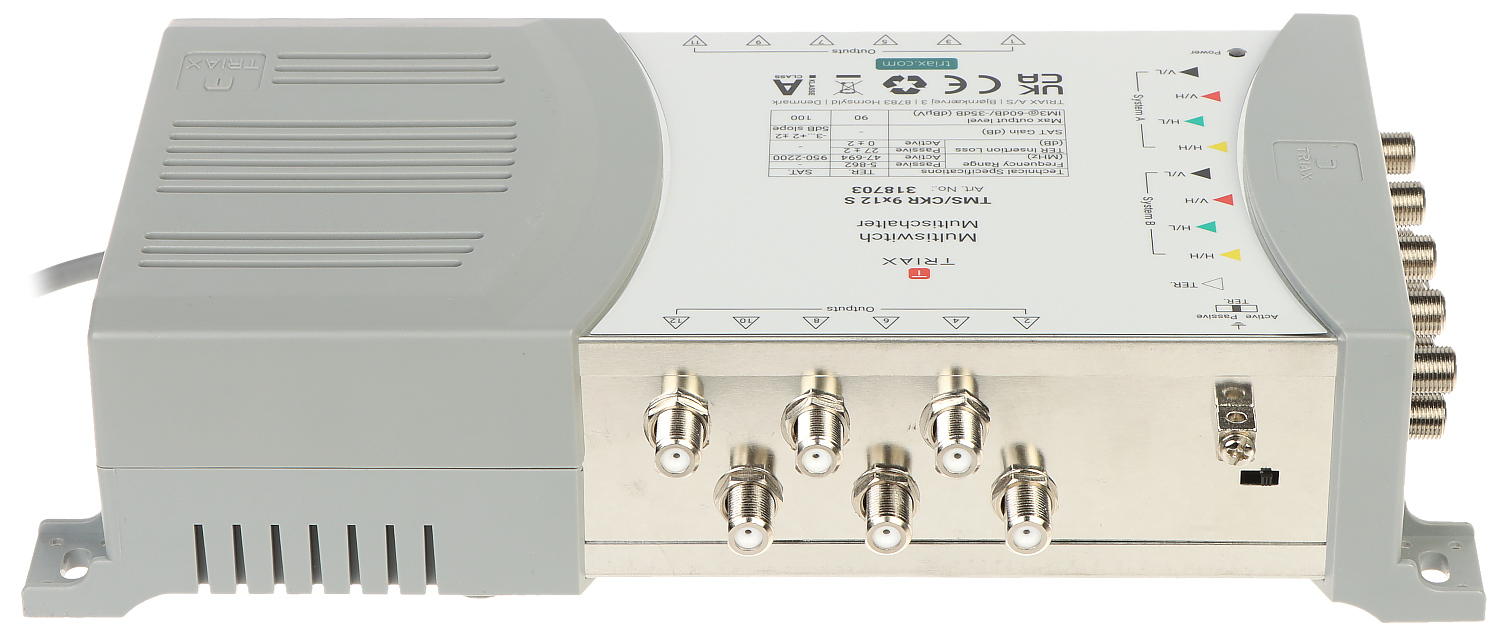

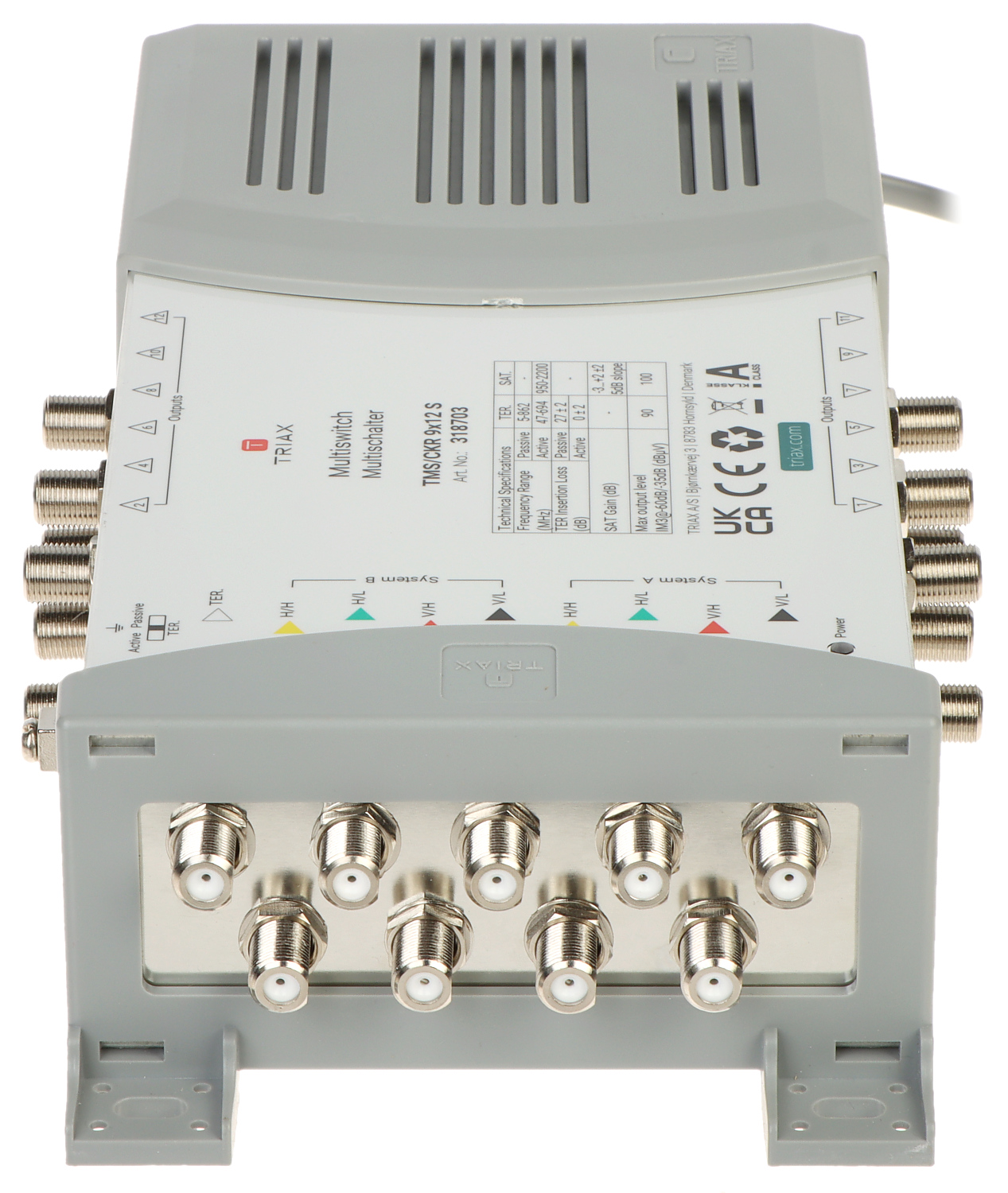

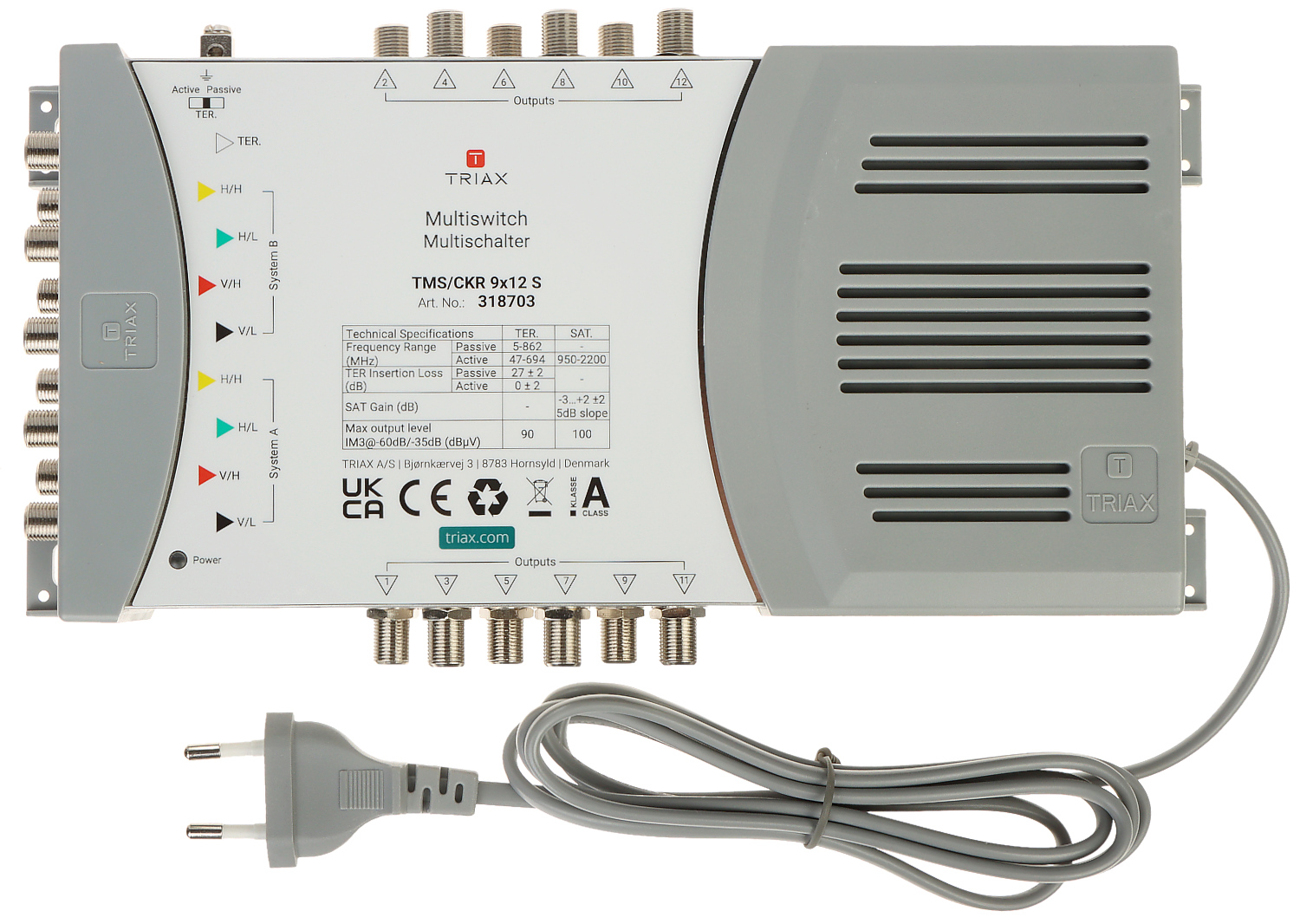

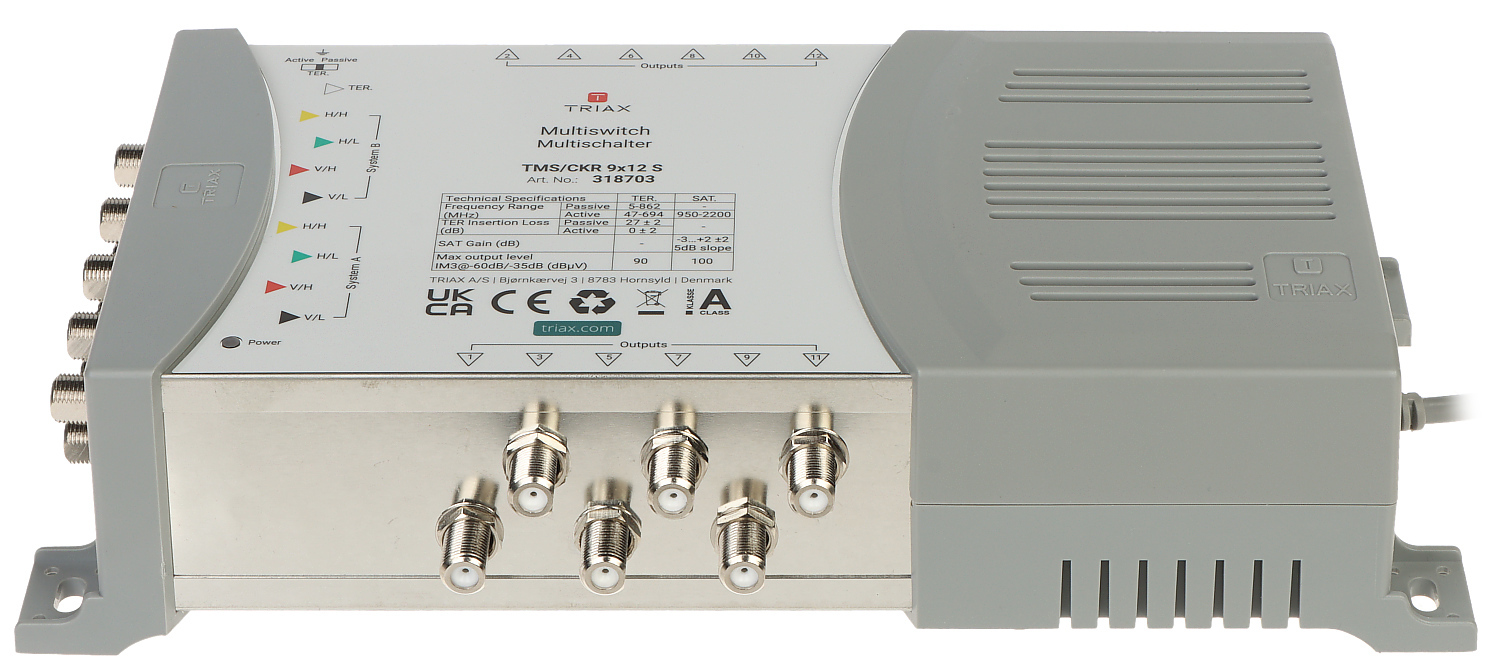

MULTISWITCH TMS-9/12S 9 INPUTS / 12 OUTPUTS TRIAX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 1 x 47 MHz ... 694 MHz - Active / 5 MHz ... 862 MHz - Passive, 8 x 950 MHz ... 2200 MHz ; Outputs: 12 x 47 ... 2200 MHz ; Switching signals: 13 V / 18 V, 0 / 22 kHz, DiSEqC 1.0, DiSEqC 2.0 ;
| Inputs: | |
| Outputs: | 12 x 47 ... 2200 MHz |
| TV amplification (cable pre-correction): | 0 dB |
| SAT amplification (cable pre-correction): | -3 ... 2 dB |
| Isolation: | |
| Return loss: | TV input : > 10 dB SAT input : > 10 dB Outputs : > 10 dB |
| Maximal output level SAT: | 100 dBµV (-35dB IMD3) |
| Maximal output level TV: | 90 dBµV (-60dB IMD3) |
| Switching signals: | 13 V / 18 V, 0 / 22 kHz, DiSEqC 1.0, DiSEqC 2.0 |
| LNB power supply: | max. 1000 mA |
| Pre-amplifiers powering: |  |
| Power supply: | 180 ... 264 V AC |
| Weight: | 0.9 kg |
| Dimensions: | 270 x 142 x 64 mm |
| Manufacturer / Brand: | TRIAX |
| Guarantee: | 6 years |
Brand:
Triax
