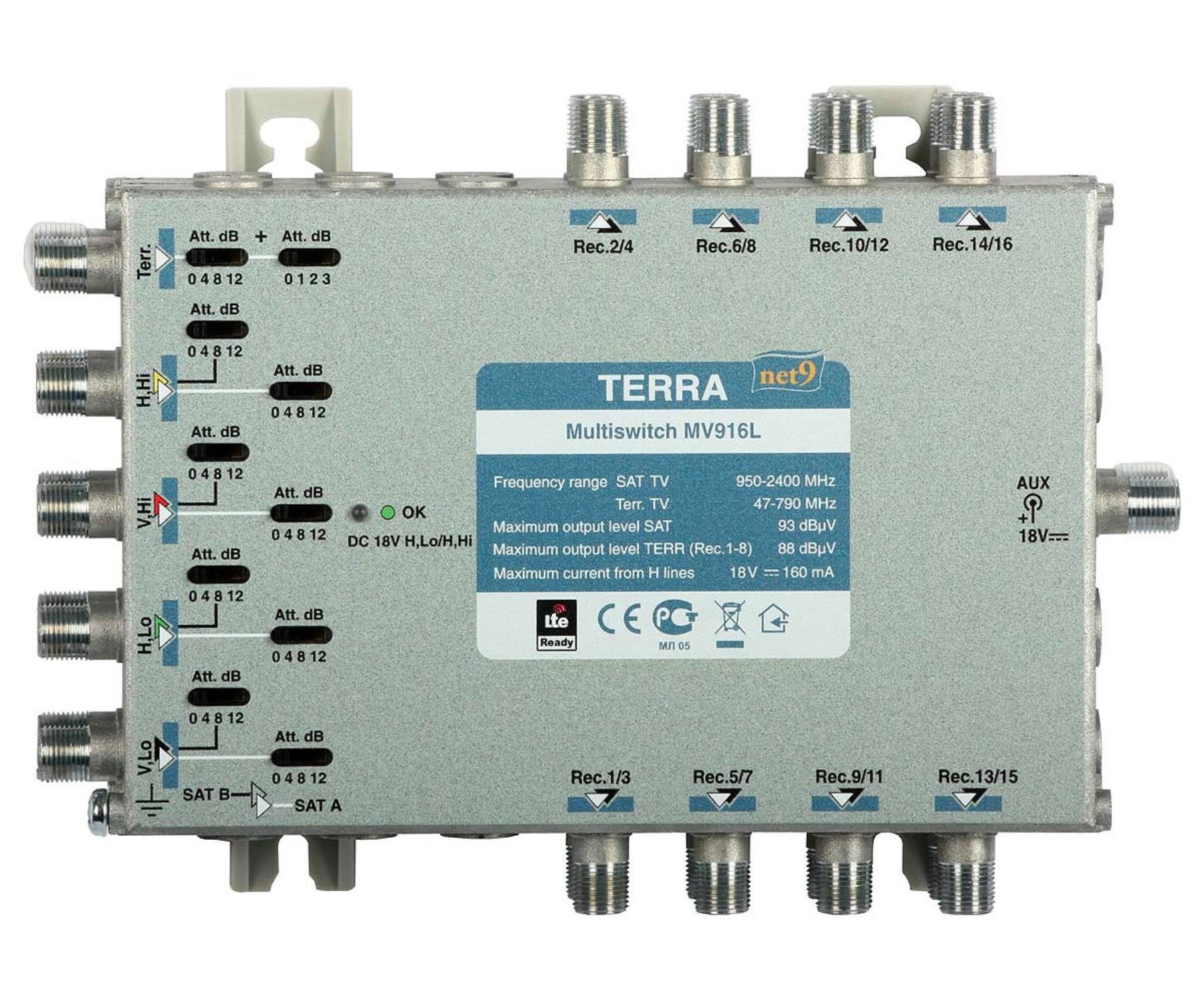

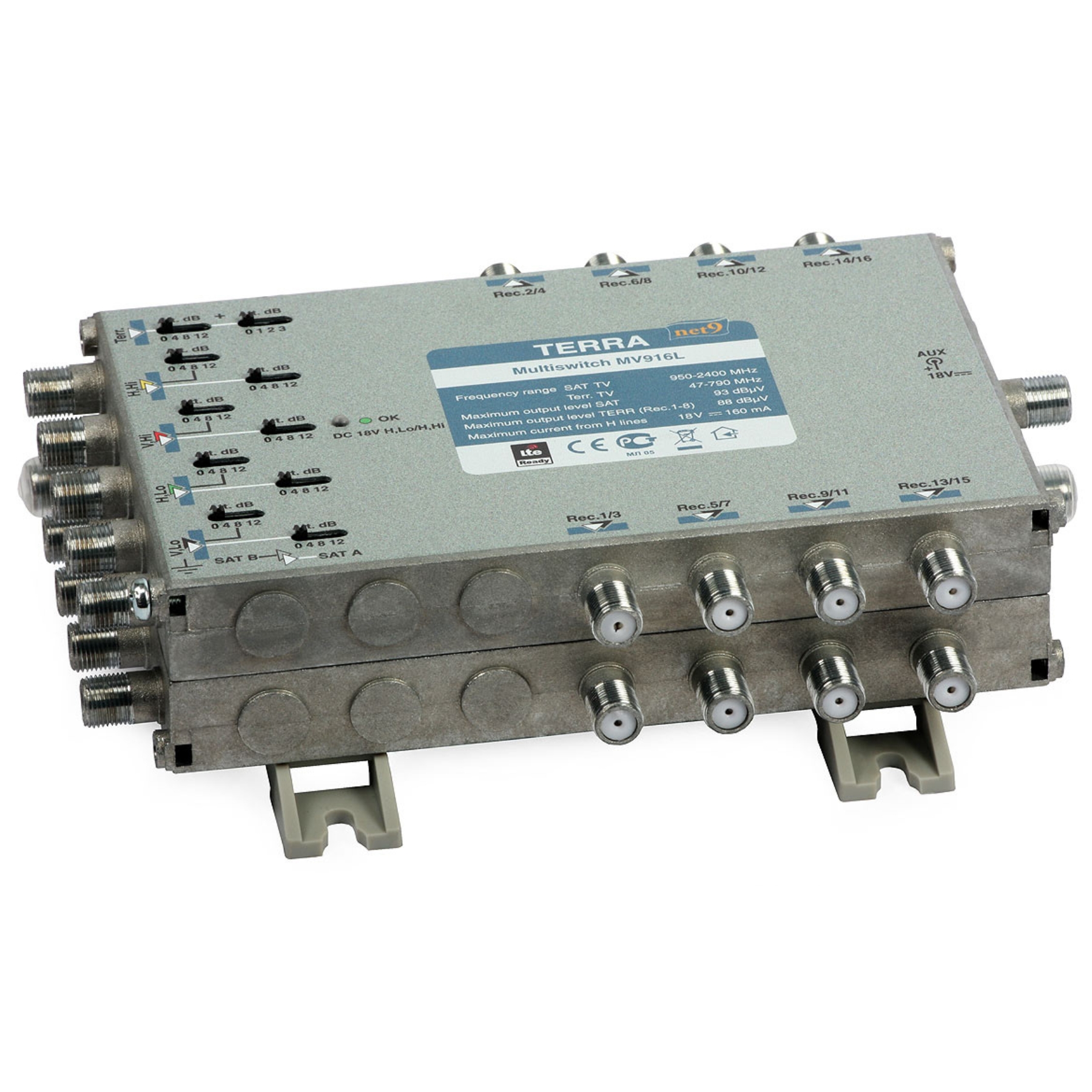

MULTISWITCH MV-916L 9 INPUTS / 16 OUTPUTS TERRA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 8x 950 MHz ... 2400 MHz 1x 47 MHz ... 790 MHz Active - Built-in LTE filter ; Outputs: 16x 5 MHz ... 2400 MHz ; Switching signals: 14 V / 18 V 0 Hz / 22 kHz DiSEqC 2.0 ; Pre-amplifiers powering: 14 / 18 V DC (V/H) ;
| Inputs: | 8x 950 MHz ... 2400 MHz 1x 47 MHz ... 790 MHz Active - Built-in LTE filter |
| Outputs: | 16x 5 MHz ... 2400 MHz |
| Switching signals: | 14 V / 18 V 0 Hz / 22 kHz DiSEqC 2.0 |
| SAT amplification (cable pre-correction): | 6 ... 14 dB |
| TV amplification (cable pre-correction): | 2.5 ... 9 dB |
| Isolation: | |
| Maximal output level SAT: | 93 dBµV |
| Maximal output level TV: | 86 ... 88 dBµV |
| Pre-amplifiers powering: | 14 / 18 V DC (V/H) |
| Power supply: | 18 V DC |
| Dimensions: | 187 x 135 x 52 mm |
| Weight: | 1.26 kg |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
