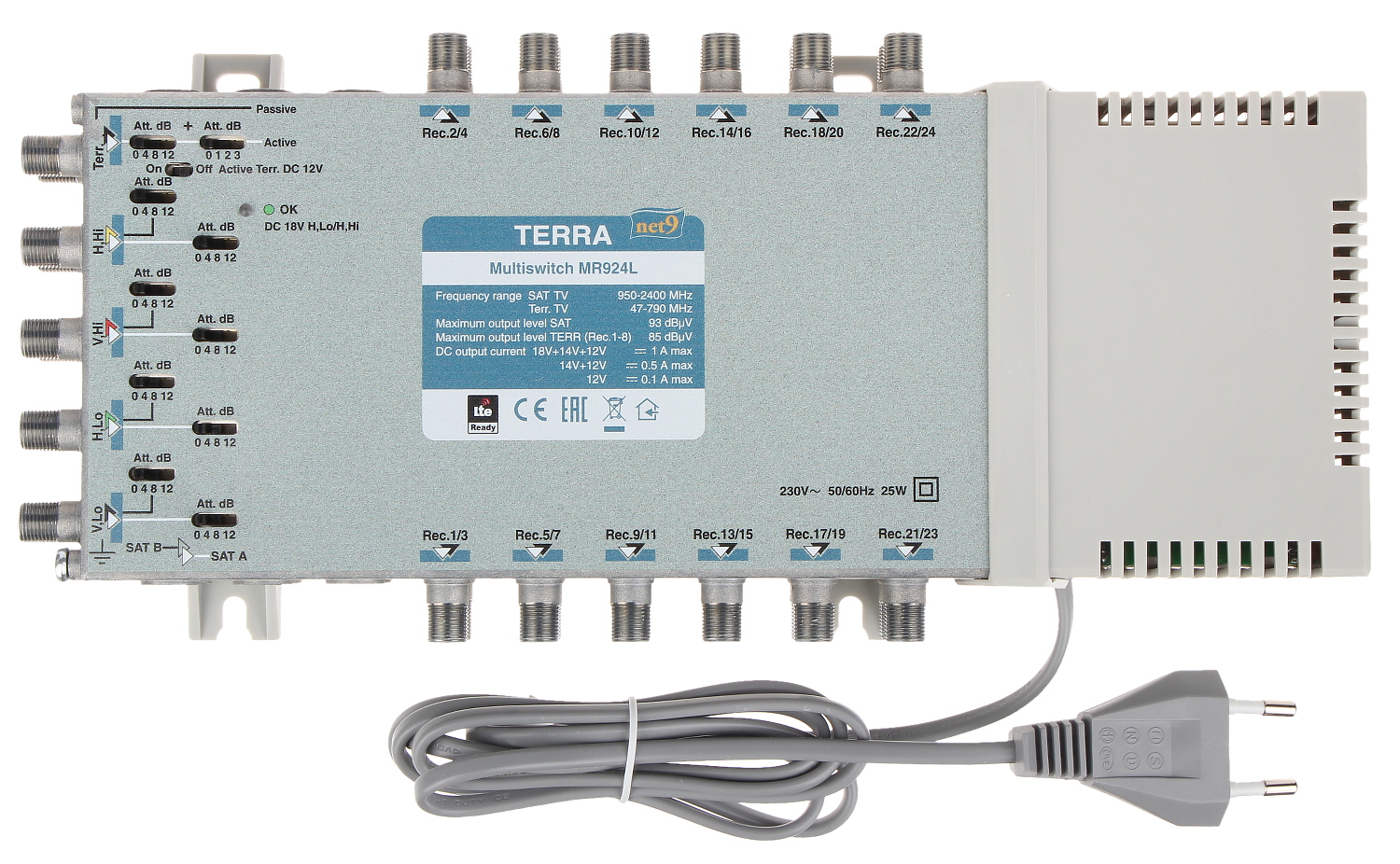

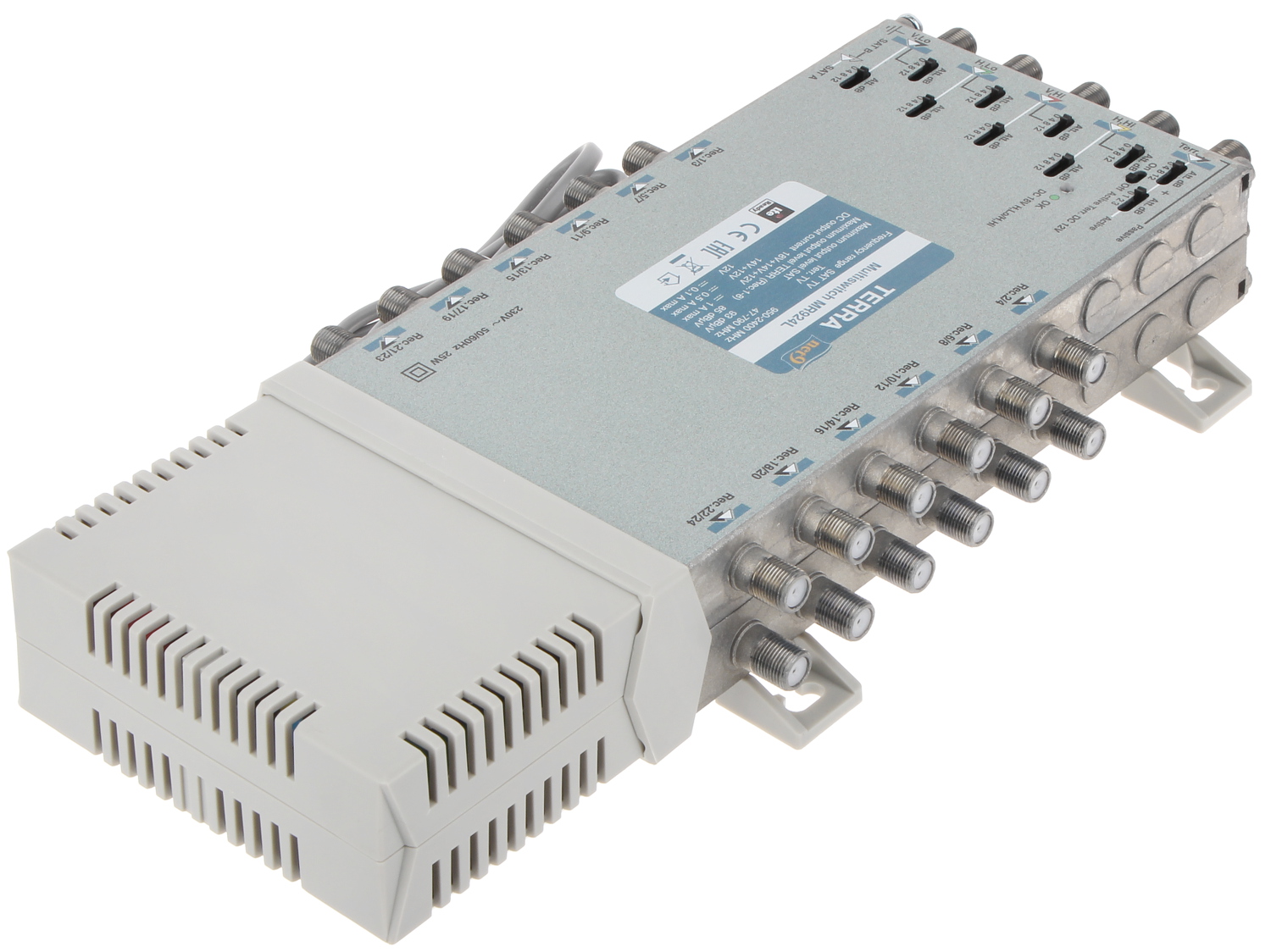

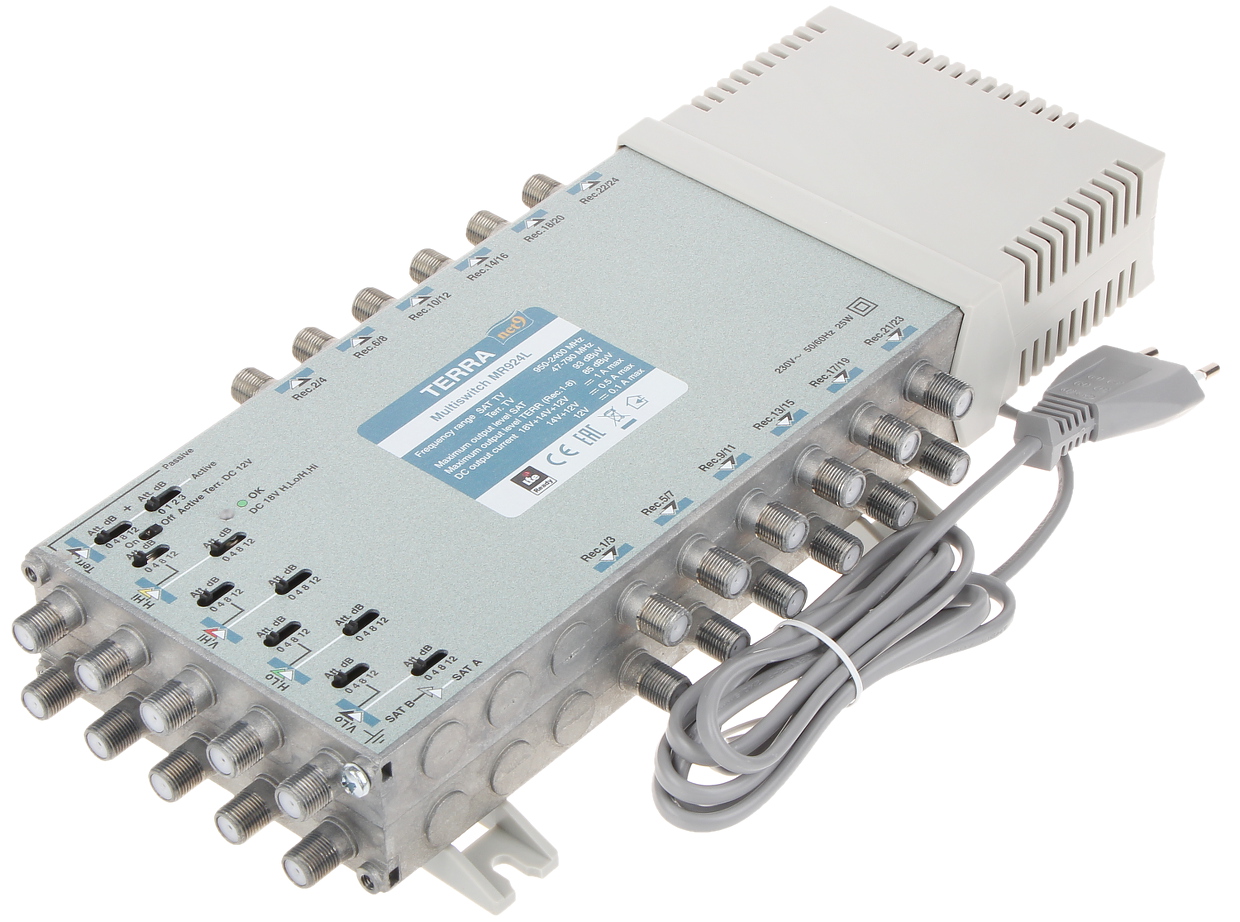

MULTISWITCH MR-924L 9 INPUTS / 24 OUTPUTS TERRA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 8x 950 MHz ... 2400 MHz 1x 47 MHz ... 790 MHz Active - Built-in LTE filter 1x 5 MHz ... 862 MHz Passive ; Outputs: 24x 5 MHz ... 2400 MHz ; Switching signals: 14 V / 18 V 0 Hz / 22 kHz DiSEqC 1.0 DiSEqC 2.0 ; Pre-amplifiers powering: 12 V DC ;
| Inputs: | 8x 950 MHz ... 2400 MHz 1x 47 MHz ... 790 MHz Active - Built-in LTE filter 1x 5 MHz ... 862 MHz Passive |
| Outputs: | 24x 5 MHz ... 2400 MHz |
| Switching signals: | 14 V / 18 V 0 Hz / 22 kHz DiSEqC 1.0 DiSEqC 2.0 |
| SAT amplification (cable pre-correction): | 5 ... 12 dB |
| TV amplification (cable pre-correction): | -1 ... 4 dB |
| Isolation: | |
| Maximal output level SAT: | 93 dBµV |
| Maximal output level TV: | 81 ... 85 dBµV |
| Pre-amplifiers powering: | 12 V DC |
| Power supply: | 230 V AC |
| Weight: | 1.6 kg |
| Dimensions: | 293 x 135 x 52 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
Brand:
Terra
