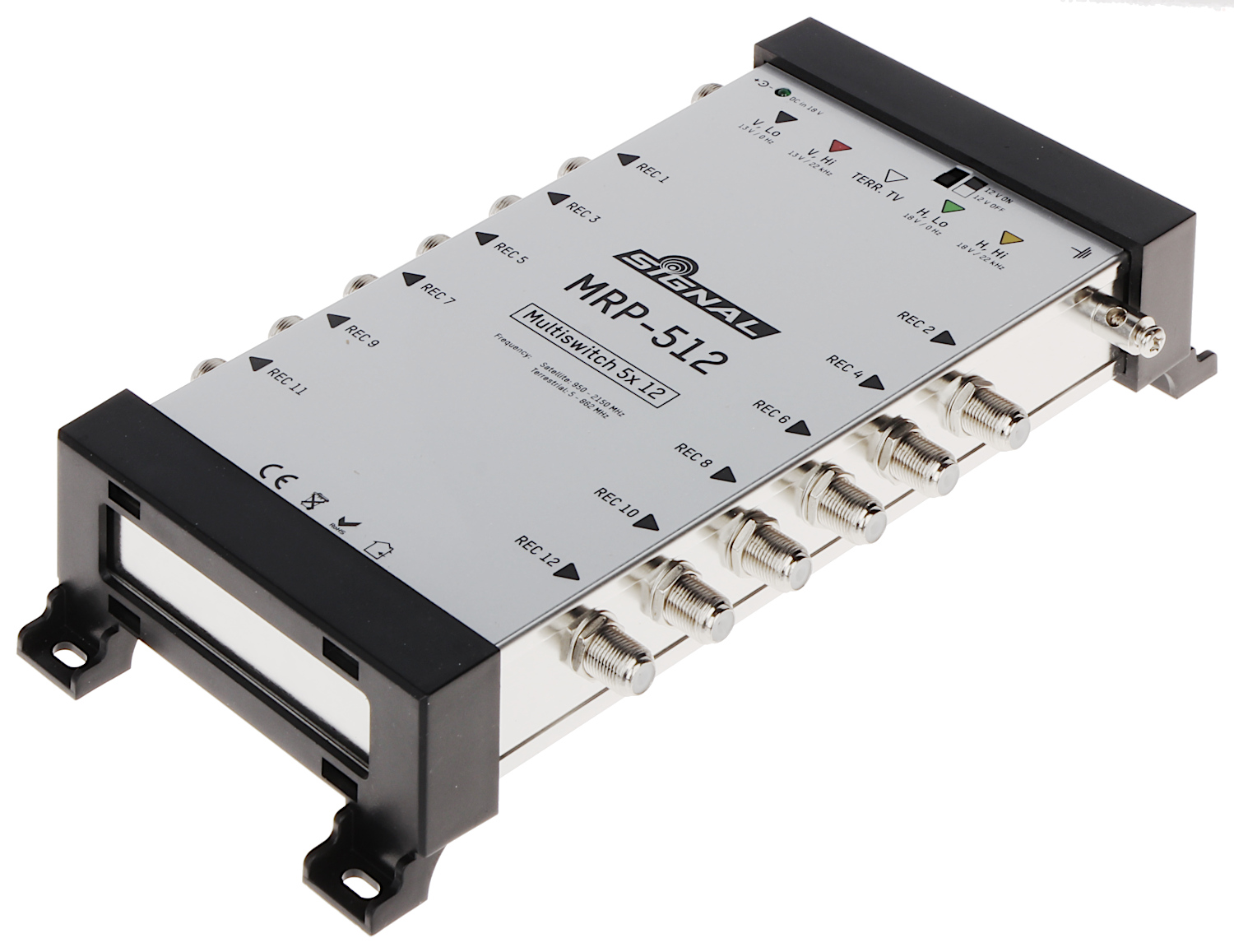

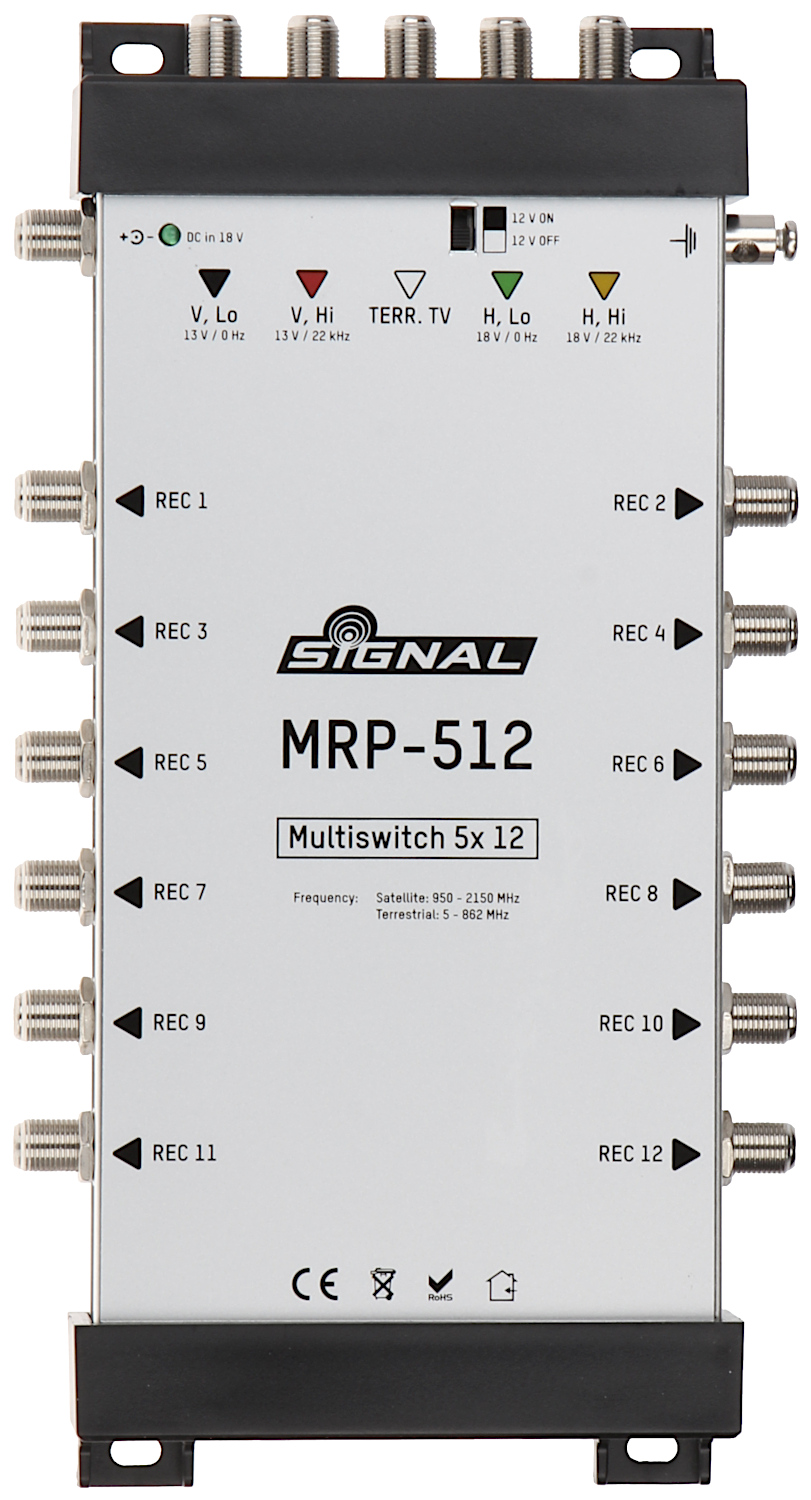

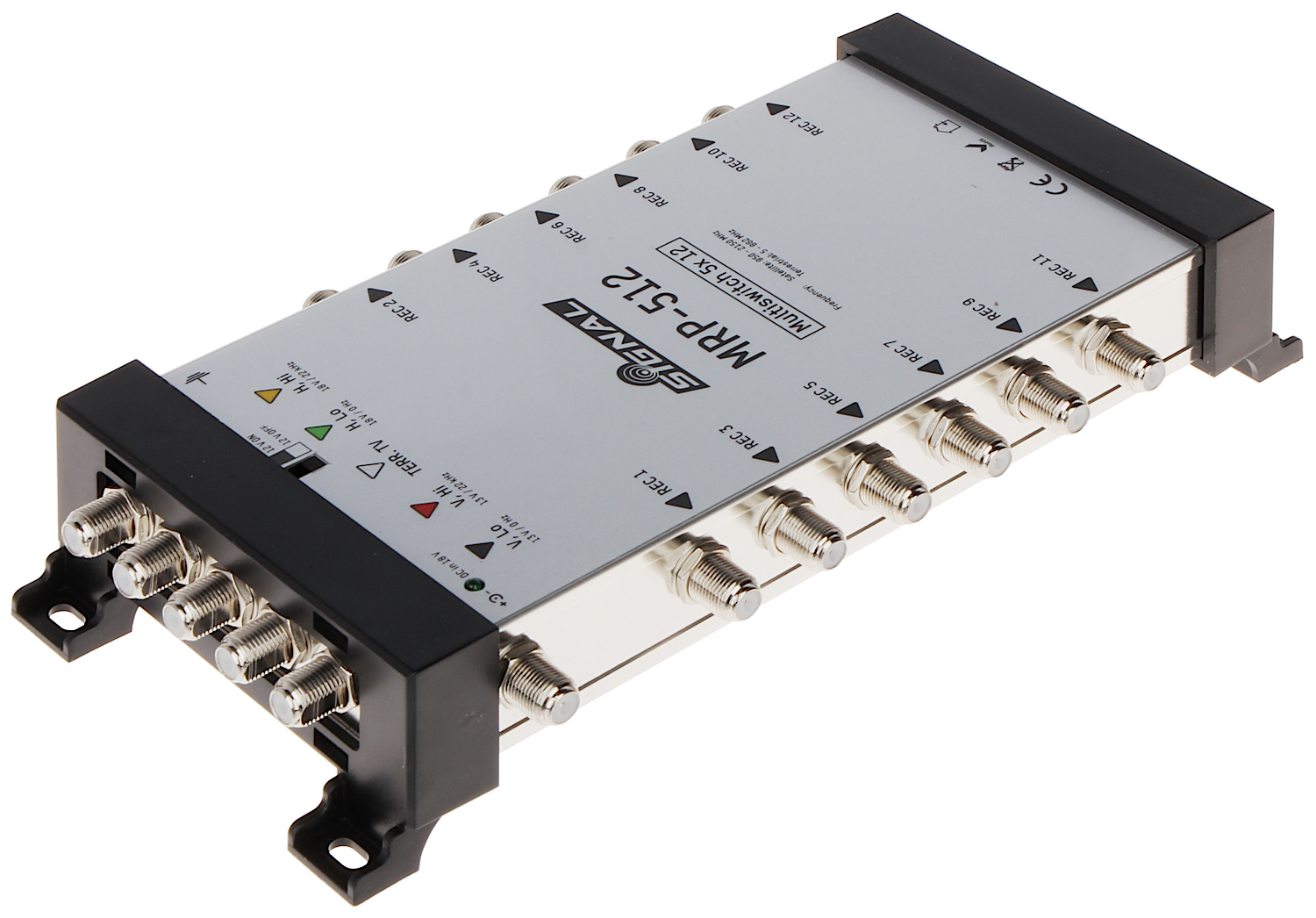

MULTISWITCH MRP-512 5 INPUTS / 12 OUTPUTS SIGNAL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 4x 950 MHz ... 2150 MHz 1 x 5 MHz ... 862 MHz ; Outputs: 12 x 47 MHz ... 2150 MHz ; Switching signals: 13 V / 18 V 0 Hz / 22 kHz ; Pre-amplifiers powering: 12 V DC ;
| Inputs: | 4x 950 MHz ... 2150 MHz 1 x 5 MHz ... 862 MHz |
| Outputs: | 12 x 47 MHz ... 2150 MHz |
| Switching signals: | 13 V / 18 V 0 Hz / 22 kHz |
| SAT Tap loss: | 3 dB |
| TV Tap loss: | 17 dB ± 1.5 dB |
| Maximal output level SAT: | 100 dBµV |
| Maximal output level TV: | 100 dBµV |
| Pre-amplifiers powering: | 12 V DC |

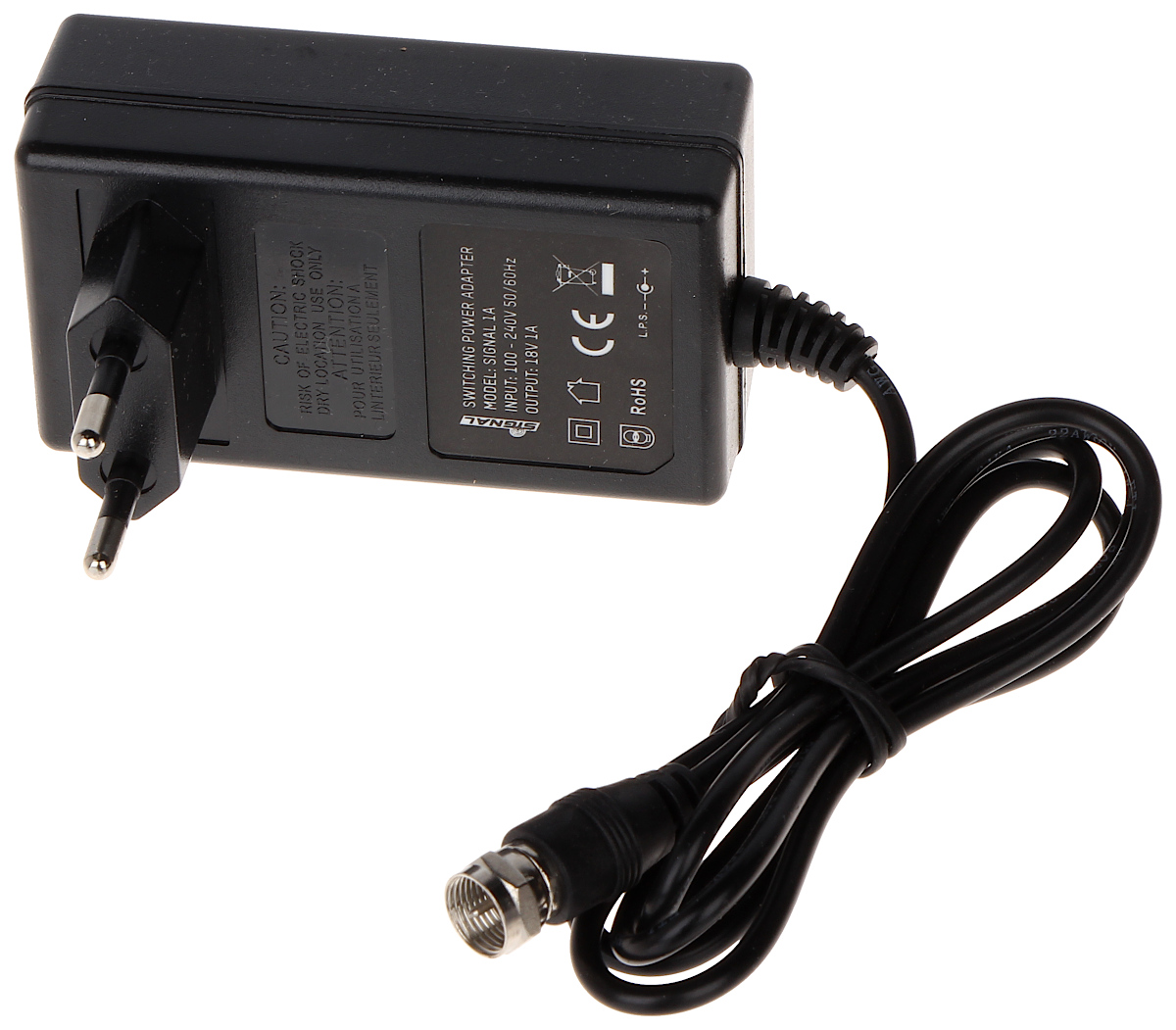

| Power supply: | 18 V DC / 1 A (power adapter included) |
| Dimensions: | 230 x 121 x 45 mm |
| Weight: | 0.43 kg |
| Manufacturer / Brand: | SIGNAL |
| Guarantee: | 2 years |
Brand:
Signal
