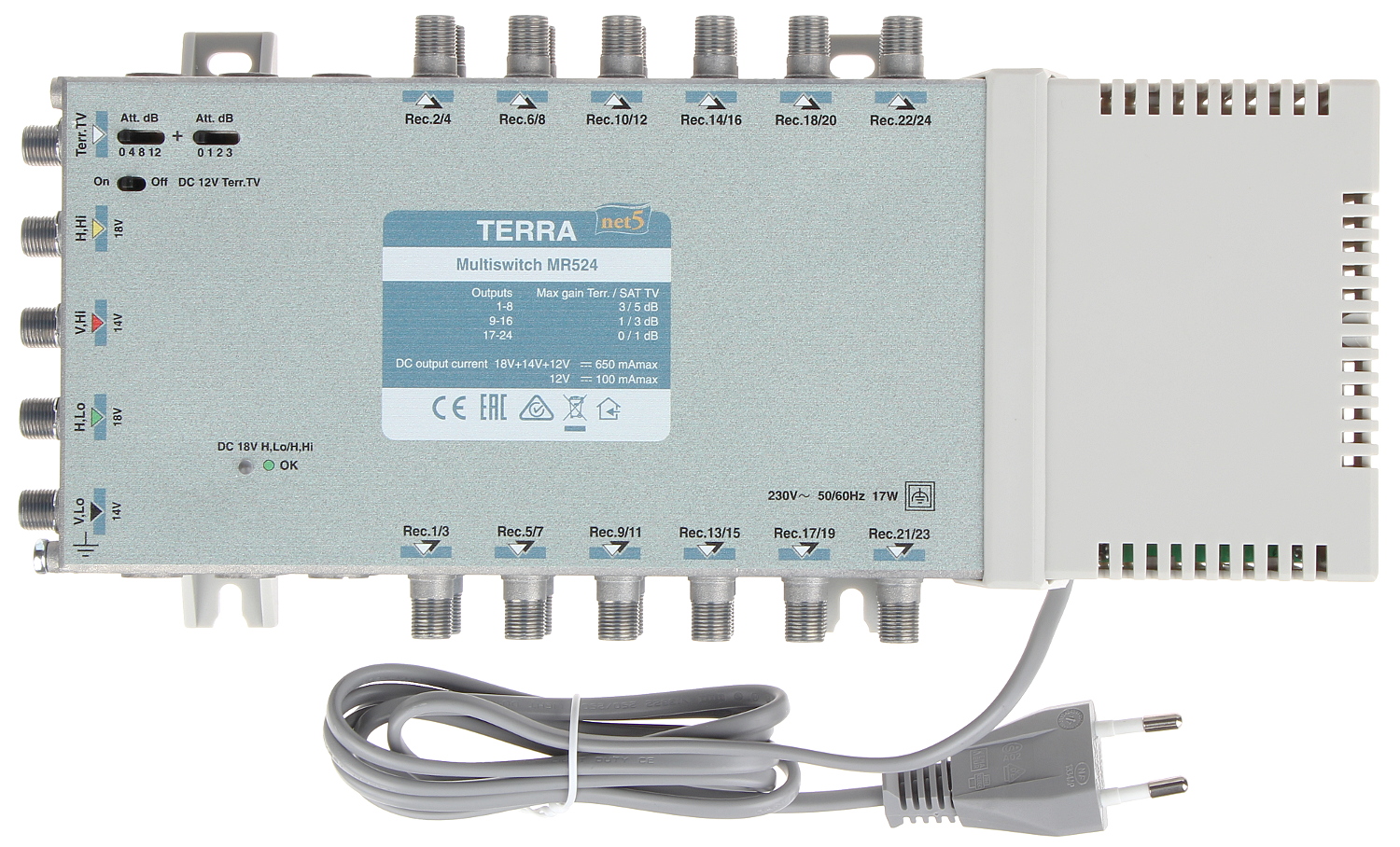

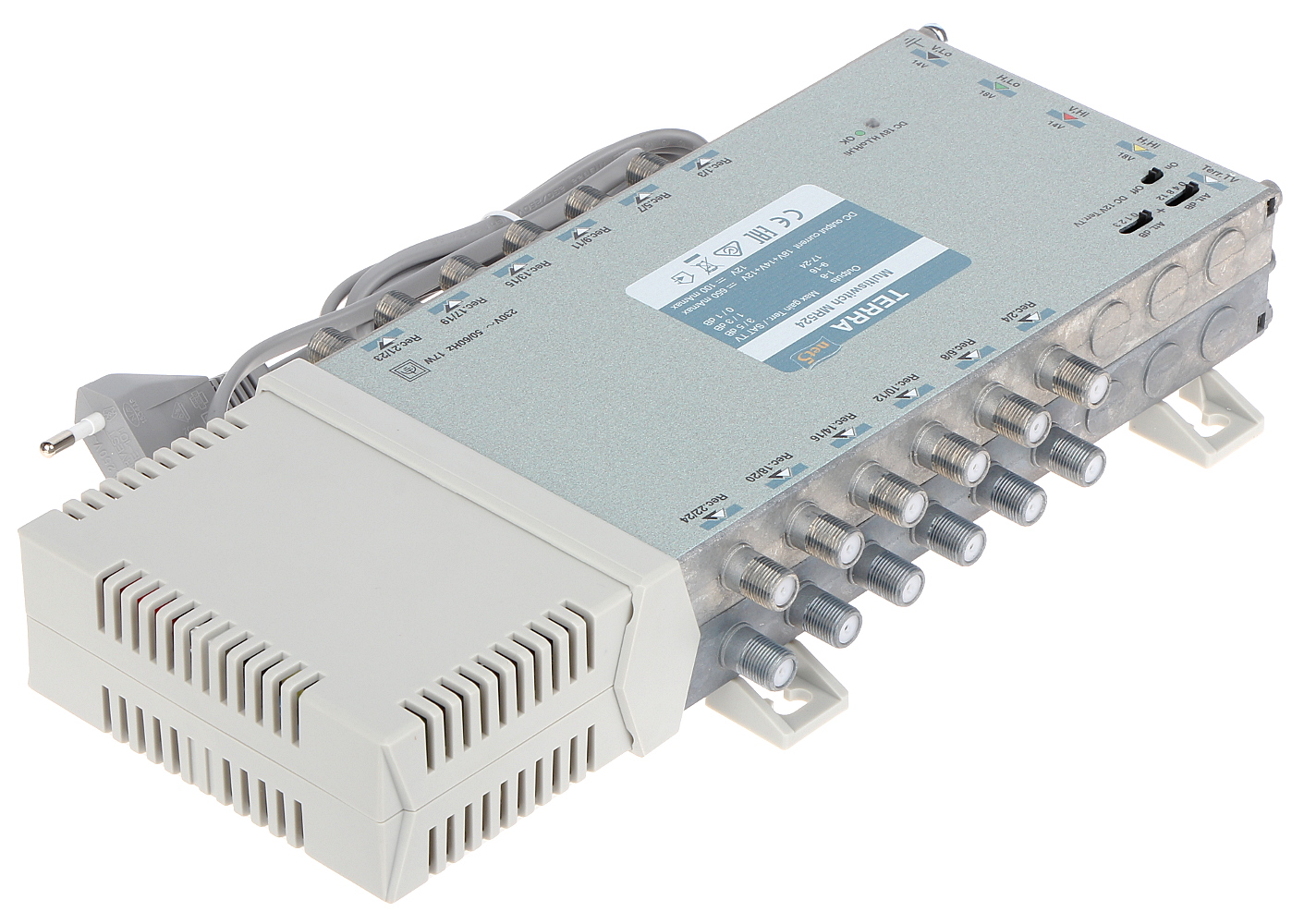

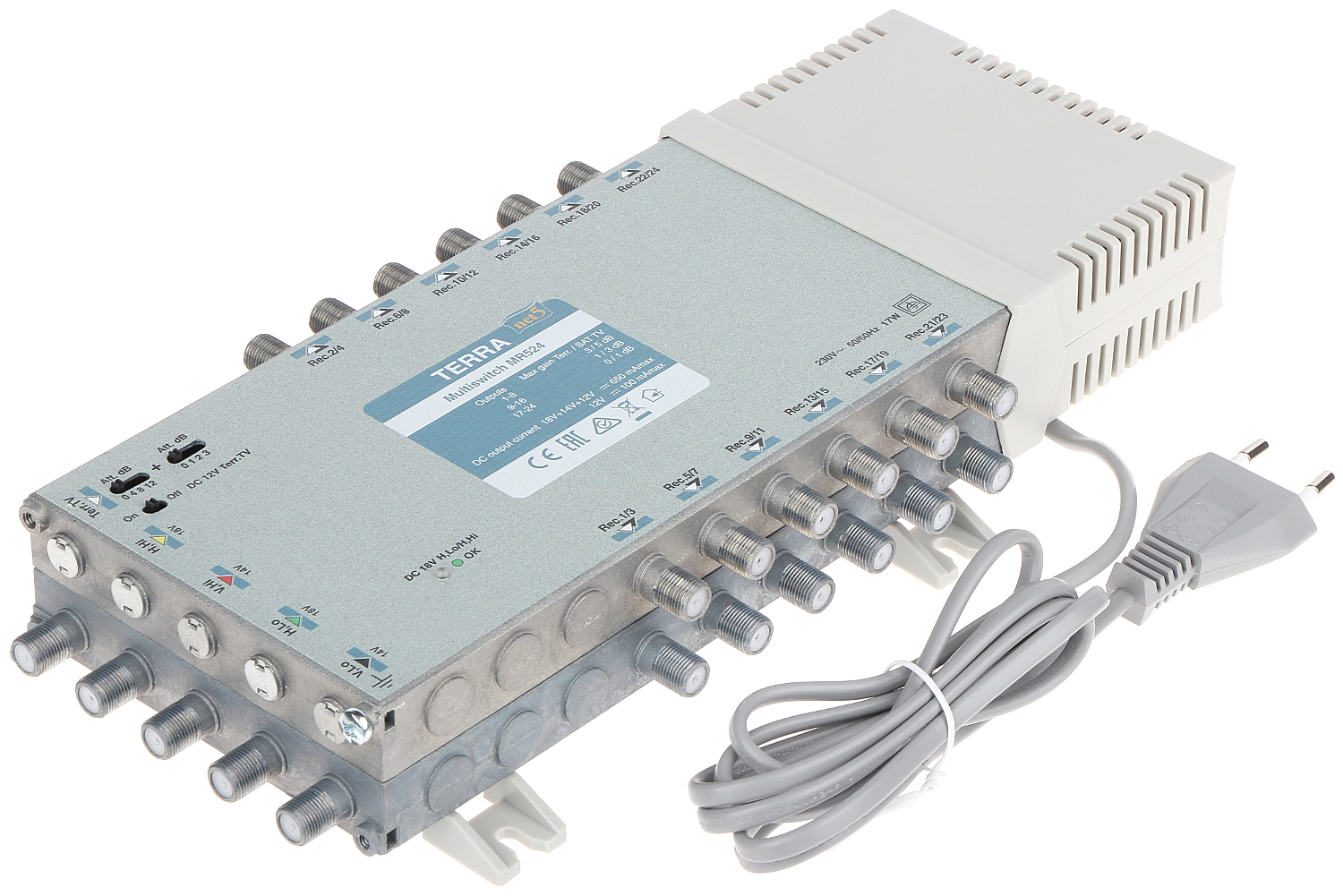

MULTISWITCH MR-524 5 INPUTS/24 OUTPUTS TERRA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 4x 950 MHz ... 2400 MHz, 1x 47 MHz ... 862 MHz - Active ; Outputs: 24x 47 MHz ... 2400 MHz ; Switching signals: 14 V / 18 V 0 Hz / 22 kHz ; Pre-amplifiers powering: 12 V DC ;
| Inputs: | 4x 950 MHz ... 2400 MHz , 1x 47 MHz ... 862 MHz - Active |
| Outputs: | 24x 47 MHz ... 2400 MHz |
| Switching signals: | 14 V / 18 V 0 Hz / 22 kHz |
| SAT amplification (cable pre-correction): | -5 ... 5 dB |
| TV amplification (cable pre-correction): | -5 ... 3 dB |
| Isolation: | |
| Maximal output level SAT: | 96 dBµV |
| Maximal output level TV: | 82 ... 86 dBµV |
| Pre-amplifiers powering: | 12 V DC |
| Power supply: | 230 V AC |
| Weight: | 1.47 kg |
| Dimensions: | 293 x 135 x 52 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
Brand:
Terra
