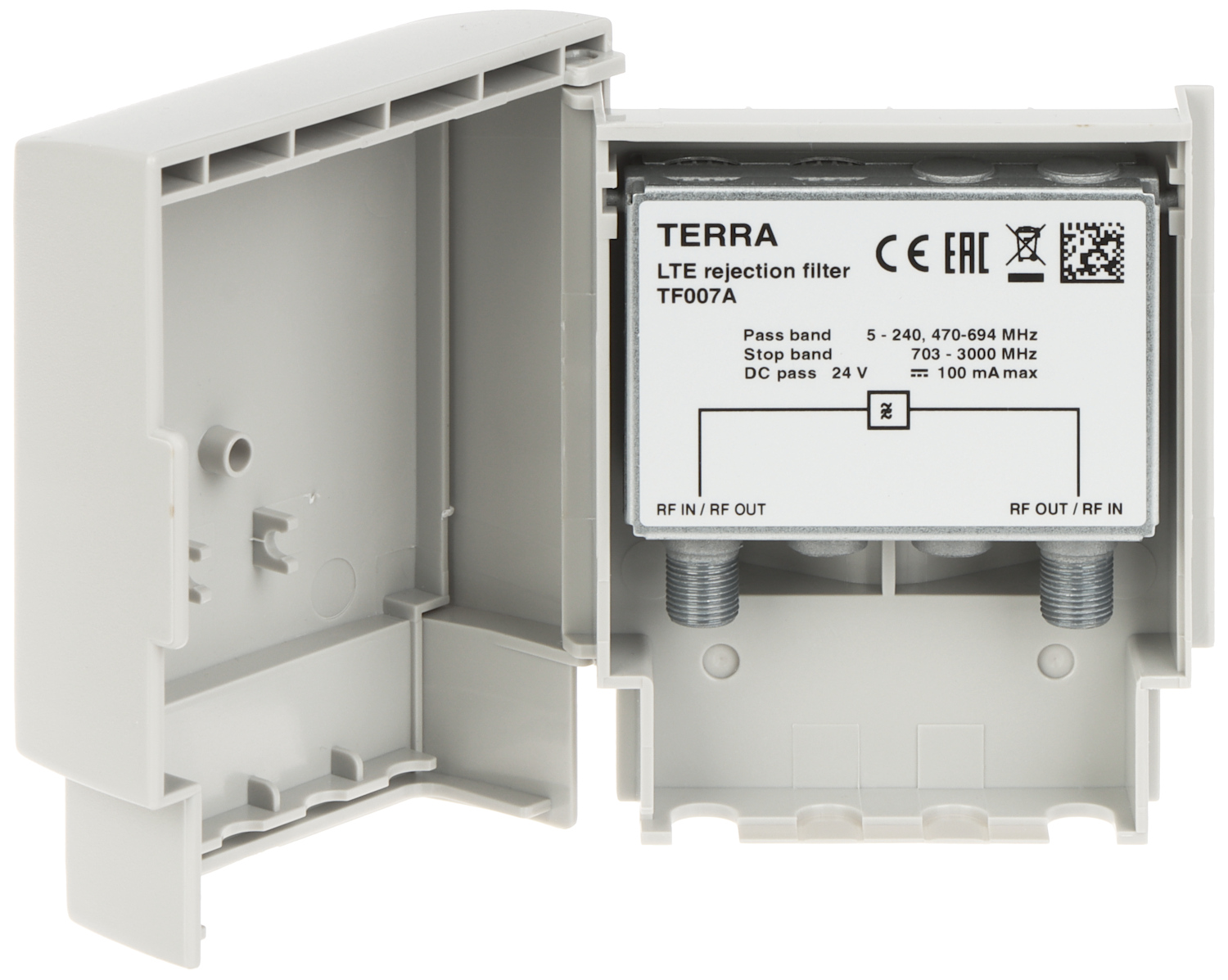

FILTER LTE TF-007A
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Stop-band: 240 ... 470 MHz 694 ... 3000 MHz ; Return loss: > 23 dB ; Insertion loss: < 4 dB ; Main features: It is equipped with 24V/100mA DC pass ;
| Working frequency band: | 5 ... 1000 MHz |
| Stop-band: | 240 ... 470 MHz 694 ... 3000 MHz |
| Return loss: | > 23 dB @ 350 MHz > 25 dB @ 703 MHz > 25 dB @ 733 MHz > 35 dB @ 1000 MHz |

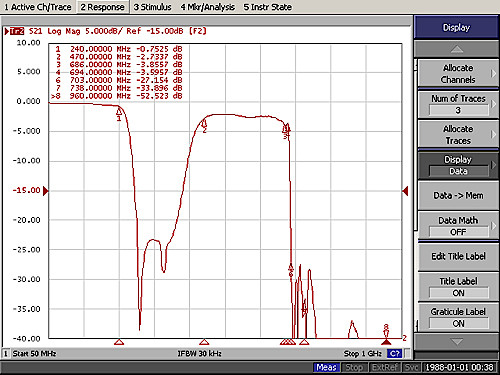

| Insertion loss: | < 0.3 dB @ 5 MHz < 2 dB @ 240 MHz < 3 dB @ 470 MHz < 4 dB @ 694 MHz |
| Main features: | |
| Weight: | 0.17 kg |
| Dimensions: | 89 x 107 x 43 mm |
| Guarantee: | 2 years |
Brand:
Signal
