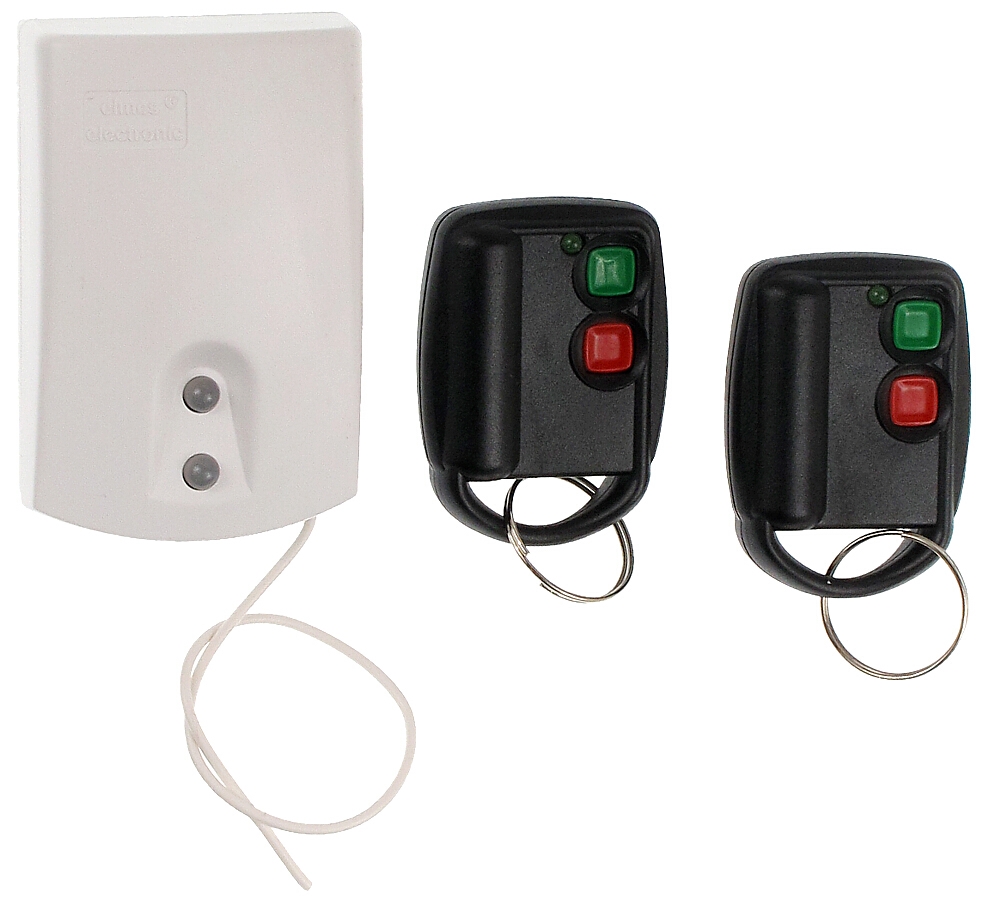

RADIO CONTROLLER U2HS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Universal 2-channel radio controller, to remote control and access control alarm systems; Radio communication range (at open area): 100 m ; Frequency range: 433.92 MHz ; Number of supported remote control keyfobs: max. 104 ; Relay outputs: 2 pcs NO/NC ;
| Remote control: | |
| Power: | < 5 mW |
| Radio communication range (at open area): | 100 m |
| Frequency range: | 433.92 MHz |
| Power supply: | battery GP23A 12V |
| Dimensions: | 50 x 36 x 13 mm |
| RECEIVER: | |
| Type: | Superheterodyne |
| Receiver sensitivity: | -106 dBm |
| The KEELOQ code-hopping technology: |  |
| Number of supported remote control keyfobs: | max. 104 |
| Relay outputs: | 2 pcs NO/NC |
| Relay change indication: | |
| Relay outputs changeover time in monostable mode: | 0.25 s ... 4 hours |
| Relay contacts rating (resistive load): | 1 A, 120 V AC / 30 V DC |
| Receiver protection: | TAMPER switch indicating open the cover |
| Power supply: | 11 V ... 17 V DC |
| Current consumption: | 20 mA in standby + 20 mA for relay set on |
| Operation temp: | -20 °C ... 55 °C |
| Dimensions: | 76 x 46 x 24 mm |
| Guarantee: | 2 years |
Brand:
Delta-Opti
