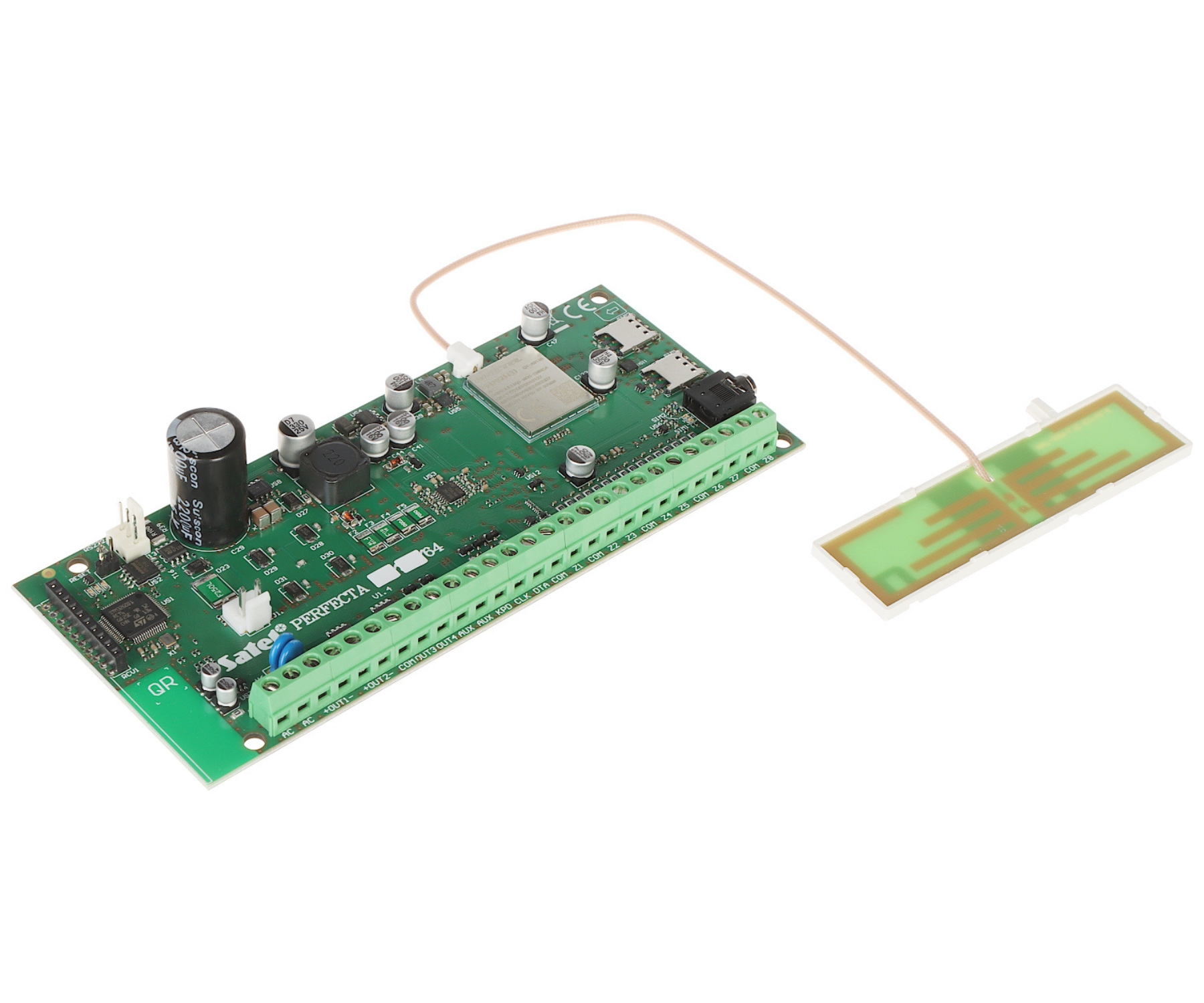

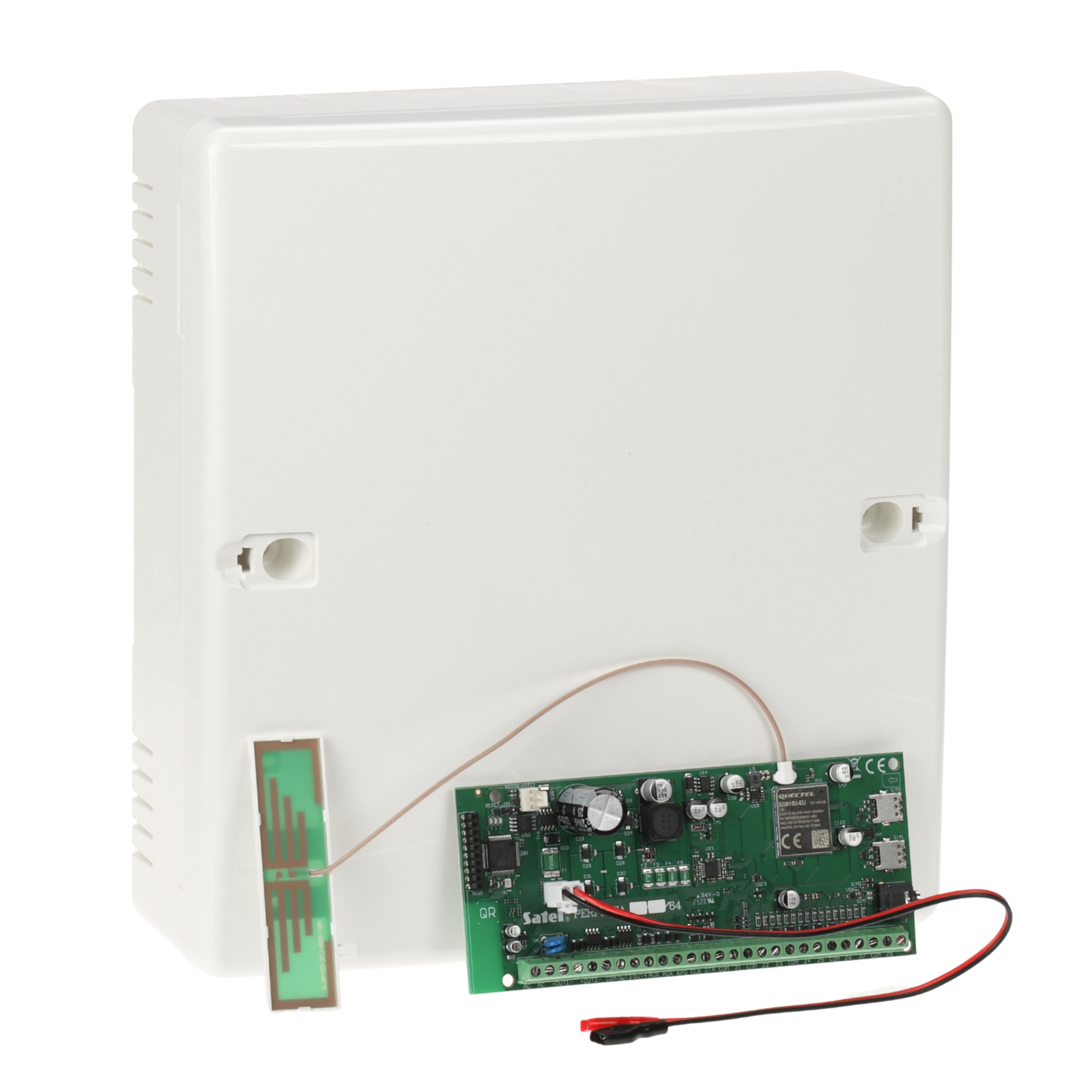

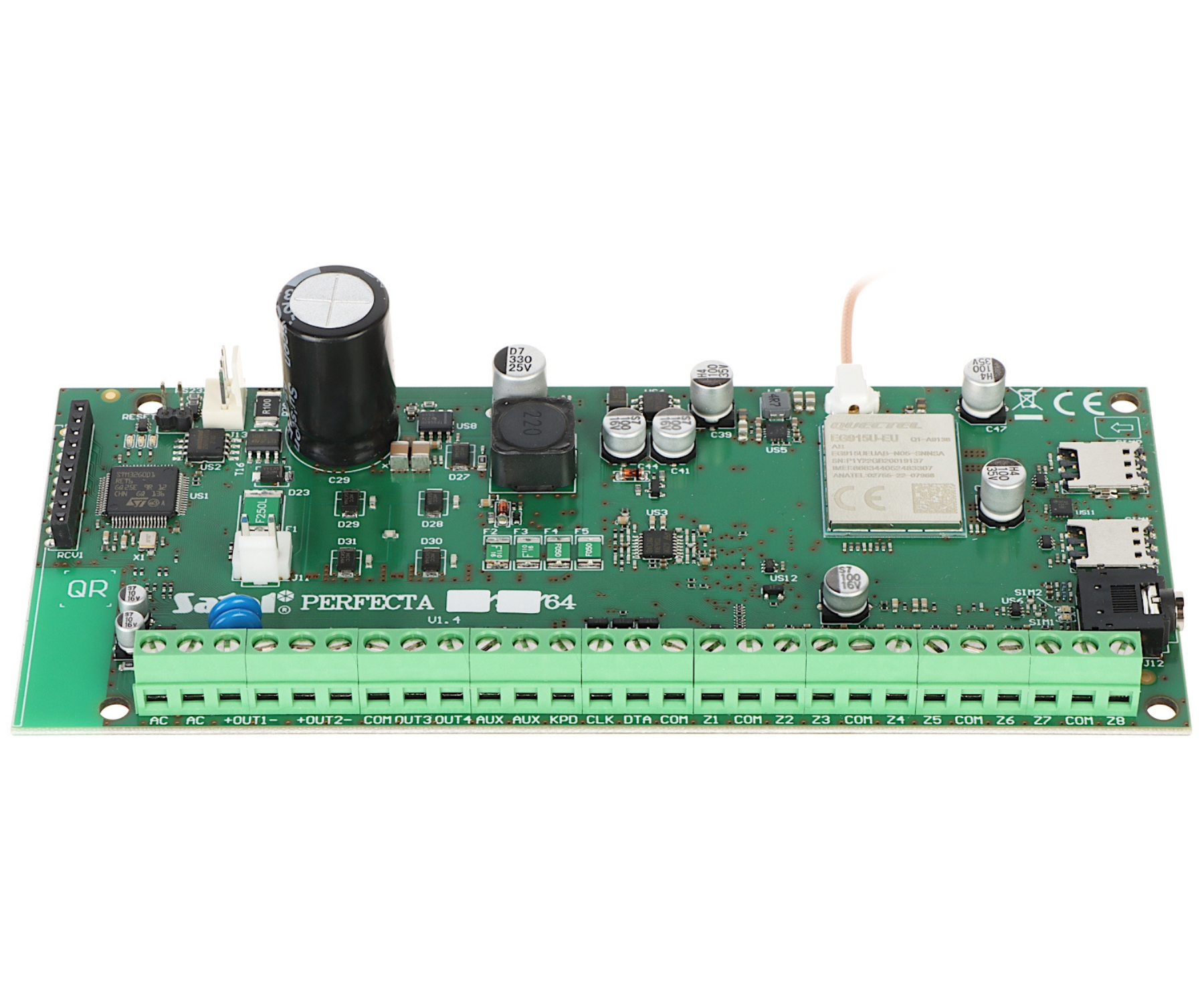

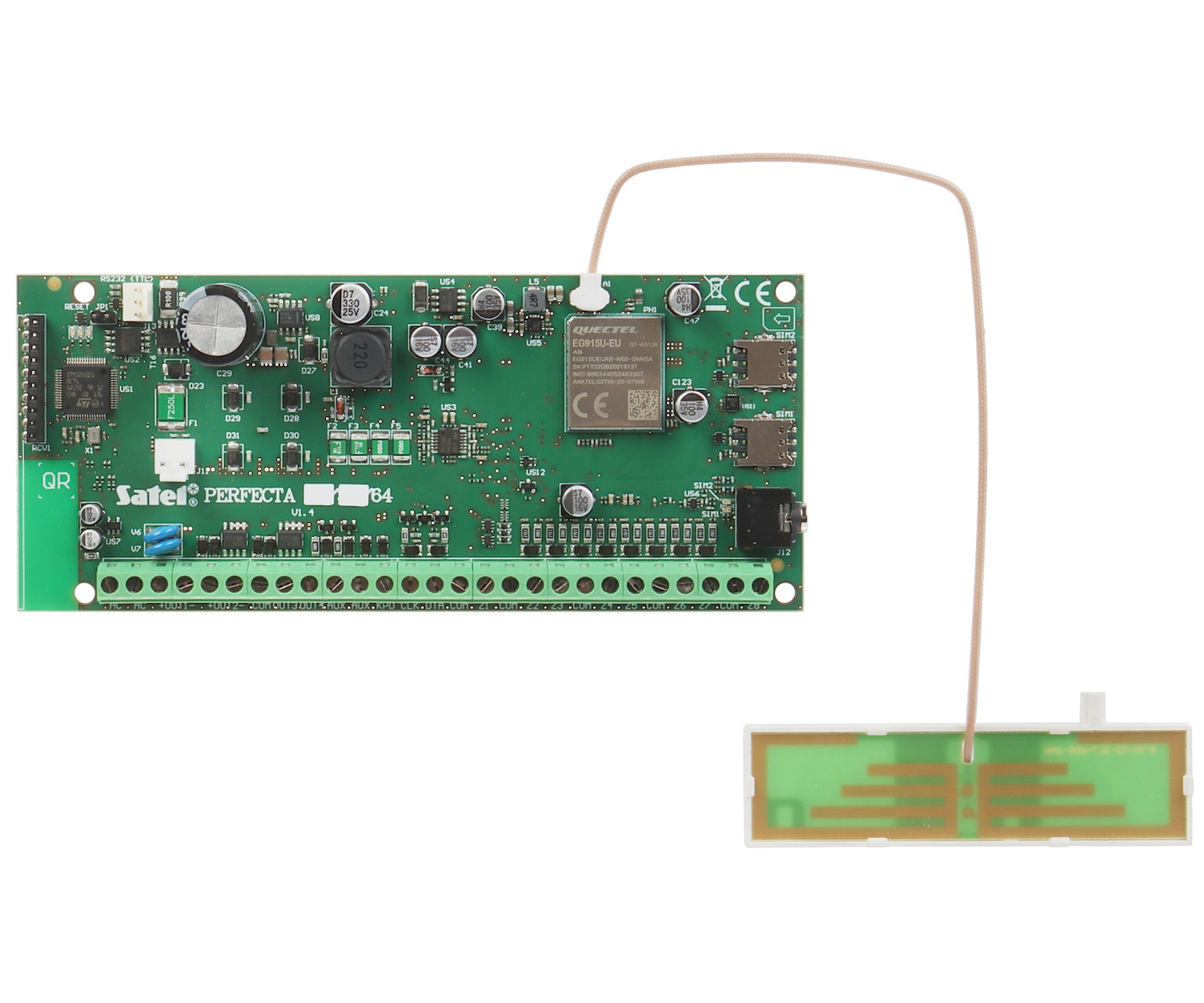

ALARM CONTROL PANEL PERFECTA-64-M-SET-A SATEL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Mainboard inputs: 8 pcs ; Mainboard outputs: 4 pcs ; Maximal number of supported inputs: 64 pcs ; Zones: 4 ; Events memory: 3584 ; Timers: 8 ; Supported languages: Polish ;
| Number of supported wireless devices: | ABAX2 - Support for up to 4 wireless keypads - Support for up to 48 wireless devices MICRA - Support for up to 4 wireless keypads - Support for up to 64 detectors - Support for up to 4 sirens |
| Mainboard inputs: | 8 pcs - programmable |
| Mainboard outputs: | 4 pcs - programmable |
| Current-carrying capacity, low-current programmable outputs: | 25 mA - 2 pcs |
| Current-carrying capacity, high-current programmable outputs (+/-10%): | 1 A - 2 pcs |
| Maximal number of supported inputs: | 64 pcs - programmable |
| Maximal number of supported outputs: | 64 pcs - programmable |
| Maximal load: | 2 A |
| Users + admins: | 62 + 1 |
| Partitions: |  |
| Zones: | 4 |
| Expansion modules: |  |
| Events memory: | 3584 |
| Timers: | 8 |
| Supported keypads: | max. 4 pcs |
| Supporting the wireless ABAX system via bus: | |
| Keyboard included: | |

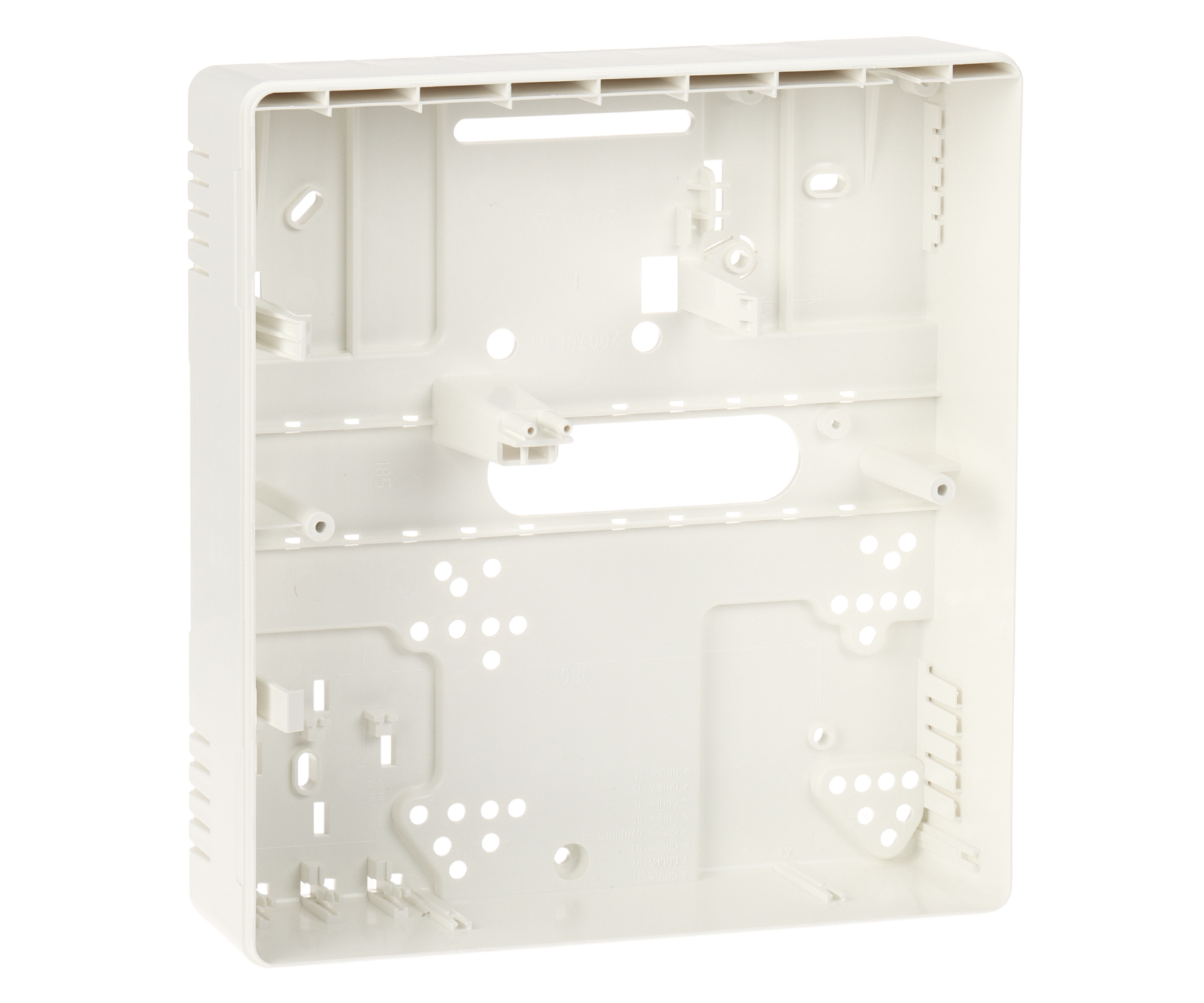

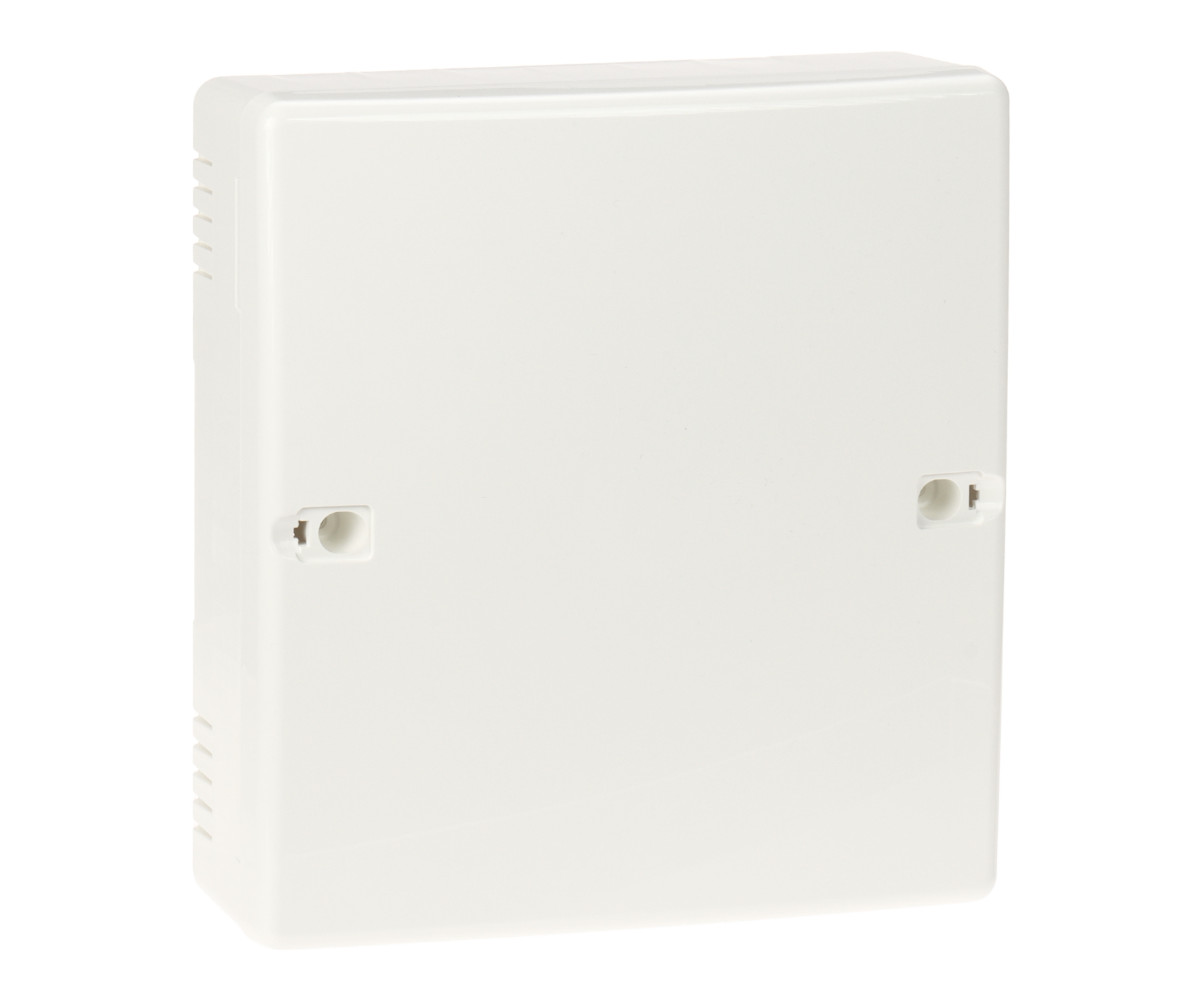

| Enclosure included: | |
| Protection class (Grade): | 2 |
| Main features: | |
| Power supply: | 18 V AC |
| Operation temp: | -10 °C ... 55 °C |
| Permissible relative humidity: | 93 % |
| Weight: | 1.20 kg (with enclosure and accessories) |
| Dimensions: | 160 x 69 mm - PCB 283 x 263 x 91 mm - Housing |
| Supported languages: | Polish - no possibility to change the language |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 2 years |
Brand:
Satel
