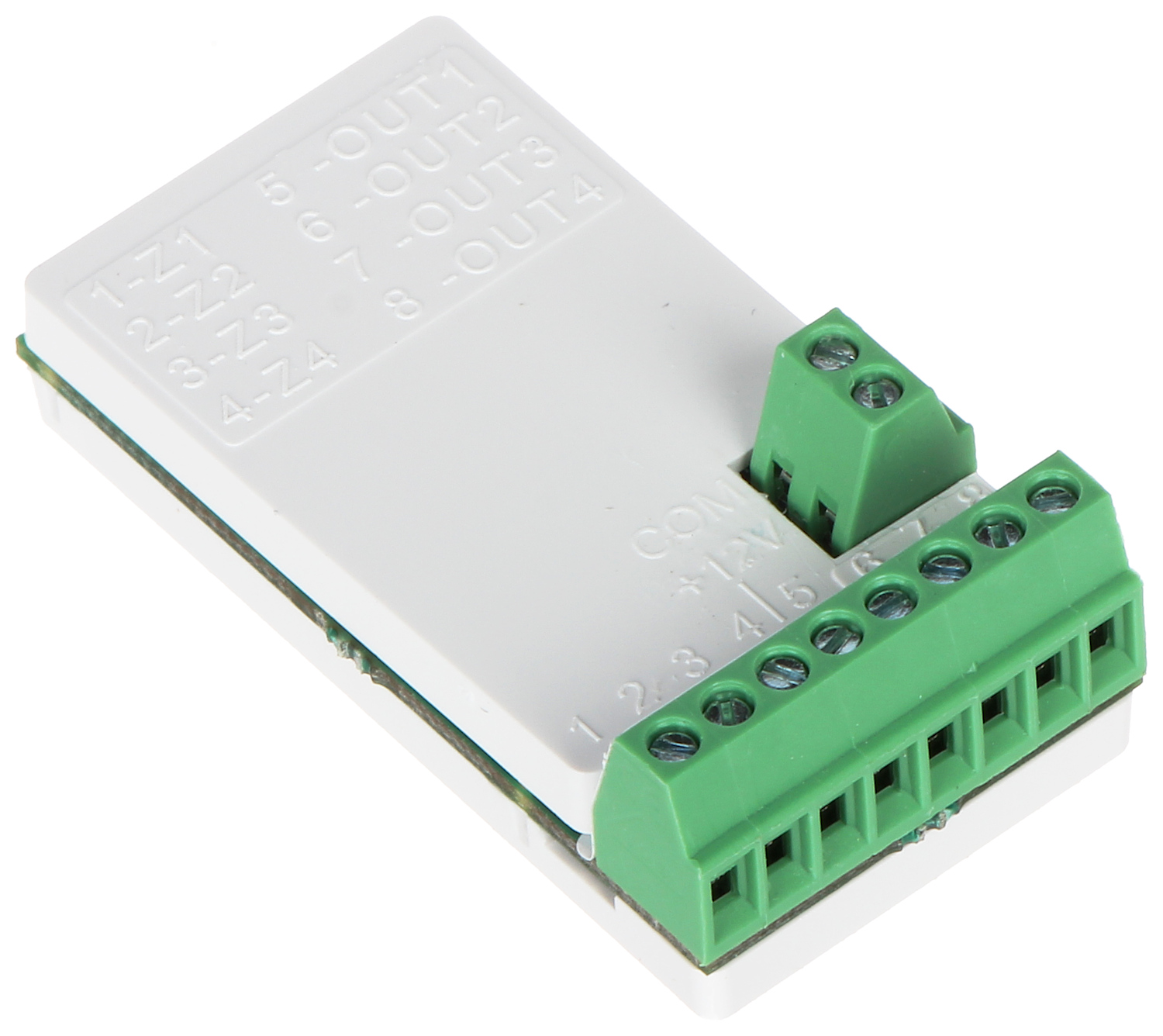

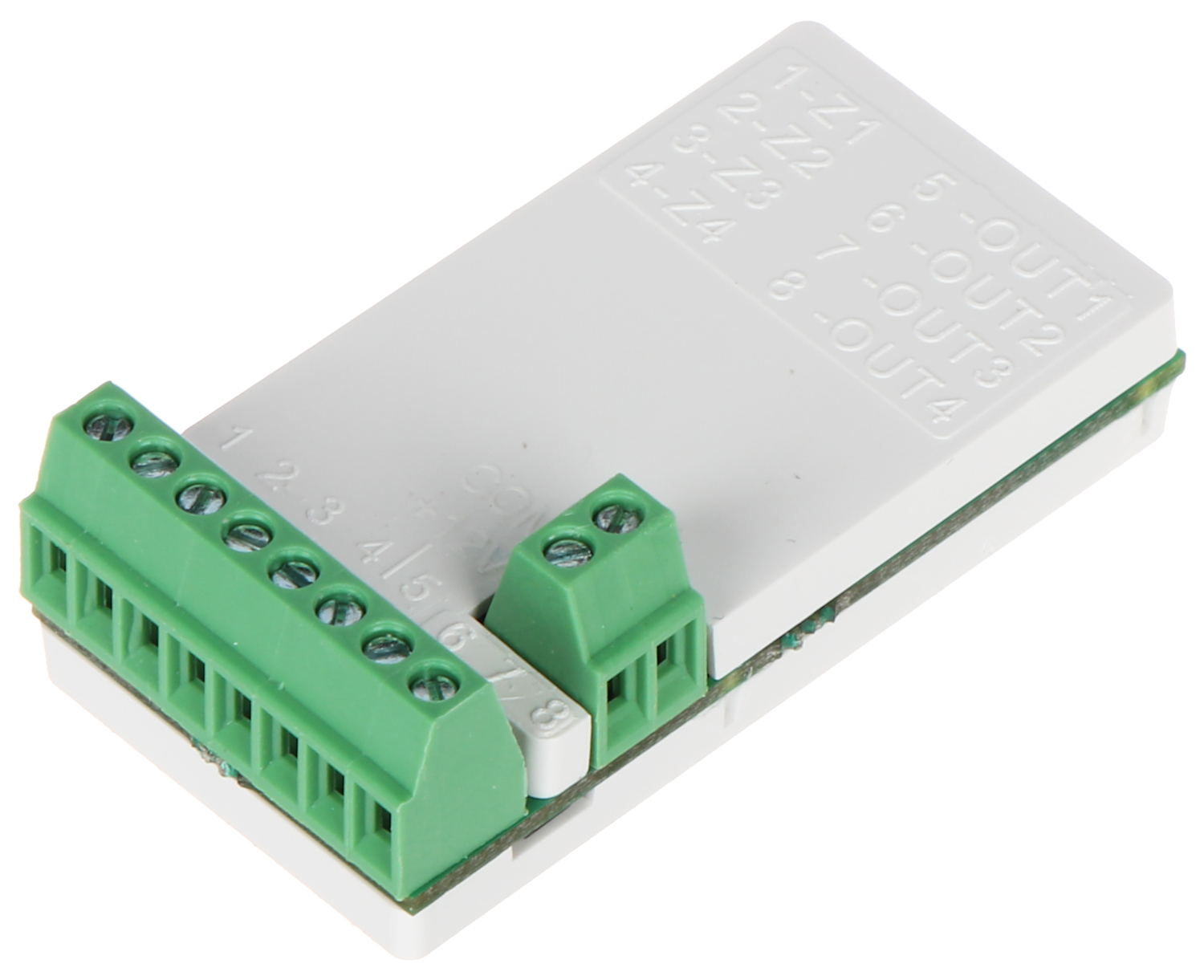

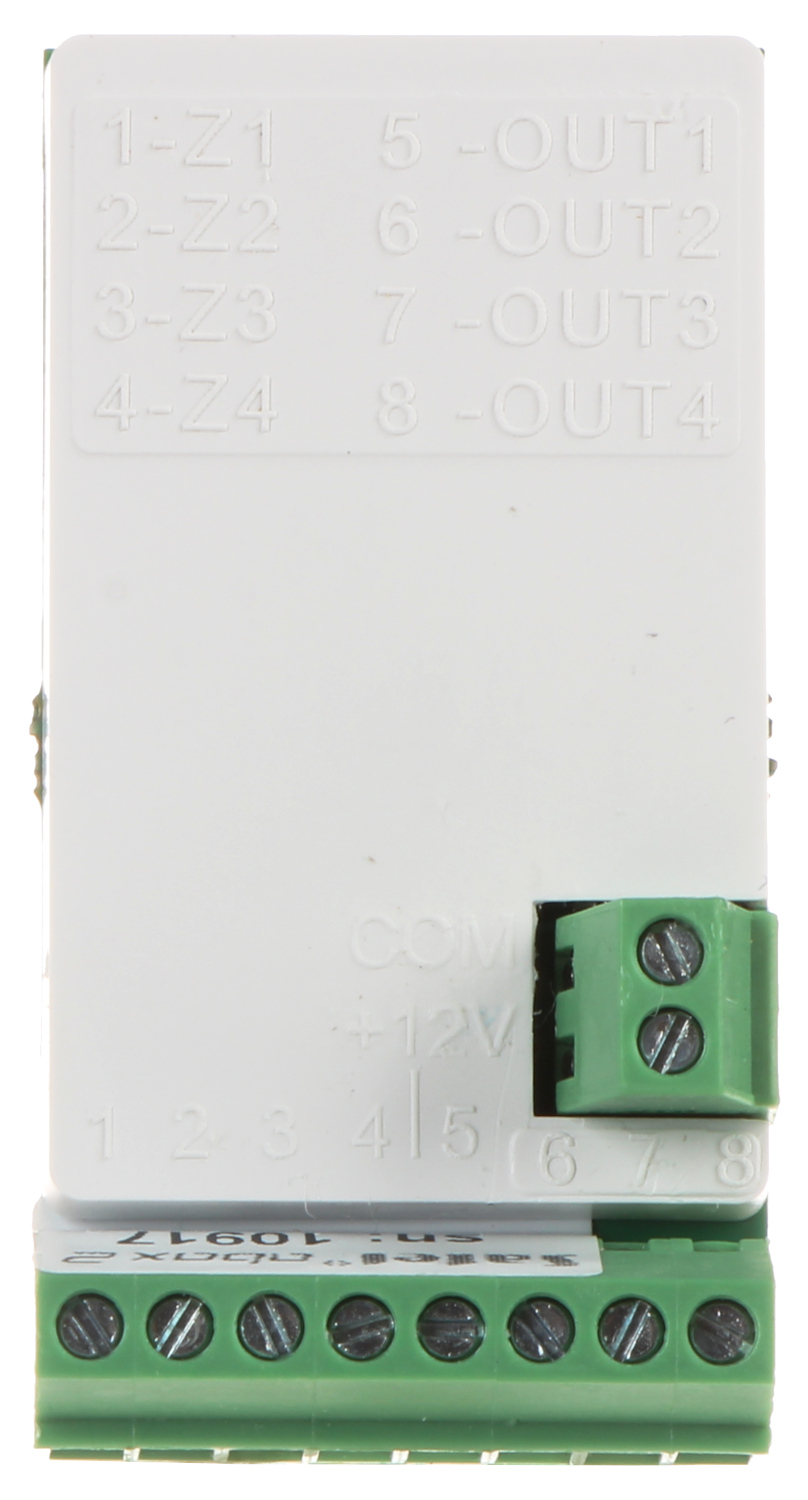

MINIATURE WIRELESS EXPANDER ACX-210 ABAX/ABAX2 SATEL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Inputs: 4 pcs NO, NC, EOL, 2EOL/NO, 2EOL/NC ; Outputs: 4 pcs OC ; Frequency band: 868 ... 868.6 MHz ; Radio communication range (at open area): ≤ 2000 m - ABAX2 @ ACU-220, ≤ 1400 m - ABAX2 @ ACU-280, ≤ 500 m - ABAX ; Load capacity of OC type programmable outputs: 50 mA / 12 V DC ; Power supply: 4 ... 24 V DC ;
| Inputs: | 4 pcs NO, NC, EOL, 2EOL/NO, 2EOL/NC |
| Outputs: | 4 pcs OC |
| Frequency band: | 868 ... 868.6 MHz |
| Radio communication range (at open area): | |
| Tamper output: |  |
| Load capacity of OC type programmable outputs: | 50 mA / 12 V DC |
| Main features: | |
| Power supply: | 4 ... 24 V DC |
| Current consumption: | max. 35 mA |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.008 kg |
| Dimensions: | 41 x 21 x 13 mm |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 2 years |
Brand:
Satel
