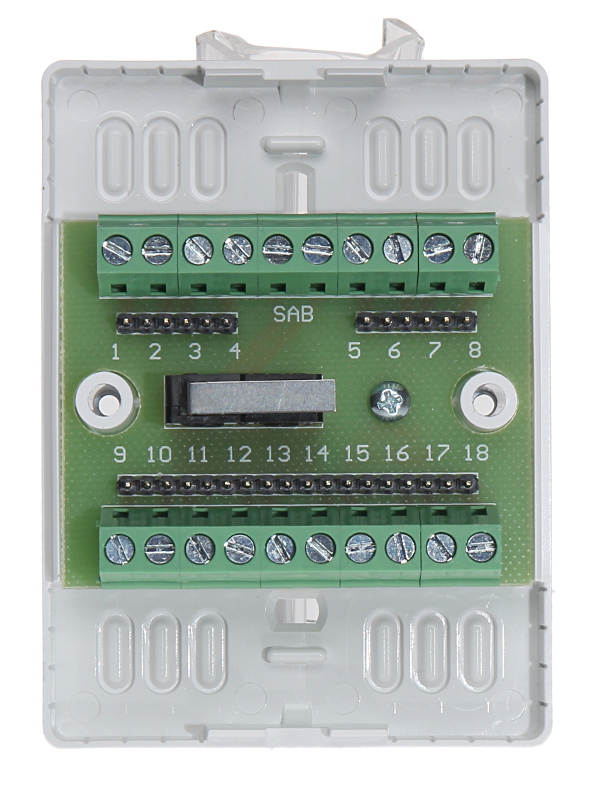

FIELD TERMINAL MODULE MZ-2-L SATEL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The MZ-2-L allows to make connections in low-voltage systems; Number of terminals: 18 ; Size of the clamping bore: 2.5 x 2.5 mm ; Maximal voltage: 24 V AC / DC ; Maximal current: 500 mA ;
| Number of terminals: | 18 + 2 ( TAMPER switch indicating open the cover ) |
| Size of the clamping bore: | 2.5 x 2.5 mm |
| Maximal voltage: | 24 V AC / DC |
| Maximal current: | 500 mA |
| Weight: | 0.086 kg |
| Dimensions: | 89 x 66 x 30 mm |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 2 years |
Brand:
Satel
