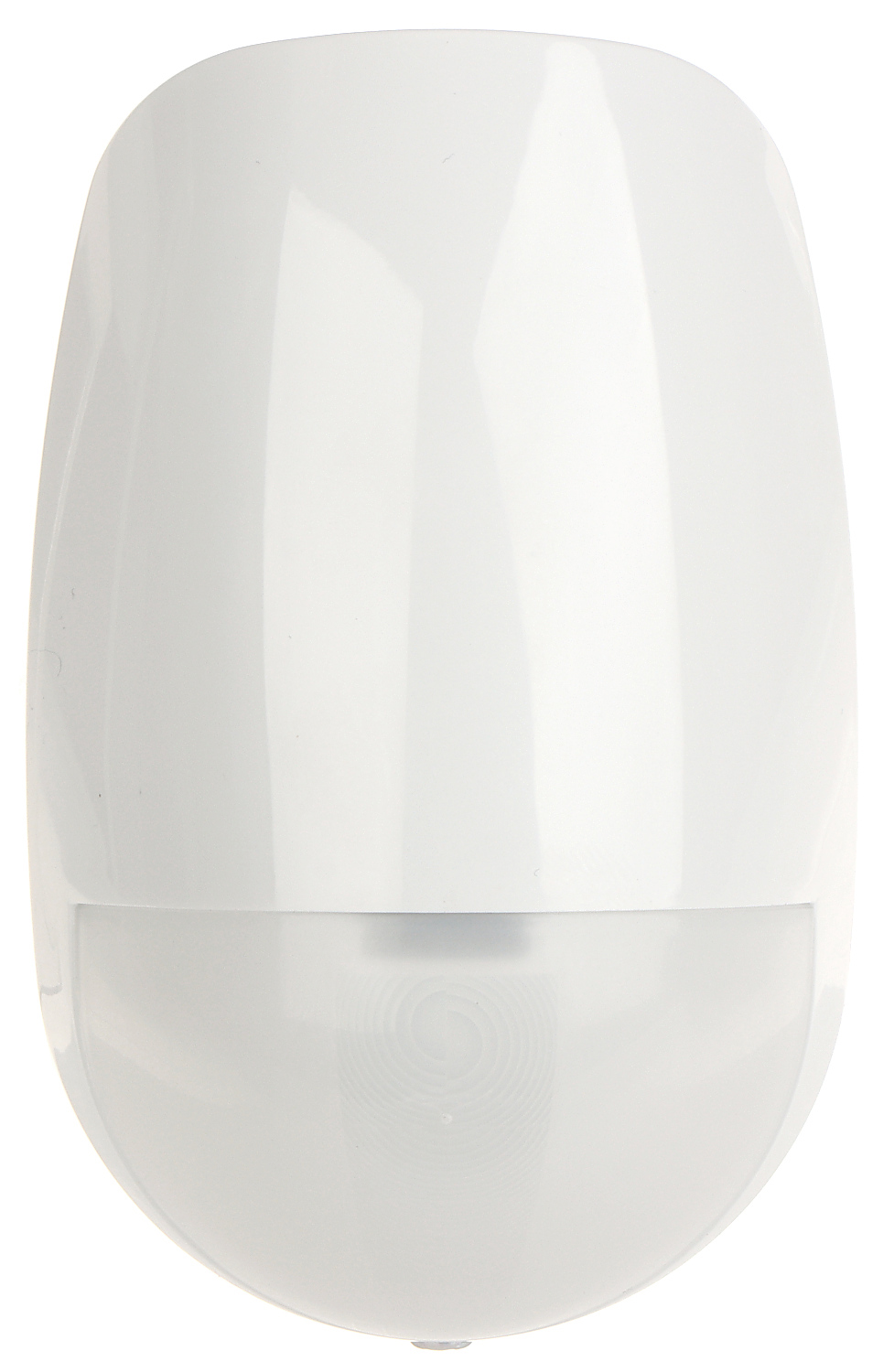

DUAL TECHNOLOGY DETECTOR MICROWAVE + PIR DS-PDD12P-EG2 Hikvision
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Indoor ; Sensor type: Passive Infra Red (PIR) and microwave (MW) ; Range: 12 m ; Detection angle: 85.9 ° ; Pet immunity: ≤ 30 kg ; Color: White ; Main features: Creep zone control ;
| Application: | Indoor |
| Sensor type: | Passive Infra Red (PIR) and microwave (MW) |
| Recommended installation height: | 1.8 m ... 2.4 m |

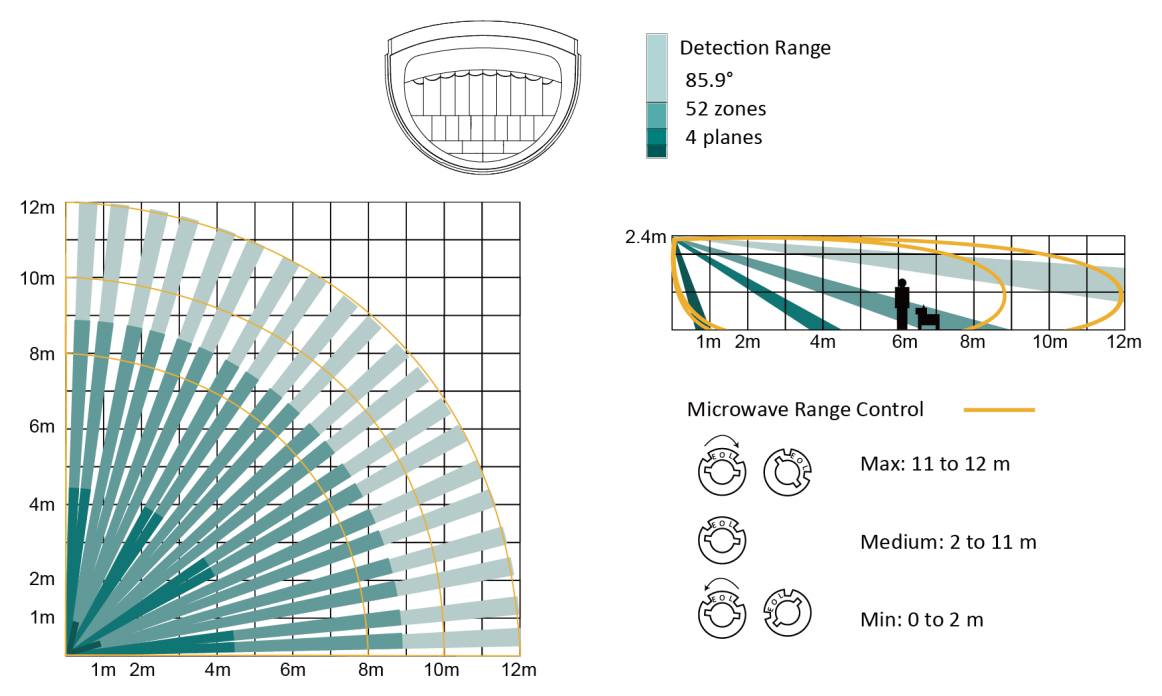

| Range: | 12 m |
| Detection angle: | 85.9 ° |
| Sensitivity adjustment: | Automatic |
| Alarm output: | NC |
| Tamper output: |  |
| LED indication: | |
| Microwave frequency band: | 24.15 GHz ... 24.25 GHz |
| Pet immunity: | ≤ 30 kg |
| Antimask feature: |  |
| Digital temperature compensation: | |
| Protection class (Grade): | EN50131-2-4:2020 Grade 2 |
| Environmental class EN 50130-5: | II |
| Power supply: | 9 ... 16 V DC / 17 mA |
| Operation temp: | -10 °C ... 55 °C |
| Target speed range: | 0.3 ... 2 m/s |
| Color: | White |
| Main features: | |
| Weight: | 0.098 kg |

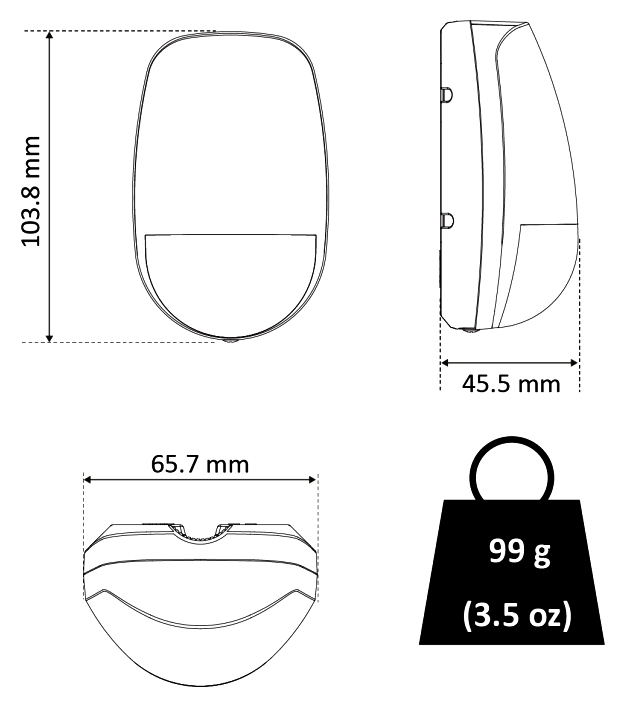

| Dimensions: | 104 x 66 x 46 mm |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 314300115 |
| Guarantee: | 2 years |
Brand:
Hikvision
