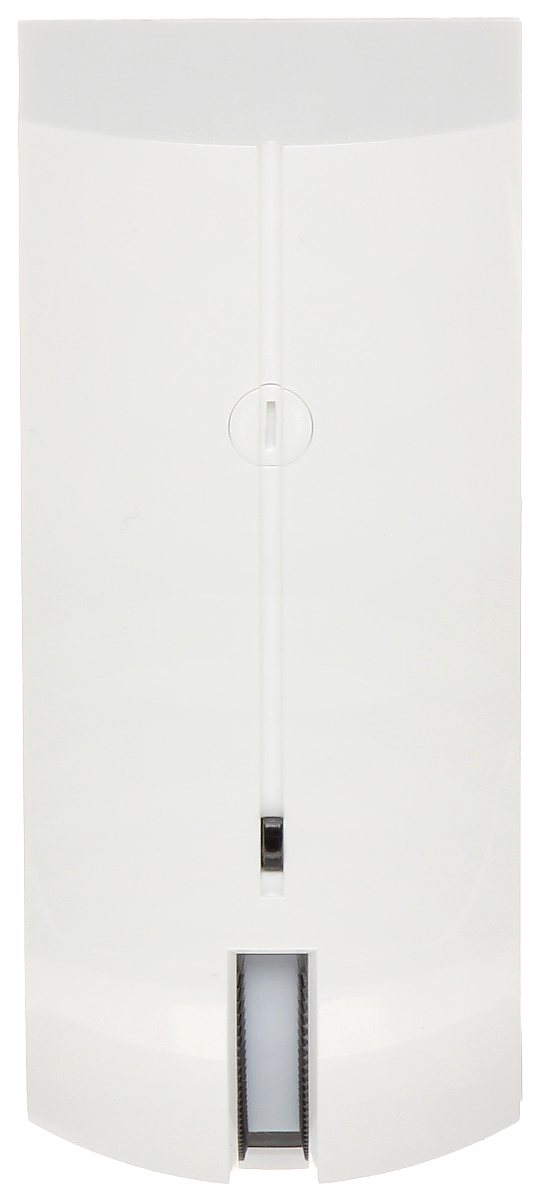

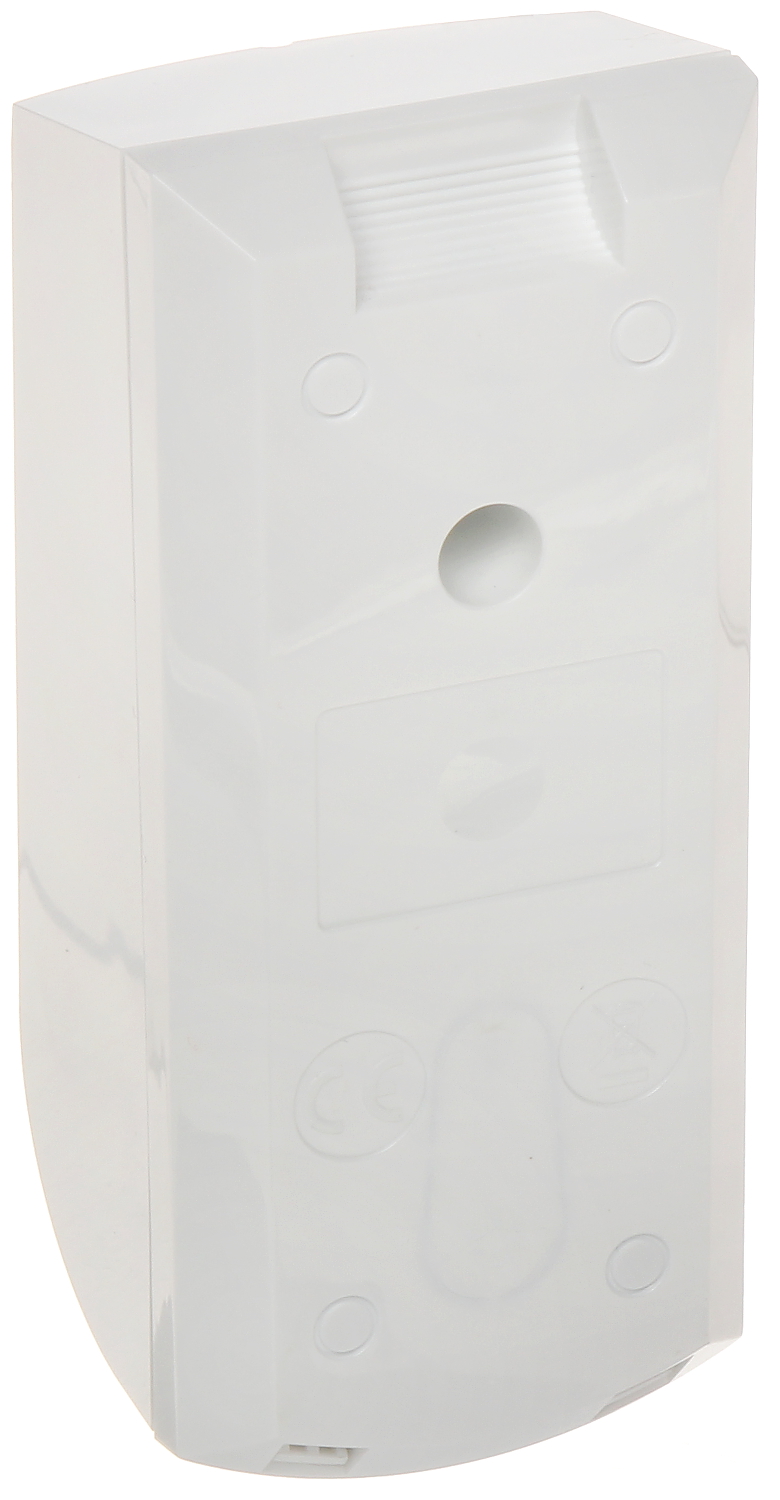

DUAL CURTAIN DETECTOR MICROWAVE + PIR AGATE SATEL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Outdoor ; Sensor type: Passive Infra Red (PIR) and microwave (MW) ; Range: max. 14 m ; Detection angle: 10 ° ; Alarm output: NC ; Antimask feature: Active IR Anti-Masking ; Color: White ;
| Application: | Outdoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) and microwave (MW) |
| Recommended installation height: | 2.4 m |

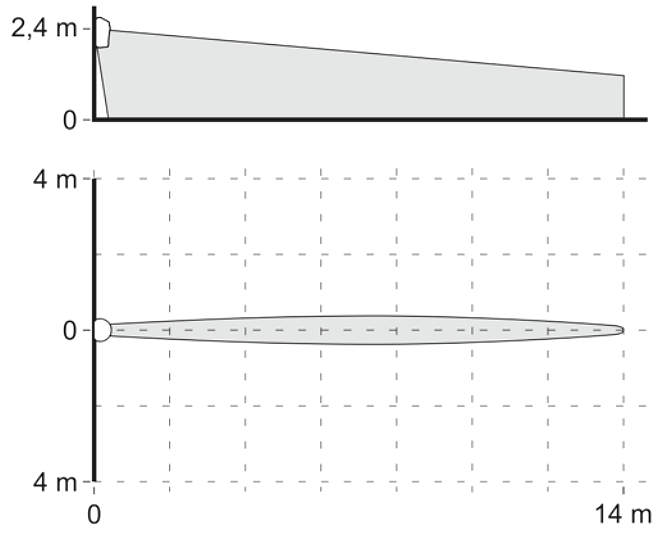

| Range: | max. 14 m |
| Detection angle: | 10 ° |
| Sensitivity adjustment: | |
| Alarm output: | |
| LED indication: | |
| Microwave frequency band: | 24.125 GHz |
| Pet immunity: |  |
| Antimask feature: | Active IR Anti-Masking |
| Alarm time: | 2 s |
| Digital temperature compensation: |  |
| Protection class (Grade): | EN 50131-2-4, Grade 3 |
| Environmental class EN 50130-5: | IIIa |
| Power supply: | 12 V DC / 25 mA |
| Operation temp: | -40 °C ... 55 °C |
| Target speed range: | 0.3 ... 3 m/s |
| Protection class (Grade): | 3 |
| Main features: | |
| Color: | White |
| Weight: | 0.092 kg |
| Dimensions: | 44 x 105 x 40 mm |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 2 years |
Brand:
Satel
