PIR DETECTOR FPKX15DQ PYRONIX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Indoor ; Sensor type: Passive Infra Red (PIR) ; Range: 15 m / 85 ° ;
| Application: | Indoor |
| Pyroelectric sensor: | quadruple |
| Sensor type: | Passive Infra Red (PIR) |

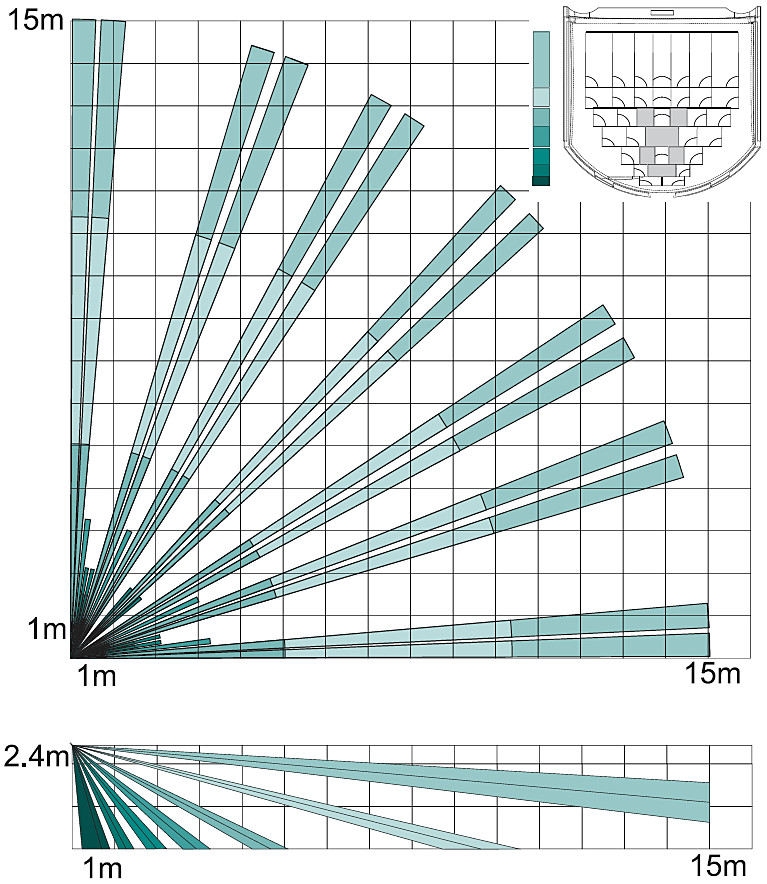

| Range: | 15 m / 85 ° |
| Sensitivity adjustment: | Automatic / manual - 2 - step |
| Pet immunity: |  |
| Maximal outputs load: | 50 mA / 60 V DC, 42 V AC RMS |
| Digital temperature compensation: |  |
| Alarm output: | NC / EOL-NC / 2EOL-NC |
| Power supply: | 9 ... 16 V DC / 16 mA (max) @ 12 V |
| Target speed range: | 0.3 ... 3 m/s |
| Protection class (Grade): | Grade 2 |
| Operation temp: | -30 °C ... 70 °C |
| Weight: | 0.1 kg |
| Dimensions: | 68 x 116 x 51 mm |
| Manufacturer / Brand: | PYRONIX |
| SAP Code: | 361300084 |
| Manufacturer's code: | KX15DQ |
| Guarantee: | 5 years |
Brand:
Pyronix
