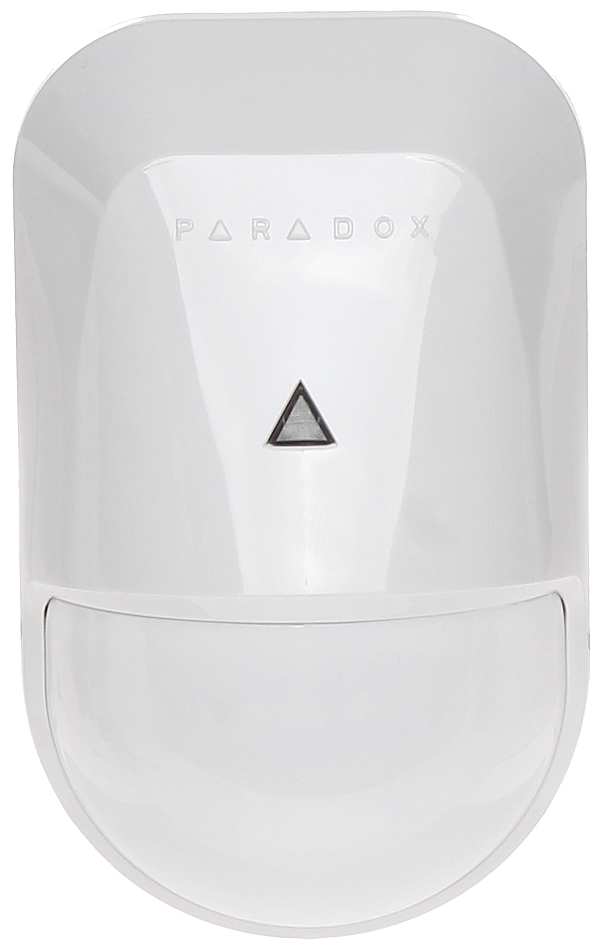

PIR DETECTOR NV5-W3C PARADOX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Indoor ; Sensor type: Passive Infra Red (PIR) ; Range: 10 x 10 m ; Detection angle: 90 ° ; Pet immunity: < 16 kg ;
| Application: | Indoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) |
| Range: | 10 x 10 m |
| Detection angle: | 90 ° |
| Recommended installation height: | 2.1 ... 3.1 m |
| Sensitivity adjustment: |  |
| Autodiagnostics: |  |
| Pet immunity: | < 16 kg |
| Prealarm feature: | |
| Maximal outputs load: | 28 V DC / 150 mA |
| Alarm outputs: | NC |
| Alarm time: | 3 s |
| Target speed range: | 0.2 ... 3 m/s |
| Digital temperature compensation: | |
| Power supply: | 10 ... 15 V DC |
| Maximal current consumption: | 11.3 mA |
| Main features: | |
| Environment class: | class I |
| Operation temp: | -10 °C ... 50 °C |
| Color: | White |
| Weight: | 0.052 kg |
| Dimensions: | 56 x 92 x 42 mm |
| Manufacturer / Brand: | PARADOX |
| Guarantee: | 2 years |
Brand:
Paradox
