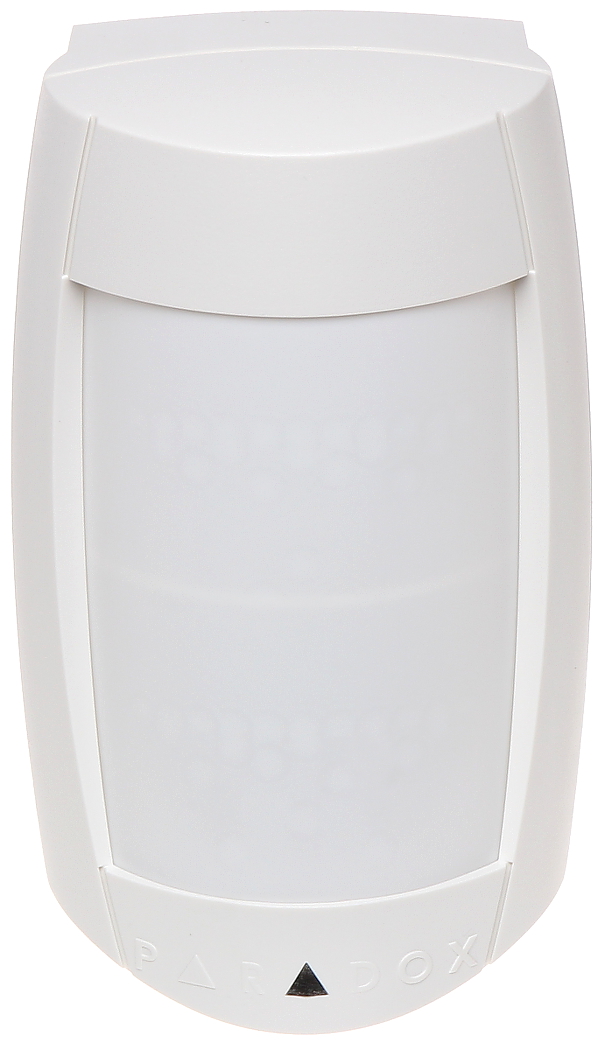

PIR DETECTOR DG75+-P2C PARADOX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Indoor ; Sensor type: Passive Infra Red (PIR) ; Range: 11 x 11 m ; Detection angle: 90 ° ; Pet immunity: < 40 kg ;
| Application: | Indoor |
| Pyroelectric sensor: | 2 x Double |
| Sensor type: | Passive Infra Red (PIR) |

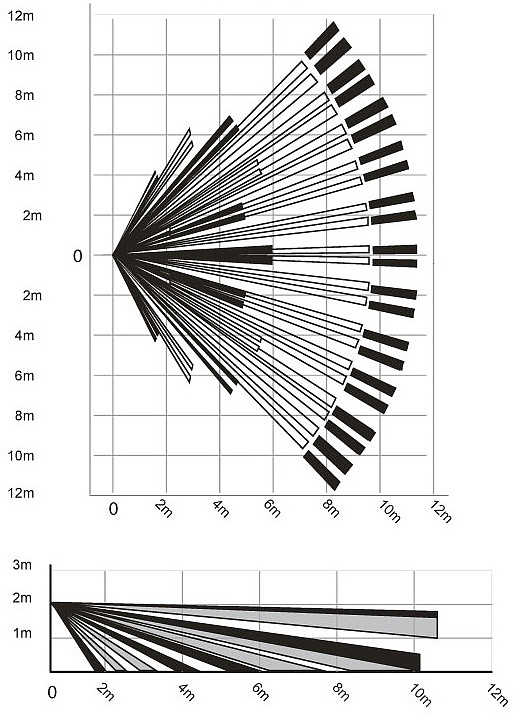

| Range: | 11 x 11 m |
| Detection angle: | 90 ° |
| Recommended installation height: | 2.0 m ... 2.7 m |
| Sensitivity adjustment: |  |
| Autodiagnostics: |  |
| Pet immunity: | < 40 kg |
| Prealarm feature: | |
| Maximal outputs load: | 28 V DC / 100 mA |
| Alarm outputs: | NC |
| Alarm time: | 5 s |
| Target speed range: | 0.2 ... 3.5 m/s |
| Digital temperature compensation: | |
| Power supply: | 11 ... 16 V DC |
| Maximal current consumption: | 40 mA (max) |
| Main features: | |
| Environment class: | Class II |
| Operation temp: | -20 °C ... 50 °C |
| Color: | White |
| Weight: | 0.13 kg |
| Dimensions: | 74 x 126 x 60 mm |
| Country of origin: | Canada |
| Manufacturer / Brand: | PARADOX |
| Guarantee: | 2 years |
Brand:
Paradox
