PIR DETECTOR 460-P2C PARADOX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Indoor ; Sensor type: Passive Infra Red (PIR) ; Range: 2.1 x 1.5 m - hand-sized objects detection 6.6 x 4.5 m - body-sized objects motion detection ; Detection angle: 40 ° ; Main features: vertical curtain ;
| Application: | Indoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) |

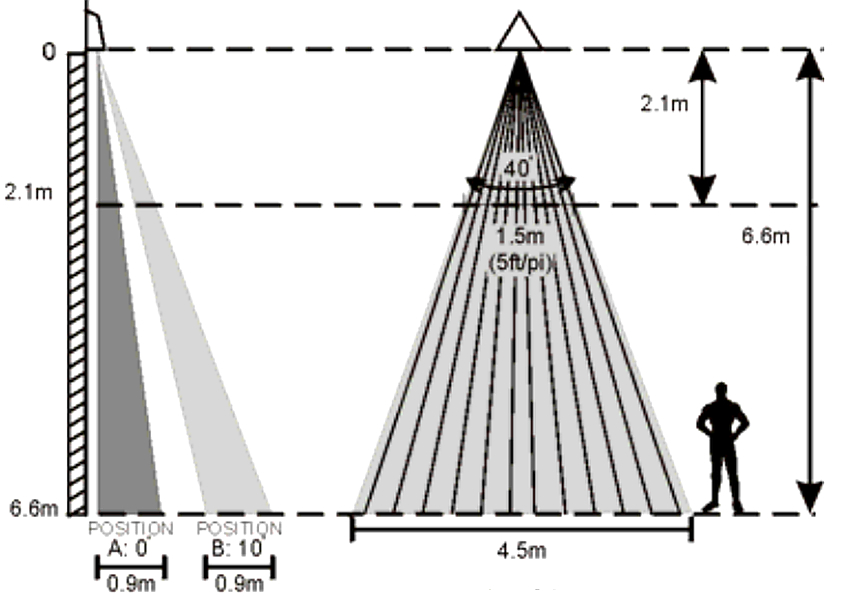

| Range: | 2.1 x 1.5 m - hand-sized objects detection 6.6 x 4.5 m - body-sized objects motion detection |
| Detection angle: | 40 ° |
| Recommended installation height: | 2 ... 2.7 m |
| Sensitivity adjustment: |  |
| Autodiagnostics: | |
| Pet immunity: | |
| Prealarm feature: | |
| Maximal outputs load: | 28 V DC / 150 mA |
| Alarm outputs: | NO/NC |
| Alarm time: | 0.5 ... 25 s |
| Target speed range: | 0.2 ... 3.5 m/s |
| Digital temperature compensation: | |
| Power supply: | 9 ... 16 V DC / 20 ... 27 V DC |
| Maximal current consumption: | 18 mA |
| Main features: | |
| Operation temp: | -10 °C ... 50 °C |
| Color: | White |
| Weight: | 0.076 kg |
| Dimensions: | 92 x 114 x 33 mm |
| Country of origin: | Canada |
| Manufacturer / Brand: | PARADOX |
| Guarantee: | 2 years |
Brand:
Paradox
