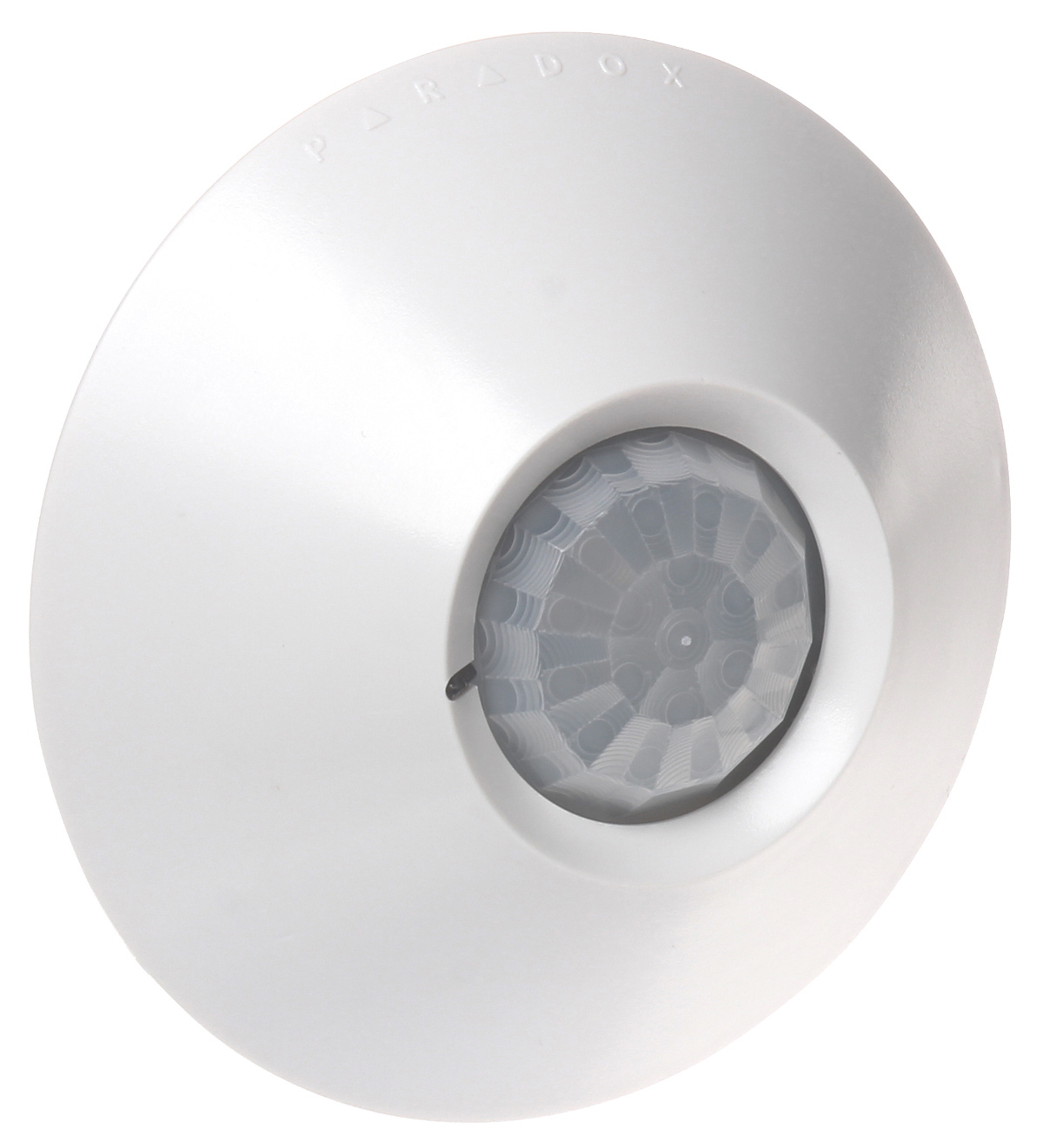

CEILING PIR DETECTOR DG467-P2C PARADOX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

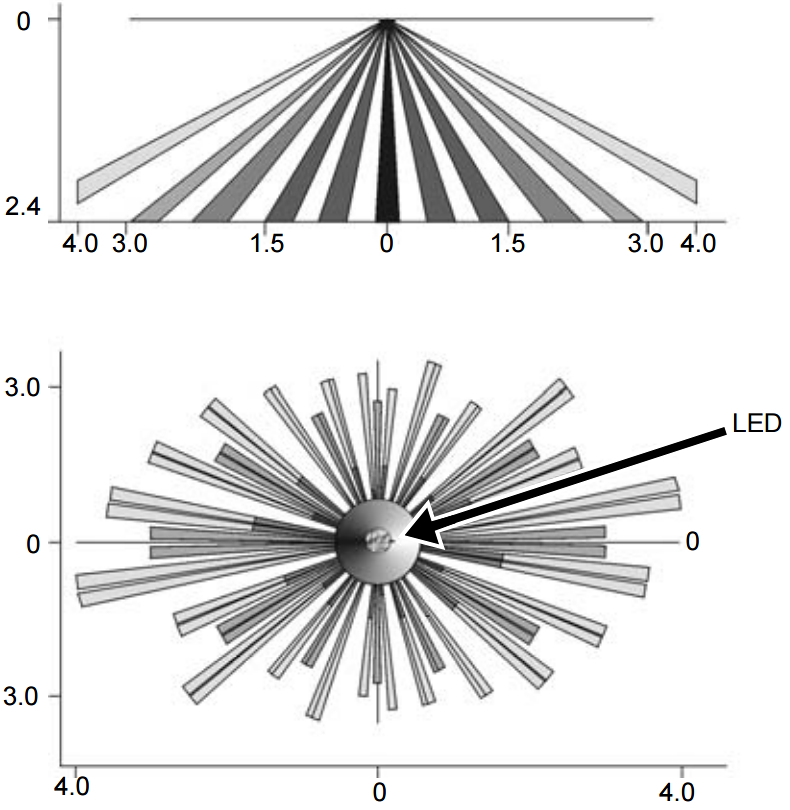

Passive Infra Red detector to ceiling mount; Application: Indoor ; Sensor type: Passive Infra Red (PIR) ; Range: 7 x 6 from a height 2.4 m, 11 x 6 m from a height 3.7 m ; Detection angle: 360 ° ; Color: White ;
| Application: | Indoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) |
| Range: | |
| Detection angle: | 360 ° |
| Recommended installation height: | 2.2 m ... 4 m |
| Sensitivity adjustment: |  |
| Autodiagnostics: | Basic |
| Pet immunity: | |
| Prealarm feature: | |
| Maximal outputs load: | 28 V DC / 150 mA |
| Alarm outputs: | NC |
| Alarm time: | 5 s |
| Target speed range: | 0.2 ... 3.5 m/s |
| Digital temperature compensation: |  |
| Power supply: | 9 V ... 16 V DC |
| Maximal current consumption: | 29 mA |
| Main features: | - dedicated independent bus for addressable detectors Digiplex & Digiplex EVO - conventional relay mode detector |
| Operation temp: | -20 °C ... 50 °C |
| Color: | White |
| Weight: | 0.076 kg |
| Dimensions: | Ø 107 x 34 mm |
| Country of origin: | Canada |
| Manufacturer / Brand: | PARADOX |
| Guarantee: | 2 years |
Brand:
Paradox
