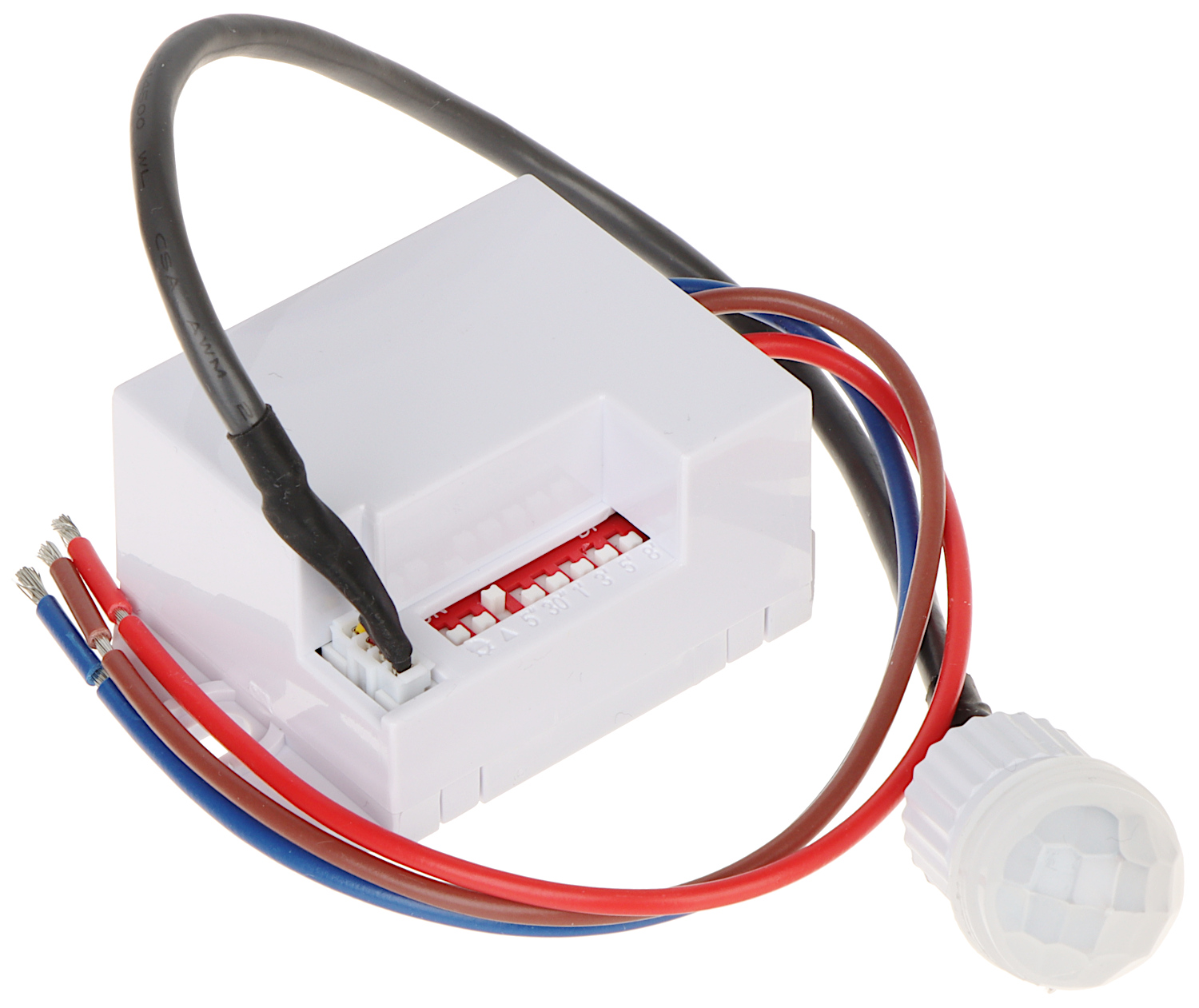

PIR DETECTOR MD-15B7 AC 230V FOR LIGHTING CONTROL EL HOME
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor type: Passive Infra Red (PIR) ; Detection angle: 120 ° (wall-mounted), 360 ° (ceiling-mounted) ; Range: 3 m (wall-mounted), 6 m (ceiling-mounted) ; Application: For indoor use ;
| Sensor type: | Passive Infra Red (PIR) |
| Detection angle: | 120 ° (wall-mounted) , 360 ° (ceiling-mounted) |
| Range: | 3 m (wall-mounted) , 6 m (ceiling-mounted) |
| Application: | For indoor use |
| Sensitivity adjustment: | 10 Lux / 2000 Lux (switchable) |
| Recommended installation height: | 1.8 ... 2.5 m over the floor (wall-mounted) 2.2 ... 4.0 m (ceiling-mounted) |
| Bracket adjustment: |  |

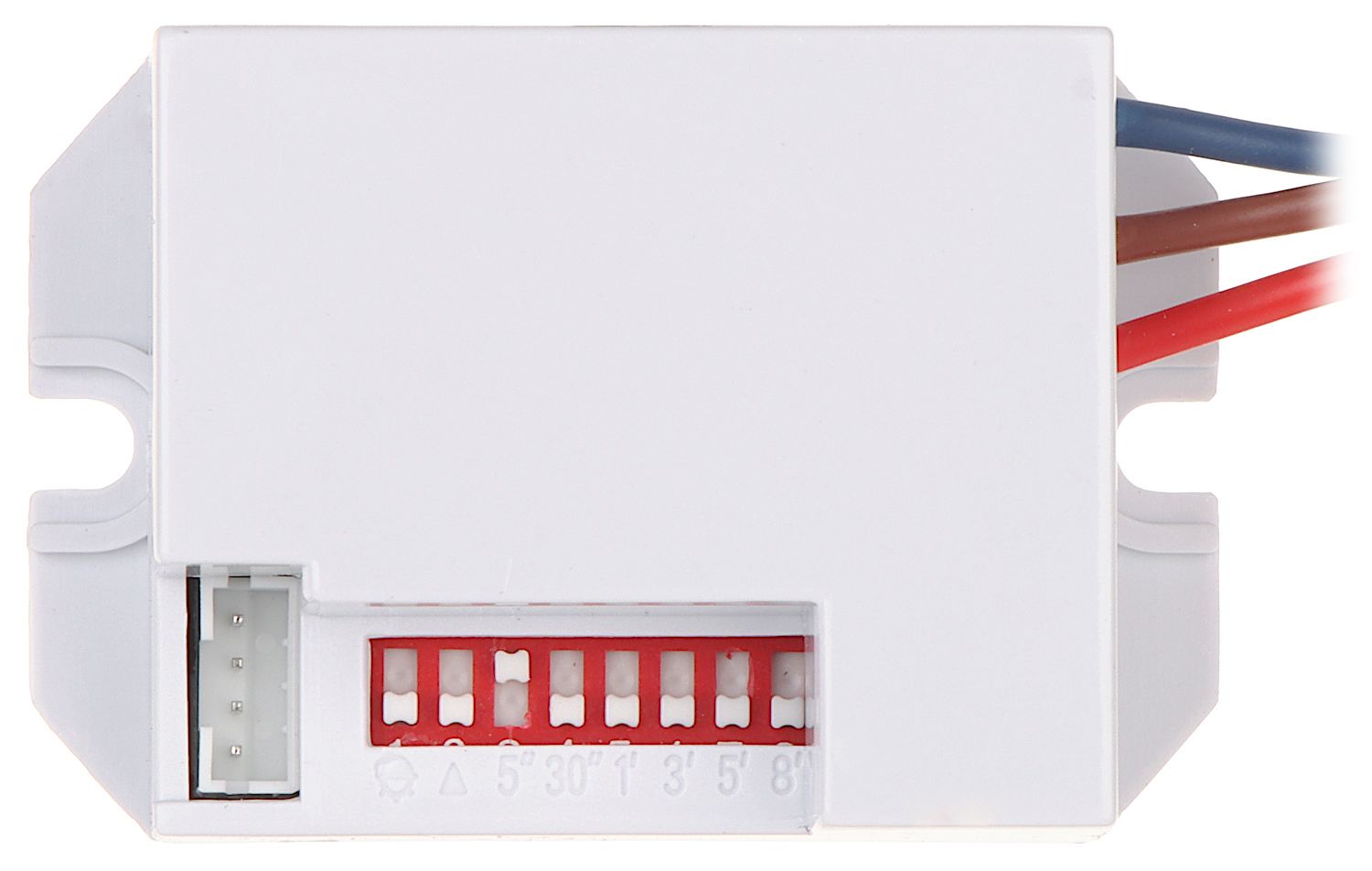

| Adjusting the time of switching on the lighting: | 5 s / 30 s / 1 minute / 3 minutes / 5 minutes / 8 minutes |
| Maximal outputs load: | 800 W (resistance load) 200 W (inductive load) |
| Pet immunity: | |
| Power supply: | 220 V ... 240 V AC @ 50Hz |
| "Index of Protection": | IP20 |
| Color: | White |
| Weight: | 0.05 kg (total) |

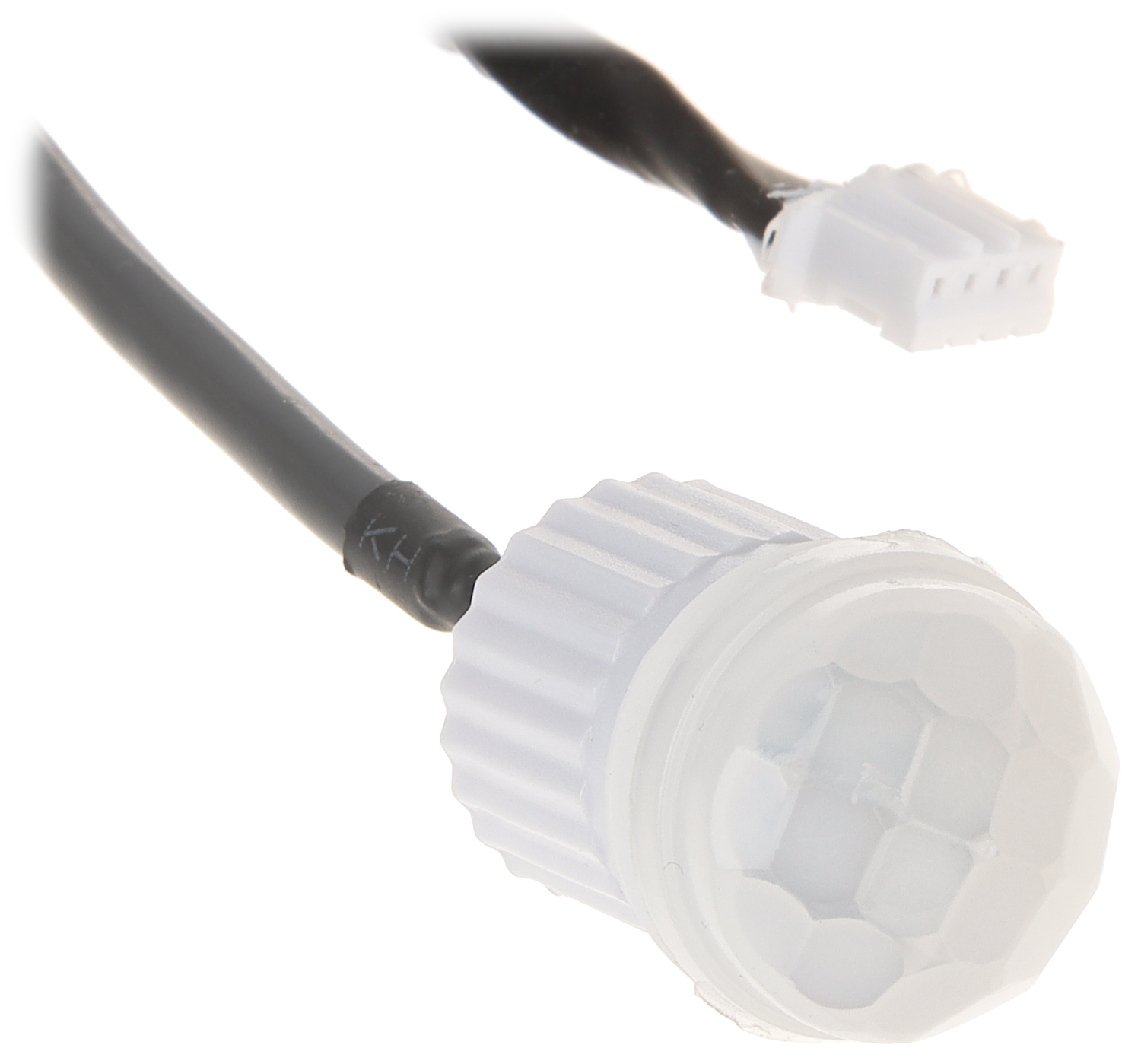

| Dimensions: | Ø 18 x 26 mm (detector) 56 x 37 x 26 mm (relay and control module) |
| Operation temp: | -18 °C ... 40 °C |
| Manufacturer / Brand: | EL HOME |
| Guarantee: | 2 years |
Brand:
El-Home
