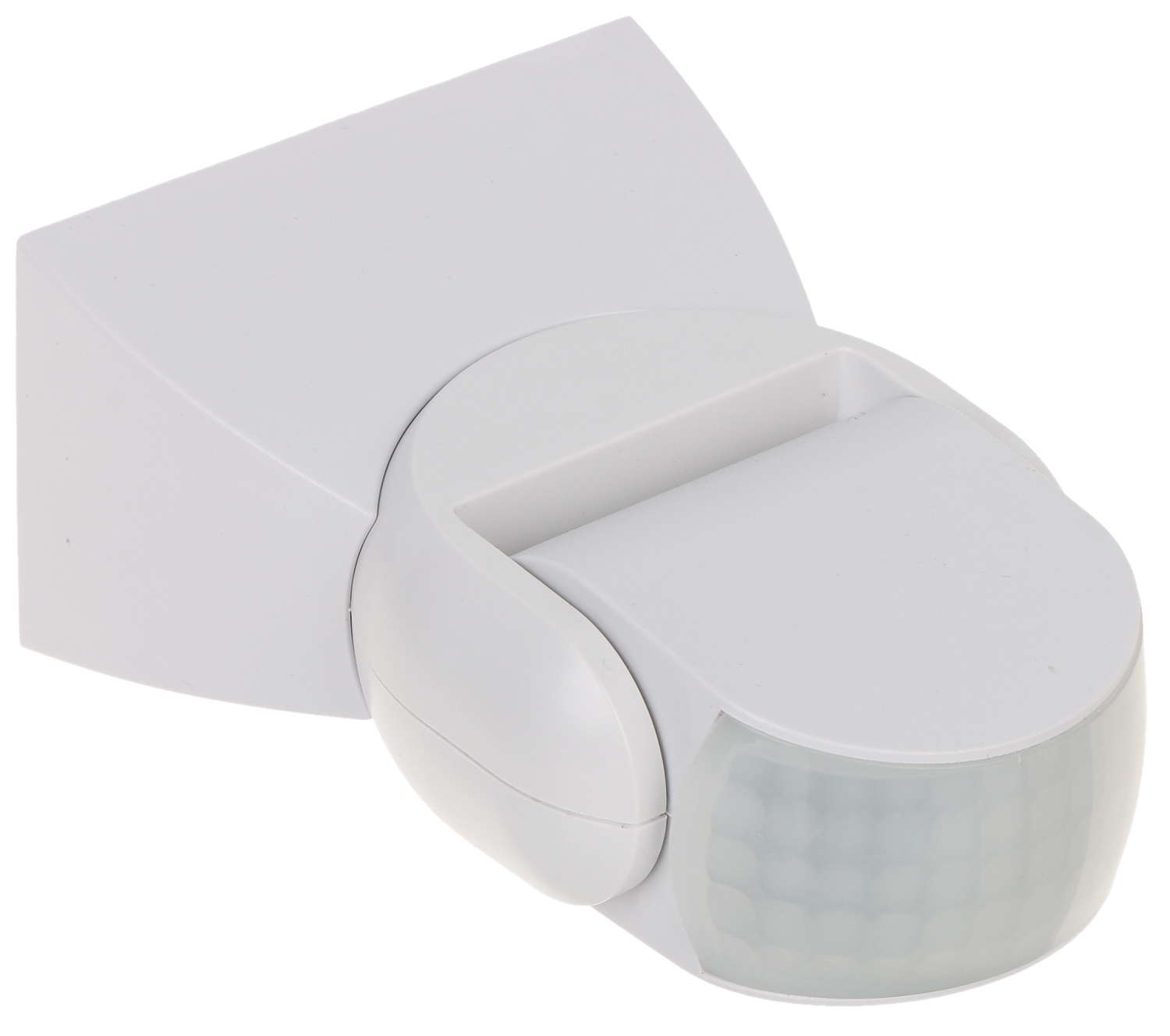

PIR DETECTOR MD-10B7 AC 230V FOR LIGHTING CONTROL EL HOME
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The MD-10B7 motion detector is designed to control lighting or other electrical devices supplied with 230V AC inside and outside buildings; Sensor type: Passive Infra Red (PIR) ; Detection angle: 180 ° ; Range: 12 m ; Application: For outdoor use ;
| Sensor type: | Passive Infra Red (PIR) |
| Detection angle: | 180 ° |
| Range: | 12 m |
| Application: | For outdoor use |
| Sensitivity adjustment: | 3 ... 2000 Lux (manual adjustment) |
| Recommended installation height: | 1.8 ... 2.5 m over the floor (wall-mounted) |
| Adjusting the time of switching on the lighting: | 10 s ... 7 minutes |
| Maximal outputs load: | 1200 W (resistance load) 300 W (inductive load) |
| Pet immunity: |  |
| Power supply: | 220 V ... 240 V AC @ 50Hz |
| "Index of Protection": | IP65 |
| Color: | White |
| Weight: | 0.16 kg |
| Dimensions: | 120 x 80 x 52 mm |
| Operation temp: | -20 °C ... 40 °C |
| Manufacturer / Brand: | EL HOME |
| Guarantee: | 2 years |
Brand:
El-Home
