PIR DETECTOR MD-07B7 AC 230V FOR LIGHTING CONTROL EL HOME
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor type: Passive Infra Red (PIR) ; Detection angle: 160 ° ; Range: 9 m ; Application: For indoor use ;
| Sensor type: | Passive Infra Red (PIR) |
| Detection angle: | 160 ° |
| Range: | 9 m |
| Application: | For indoor use |

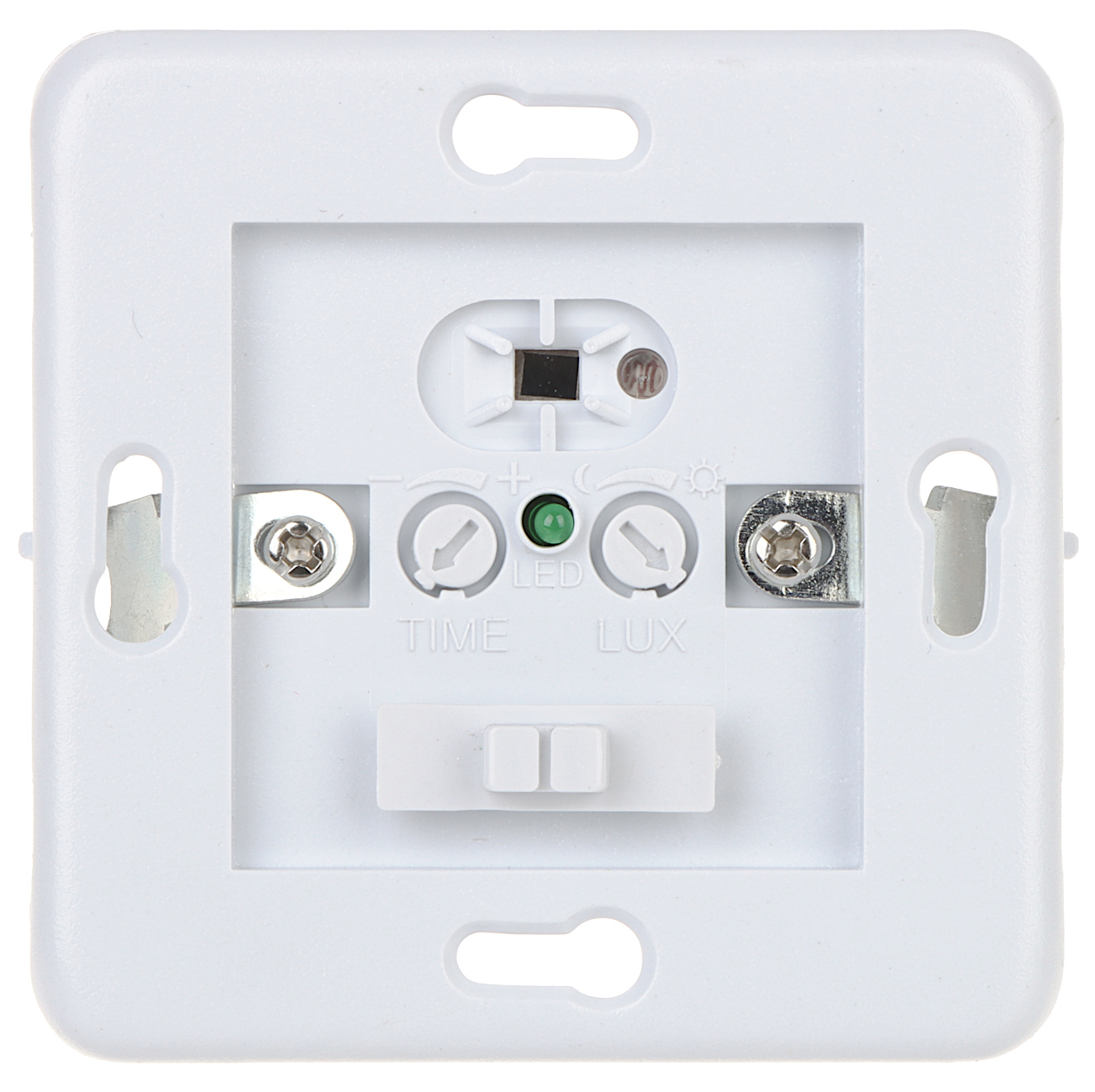

| Sensitivity adjustment: | 3 ... 2000 Lux (manual adjustment) |
| Recommended installation height: | 1.0 ... 1.8 m over the floor (wall-mounted) |
| Bracket adjustment: |  |
| Adjusting the time of switching on the lighting: | 10 s ... 7 minutes |
| Maximal outputs load: | 1200 W (resistance load) 300 W (inductive load) |
| Pet immunity: | |
| Main features: | Operation modes : |
| Power supply: | 220 V ... 240 V AC @ 50Hz |
| "Index of Protection": | IP20 |
| Color: | White |
| Weight: | 0.1 kg |
| Dimensions: | 79 x 79 x 55 mm |
| Operation temp: | -18 °C ... 40 °C |
| Manufacturer / Brand: | EL HOME |
| Guarantee: | 2 years |
Brand:
El-Home
