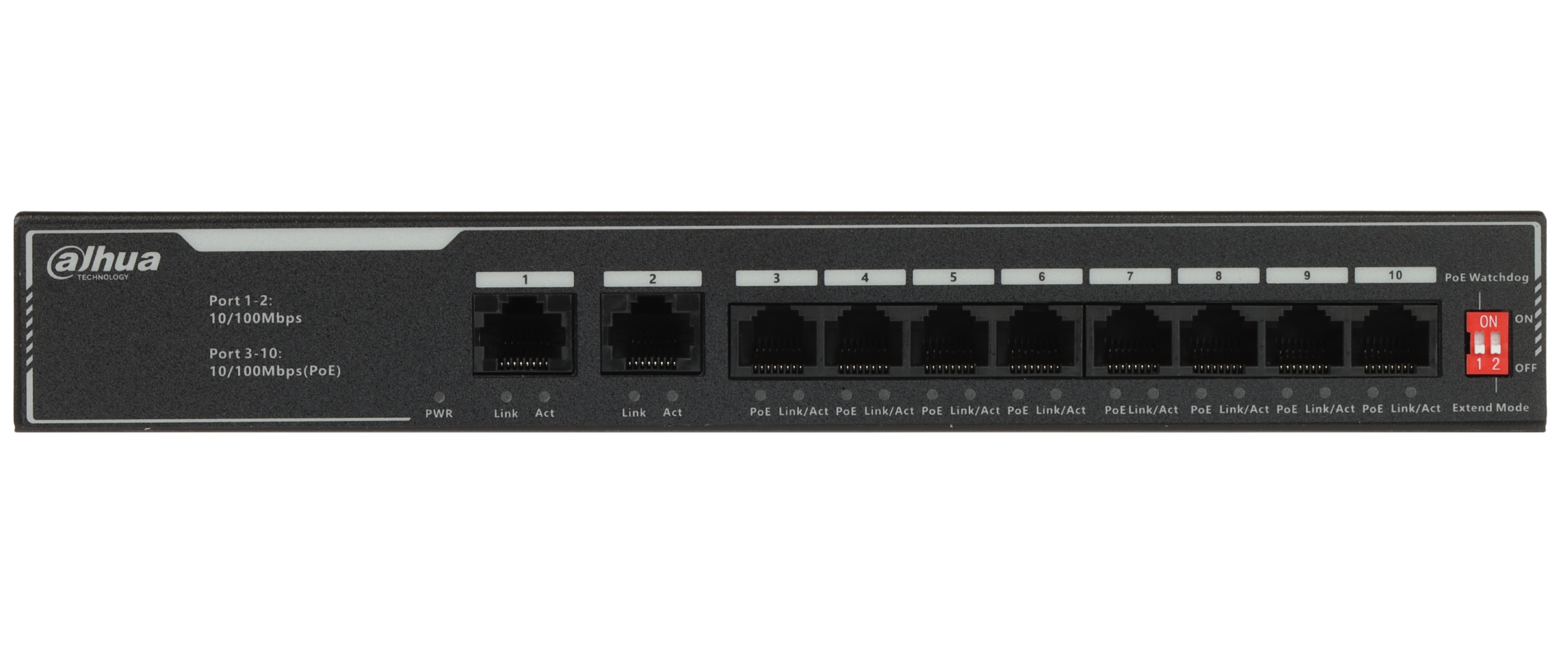

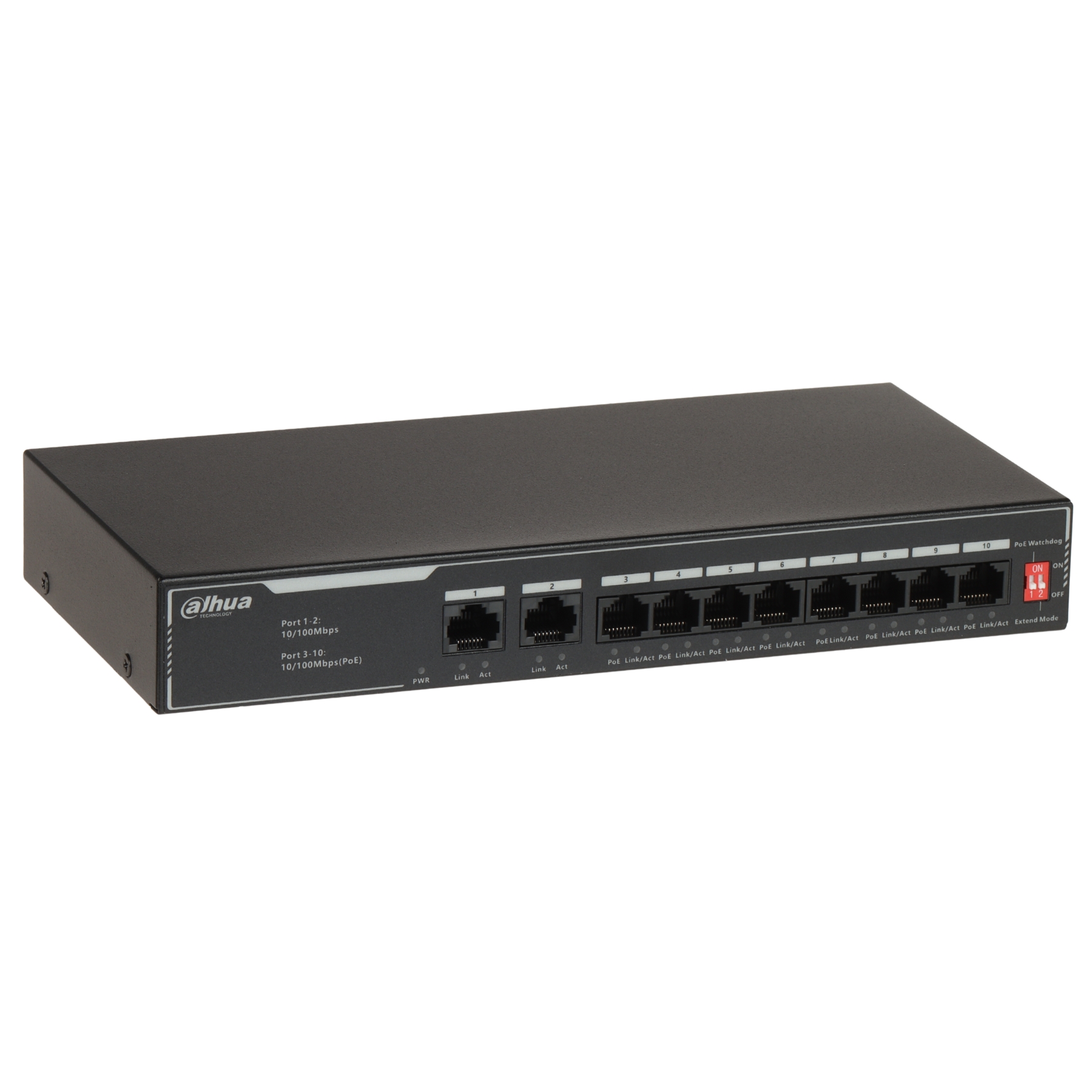

LAN ports: 2 x RJ45 10/100 Base-T - Uplink, 8 x RJ45 10/100 Base-T ( 8 x PoE (802.3af/at) ) ; Transmission speed: 10 / 100 Mbps : 2 Uplink ports + 8 LAN & PoE ports ; Maximal total power: 65 W ;
| LAN ports: | |
| Management: | ![]() |
| LED diodes: | Power, PoE, Link/Act |
| Transmission speed: | 10 / 100 Mbps : 2 Uplink ports + 8 LAN & PoE ports |
| Maximal output power: | 30 W / port PoE 802.3af/at - 3 ... 10 ports |
| Maximal total power: | 65 W |
| MAC addresses table: | 2k |
| Main features: | |
| Protections: | |
| Housing: | Desktop, Metal |

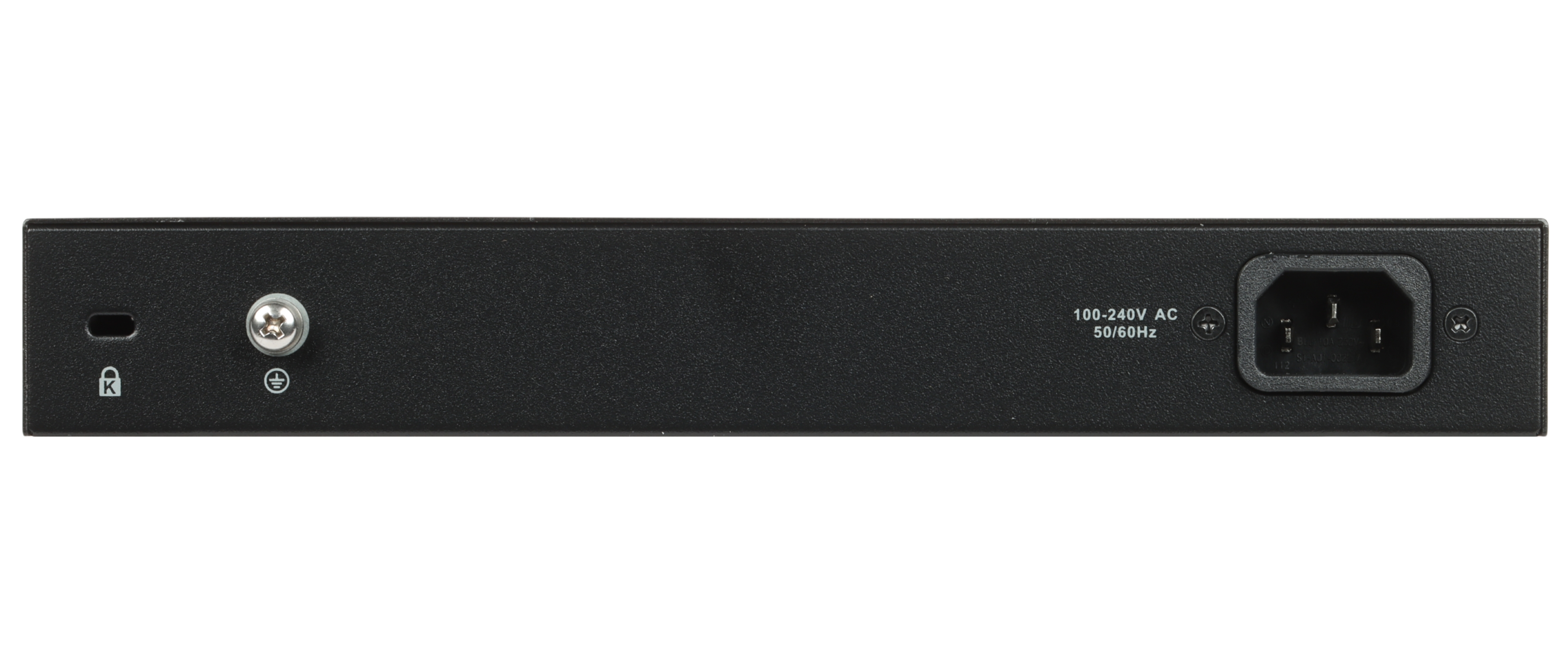

| Power supply: | 100 ... 240 V AC |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.76 kg |
| Dimensions: | 242.5 mm x 122.9 mm x 35.0 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
