LAN ports: 8 x RJ45 10/100 Base-T ( 2 x Hi-PoE (802.3af/at/bt) + 6 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T - Uplink ; Transmission speed: 10 / 100 Mbps : 8 LAN & PoE ports, 10 / 100 / 1000 Mbps : 2 Uplink ports ; Maximal total power: 110 W ; Main features: Switch is managed through the web and the cloud (DoLynk Care application) ;
| LAN ports: | |
| Transmission speed: | |
| Maximal output power: | |
| Maximal total power: | 110 W |
| MAC addresses table: | 8k |
| Management: | ![]() |
| Operation modes: | Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6 |
| LED diodes: | Power, System, PoE, Link/Act |
| Main features: | |
| Protections: | |
| Housing: | Desktop, Metal |

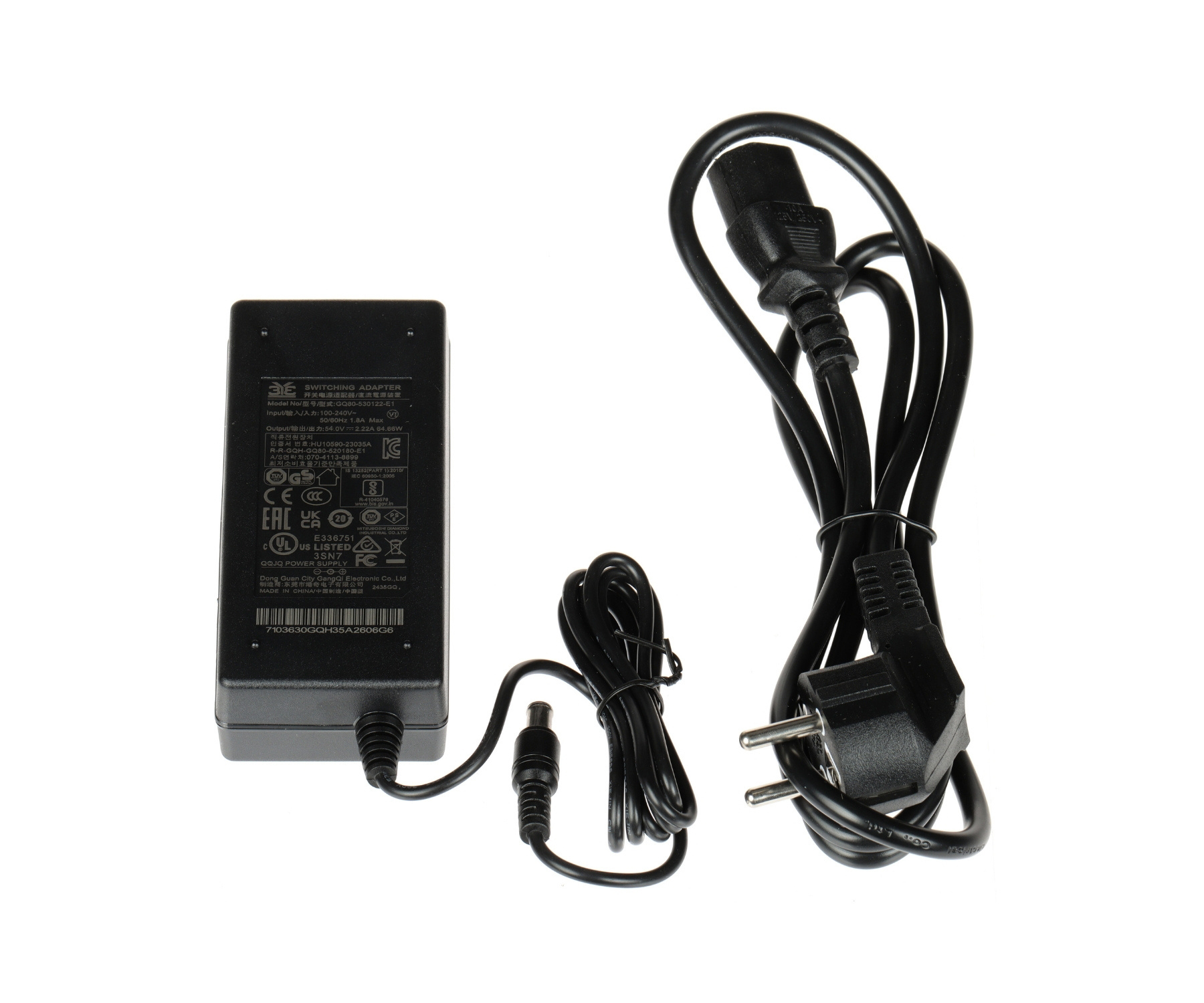

| Power supply: | 54 V DC / 2.22 A (power adapter included) |
| Power consumption: | max. 63 W |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.36 kg |

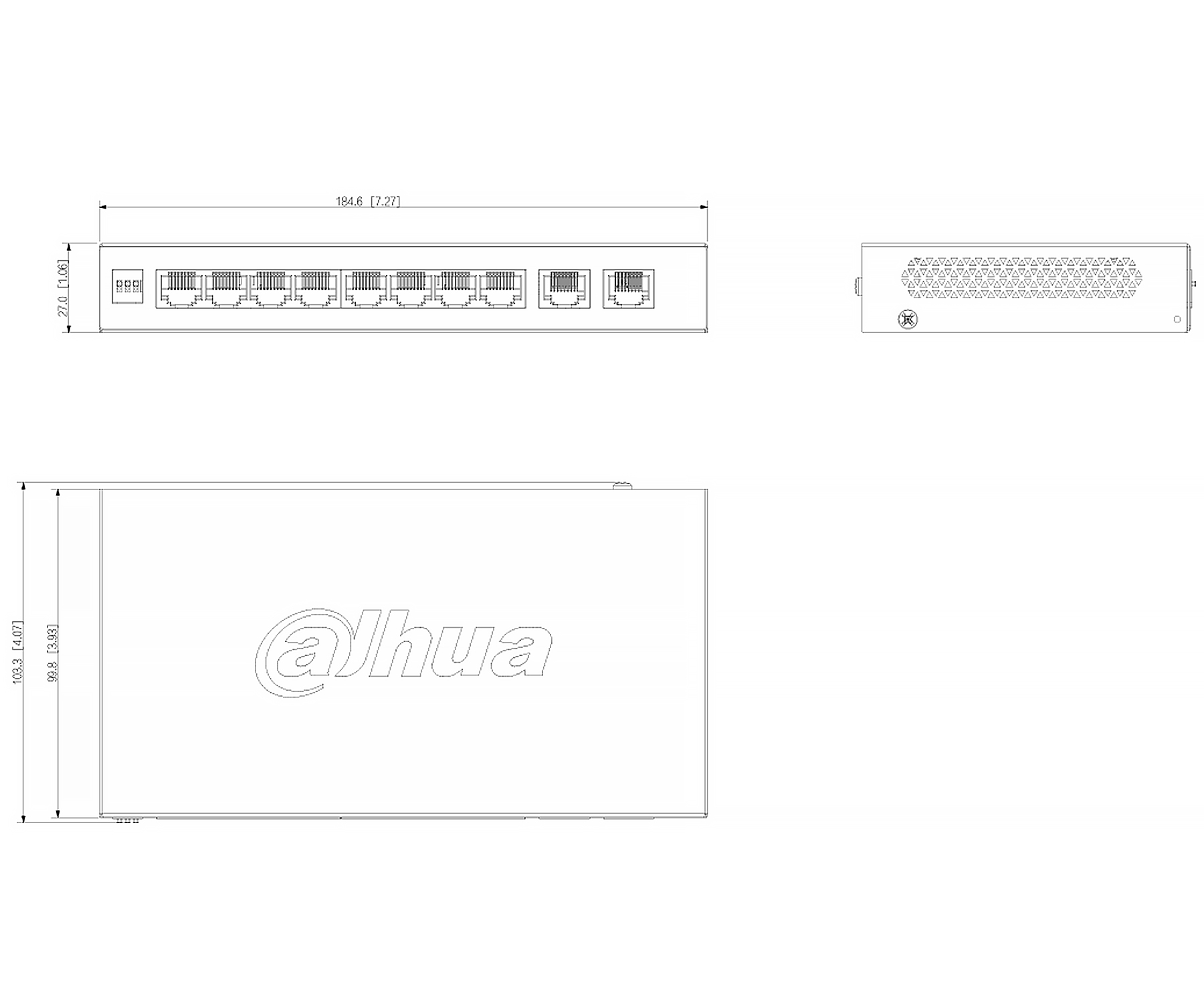

| Dimensions: | 184.6 x 103.3 x 27.0 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
