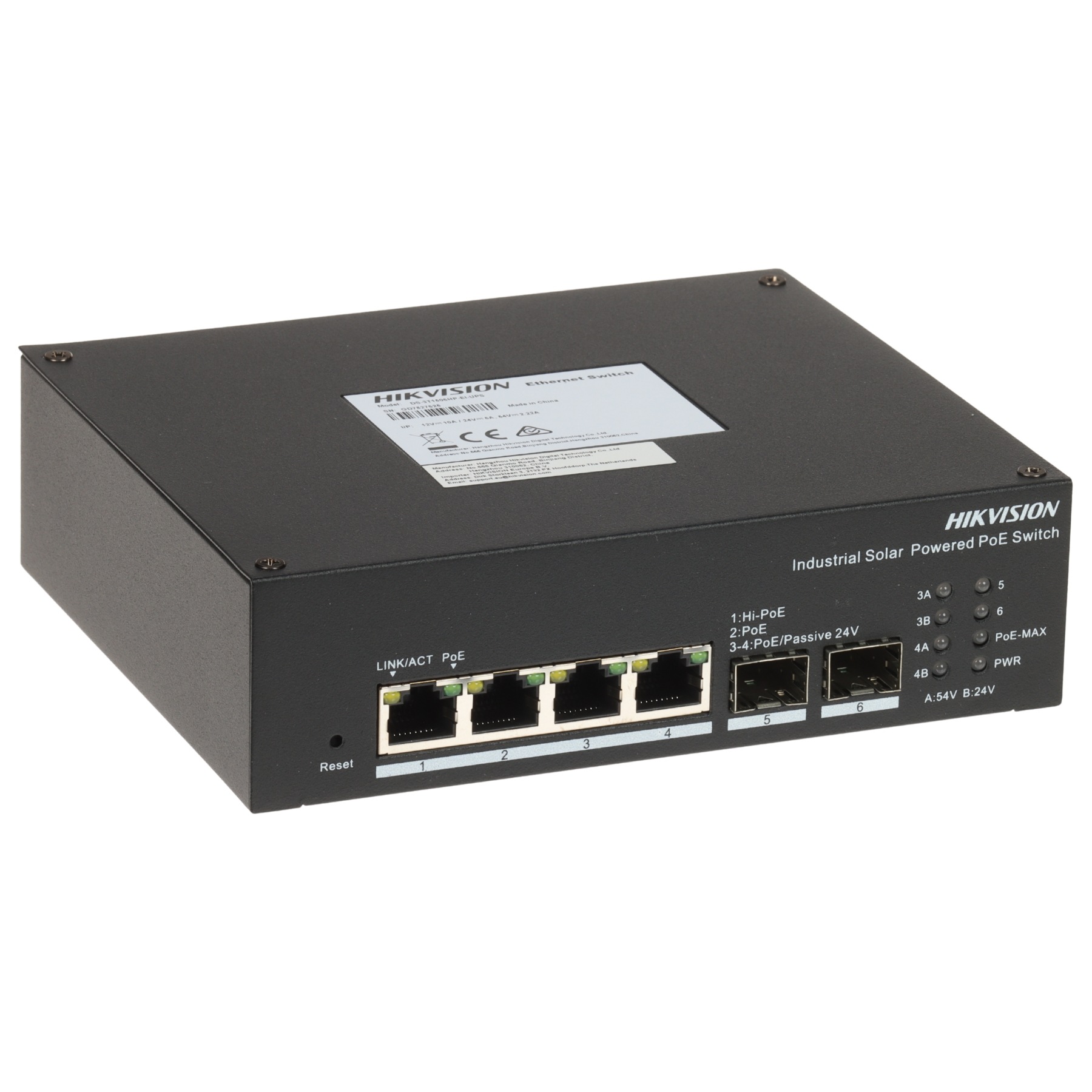

MANAGED POE INDUSTRIAL SWITCH DS-3T1506HP-EI-UPS/NO POWER UNIT 4-PORT SFP Hikvision
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

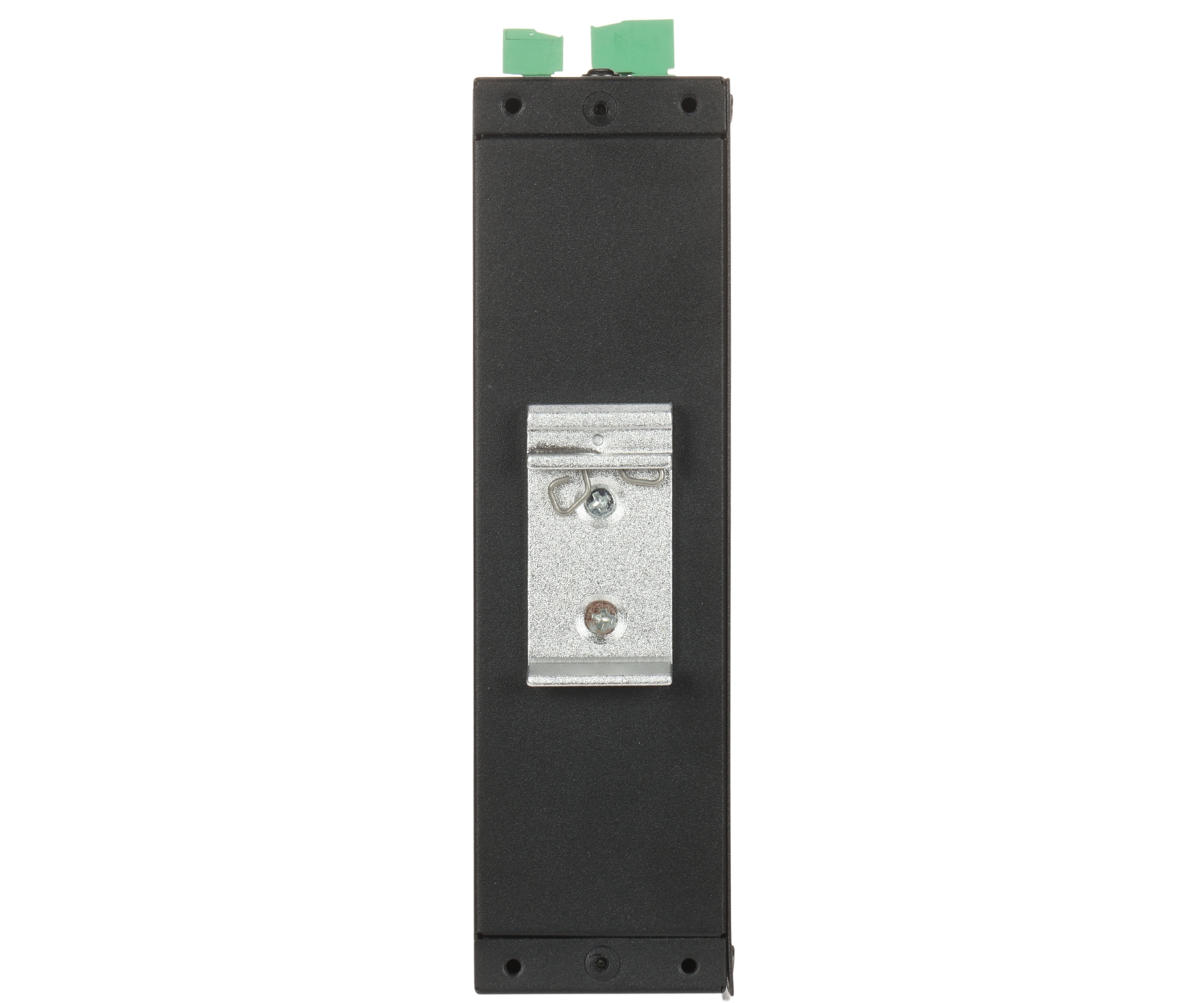

LAN ports: 4 x RJ45 ( 1 port - PoE (802.3af/at/bt) + 2 ... 4 ports - PoE (802.3af/at) + 3 ... 4 ports - Passive PoE ( 24 V / 54 V ) ), 2 x port SFP ; Transmission speed: 10 / 100 / 1000 Mbps - 4 LAN & PoE ports, 1000 Mbps - 2 SFP ports - Uplink ; Maximal total power: 110 W @ 54 V 60 W @ 12 ... 24 V ; Management; Main features: Mounting on DIN rail ;
| LAN ports: | |
| Transmission speed: | |
| Maximal output power: | |
| Maximal total power: | |
| MAC addresses table: | 2k |
| Switching capacity: | 14 Gbps (whole device) / 12 Gbps (Single port) |
| Forwarding rate: | 10.42 Mpps (whole device) / 8.93 Mpps (Single port) |
| Management: |  |
| Default IP address: | 192.168.1.64 |
| Default admin user / password: | admin / - |
| Operation modes: | |
| Main features: | |

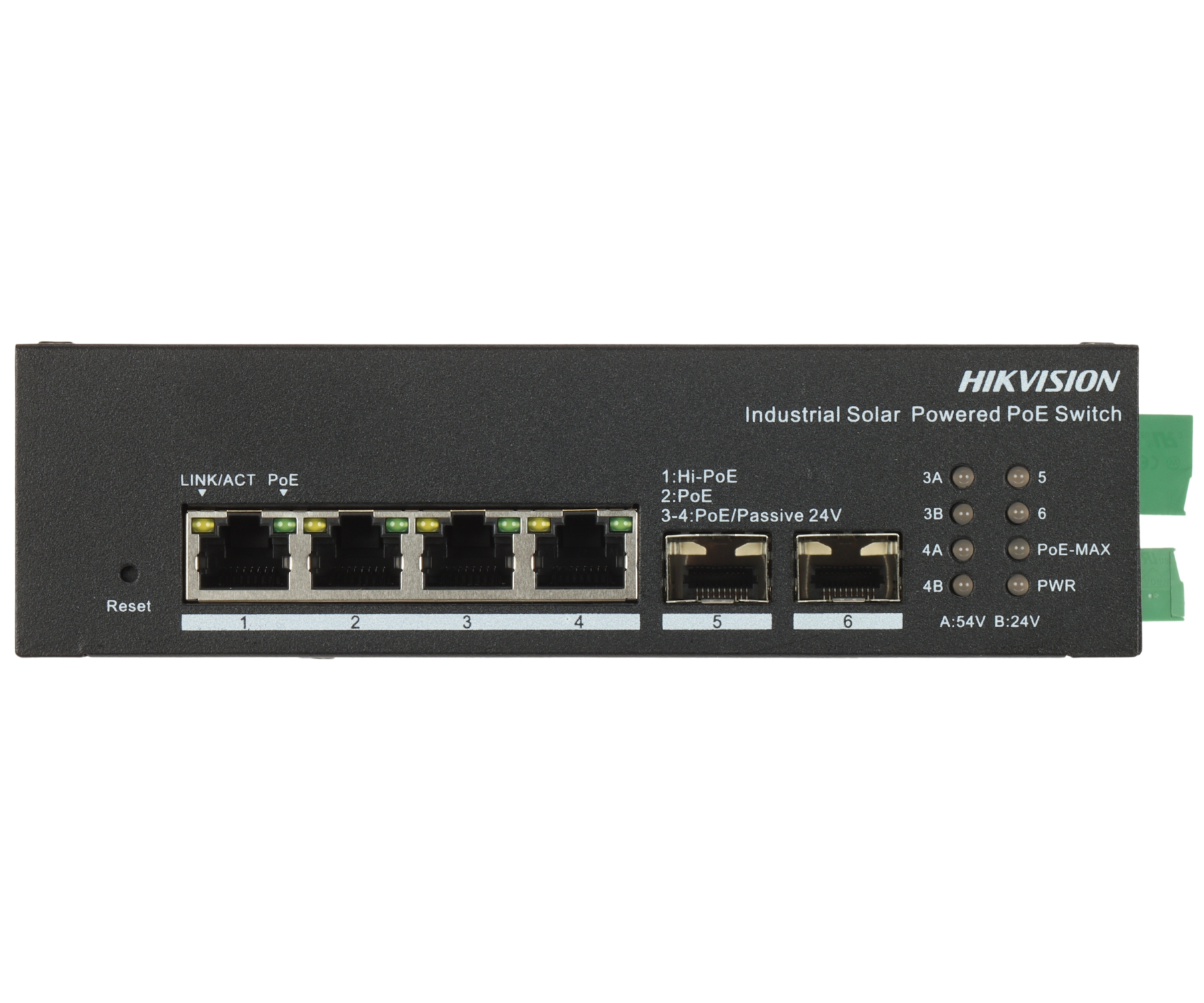

| LED diodes: | Power, PoE Max, Link/Act, PoE, 5 SFP, 6 SFP, 3A RJ-45, 3B RJ-45, 4A RJ-45, 4B RJ-45 |
| Housing: | Metal |
| Protections: | Overvoltage 6 kV |

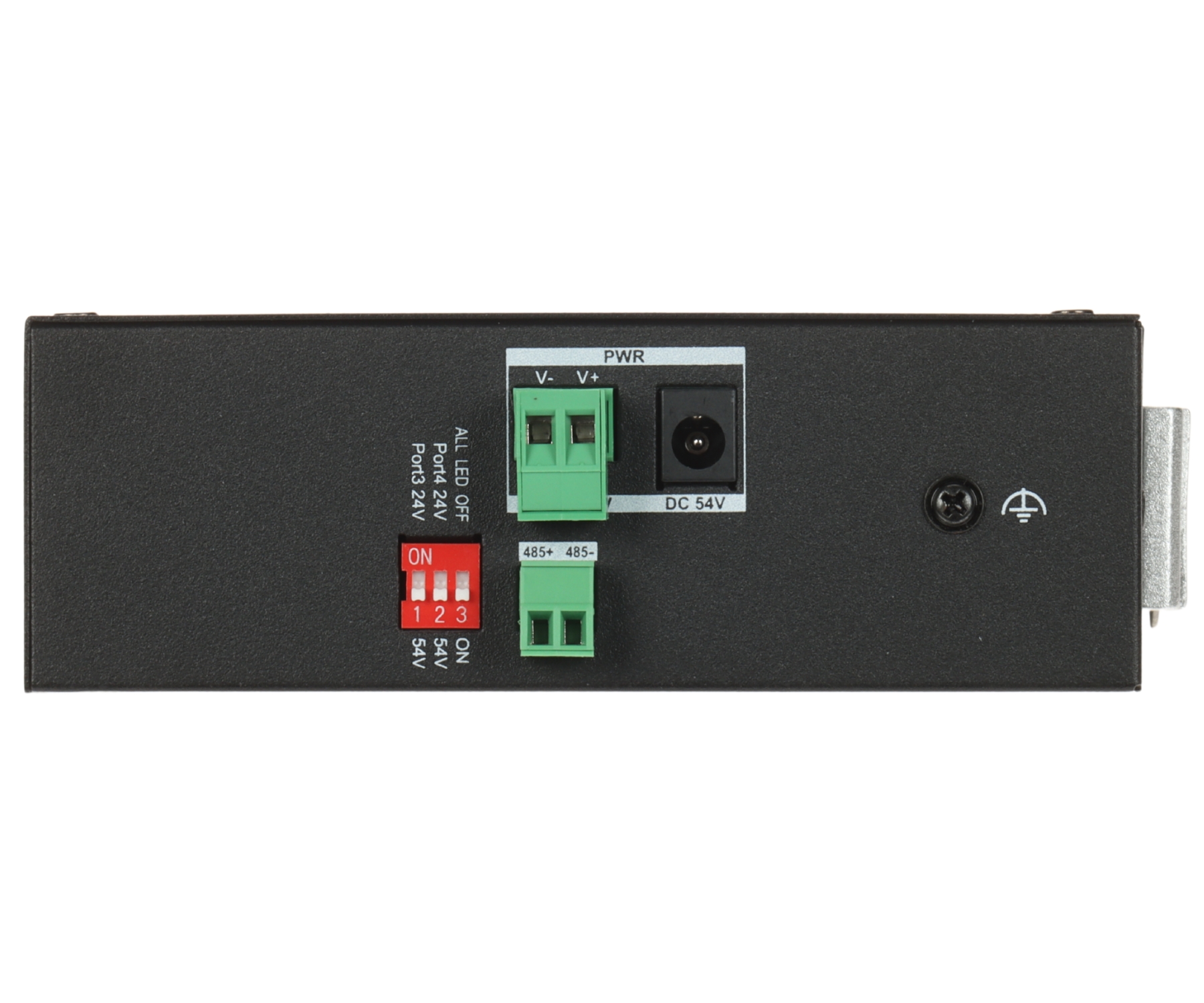

| Power supply: | |
| "Index of Protection": | IP30 |
| Operation temp: | -40 °C ... 75 °C |
| Weight: | 0.70 kg |

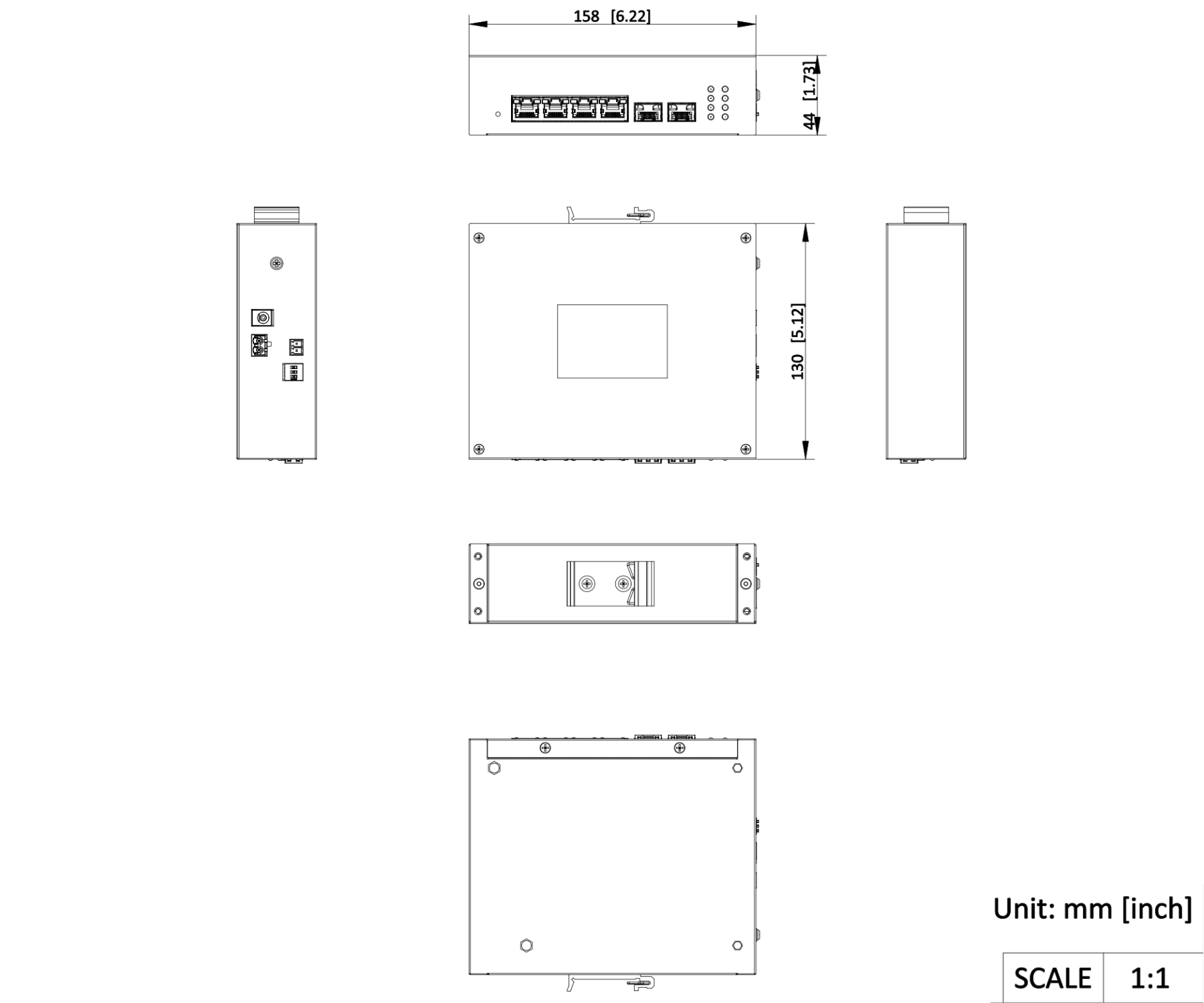

| Dimensions: | 158 x 130 x 44 mm |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 301803431 |
| Guarantee: | 3 years |
Brand:
Hikvision
