LAN ports: 5 x RJ45 ; Transmission speed: 10 / 100 / 1000 Mbps ; Forwarding rate: 7.44 Mpps ; MAC addresses table: 2k ;
| LAN ports: | 5 x RJ45 |
| Management: | ![]() |
| LED diodes: | |
| Transmission speed: | 10 / 100 / 1000 Mbps : 5 LAN ports |
| Switching capacity: | 10 Gbps |
| Forwarding rate: | 7.44 Mpps |
| MAC addresses table: | 2k |
| Default IP address: | ![]() |
| Default admin user / password: | ![]() |
| Main features: | |
| Protections: | |
| Housing: | Desktop, Plastic |
| Color: | White |

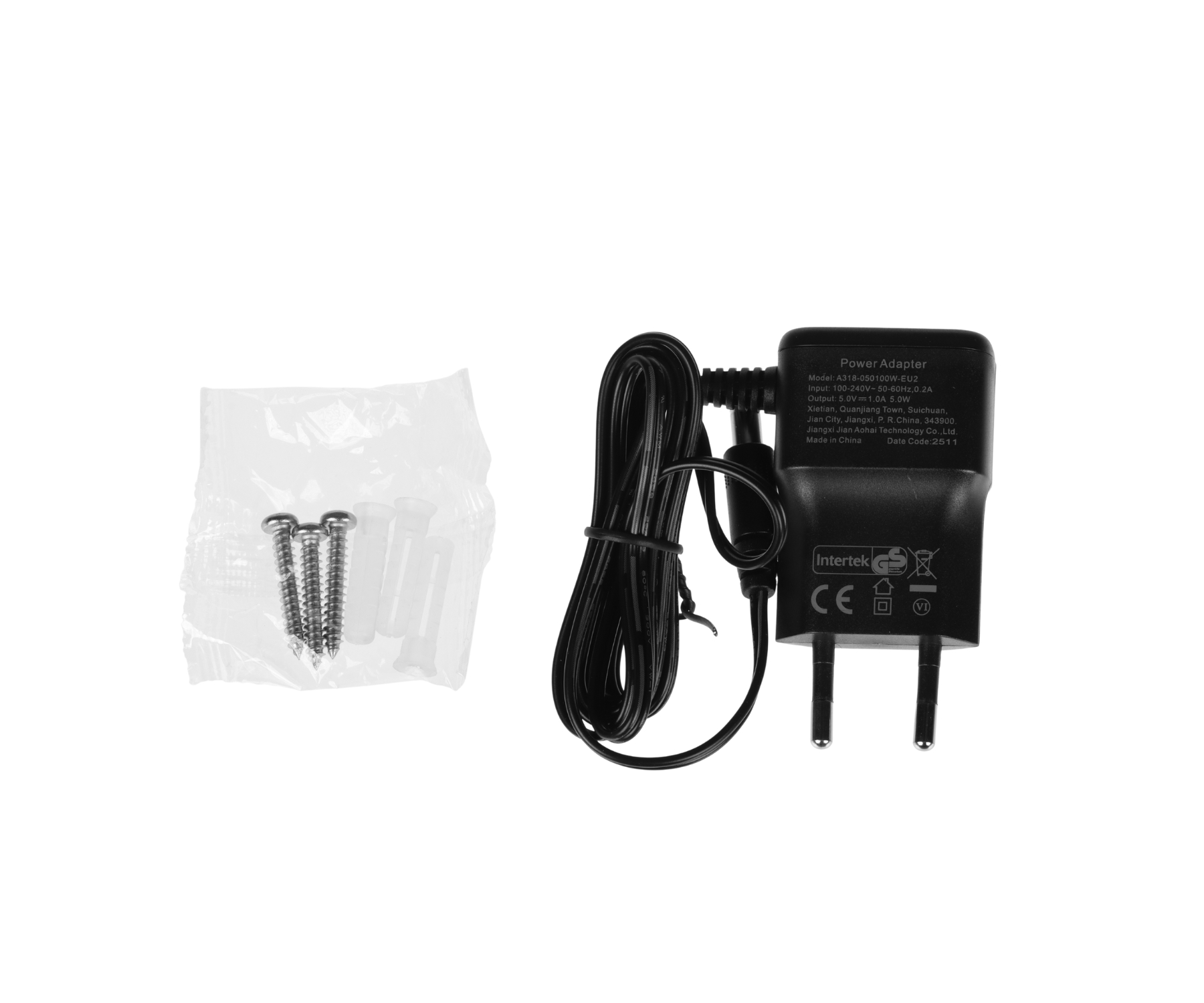

| Power supply: | 5 V DC / 1 A (power adapter included) |
| Power consumption: | max. 1.5 W |
| Operation temp: | 0 °C ... 45 °C |
| relative humidity: | 5 % ... 95 % |
| Weight: | 0.12 kg |

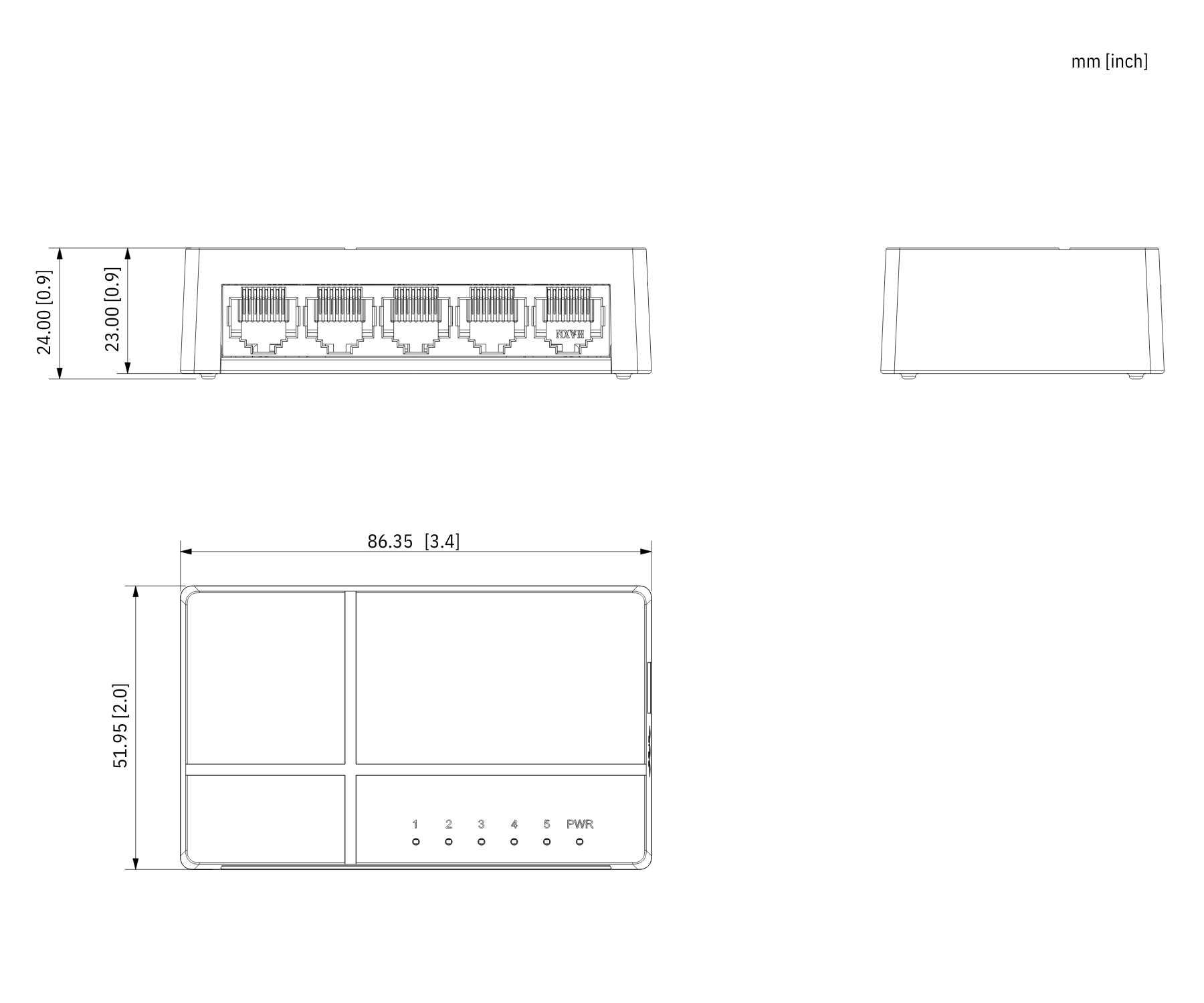

| Dimensions: | 86.4 mm x 52.0 mm x 23.0 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
