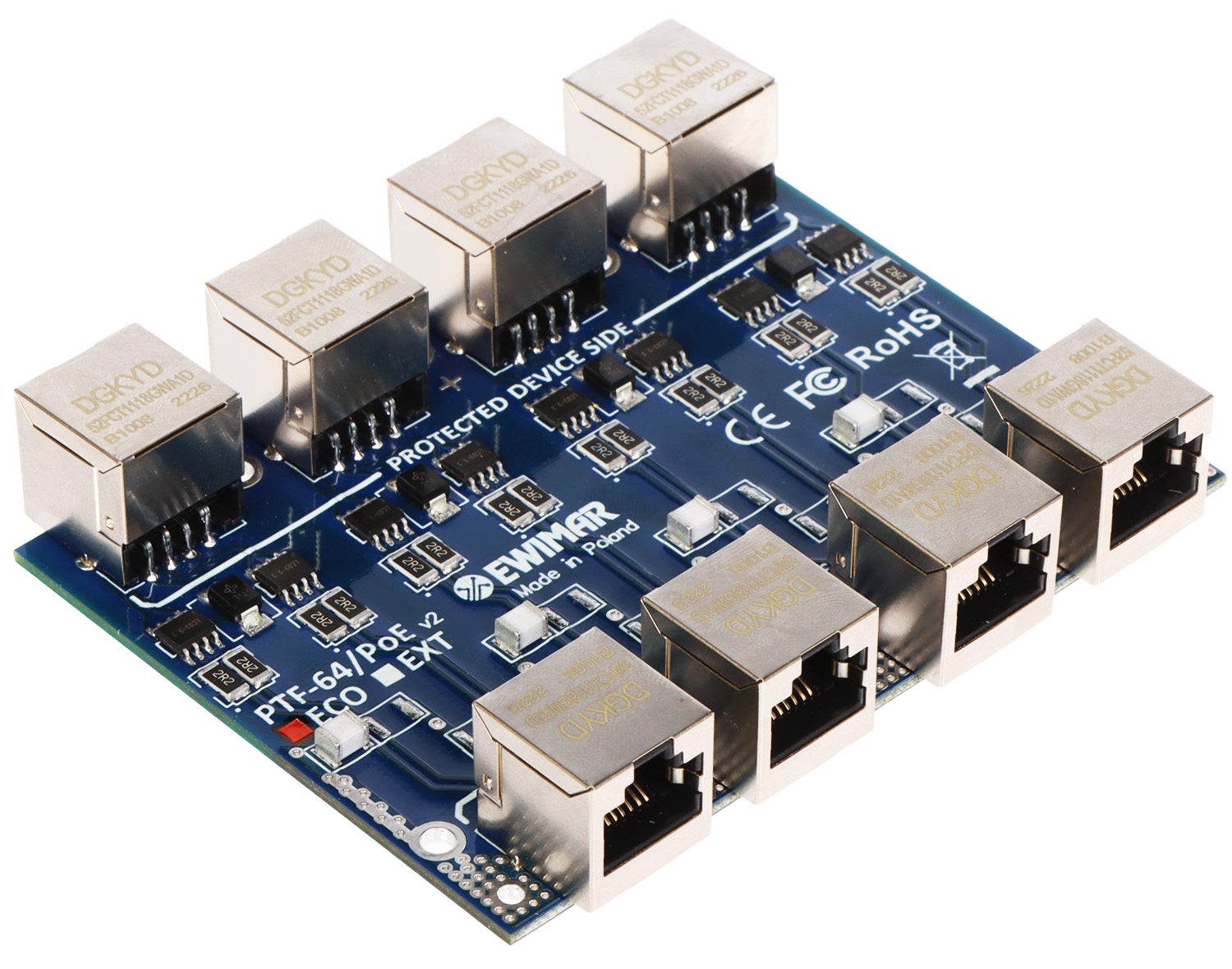

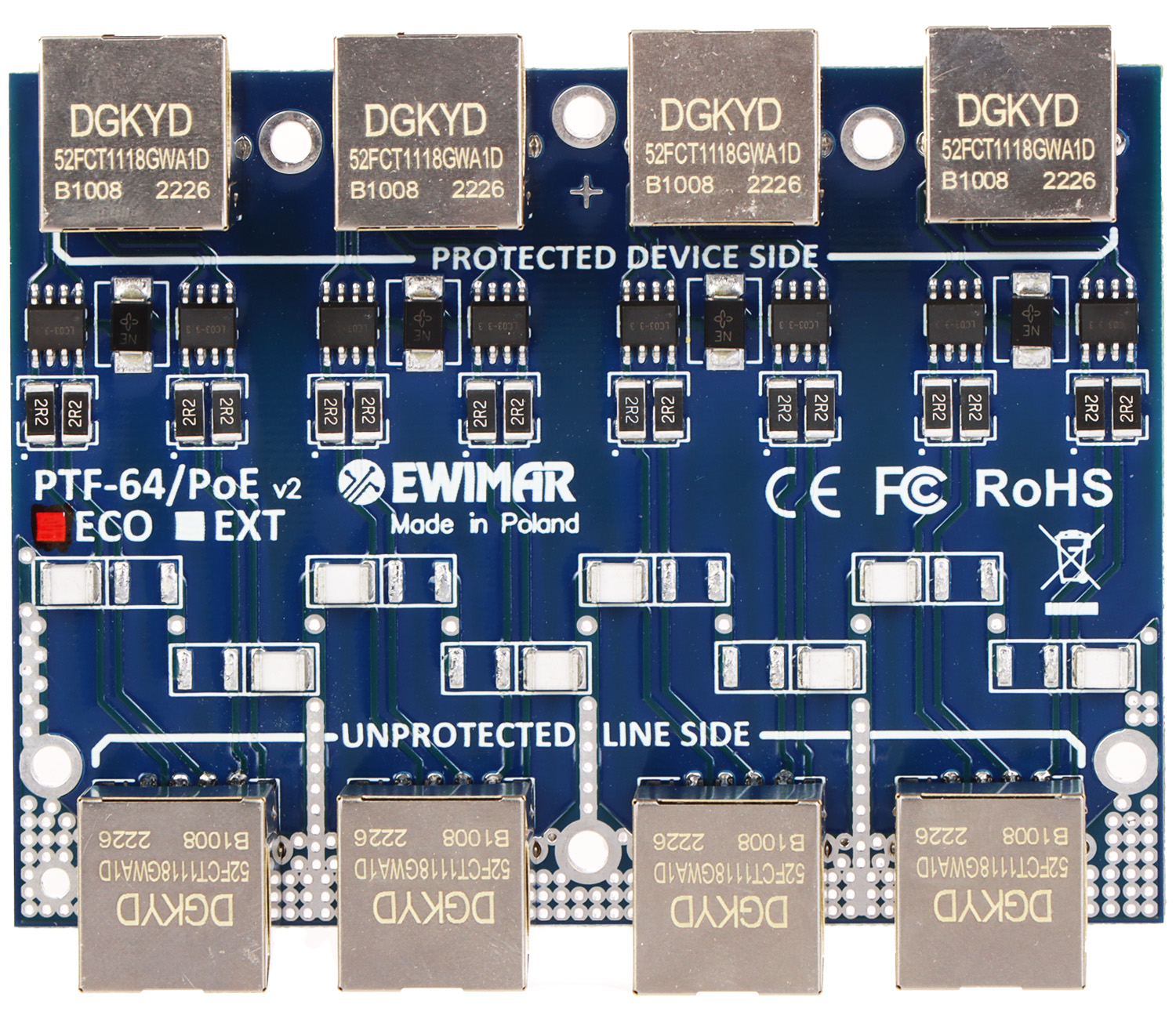

OVERVOLTAGE LIMITER PTF-64-ECO/POE EWIMAR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks and powered remotely in PoE+ technology - protects 4 pairs of UTP cable; Number of channels: 4 ; Nominal voltage (line-ground): 90 V ; Voltage protection level line-PG: ≤ 600 V ; Nominal discharge current (line-PG): 100 A - 8/20 µs ; Manufacturer / Brand: EWIMAR ;
| Number of channels: | 4 |
| Sockets type: | 4 x (RJ45) 10/100/1000 Mbps FTP cat. 6 |
| Nominal voltage (line-ground): | 90 V |
| Maximal voltage line-PG: | 110 V |
| Voltage protection level line-PG: | ≤ 600 V |
| Nominal discharge current (line-PG): | 100 A - 8/20 µs |
| Nominal voltage (line-line): | |
| Maximal voltage (line-line): | |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Connectors type: | RJ-45 shielded socket |
| Housing: |  |
| Weight: | 0.08 kg |
| Dimensions: | 99 x 81 x 20 mm |
| Manufacturer / Brand: | EWIMAR |
| Guarantee: | 2 years |
Brand:
Ewimar
