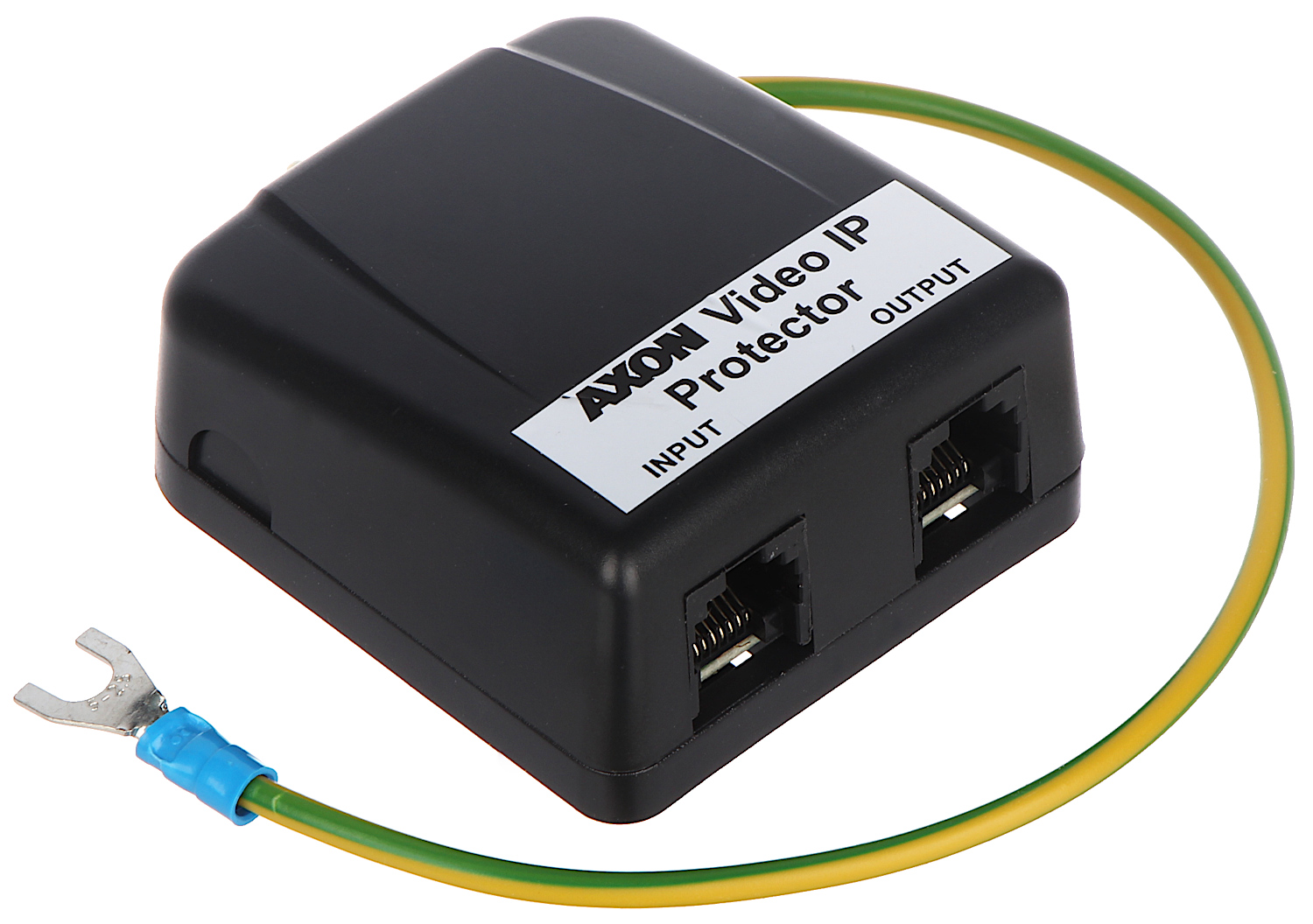

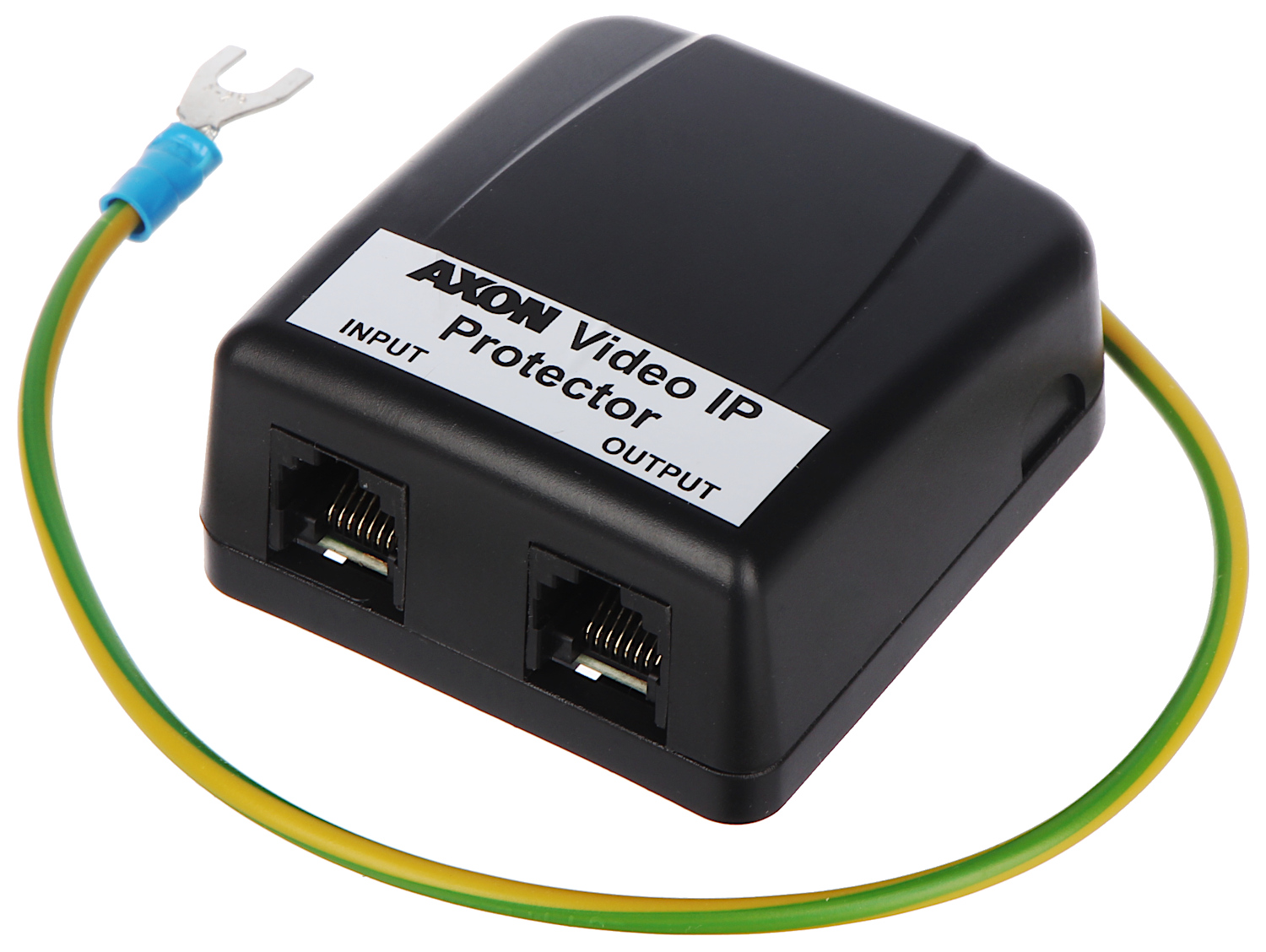

OVERVOLTAGE LIMITER AXON-VIDEO-IP
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks - protects 4 pairs of UTP cable; Rated voltage: 5 V ; Voltage protection level (line-line): ≤ 40 V ; Voltage protection level line-PG: ≤ 600 V ; Nominal discharge current (line-line): 100 A (8/20µs) ;
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level (line-line): | ≤ 40 V |
| Voltage protection level line-PG: | ≤ 600 V |
| Nominal discharge current (line-line): | 100 A (8/20µs) |
| Nominal discharge current (line-PG): | 100 A (8/20µs) |
| Maximal discharge current (line-line): | 135 A (8/20µs) |
| Maximal discharge current (line-PG): | 135 A (8/20µs) |
| Capacity: | < 20 pF |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |

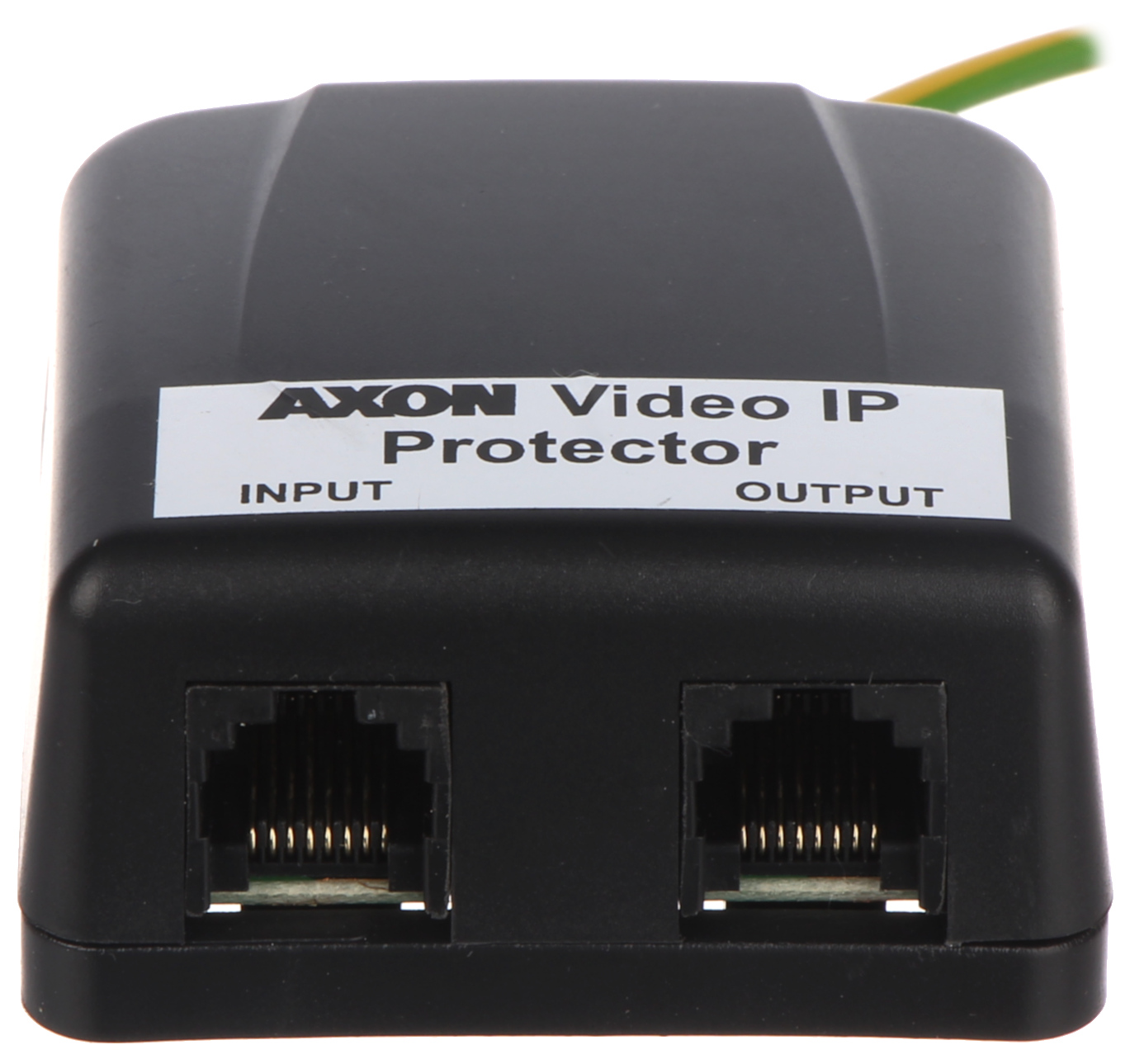

| Sockets types: | RJ45 (8P8C) |
| Dimensions: | 66 x 60 x 30 mm |
| Weight: | 0.05 kg |
| Guarantee: | 2 years |
Brand:
AXON
