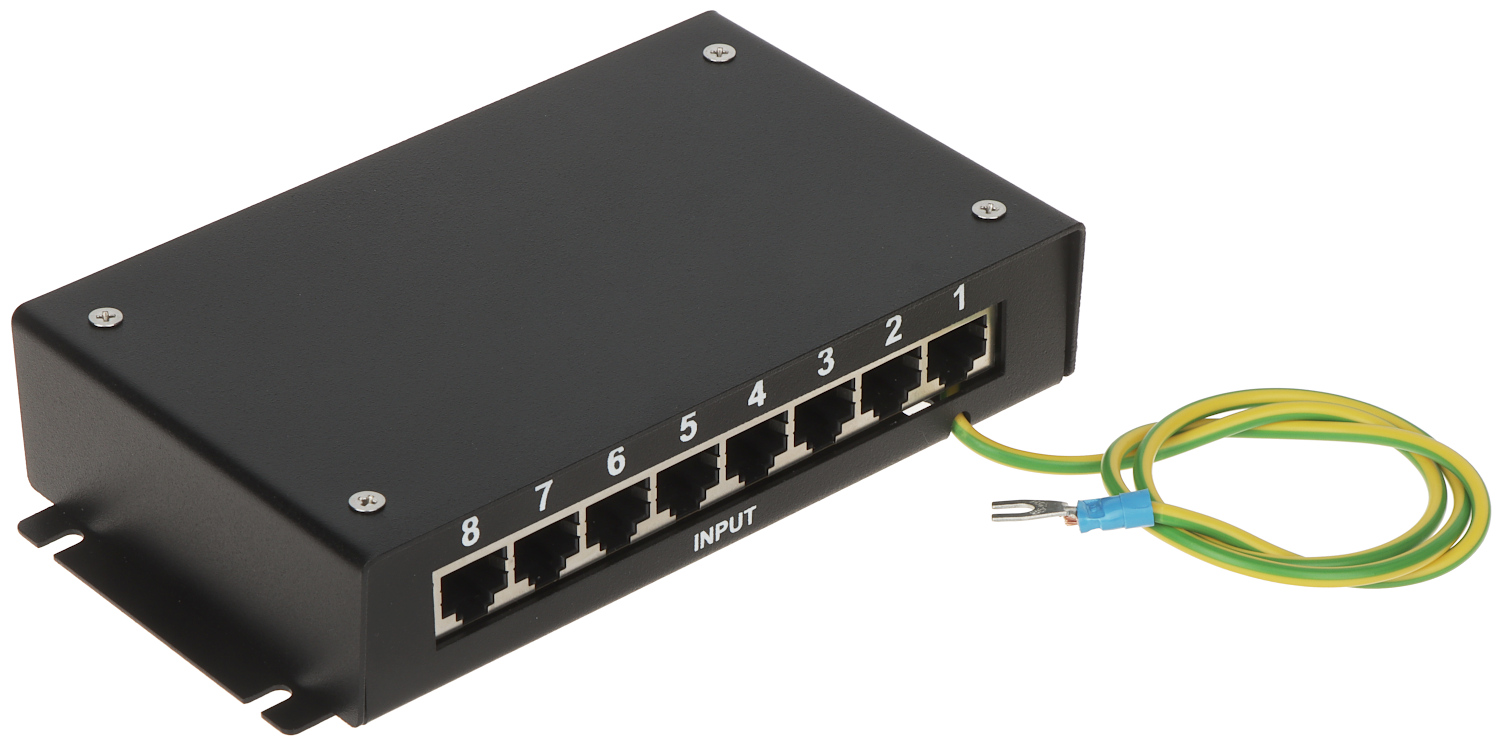

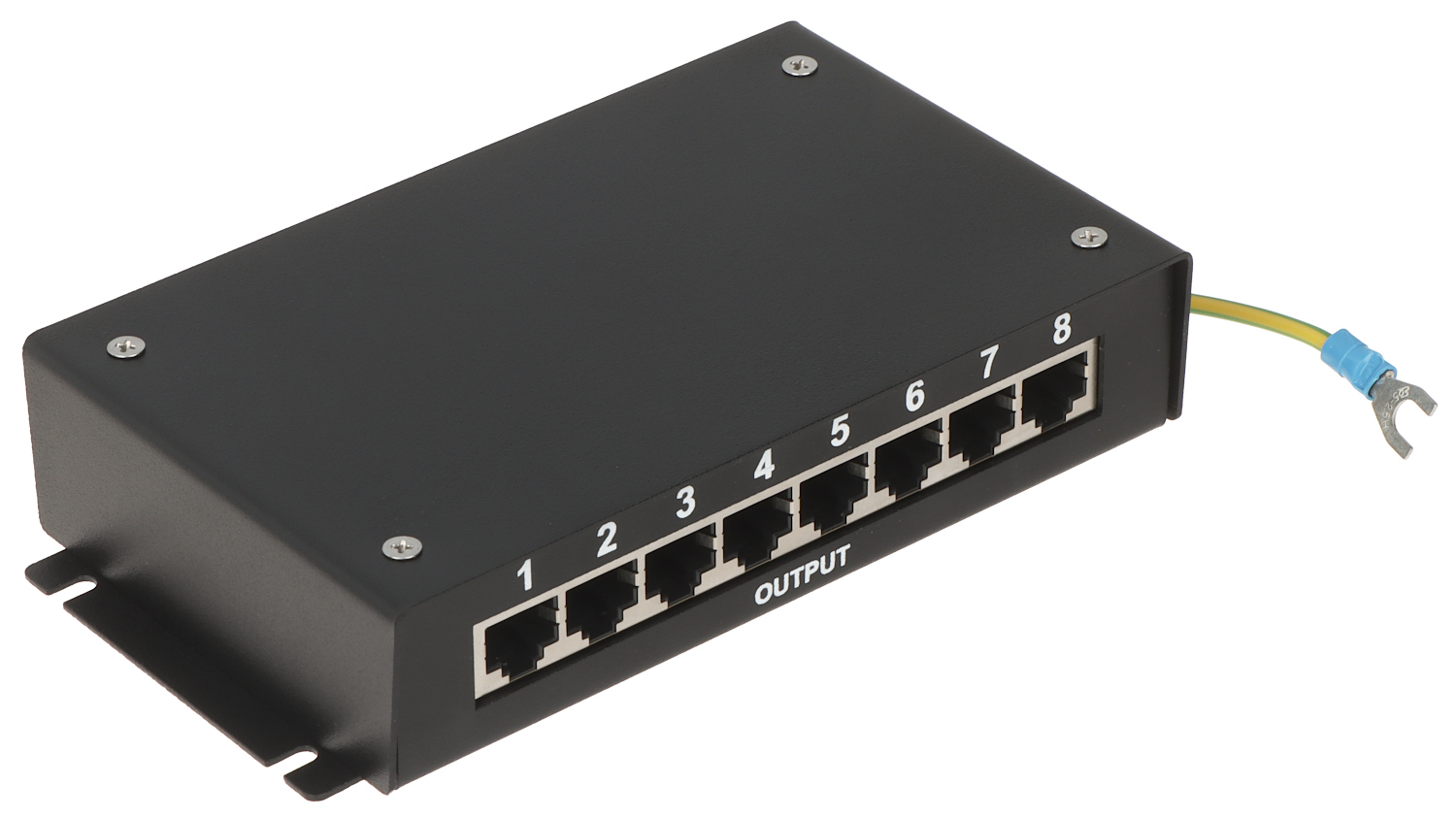

OVERVOLTAGE LIMITER AXON-VIDEO-IP-8
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Rated voltage: 5 V ; Voltage protection level line-line: ≤ 40 V - 1 kV/µs [C3] ; Voltage protection level line-PG: ≤ 600 V - 1 kV/µs [C3] ; Nominal discharge current (line-line): 20 A (10/1000µs) [C3] ; Nominal discharge current (line-PG): 20 A (10/1000µs) [C3] ;
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level line-line: | ≤ 40 V - 1 kV/µs [C3] |
| Voltage protection level line-PG: | ≤ 600 V - 1 kV/µs [C3] |
| Nominal discharge current (line-line): | 20 A (10/1000µs) [C3] |
| Nominal discharge current (line-PG): | 20 A (10/1000µs) [C3] |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |

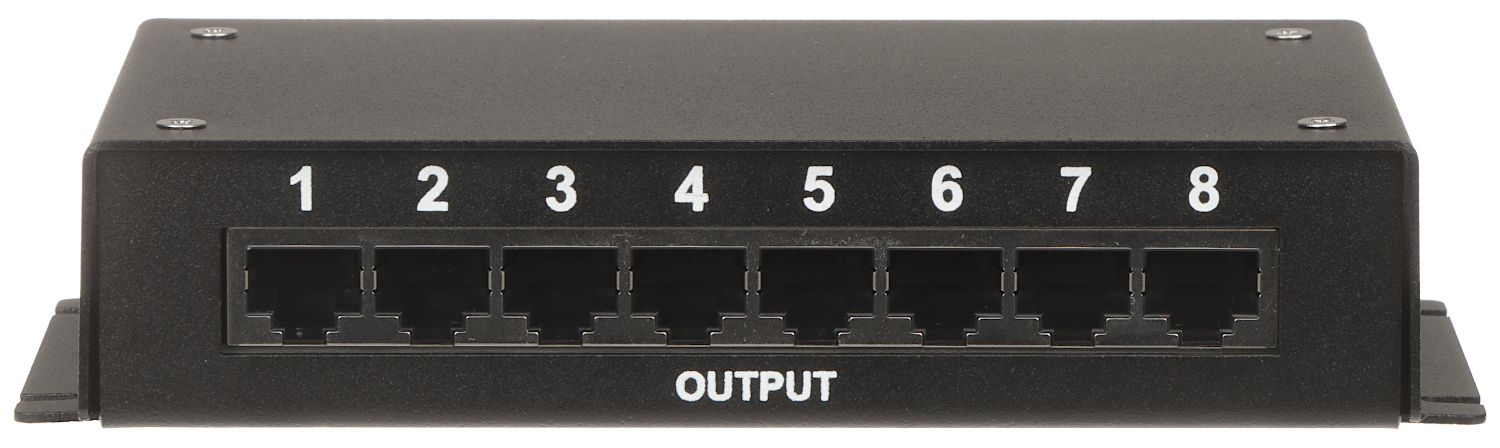

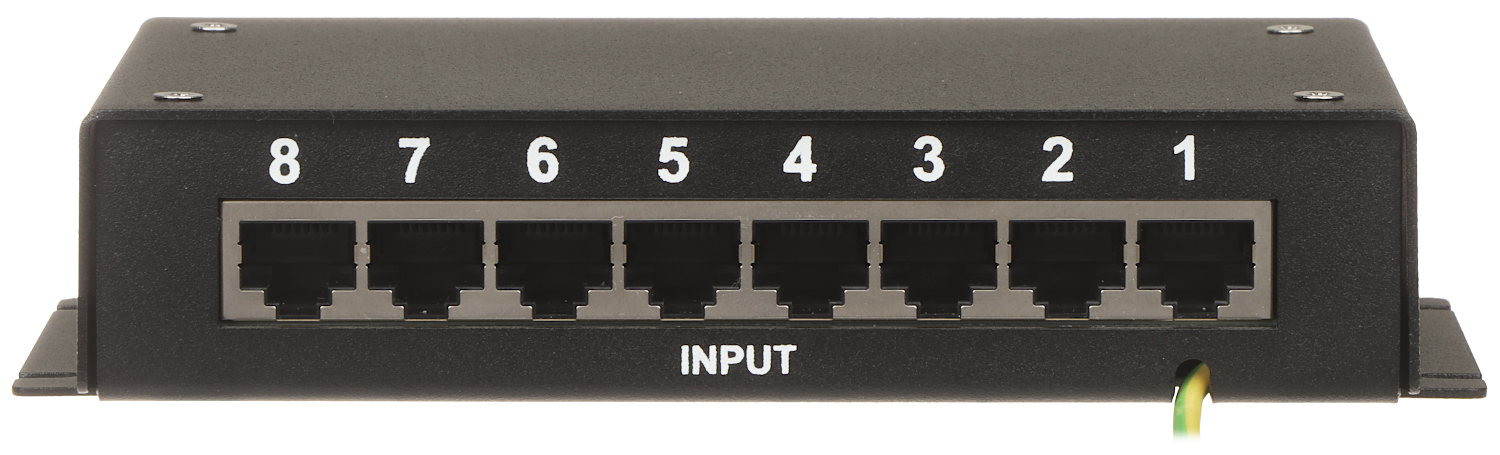

| Sockets types: | RJ45 (8P8C) |
| Protection parameters compliance: | Compliance with PN-EN61643-21 |
| Housing: | Metal, black |
| Weight: | 0.46 kg |
| Dimensions: | 162 x 90 x 37 mm |

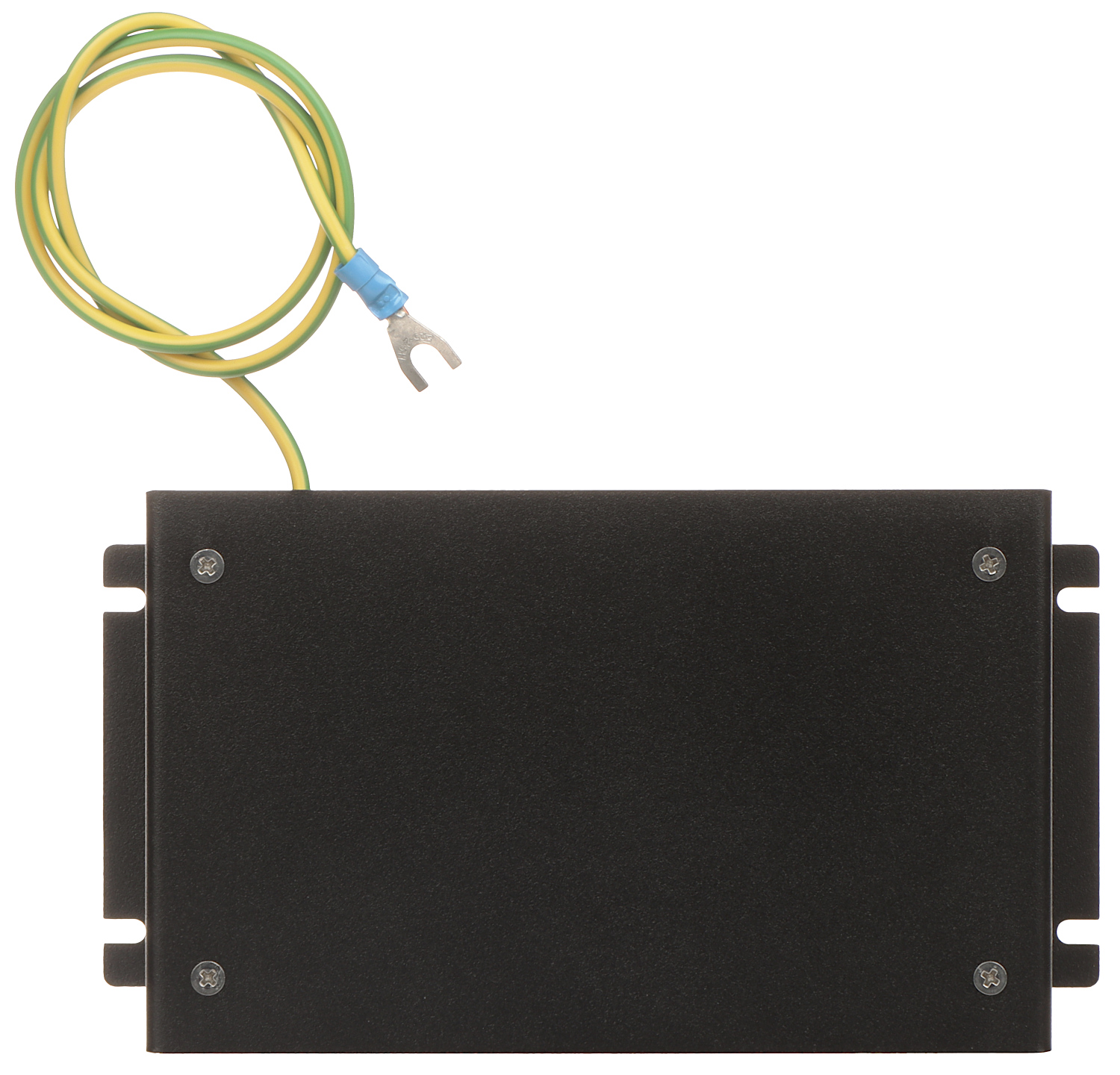

| Length of grounding cable: | 0.5 m |
| Guarantee: | 3 years |
Brand:
AXON
