OVERVOLTAGE LIMITER AXON-PRO-IP-12POE+
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks and powered remotely in PoE+ technology - protects 4 pairs of UTP cable; Number of channels: 12 ; Rated voltage: 120 V ; Voltage protection level line-PG: ≤ 1000 V - 1.2/50 µs [C2] ; Nominal discharge current (line-PG): 2 kA - 8/20 µs [C2] ;
| Number of channels: | 12 |
| Transmission speed: | 10 / 100 / 1000 Mbps |

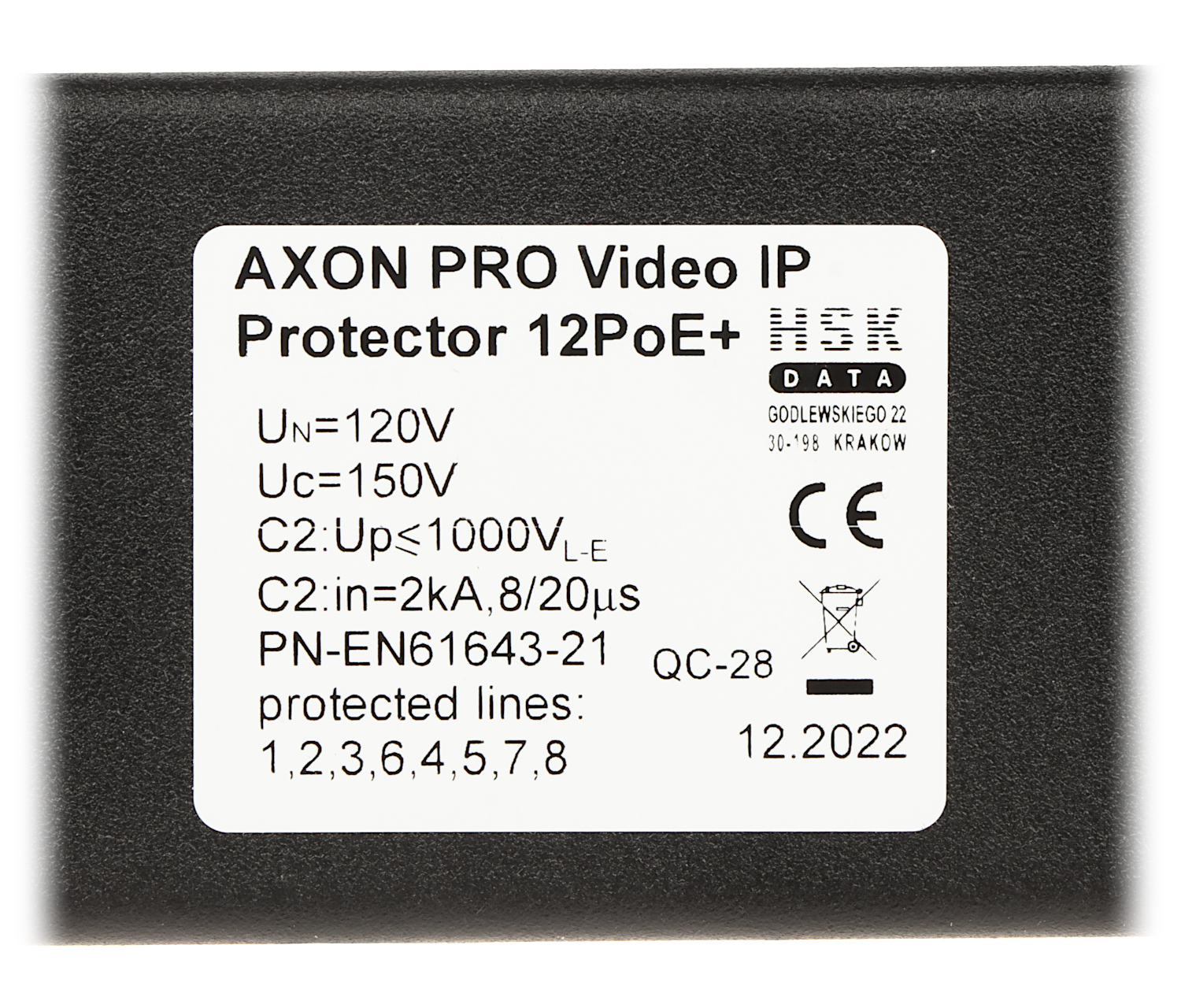

| Rated voltage: | 120 V |
| Maximal voltage: | 150 V |
| Nominal current: | 600 mA |
| Voltage protection level line-PG: | ≤ 1000 V - 1.2/50 µs [C2] |
| Nominal discharge current (line-PG): | 2 kA - 8/20 µs [C2] |

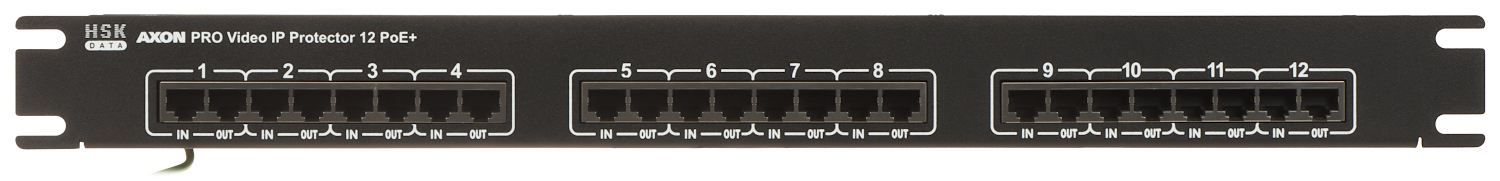

| Connectors type: | 24 x RJ-45 shielded socket (8P8C) ( 12 Inputs, 12 Outputs ) |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Housing: | Metal, black |
| Weight: | 1.08 kg |

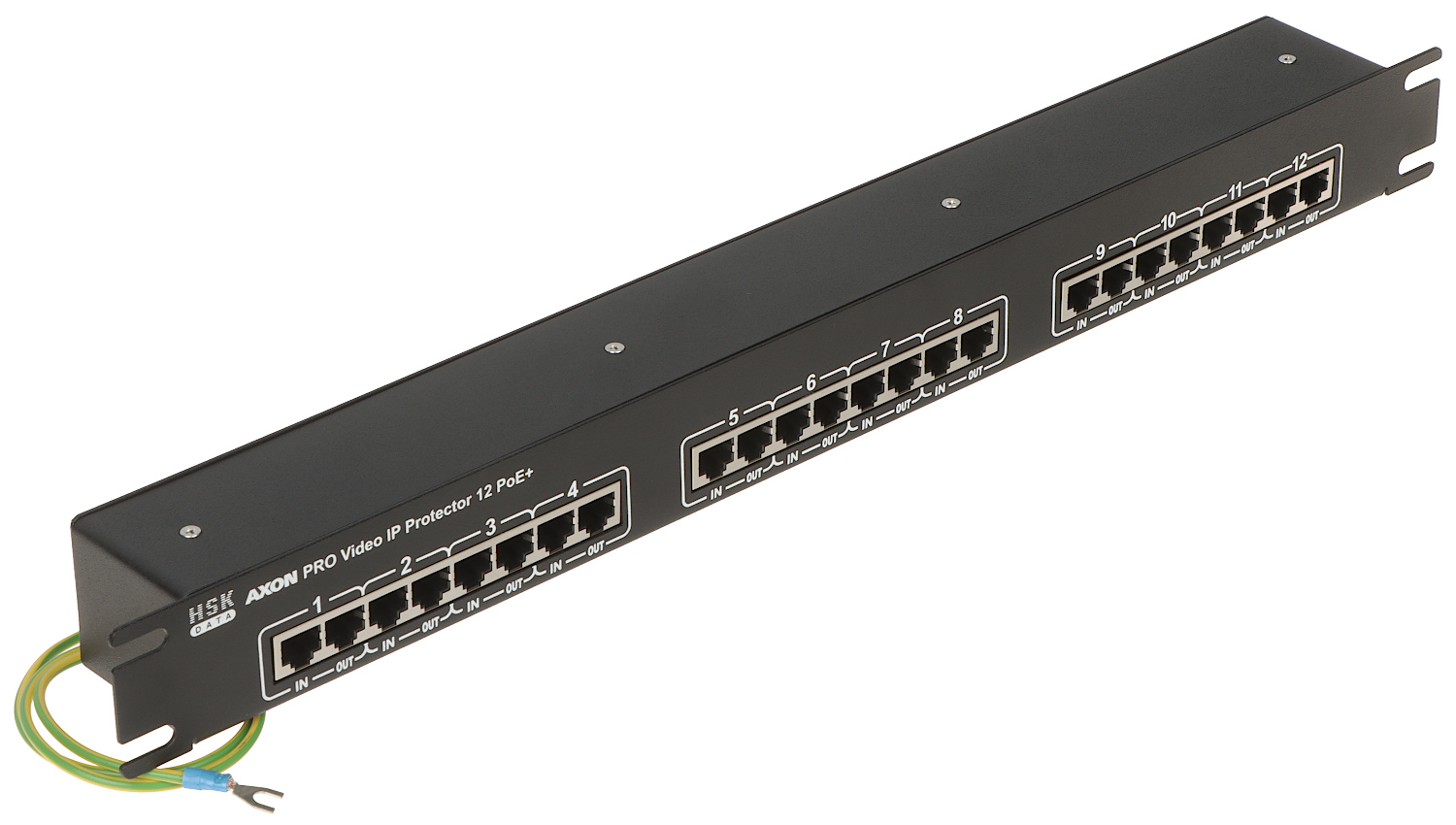

| Dimensions: | 490 x 50 x 44 mm, RACK 19", 1U |

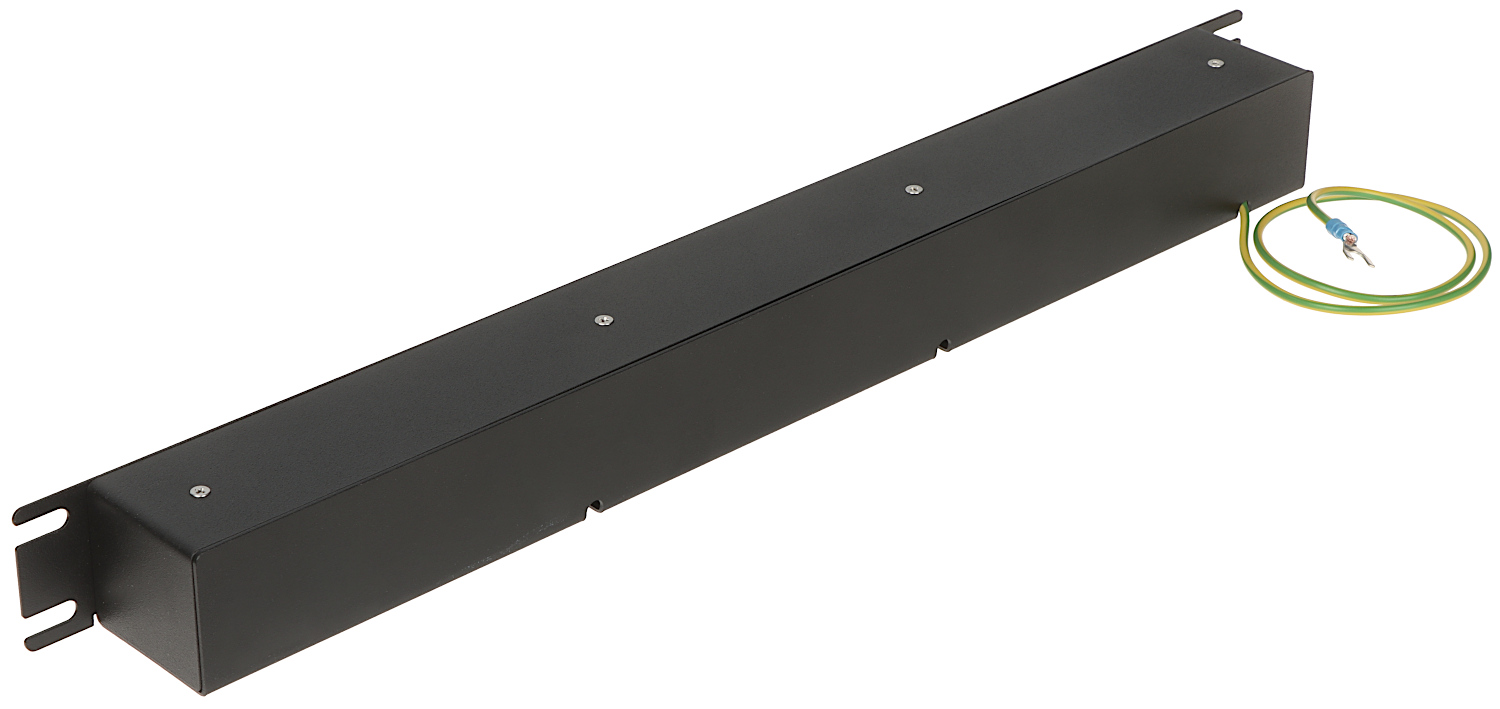

| Length of grounding cable: | 50 cm |
| Guarantee: | 3 years |
Brand:
AXON
