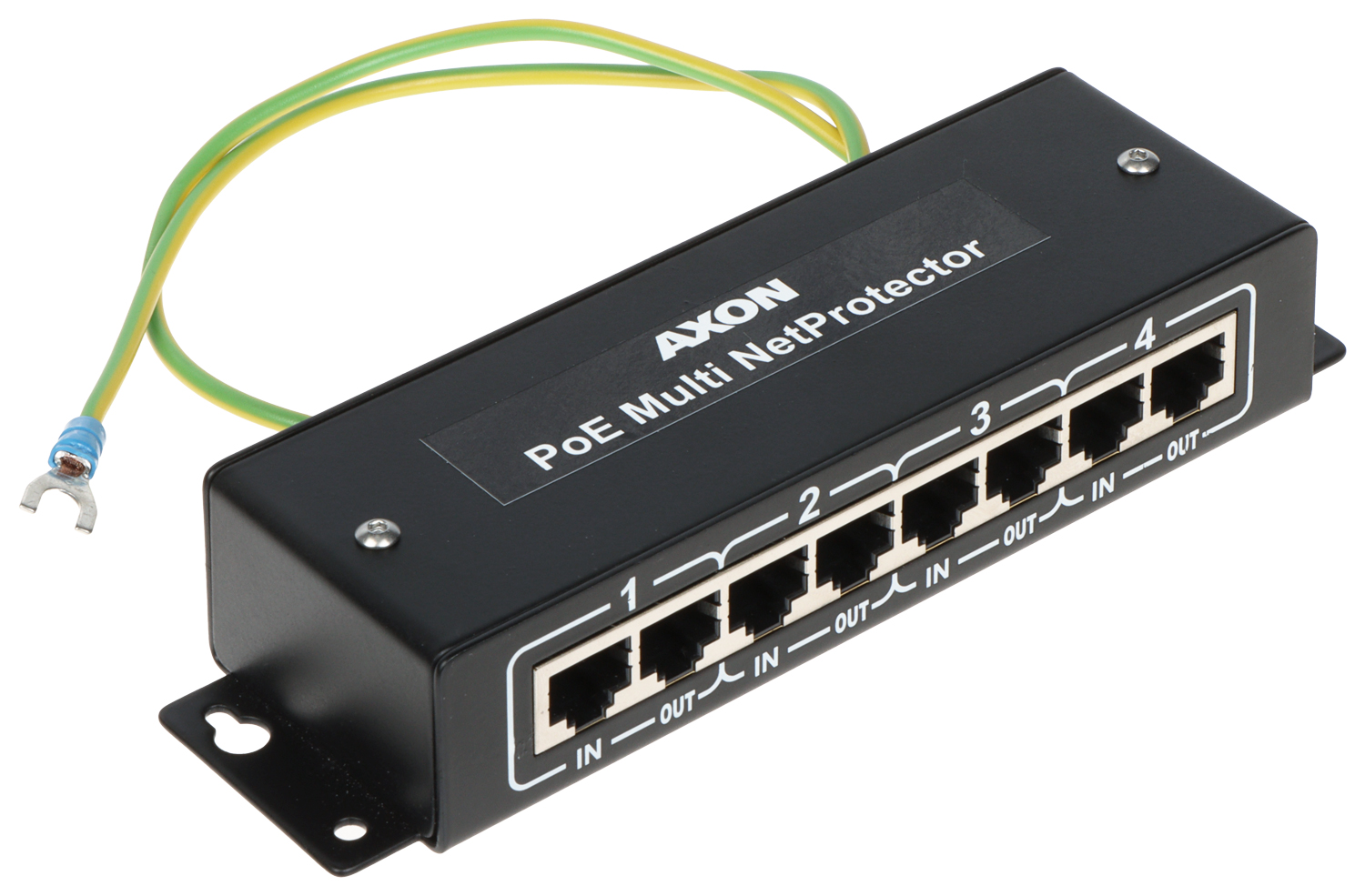

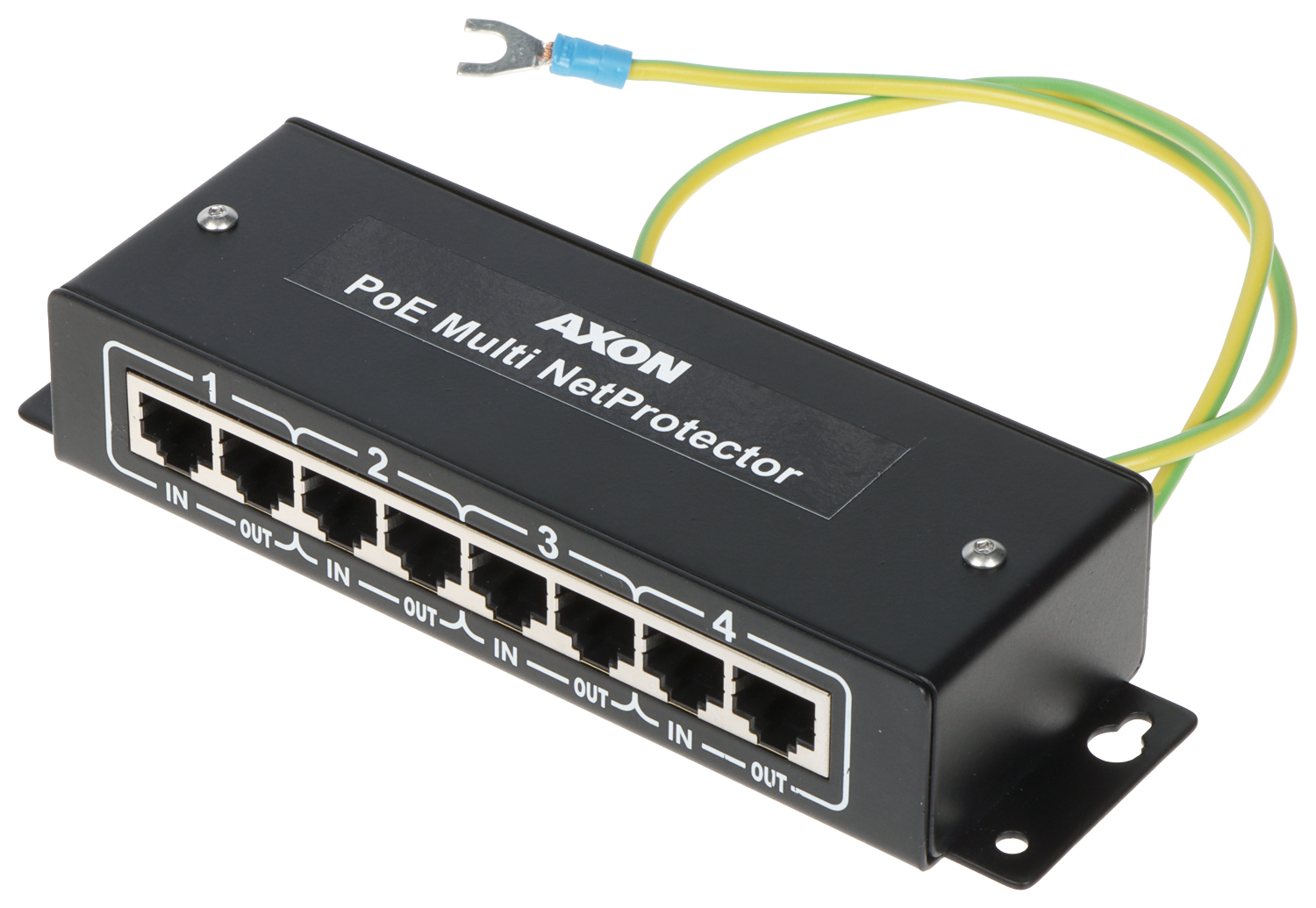

OVERVOLTAGE LIMITER AXON-POE-MULTINET
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
It is designed to overvoltage protection of Ethernet 10/100 Mb/s network devices connected to it and powered remotly with PoE technology; Rated voltage: 5 V ; Voltage protection level line-line: 40 V - 1 kV/µs ; Voltage protection level line-PG: 600 V - 1 kV/µs ; Nominal power voltage: 50 V ; Nominal current: 400 mA ; Number of channels: 4 ;
| Signal line - wires 1, 2, 3, 6: | |
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level line-line: | 40 V - 1 kV/µs |
| Voltage protection level line-PG: | 600 V - 1 kV/µs |
| Nominal discharge current (line-line): | 20 A (10/1000µs) |
| Nominal discharge current (line-PG): | 20 A (10/1000µs) |
| Power line - wires 4, 5 and 7, 8: | |
| Nominal power voltage: | 50 V |
| Maximal power voltage: | 56 V |
| Nominal current: | 400 mA |
| Voltage protection level line-line for power: | 95 V - 1 kV/µs |
| Voltage protection level line-PG for power: | 1000 V (1.2/50µs) |
| Nominal discharge current line-line for power: | 10 A (10/1000µs) |
| Nominal discharge current for power (line-PG): | 2 kA (8/20µs) |
| Protection parameters compliance: | Compliance with PN-EN61643-21 |
| General information: | |
| Number of channels: | 4 |

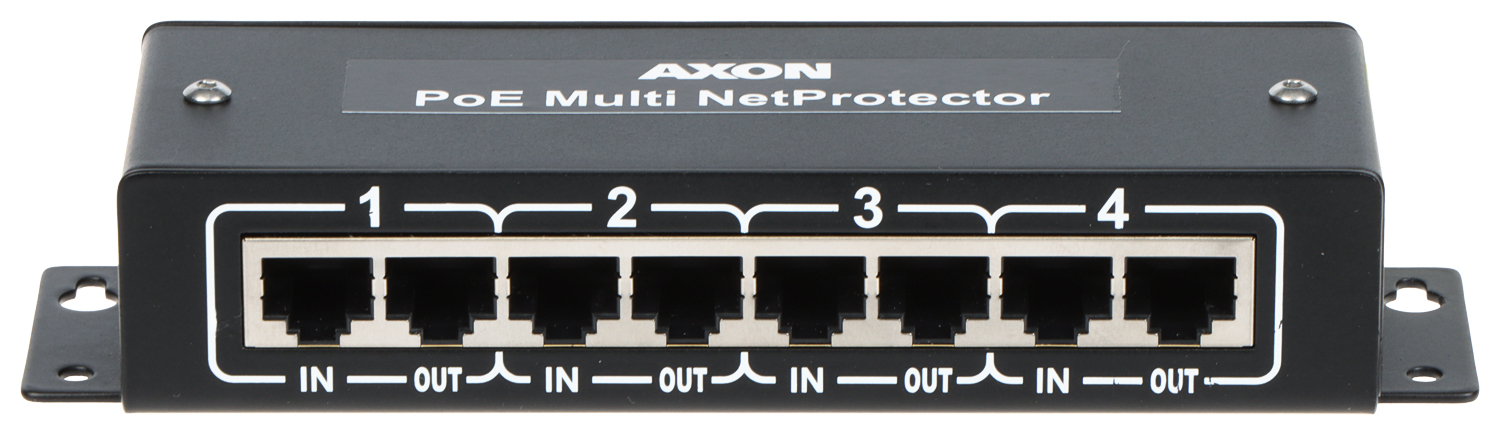

| Sockets type: | RJ45 (8P8C) |

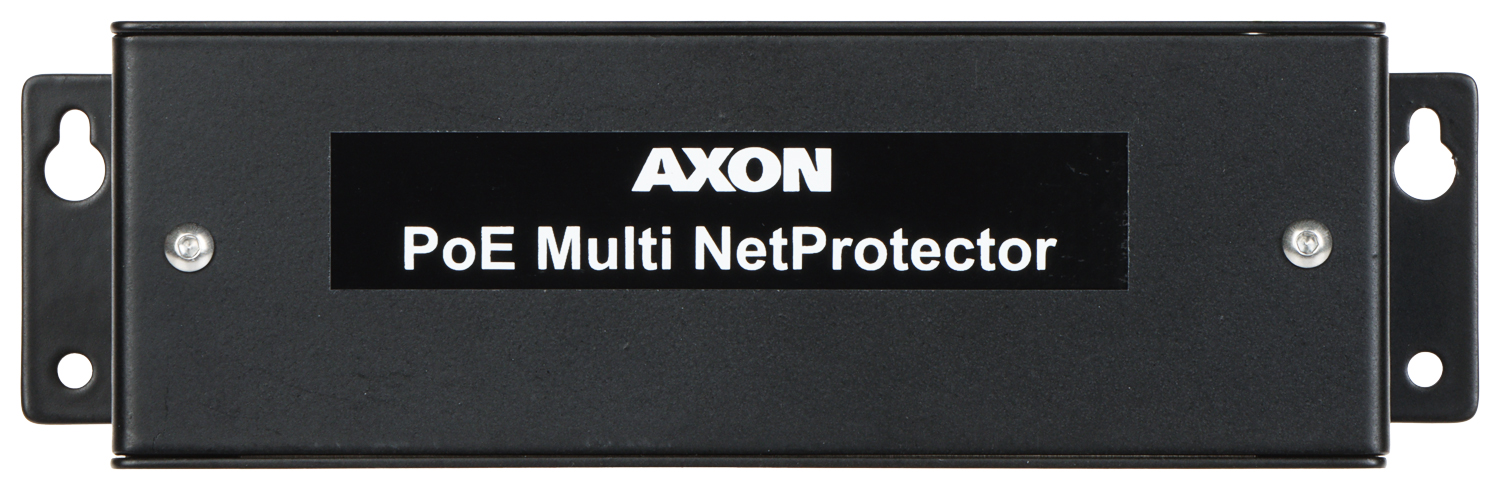

| Housing: | Metal, black |
| Dimensions: | 167 x 50 x 32 mm |
| Weight: | 0.33 kg |
| Guarantee: | 2 years |
Brand:
AXON
