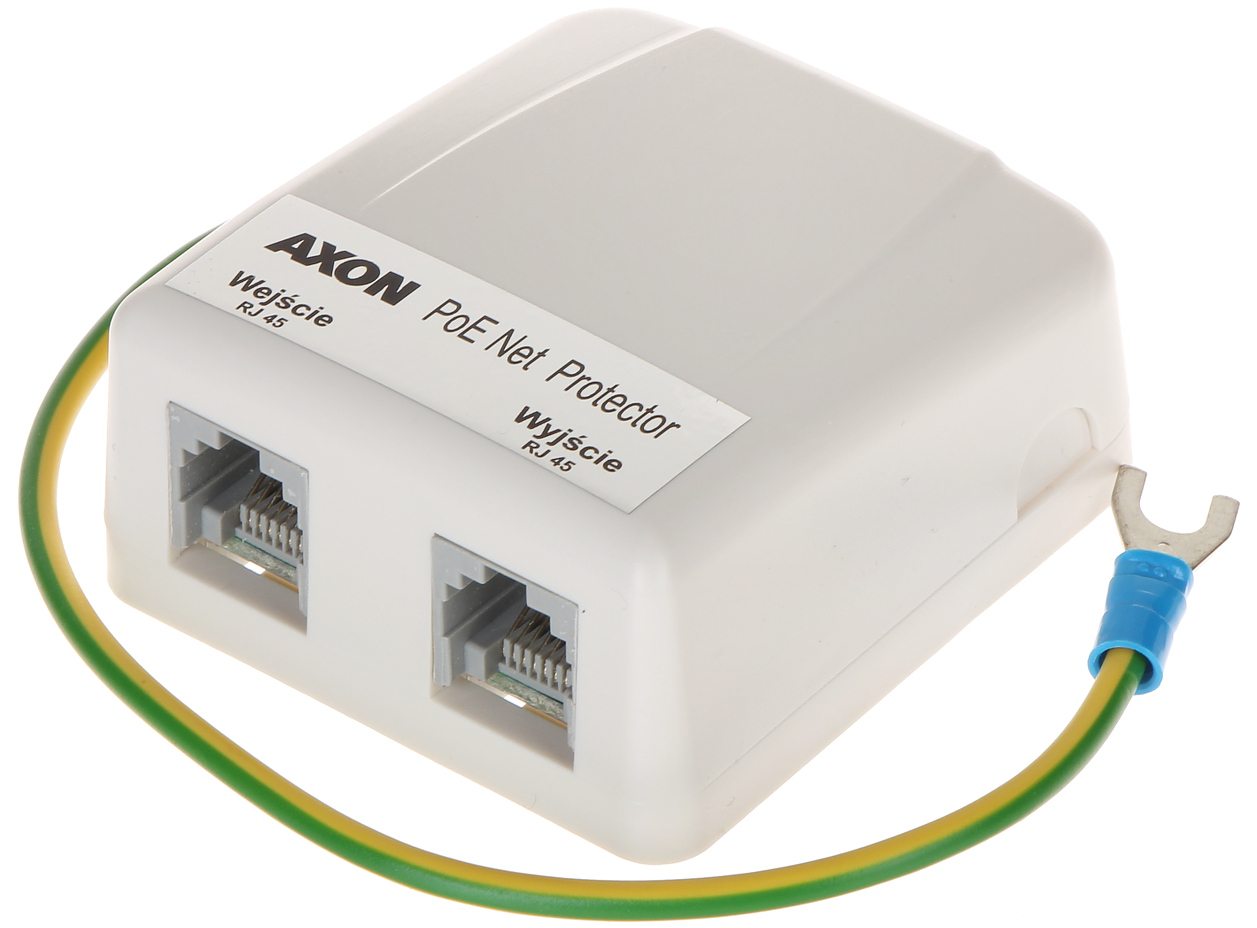

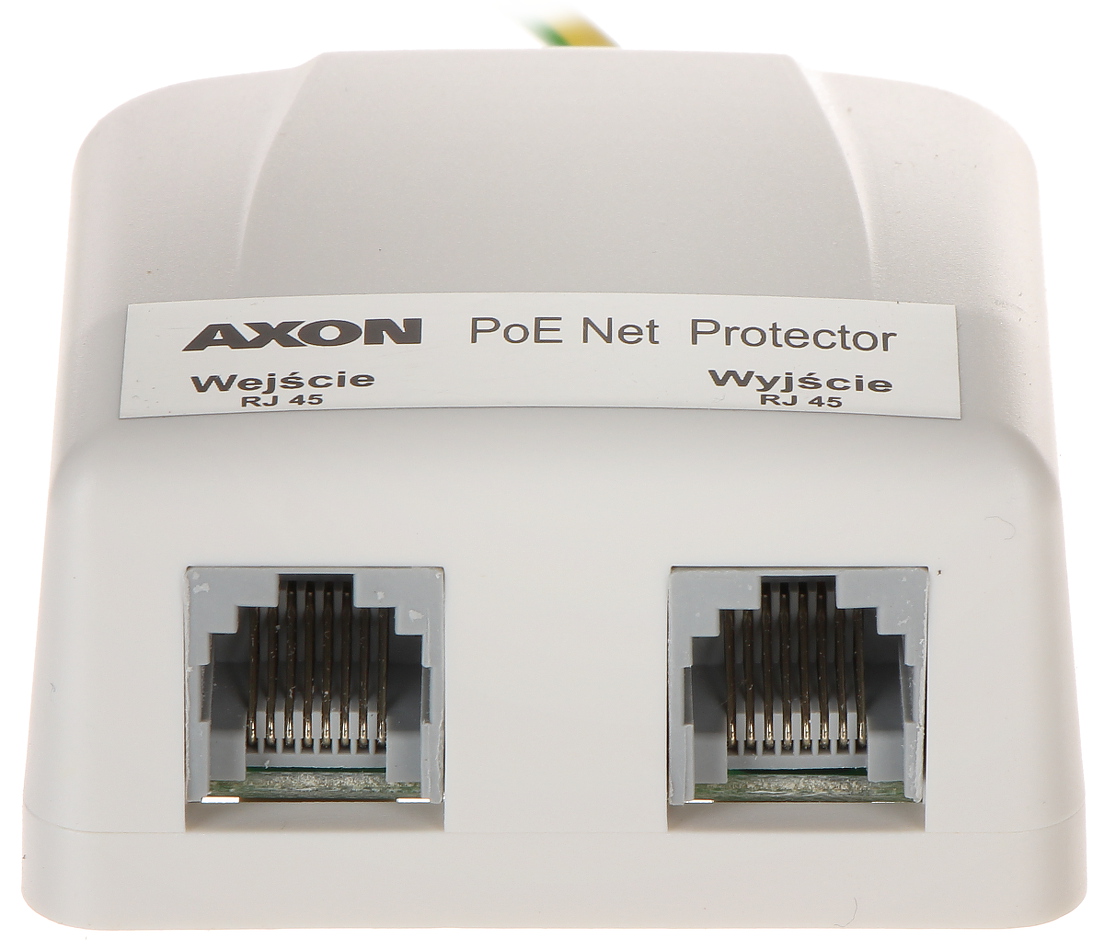

OVERVOLTAGE LIMITER AXON-POE ETHERNET
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
A limiter designed to protect devices connected to the Ethernet 10/100 Mb/s network, including devices powered by PoE; Rated voltage: 5 V ; Voltage protection level (line-line): 40 V ; Voltage protection level line-PG: 600 V ; Nominal power voltage: 0 ... 50 V ; Voltage protection level for power (line-line): 125 V ;
| Signal line - wires 1, 2, 3, 6: | |
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level (line-line): | 40 V |
| Voltage protection level line-PG: | 600 V |
| Nominal discharge current (line-line): | 100 A (8/20µs) |
| Nominal discharge current (line-PG): | 100 A (8/20µs) |
| Maximal discharge current (line-line): | 135 A (8/20µs) |
| Maximal discharge current (line-PG): | 135 A (8/20µs) |
| Capacity: | < 30 pF |
| Power line - wires 4, 5 and 7, 8: | |
| Nominal power voltage: | 0 ... 50 V |
| Maximal power voltage: | 56 V |
| Nominal current: | 400 mA |
| Voltage protection level for power (line-line): | 125 V |
| Voltage protection level line-PG: | 1 kV |
| Nominal discharge current for power (line-line): | 80 A (8/20µs) |
| Nominal discharge current for power (line-PG): | 1 kA (8/20µs) |
| Maximal discharge current for power (line-PG): | 2.5 kA (8/20µs) |
| Sockets types: | RJ45 (8P8C) |
| Dimensions: | 67 x 61 x 30 mm |
| Weight: | 0.06 kg |
| Guarantee: | 2 years |
Brand:
AXON
