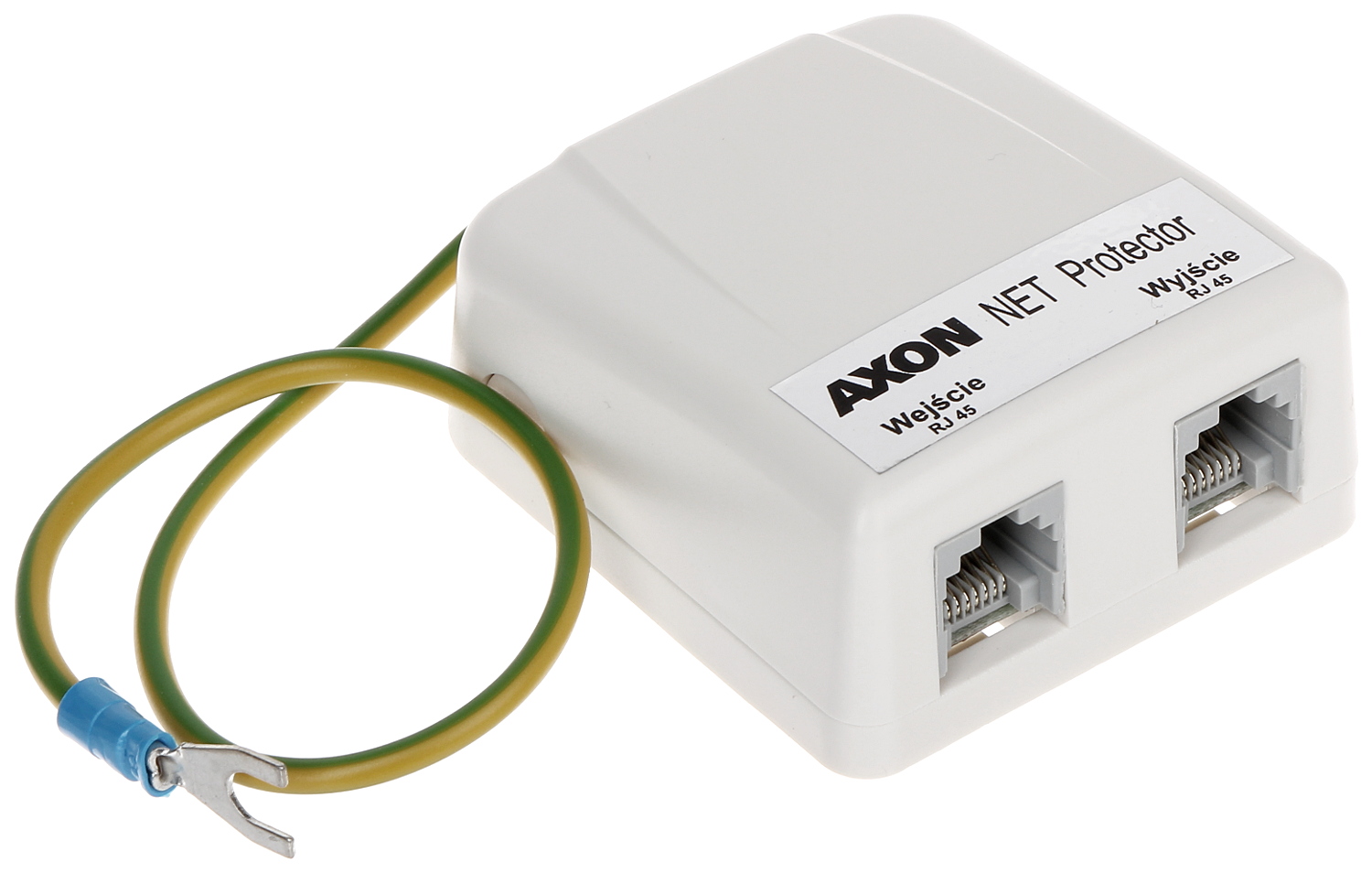

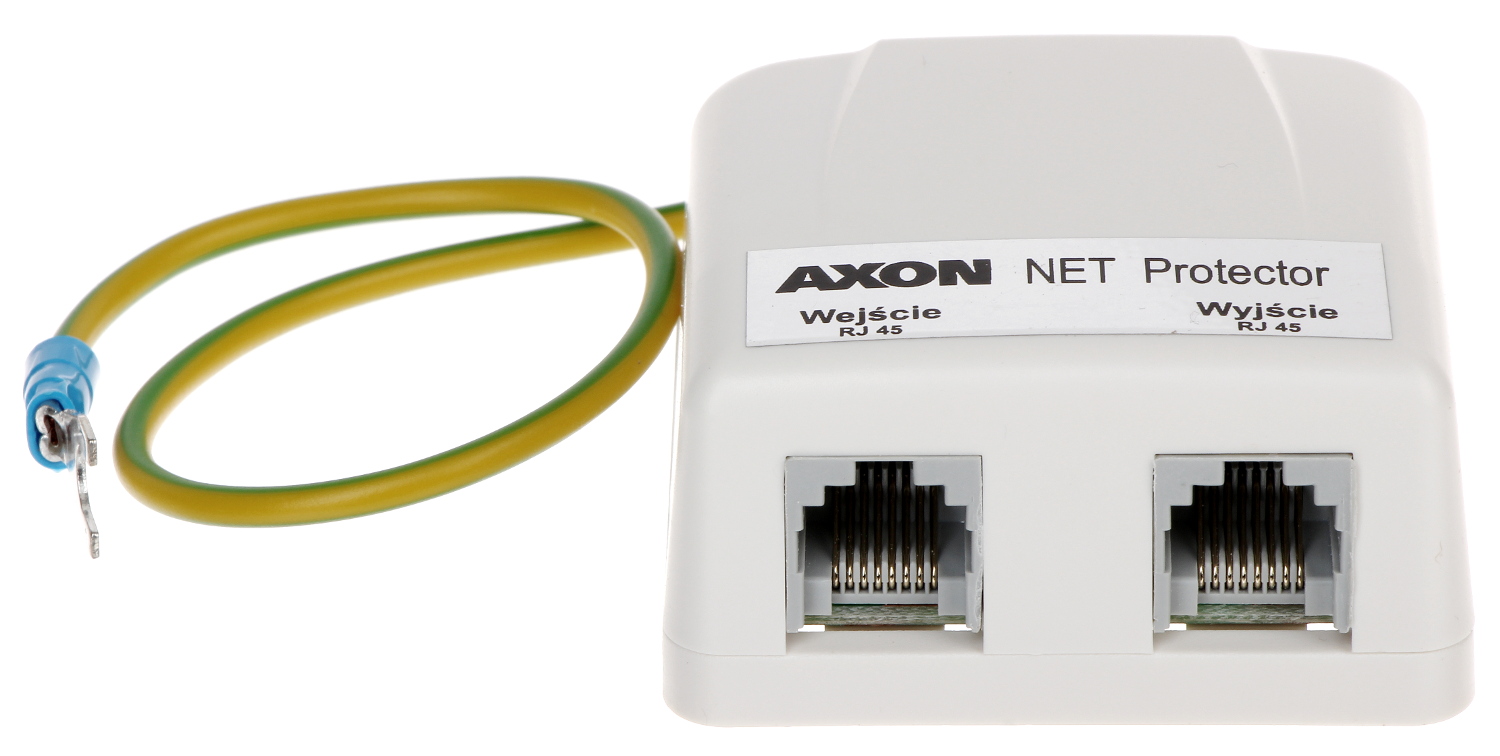

OVERVOLTAGE LIMITER AXON-NET-PROTECTOR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks - protects 4 pairs of UTP cable; For each pair eliminates overvoltages between the wires; Rated voltage: 5 V ; Voltage protection level line-line: 40 V ... 1 kV/µs ; Voltage protection level line-PG: 600 V ... 1 kV/µs ; Nominal discharge current (line-line): 20 A (10/1000µs) ; Nominal discharge current (line-PG): 20 A (10/1000µs) ;
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level line-line: | 40 V ... 1 kV/µs |
| Voltage protection level line-PG: | 600 V ... 1 kV/µs |
| Nominal discharge current (line-line): | 20 A (10/1000µs) |
| Nominal discharge current (line-PG): | 20 A (10/1000µs) |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Sockets type: | RJ45 (8P8C) |
| Housing: | Plastic |
| Color: | White |
| Norm: | Compliance with PN-EN61643-21 |
| Weight: | 0.052 kg |
| Dimensions: | 67 x 60 x 29 mm |
| Guarantee: | 2 years |
Brand:
AXON
