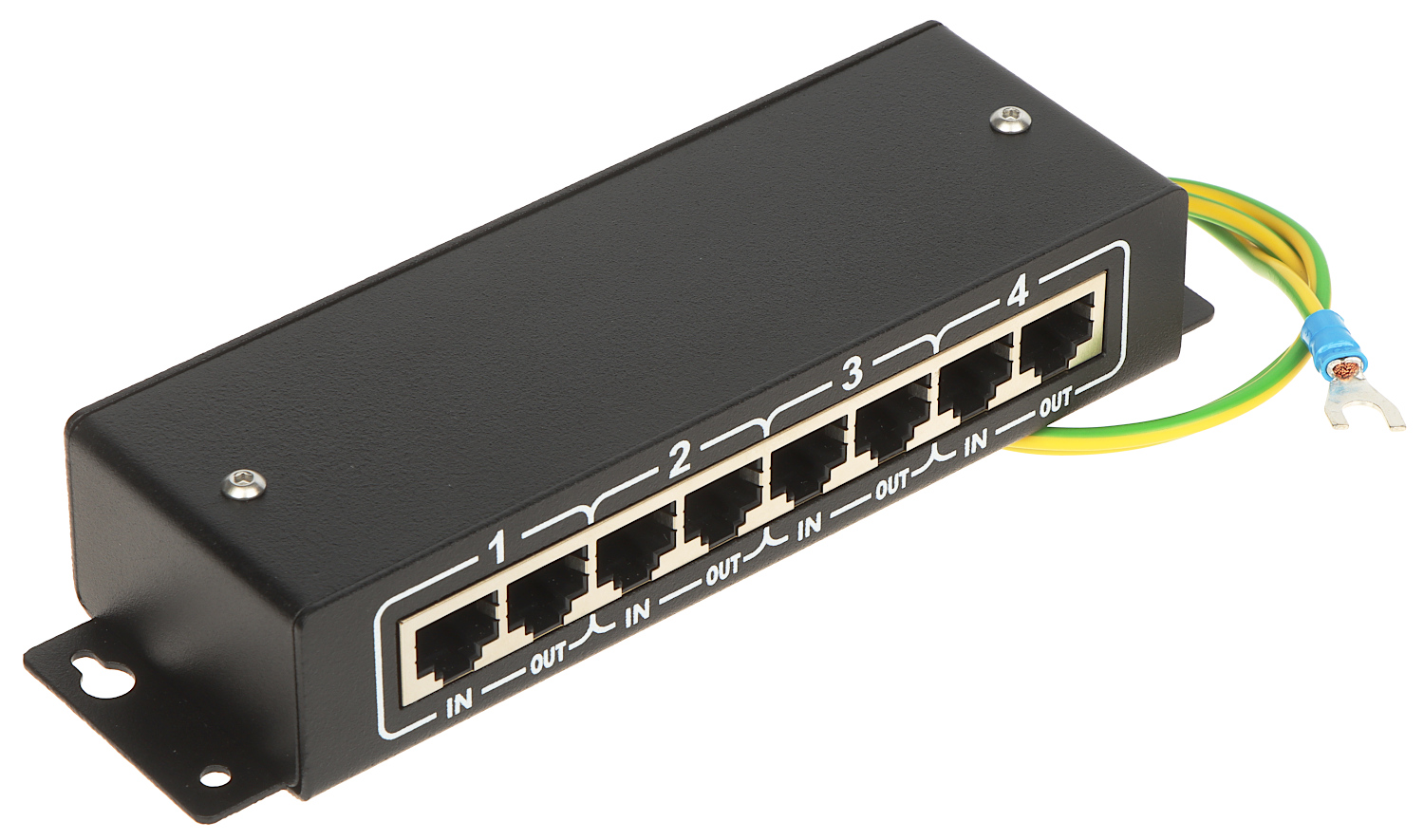

OVERVOLTAGE LIMITER AXON-MULTINET-4 ETHERNET
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks - protects 4 pairs of UTP cable; Number of channels: 4 ; Rated voltage: 5 V ; Voltage protection level (line-line): ≤ 40 V - 1 kV/µs [C3] ; Voltage protection level line-PG: ≤ 600 V - 1 kV/µs [C3] ; Nominal discharge current (line-line): 20 A - 10/1000 µs [C3] ; Nominal discharge current (line-PG): 20 A - 10/1000 µs [C3] ;
| Number of channels: | 4 |
| Transmission speed: | 10 / 100 / 1000 Mbps |
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level (line-line): | ≤ 40 V - 1 kV/µs [C3] |
| Voltage protection level line-PG: | ≤ 600 V - 1 kV/µs [C3] |
| Nominal discharge current (line-line): | 20 A - 10/1000 µs [C3] |
| Nominal discharge current (line-PG): | 20 A - 10/1000 µs [C3] |
| Protection parameters compliance: | Compliance with PN-EN61643-21 |

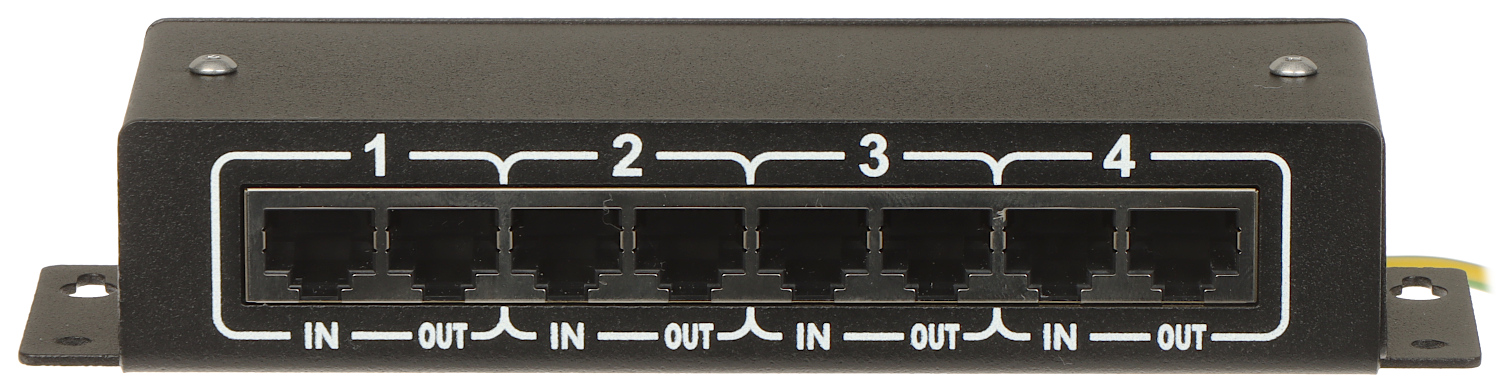

| Sockets type: | 8 x RJ-45 shielded socket (8P8C) ( 4 Inputs, 4 Outputs ) |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Housing: | Metal, black |
| Weight: | 0.31 kg |
| Dimensions: | 162 x 52 x 32 mm |

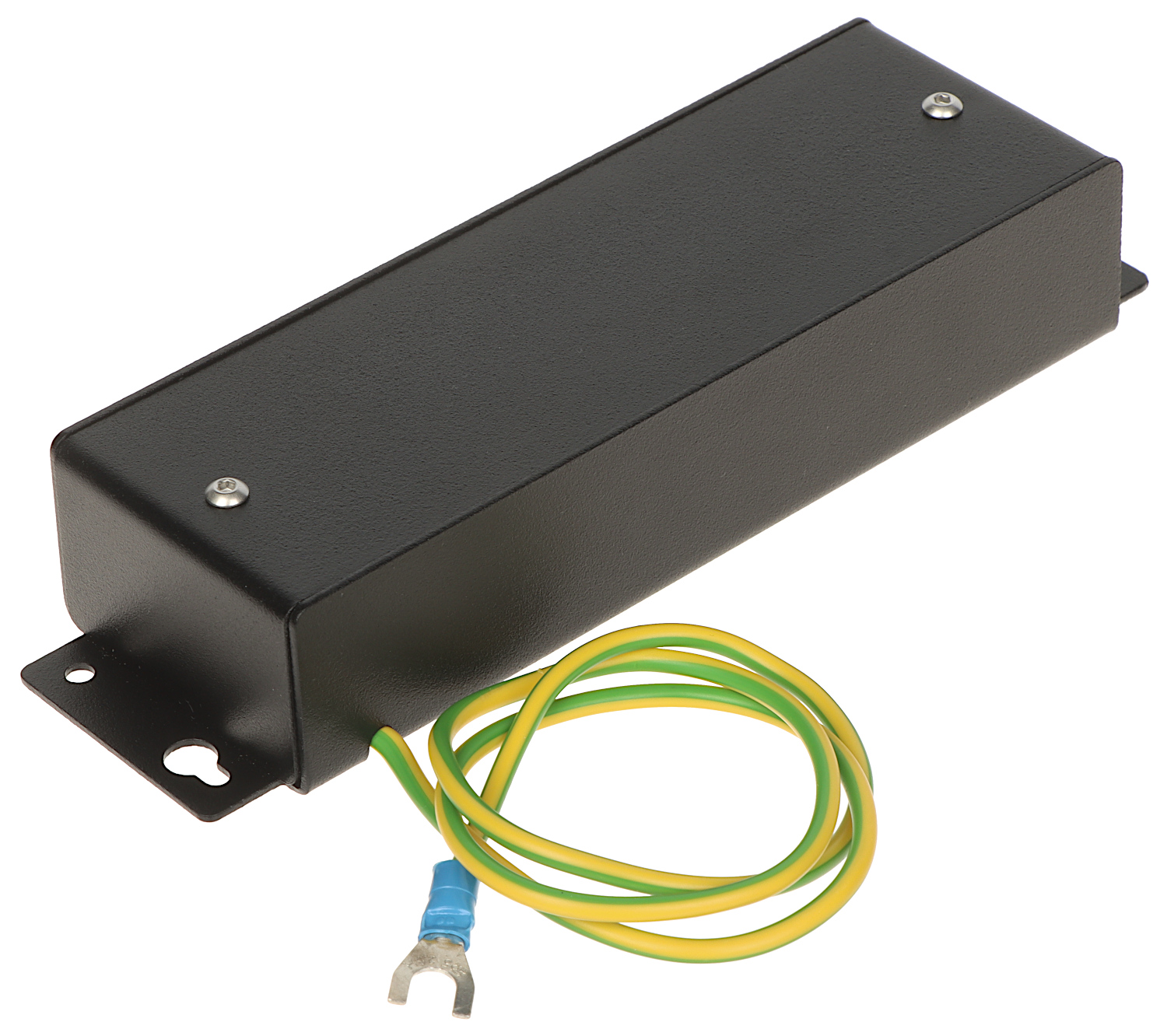

| Length of grounding cable: | 52 cm |
| Guarantee: | 3 years |
Brand:
AXON
