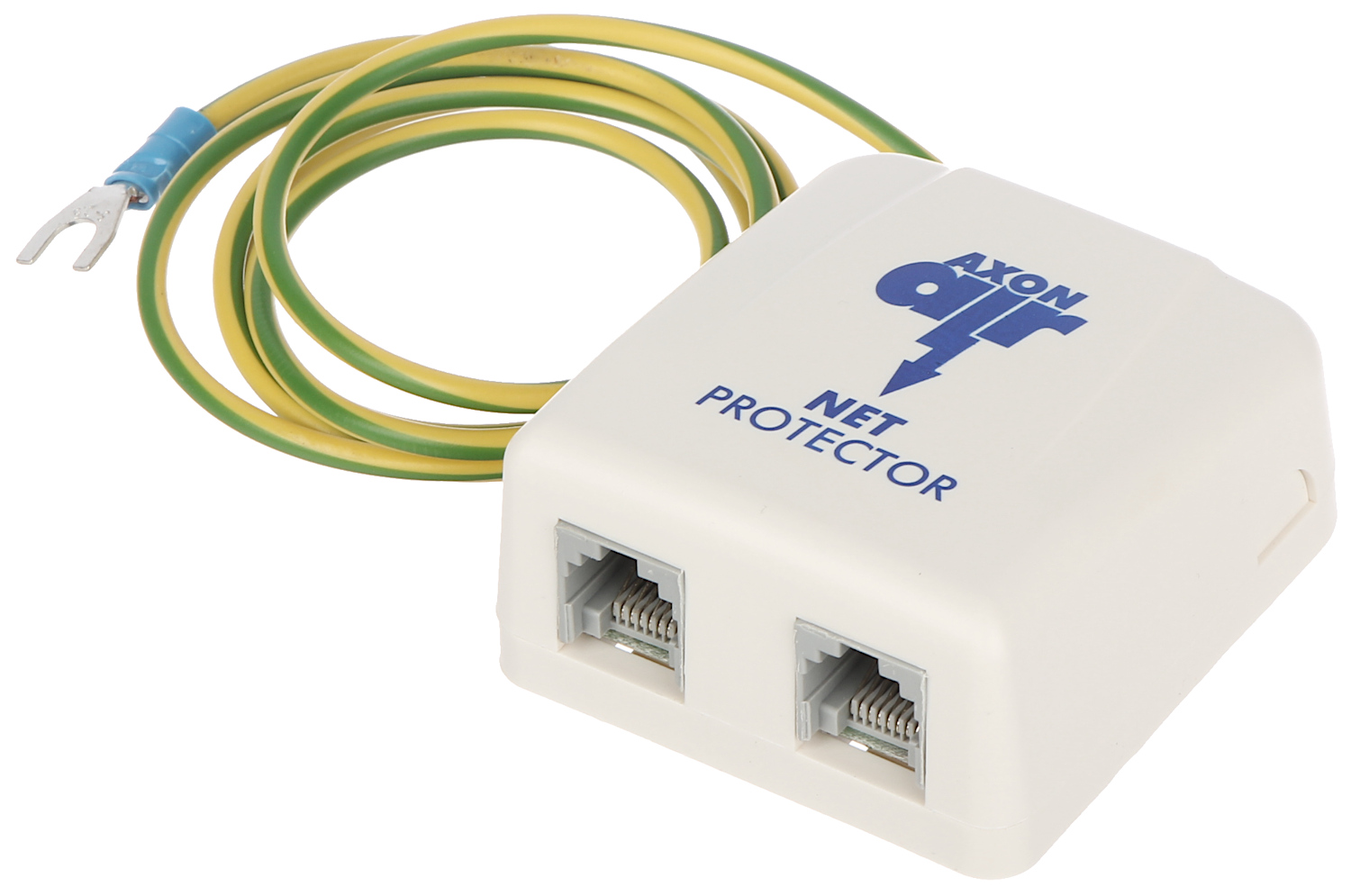

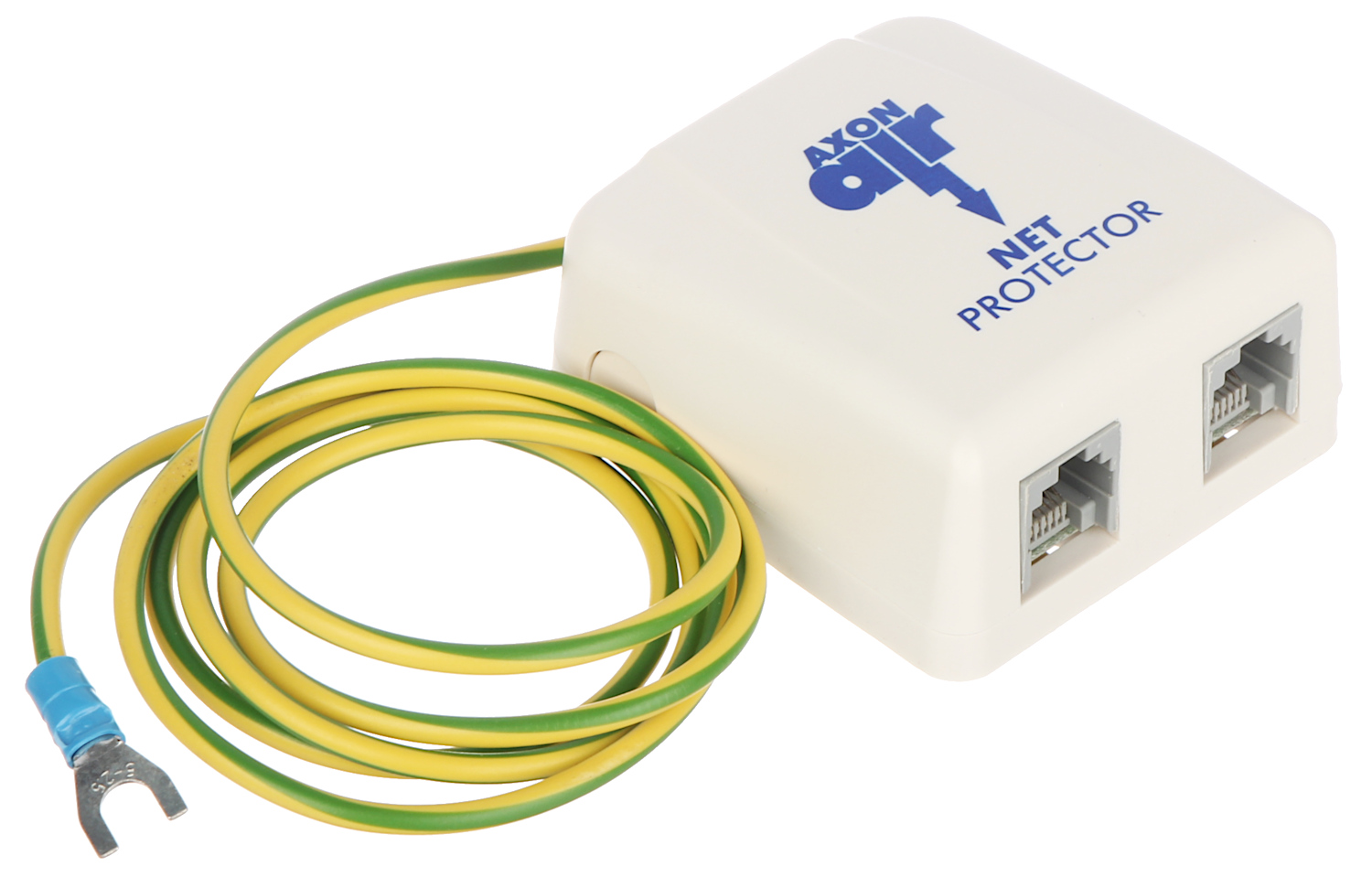

OVERVOLTAGE LIMITER AXON-AIR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks - protects 4 pairs of UTP cable; Rated voltage: 5 V ; Protection level: 1000 V ; Nominal stroke current: 2.5 kA (8/20µs) ;
| Rated voltage: | 5 V |
| Maximal voltage: | 60 V |
| Protection level: | 1000 V |
| Nominal stroke current: | 2.5 kA (8/20µs) |
| Maximum stroke current: | 5 kA (8/20µs) |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |

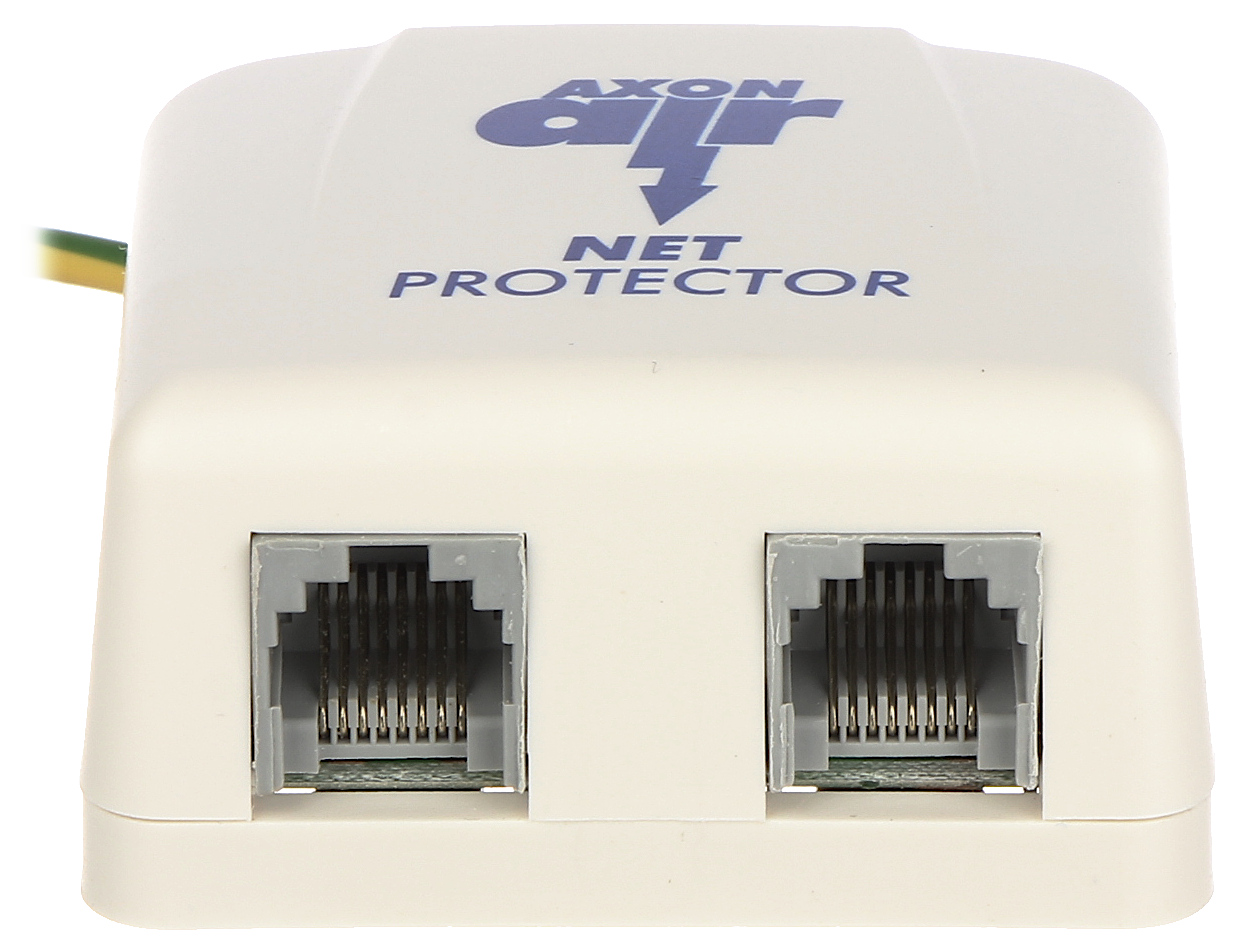

| Sockets type: | RJ45 (8P8C) |
| Dimensions: | 66 x 60 x 30 mm |
| Weight: | 0.08 kg |
| Guarantee: | 2 years |
Brand:
AXON
