OVERVOLTAGE LIMITER AXON-AIR/PROF
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

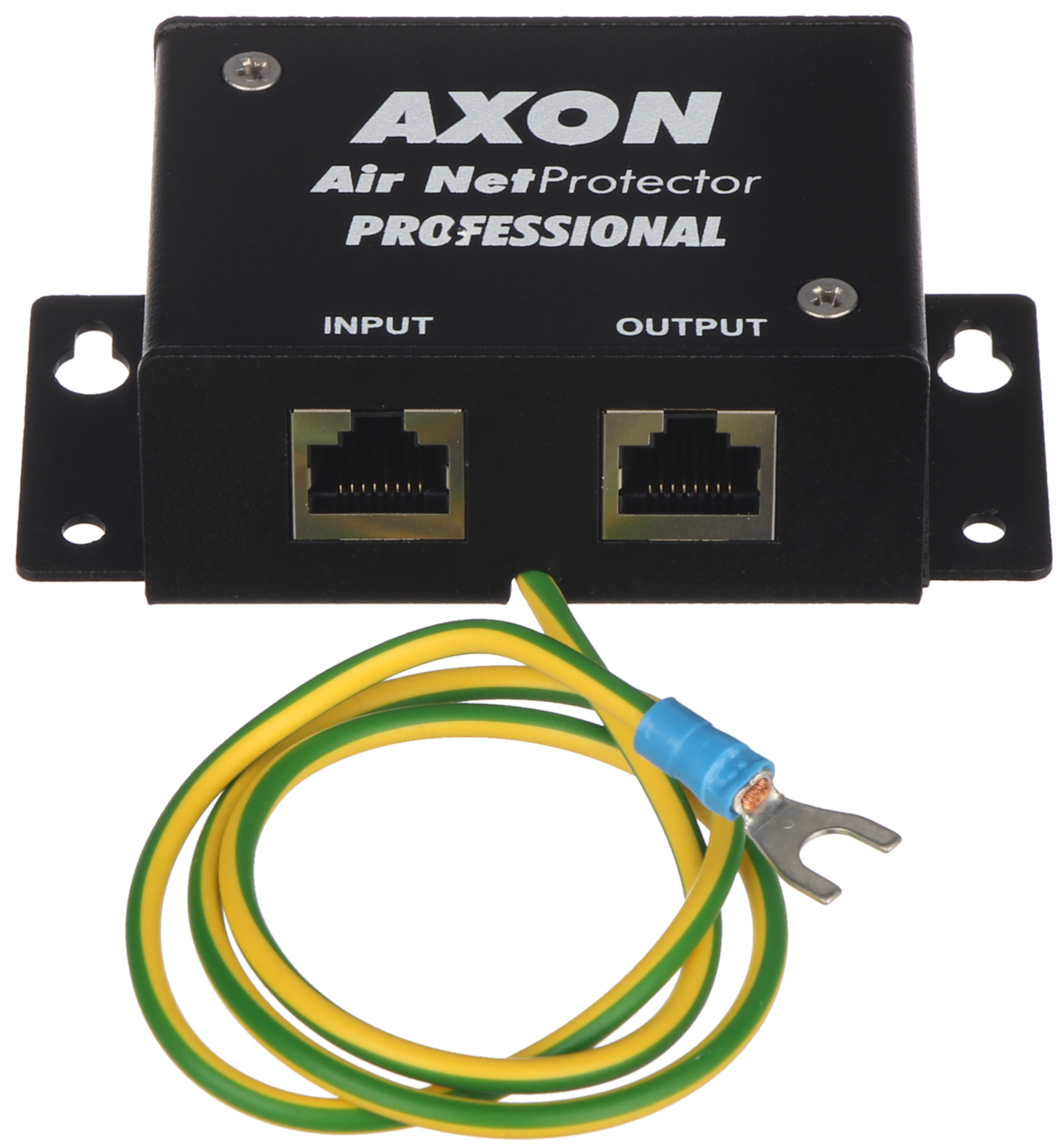

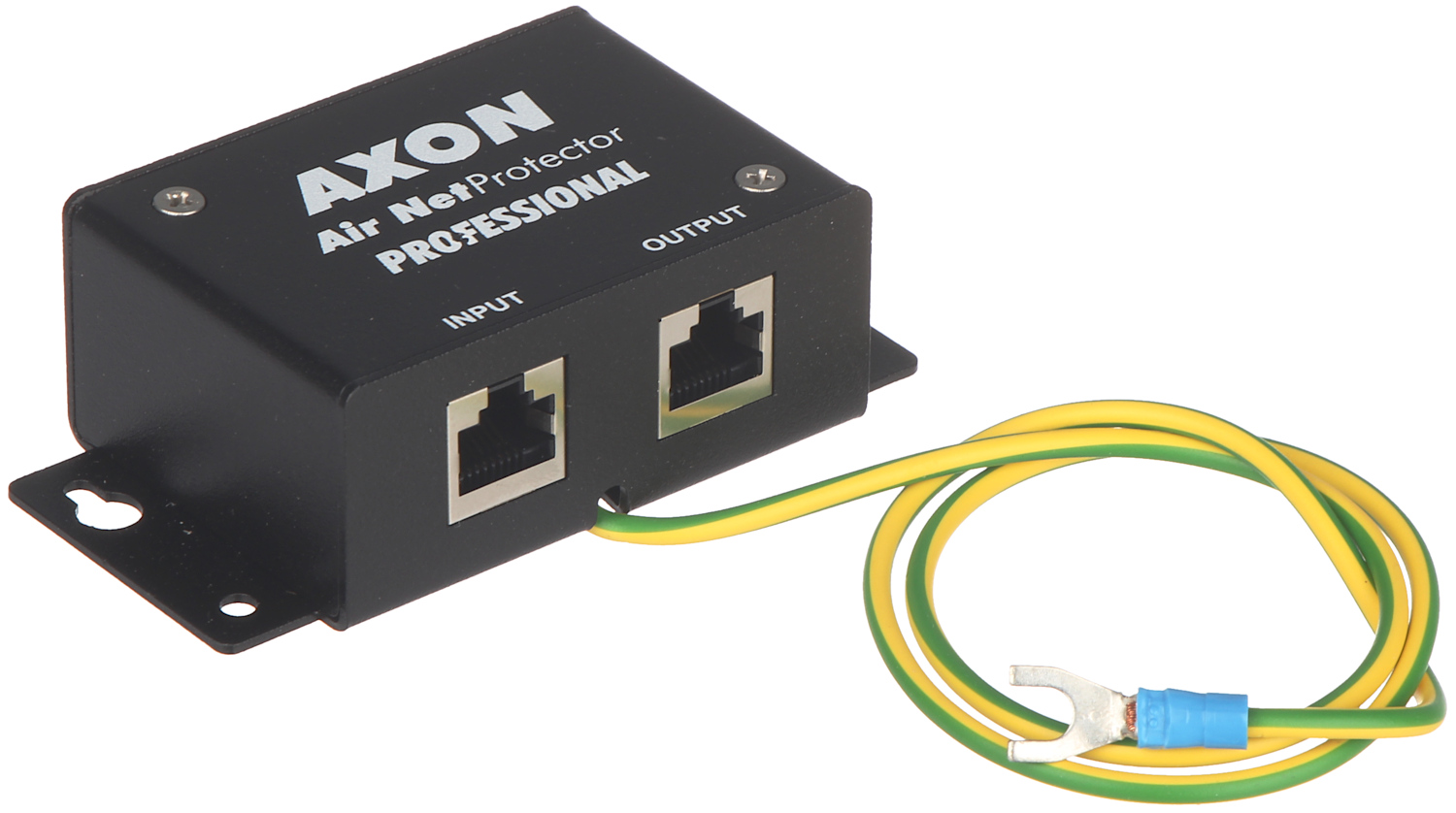

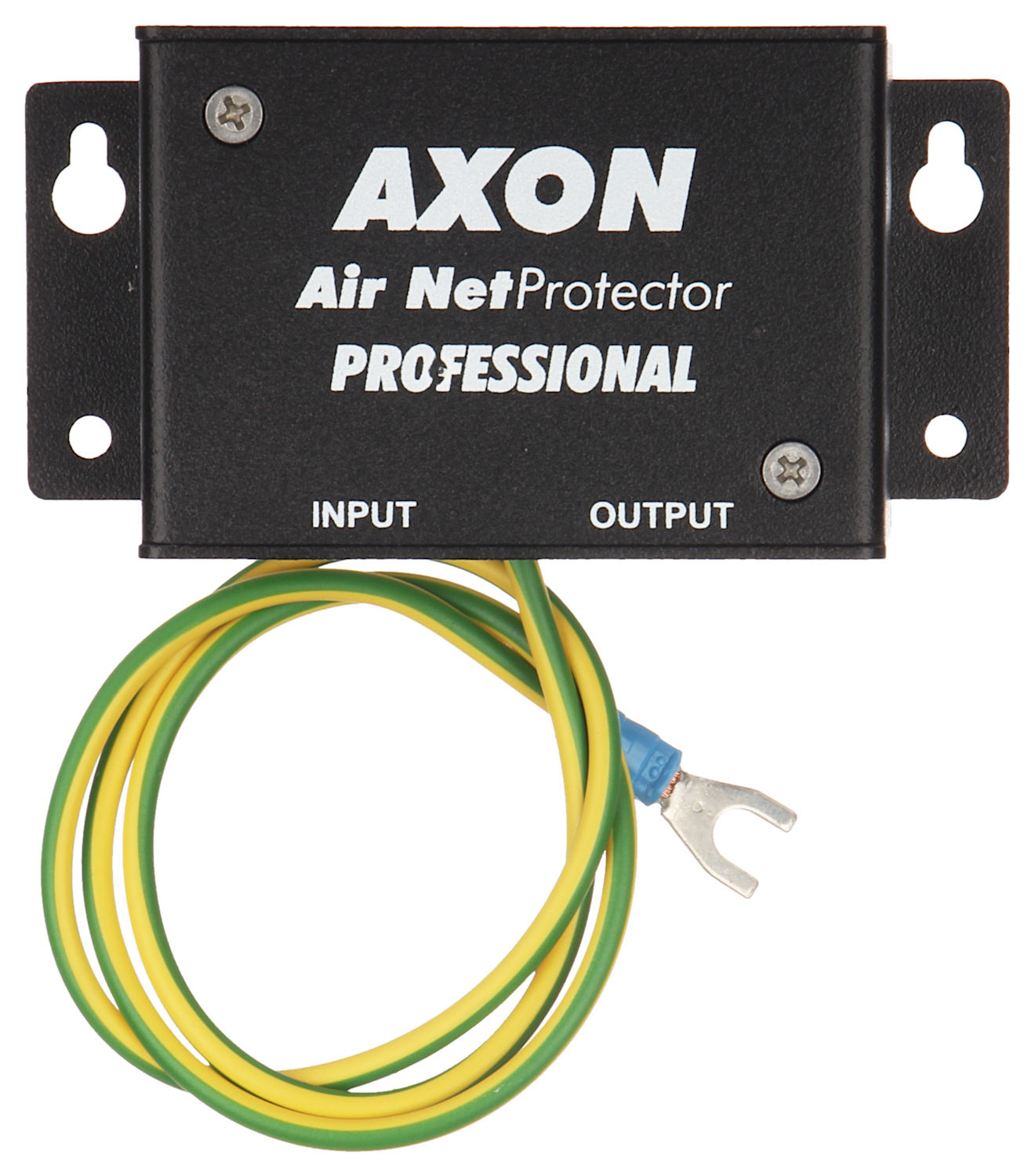

Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks - protects 4 pairs of UTP cable; Rated voltage: 120 V ; Voltage protection level line-PG: 1000 V (1.2/50µs) ; Nominal discharge current (line-PG): 2 kA (8/20µs) ;
| Rated voltage: | 120 V |
| Maximal voltage: | 150 V |
| Voltage protection level line-PG: | 1000 V (1.2/50µs) |
| Nominal discharge current (line-PG): | 2 kA (8/20µs) |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Sockets type: | RJ45 (8P8C) |

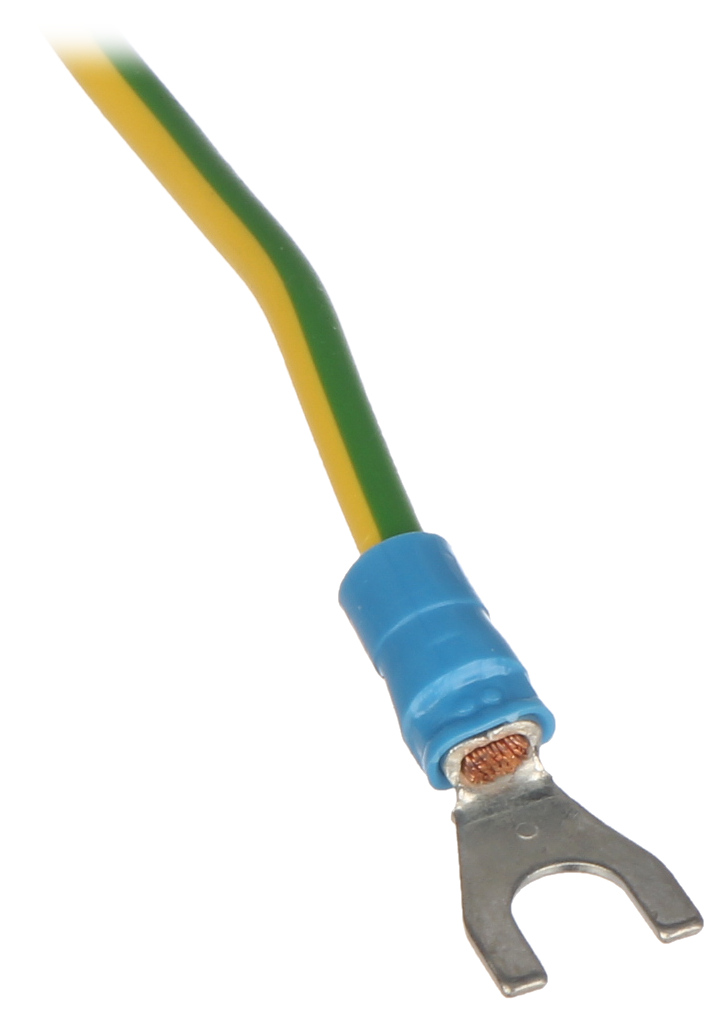

| Length of grounding cable: | 0.5 m |
| Housing: | Metal, black |
| Norm: | Compliance with PN-EN61643-21 |
| Dimensions: | 95 x 50 x 30 mm |
| Weight: | 0.174 kg |
| Guarantee: | 2 years |
Brand:
AXON
